DC 24V power supply relay module XH-M175 relay module 30A high current relay

XH-M175 relay module normally open normally closed 30A high current relay output 5V 12V 24V power supply

Name: Relay Module
Model: XH-M175
Power supply: 5V 12V 24V
Interface: 5 pinhole interfaces
Indicator light: Yes
Bolt hole: Yes
Interface: human interface
Performance: strong driving ability and stability
Appearance size: length 5.9 * height 2.7 * width 4cm
Service life: long

1. Normally open interface load: 250V/30A, DC 30V
2. Strong driving ability, stable and durable
3. Module working voltage has 5V12V24V to choose from

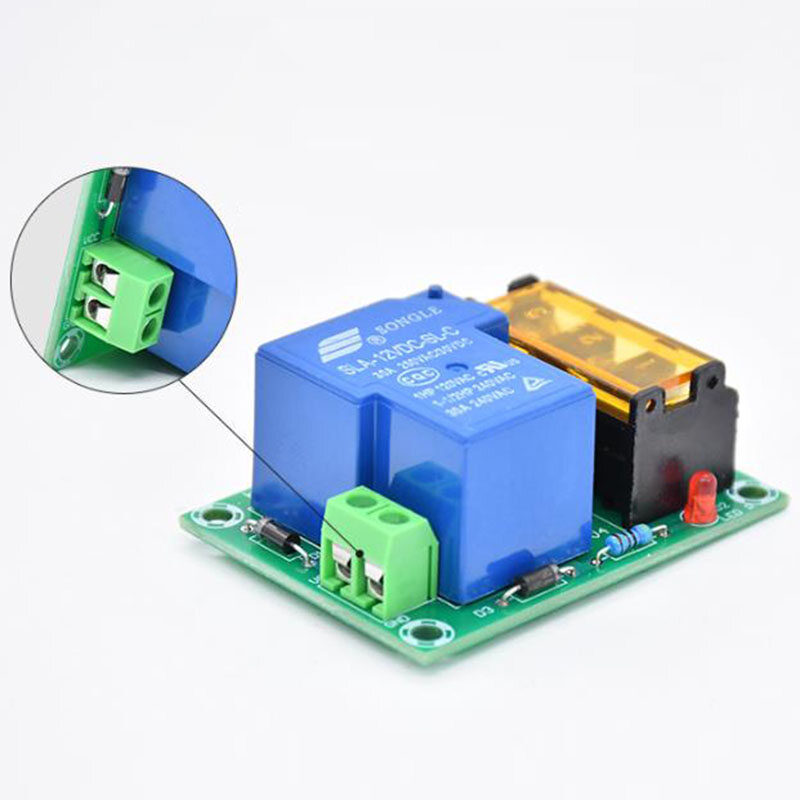

4. The interface is humanized, and the interface end lead is very convenient. Fixed bolt hole design.

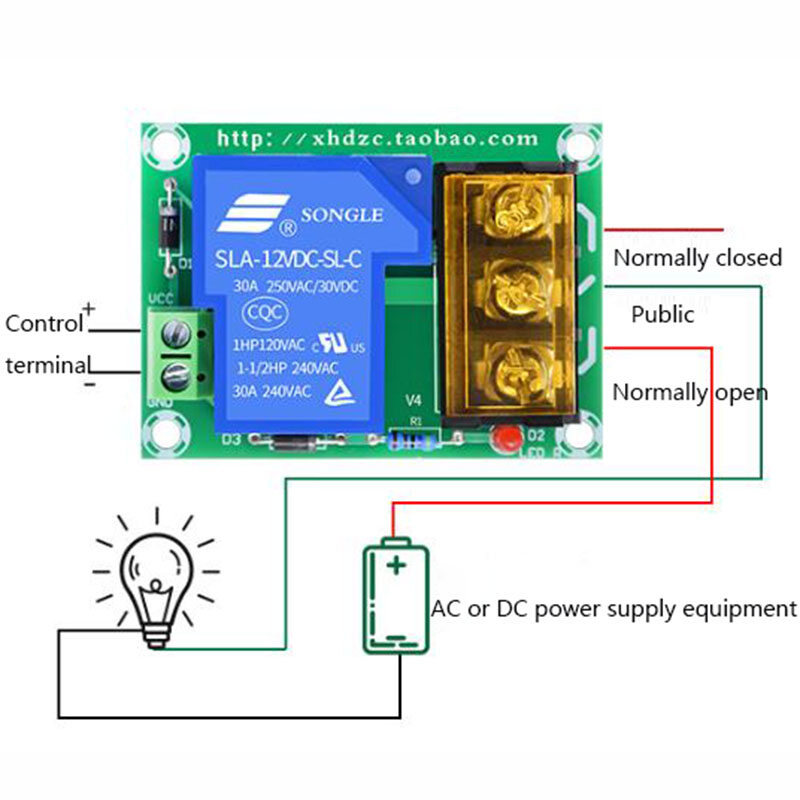

The relay module is essentially a mechanical switch (single-pole double-throw) controlled by an electromagnetic isolation method. The switch has three ports: normally open, normally closed, and common. There is nothing to do with the positive, negative, and signal terminals on the module. Wire connection. It only has the following functions: when the relay is closed, public and normally open are connected, and public and normally closed are disconnected. When the relay is off, public and normally open are disconnected, and public and normally closed are connected.

* VCC means live wire, GNG means ground wire or neutral wire
