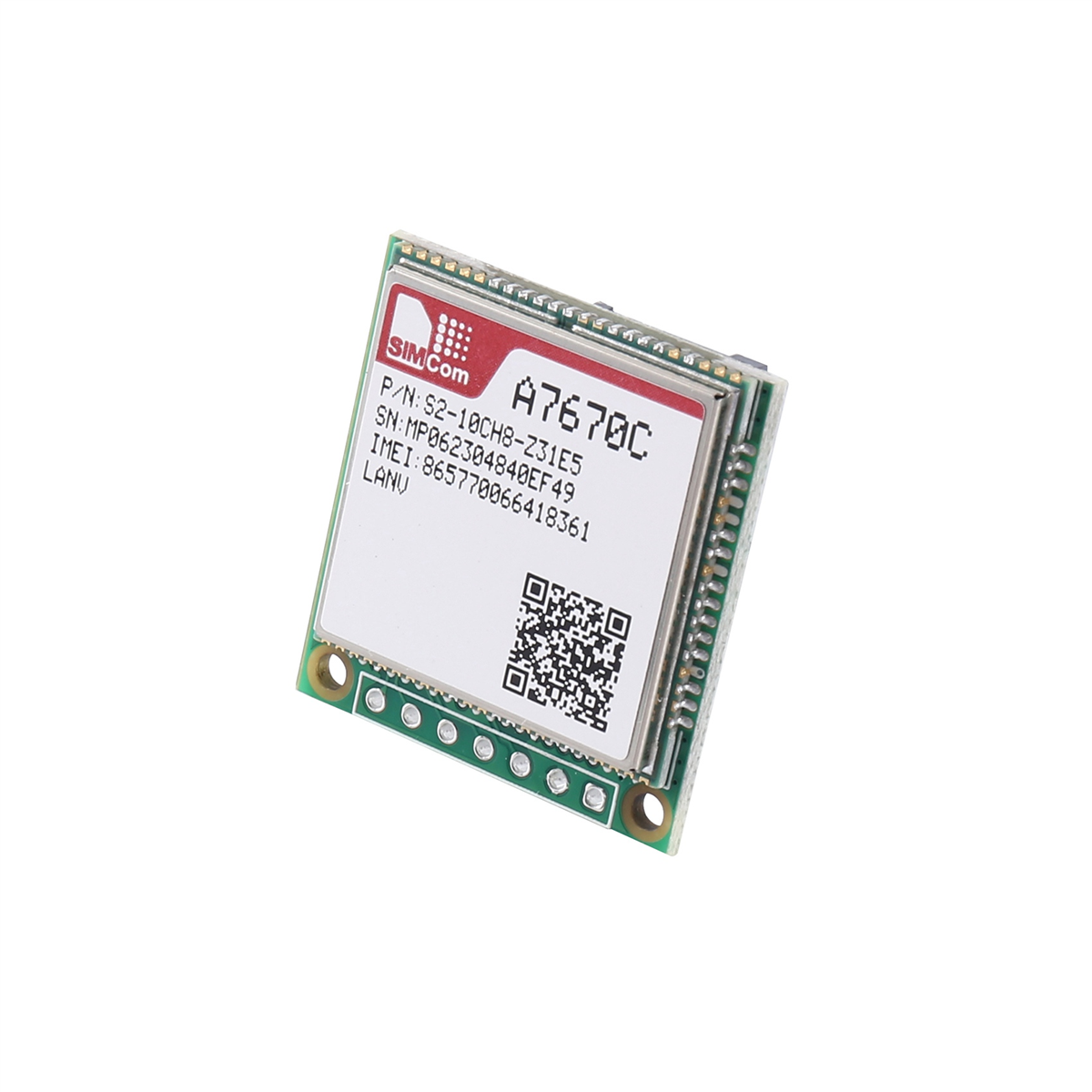

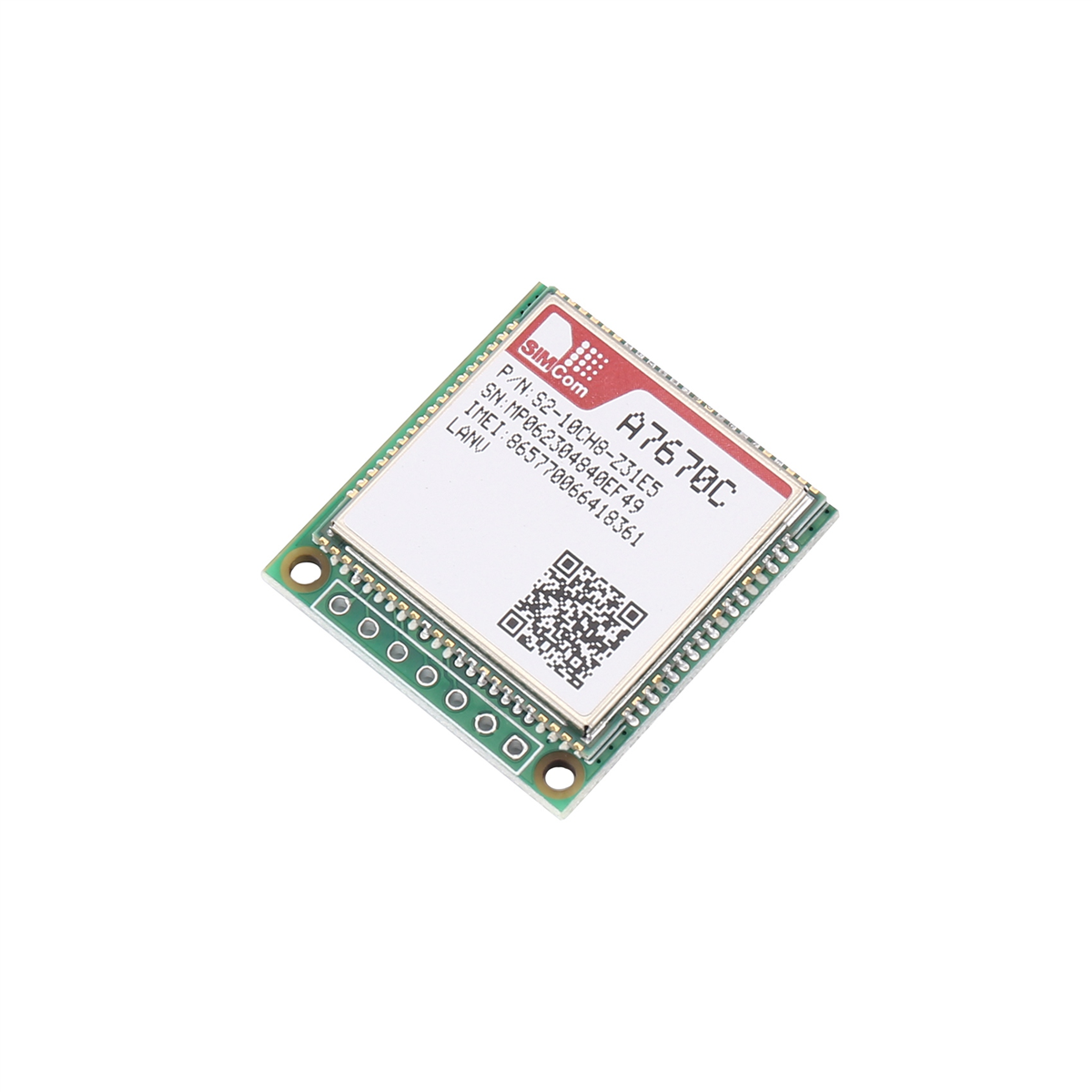

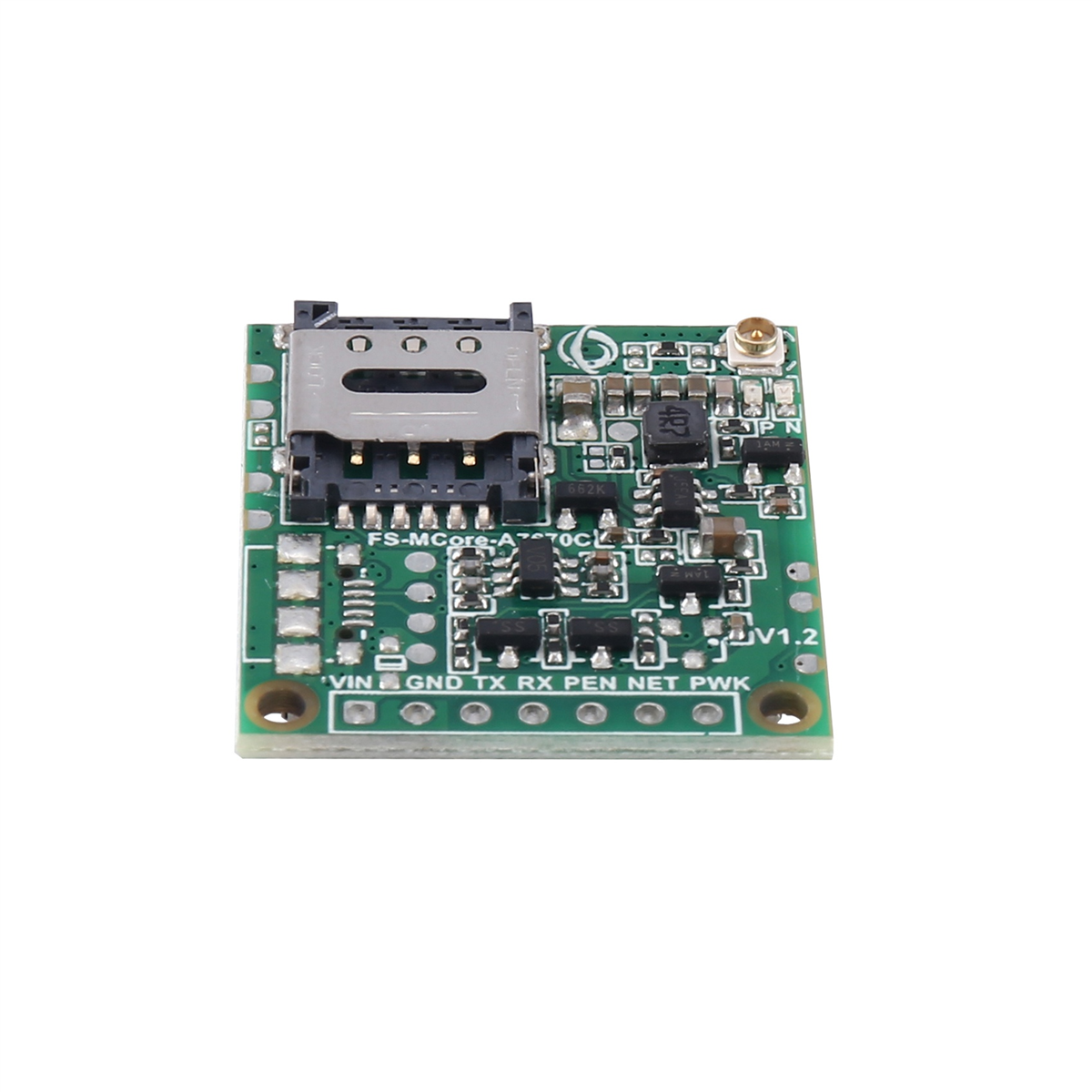

Core Development Board Module Plastic 4G Module CAT.1 Full Network Passband 2G STM32 Routine FS-MCore-A7670C

Features: 1. 4G Module Cat.1 Core Development Board Module Full Network Communication With 2GSTM32 Routine
2. The Core Board Is An Electronic Motherboard That Packages The Core Functions Of Mnpc. Most Core Boards Integrate Cpus, Storage Devices, And Pins That Are Connected To The Matching Backplane To Implement A Certain Domain Of Soc.
3. Enrich Application Documentation, Video Tutorials And Test Routines, And Update Them Synchronously
4. Dedicated At Debugging Tool, Convenient And Fast
5. Online Fae Full Technical Support

Description:
1.Product Name: 4Gcat1 Core Board
2.Product Model:FS-mcore-a7670CX
3.Package Type: Pin Type 7pin (2.54mm)
4.Power Supply: 5-16v DC
5.Serial Port: Ttl Level (Default 3.3V)

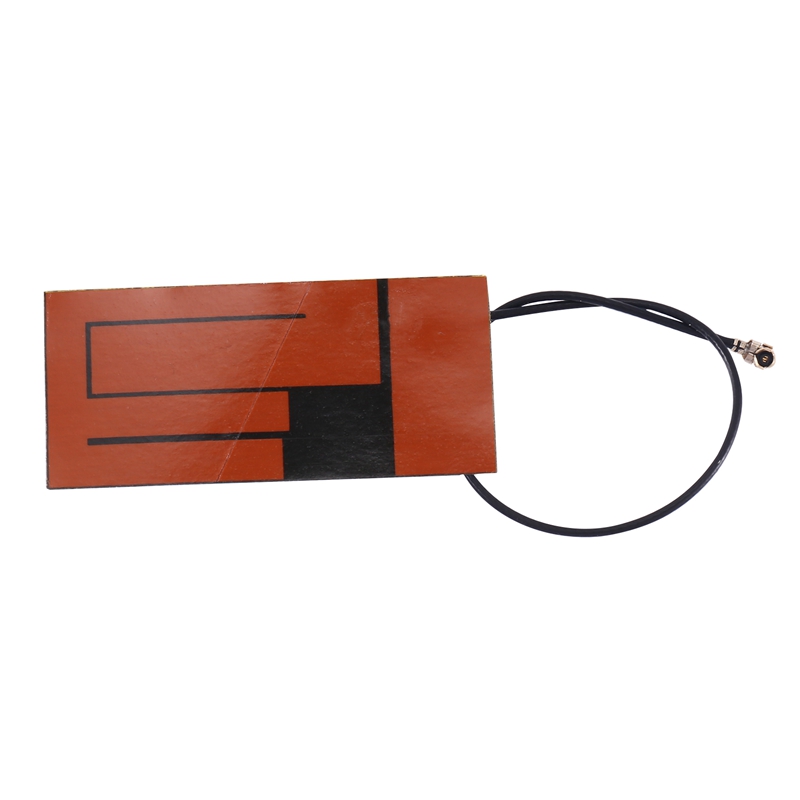

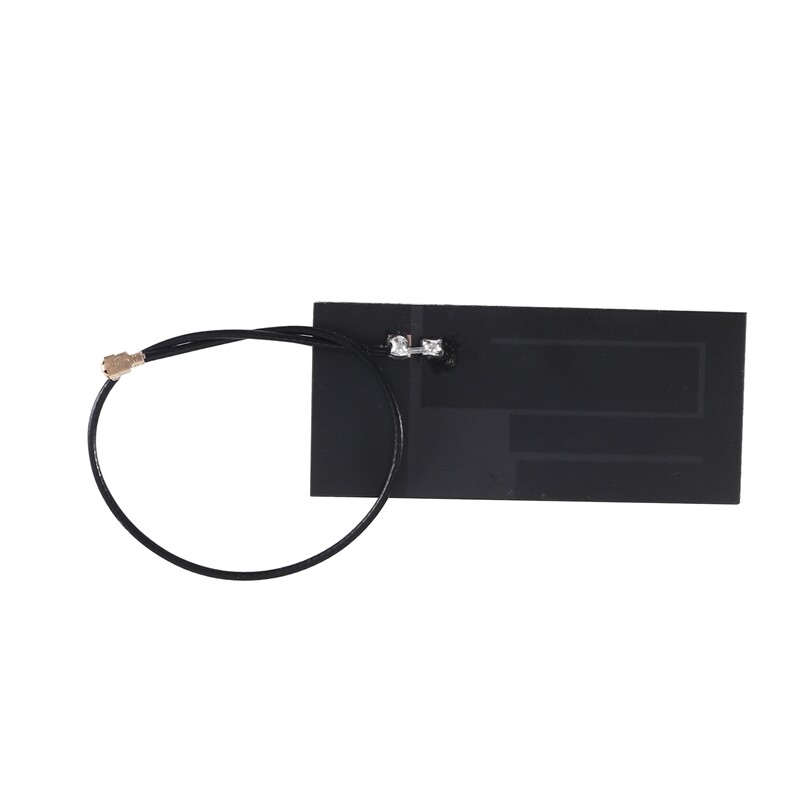

6.Antenna Interface: Ipex Mount (1st Generation)
7.Sim Card Interface: Clamshell Type Nano Sim Card Holder
8.Led Light: Power Indicator, Network Indicator
9.Dimensions:2.8 x 2.6 x 1.24cm (Including Pin Height)
10.Working Temperature: -40°C-85°C
11.Network Frequency Band: Lte-Tdd: B34/B38/B38/B49/B41; Lte-Fdd:B1/B3/B8; Gsm/Gprs:900/1800mhz
12.Function: Data Transfer
13.Color: As Shown
14.Material: plastic

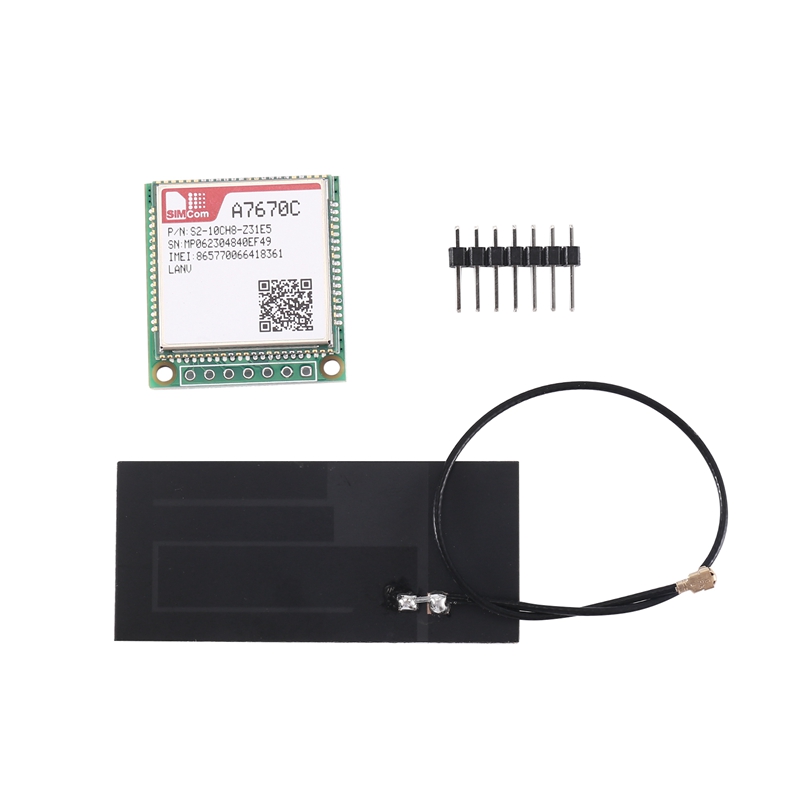

Package Contents:
1 Set 4G Core Development Board
