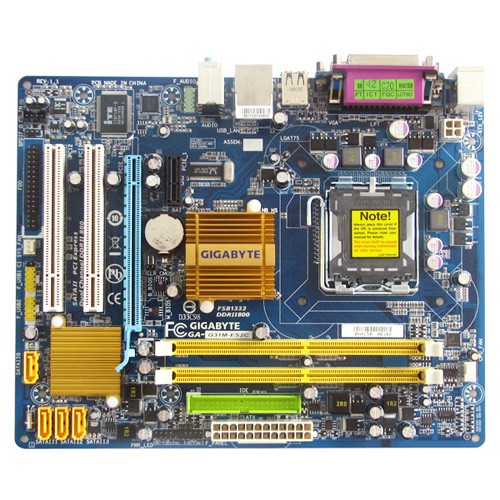

Combo Mainboard Gigabyte G31 + Chip E 8400

CPU Support for an Intel® Core™ 2 Extreme processor/ Intel® Core™ 2 Quad processor/Intel® Core™ 2 Duo processor/ Intel® Pentium® processor/Intel® Celeron® processor in the LGA 775 package (Go to GIGABYTE's website for the latest CPU support list.) L2 cache varies with CPU Bus mặt trước 1600(O.C.)/1333/1066/800 MHz FSB Chipset North Bridge: Intel® G31 Express Chipset South Bridge: Intel® ICH7 Bộ nhớ 2 x 1.8V DDR2 DIMM sockets supporting up to 4 GB of system memory Dual channel memory architecture Support for DDR2 1066(O.C.)/800/667 MHz memory modules (Go to GIGABYTE's website for the latest memory support list.) Card đồ họa tích hợp Integrated in the North Bridge Âm thanh Realtek ALC883 codec High Definition Audio 2/4/5.1/7.1-channel (Note) Support for S/PDIF Out Support for CD In Note: To configure 7.1-channel audio, you need connect with the port of HD Audio standard via front panel and enable the multi-channel audio feature through the audio driver. LAN AR8132 chip (10/100 Mbit) Khe cắm mở rộng 1 x PCI Express x16 slot 1 x PCI Express x1 slot 2 x PCI slots Giao diện lưu trữ South Bridge: 1 x IDE connector supporting ATA-100/66/33 and up to 2 IDE devices 4 x SATA 3Gb/s connectors supporting up to 4 SATA 3Gb/s devices iTE IT8718 chip: 1 x floppy disk drive connector supporting up to 1 floppy disk drive USB Integrated in the South Bridge Up to 8 USB 2.0/1.1 ports (4 on the back panel, 4 via the USB brackets connected to the internal USB headers) Kết nối I/O bên trong 1 x 24-pin ATX main power connector 1 x 4-pin ATX 12V power connector 1 x floppy disk drive connector 1 x IDE connector 4 x SATA 3Gb/s connectors 1 x CPU fan header 1 x system fan header 1 x front panel header 1 x front panel audio header 1 x CD In connector 1 x S/PDIF Out header 2 x USB 2.0/1.1 headers 1 x chassis intrusion header 1 x power LED header Kết nối bảng phía sau 1 x PS/2 keyboard port 1 x PS/2 mouse port 1 x parallel port 1 x serial port 1 x D-Sub port 4 x USB 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks (Line In/Line Out/Microphone) Điều khiển I/O iTE IT8718 chip #g31 #main #mainboard #775 #gigabyte #khung #game #lol #fifa #ros #pubg #pc #maytinh #main #vanphong #giare #hoctap #lamviec #facebook
