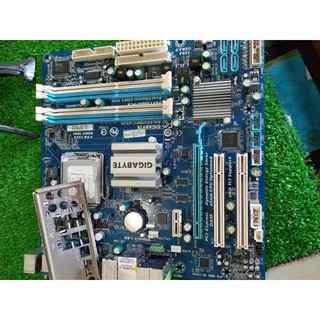

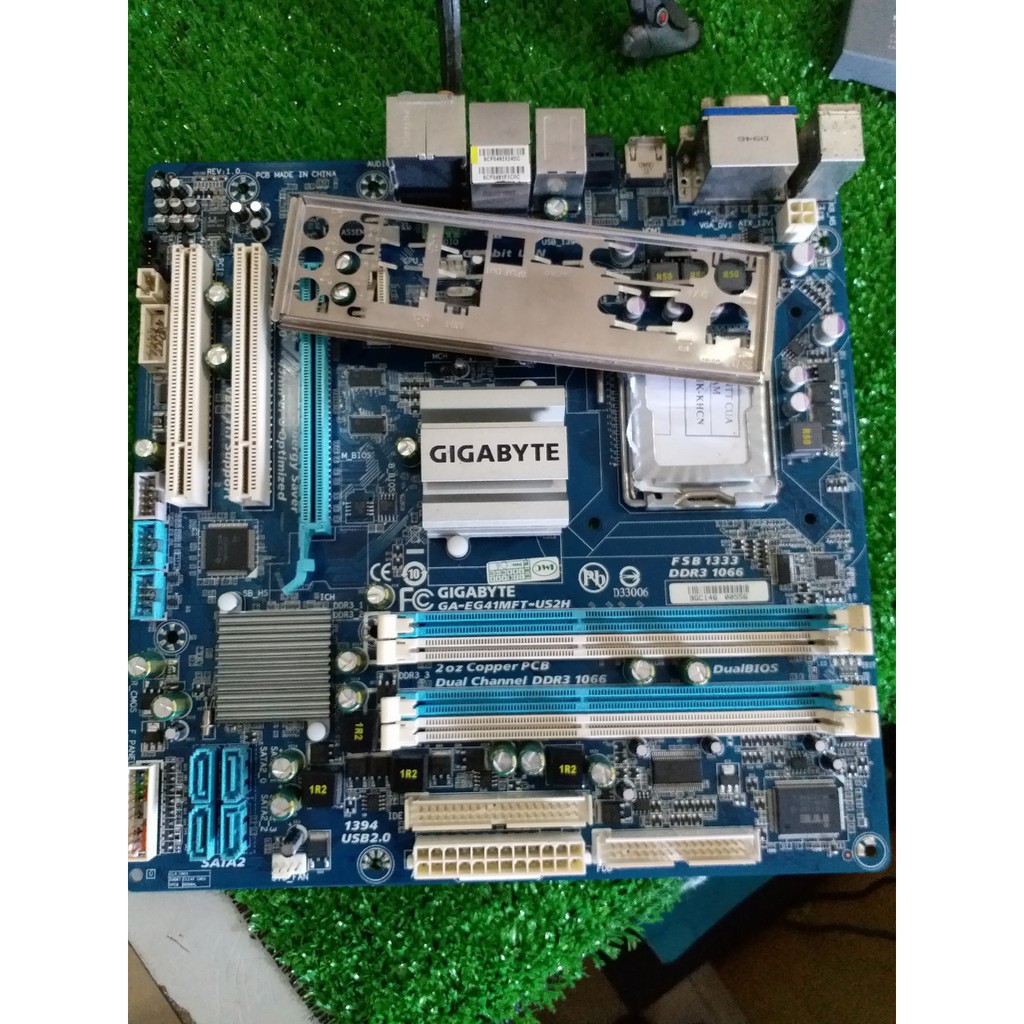

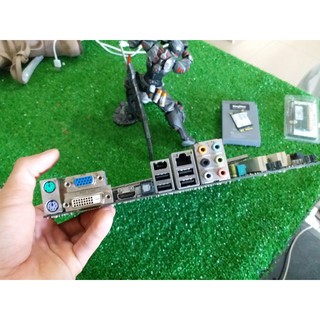

mainboard gigabyte GA-EG41MFT-US2H

CPU Bus mặt trước Chipset Bộ nhớ Card đồ họa tích hợp Âm thanh LAN Khe cắm mở rộng Giao diện lưu trữ USB IEEE 1394 Kết nối I/O bên trong Kết nối bảng phía sau Điều khiển I/O Theo dõi phần cứng BIOS Tính năng duy nhất Gói phần mềm Hệ điều hành Hệ số khuôn Lưu ý Ghi chú Support for an Intel® Core™ 2 Extreme processor/ Intel® Core™ 2 Quad processor/Intel® Core™ 2 Duo processor/Intel® Pentium® Dual-Core processo/Intel® Celeron® processor in the LGA 775 package L2 cache varies with CPU 1333/1066/800 MHz FSB North Bridge: Intel® G41 Chipset South Bridge: Intel® ICH7 4 x 1.8V DDR2 DIMM sockets supporting up to 8 GB of system memory (Note 1) Dual channel memory architecture (Note 2) Support for DDR2 1066(OC)/800/667 MHz memory modules Because of chipset limitations * To avoid the system being unable to start or the memory being incorrectly detected, if only one memory module is to be installed, we suggest that you install it on the DDR2_1 or DDR2_3 socket; to install two memory modules, we suggest that you install them on the DDR2_1 and DDR2_3 sockets. * Do not populate both DIMM sockets of the same channel (e.g. DDR and DDR2), or populate 4 DIMM sockets with double-sided memory modules to prevent system's failure to start or incorrect detection of memory modules. Please refer to the user manual for the memory configurations table. North Bridge: 1 x D-Sub port 1 x DVI-D port (Note 3) (Note 4) 1 x HDMI port (Note 4) Realtek ALC888 codec High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF In/Out Support for CD In Realtek 8111C/D chip (10/100/1000 Mbit) 1 x PCI Express x16 slot, running at x 16 (Note 4) 1 x PCI Express x1 slot 2 x PCI slots South Bridge: 1 x IDE connector supporting ATA-100/66/33 and up to 2 IDE devices 4 x SATA 3Gb/s connectors supporting up to 4 SATA 3Gb/s devices iTE IT8718 chip: 1 x floppy disk drive connector supporting up to 1 floppy disk drive Integrated in the South Bridge Up to 8 USB 2.0/1.1 ports (4 on the back panel, 4 via the USB brackets connected to the internal USB headers) T.I. TSB43AB23 chip Up to 2 IEEE 1394a ports (1 on the back panel, 1 via the IEEE 1394a bracket connected to the internal IEEE 1394a header) 1 x 24-pin ATX main power connector 1 x 4-pin ATX 12V power connector 1 x floppy disk drive connector 1 x IDE connector 4 x SATA 3Gb/s connectors 1 x CPU fan header 1 x system fan header 1 x front panel header 1 x front panel audio header 1 x CD In connector 1 x S/PDIF In header 1 x S/PDIF Out header 2 x USB 2.0/1.1 headers 1 x IEEE 1394a header 1 x serial port header 1 x power LED header 1 x chassis intrusion header 1 x clearing CMOS jumper 1 x PS/2 keyboard port 1 x PS/2 mouse port 1 x D-Sub port 1 x DVI-D port (Note 3)(Note 4) 1 x HDMI port (Note 4) 1 x optical S/PDIF Out connector 4 x USB 2.0/1.1 ports 1 x IEEE 1394a port 1 x RJ-45 port 6 x audio jacks (Center/Subwoofer Speaker Out/Rear Speaker Out/Side Speaker Out/Line In/Line out/Microphone)
