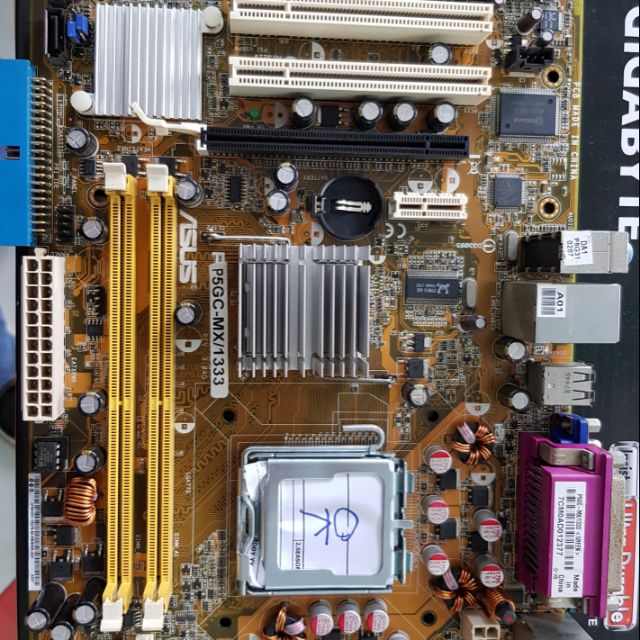

Bo mạch chủ (Mainboard) Asus P5GC-MX

hông số kỹ thuật Hỗ trợ CPU LGA775 socket for Intel® Core™2 Duo / Pentium® D / Pentium® 4 / Celeron® D Processors  Compatible with Intel® 05B/05A/06 processors Intel® Hyper-Threading Technology ready * Refer to www.asus.com for Intel CPU support list Chipset Intel® 945GC(A2) / ICH7 Front Side Bus *1333 / 1066 / 800 / 533 MHz (*1333 MHz when overclocking) Memory 2 x DIMM, max. 4GB, DDR2 667/533 MHz, non-ECC, un-buffered memory Dual channel memory architecture * Refer to www.asus.com or user manual for Memory QVL (Qualify Vendor List) Expansion Slots 1 x PCI-E x16 @16 1 x PCI-E x1  2 x PCI 2.2 VGA Intel Graphics Media Accelerator 950 Max. resolution:2048x1536@75Hz Max. Vertical Refresh Rate:85Hz@ up to 1920x1440 Storage Southbridge: - 1 x UltraDMA 100/66/33 - 4 x Serial ATA 3Gb/s LAN PCIe 10/100M LAN controller Audio Realtek ALC883, 6-CH High-Definition Audio CODEC USB 8 x USB2.0 ports (4 ports at mid-board, 4 ports at back panel) Special Features ASUS CrashFree BIOS 2  ASUS Q-Fan  ASUS EZ Flash ASUS MyLogo Back Panel I/O Ports 1 x PS/2 Keyboard 1 x PS/2 Mouse 1 x VGA 1 x Serial port 1 x Parallel port 1 x LAN (RJ45) port 4 x USB 2.0 6 Channel Audio I/O Internal I/O Connectors 2 x USB connectors support additional 4 USB ports 1 x Floppy disk drive connector 1 x IDE connector 4 x SATA connectors 1 x CPU/ Chassis Fan connector Front panel High Definition audio connector 1 x S/PDIF Out connector Chassis Intrusion connector CD audio in 24-pin ATX Power connector 4-pin ATX 12V Power connector System Panel BIOS 4 Mb Flash ROM, AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.3 Manageability WfM 2.0, DMI 2.0, WOL by PME, WOR by PME O/S Compatibility Windows Vista/XP/2000 Accessories 1 x UltraDMA 100/66 cable 1 x Floppy disk drive cable 1 x SATA cable 1 x SATA Power cable I/O Shield User's manual Support CD Drivers ASUS PC Probe II ASUS Update  Anti-virus software Form Factor uATX Form Factor, 9.6"x 7.4" (24.5cm x 18.8cm)
