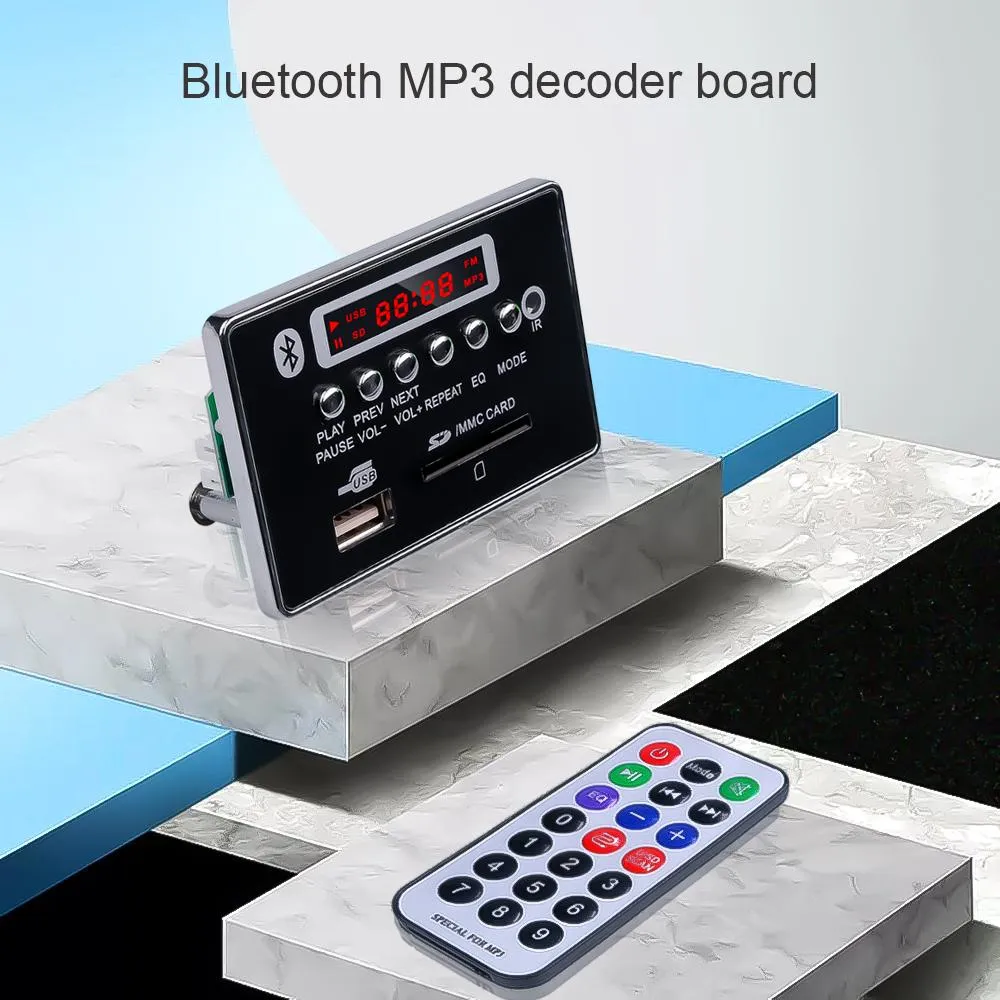

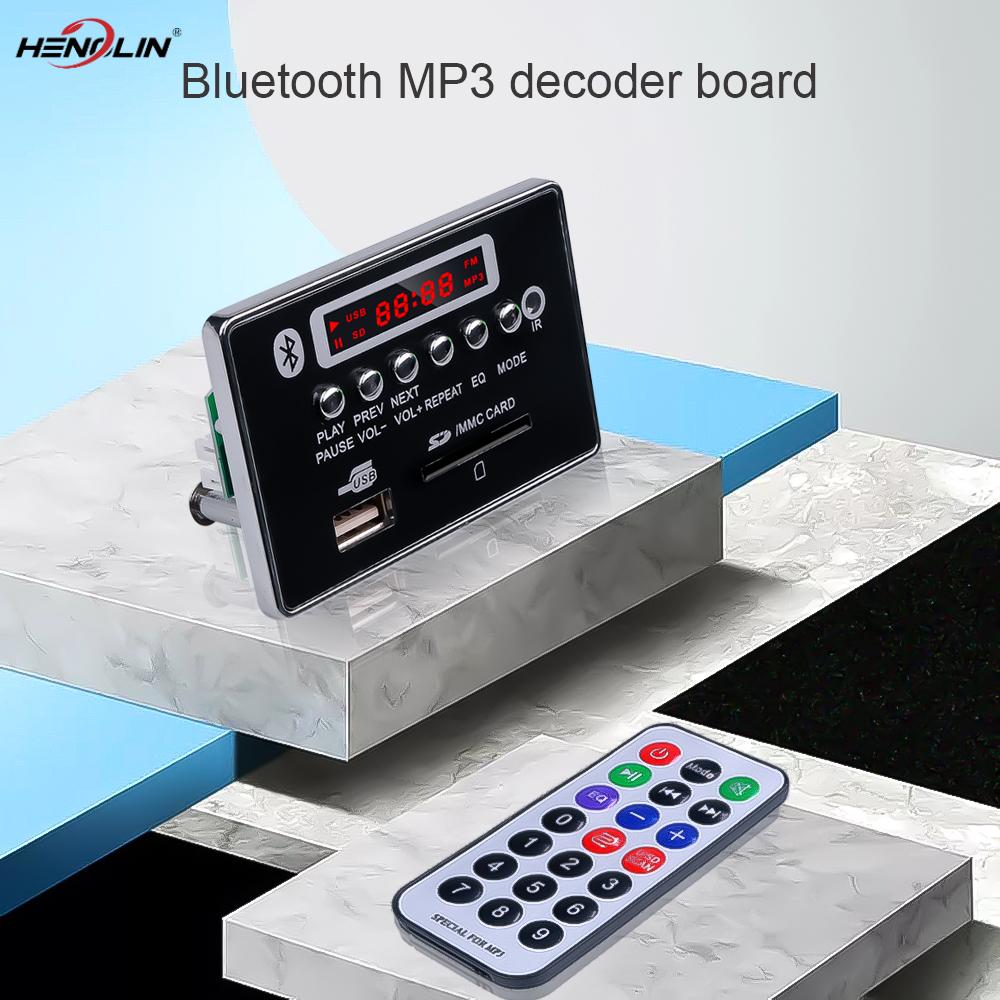

Bluetooth 5.0 MP3 Player Decoder Decoding Board Module 5 v 12v Car USB TF FM AUX Radio LED With Remote Control

Specification:

Overall dimensions: 83 x 28mm (W x H)

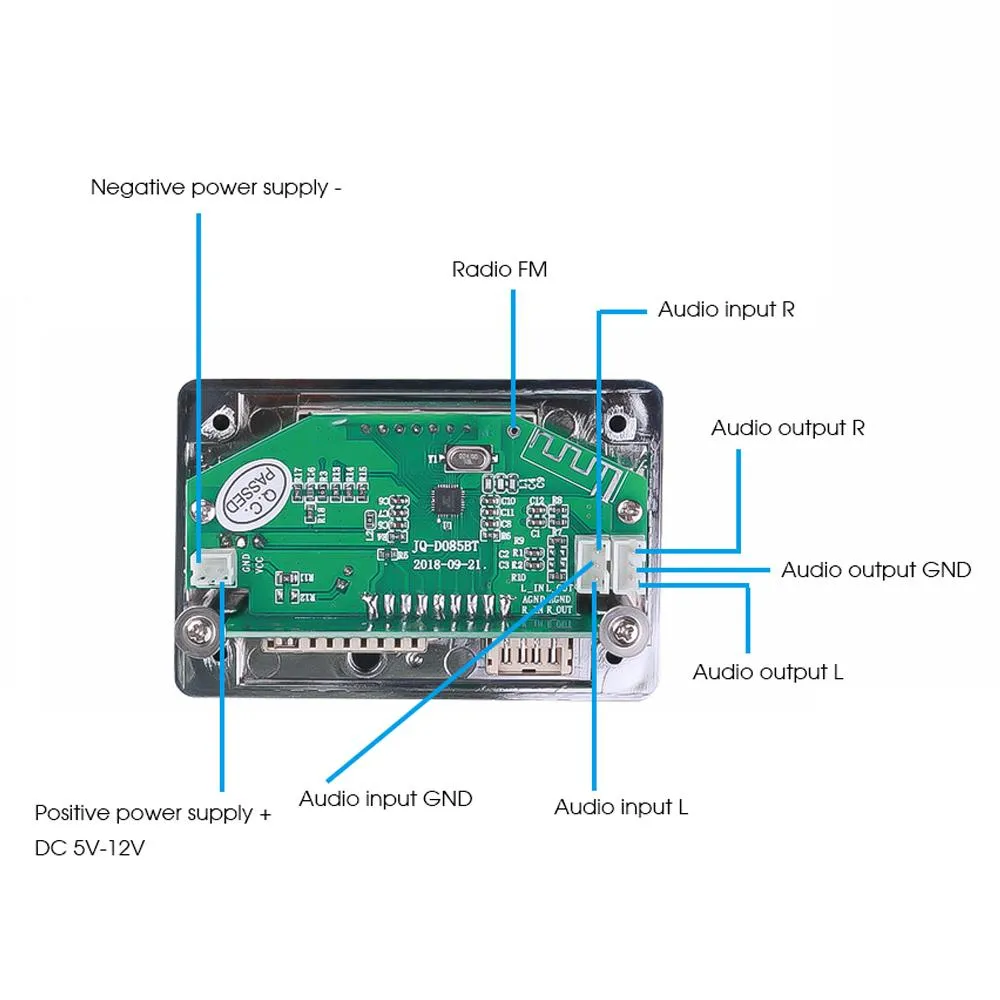

Input voltage: 5V-12V

Main function:

1. Double decoding supports music in MP3 WAV WMA FLAC APE format
2. Support Bluetooth function;
3. With digital tube display;
4. Support MMC/SD/MMA and other cards, support USB interface (U disk);
5. Power failure memory function 24C02;
6. Support 5-10 meters distance infrared remote control operation;
7. Support for external audio input LINE IN (AUX);
8. Support radio FM, receiving frequency band (87.5MHZ-108.0MHZ);

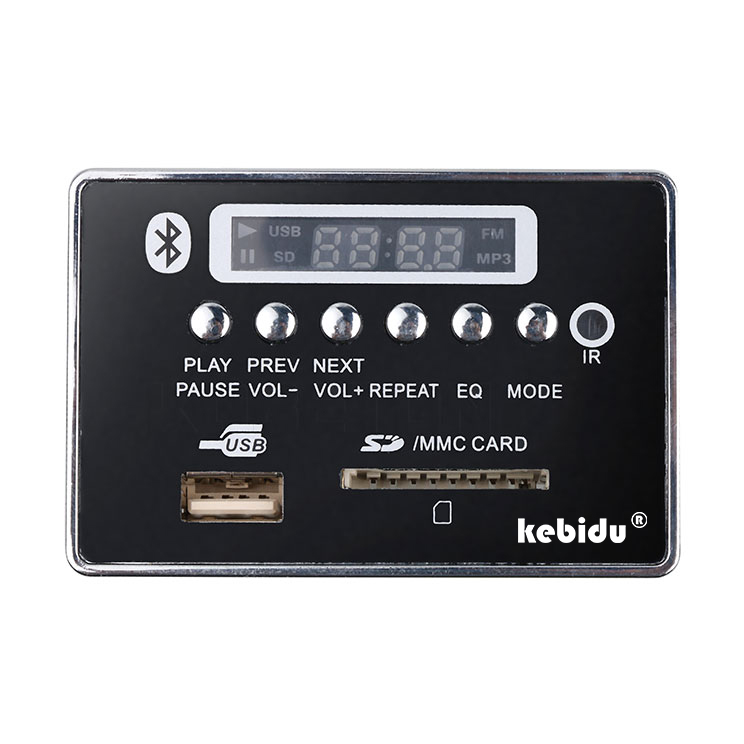

9. Button: four buttons multi-directional control, MODE/previous song/play/pause/next song;

The button operation details:
1. Previous button (volume down): Short press in the MP3 state for the previous song, long press for the volume to decrease; short press in the FM state to adjust one station number; short press under the Bluetooth function Bluetooth is a song, long press to reduce the volume.
2. Play/Pause: Short press in MP3 state for play/pause; short press in FM state for play/pause, long press to automatically receive and save the station; short press for play/pause under Bluetooth function.
3. The next song button (volume increase): in the MP3 state, short press for the next song, long press for the volume to increase; short press in the FM state to adjust a station number; short press under the Bluetooth function Bluetooth next song, long press for the volume to decrease.
4. MODE button: Switch between USB/TF/FM/AUX/Bluetooth function.

The remote control instruction:

1. POWER: STANDBY button cannot switch.
2. MODE: SD card and U disk: switching sequence for USB→SD→Bluetooth→FM→AUX;
Only U disk: switching sequence for USB→Bluetooth→FM→AUX;
Only the SD card: switching sequence for SD→Bluetooth→FM→AUX;
There is no USB and SD card: switching sequence for FM→AUX→Bluetooth.

3. PREV: In USB/SD / Bluetooth MODE, short press for PREV;
In the USB / SD MODE, long press for fast rewind; In FM MODE, short press for last channel, long press for scan search last channel.
NEXT: In USB /SD/Bluetooth MODE, short press for NEXT;
In USB / SD MODE, long press for fast forward;
In FM MODE, short press for next channel, long press for scan searches the next channel.

4. VOL + : short / long press for music. VOL-: short/long press for music.
5. REP: In USB / SDMODE, is the switch key between single repeat and whole cycle when play music, boot for all cycle.
6. STOP: In the USB / SD MODE, short press to STOP the music play.
7. MUTE: MUTE, press for MUTE, press again for relieve(also can relieve by VOL- /VOL+).
8. EQ: Acoustic field MODE. The NORMAL→BAS→POP→ROC→JAZZ→CLA→CUT→NORMAL
9. PLAY/PAUSE: In USB/SD/Bluetooth MODE for PLAY / PAUSE; In the FM MODE, long press for searching all channels and save.

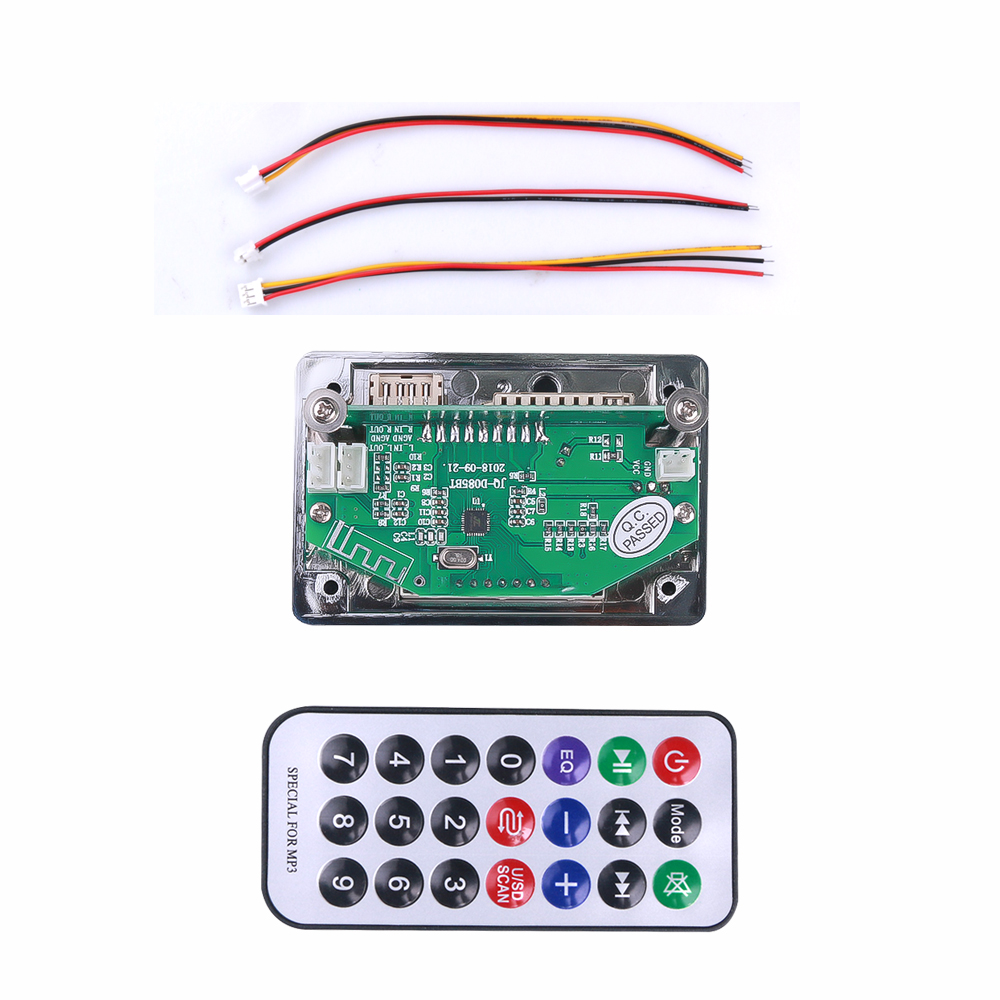

Package Content:

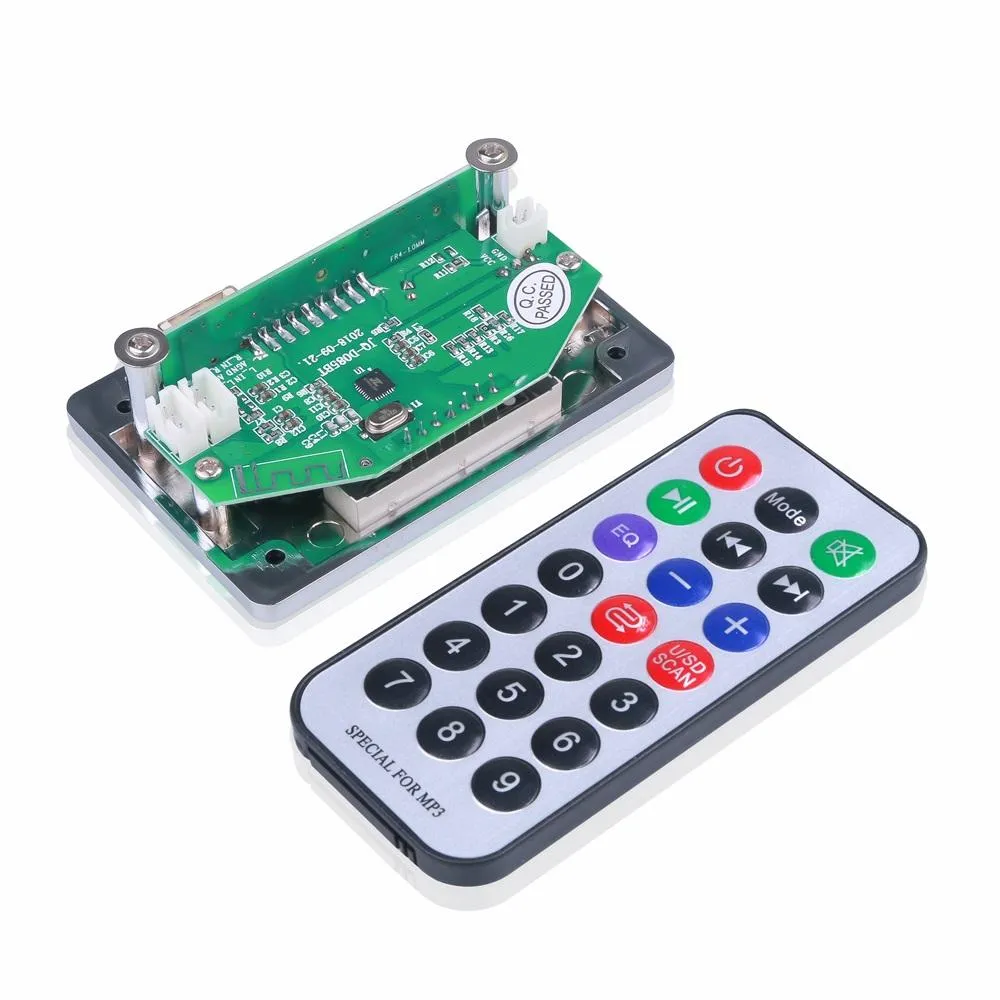

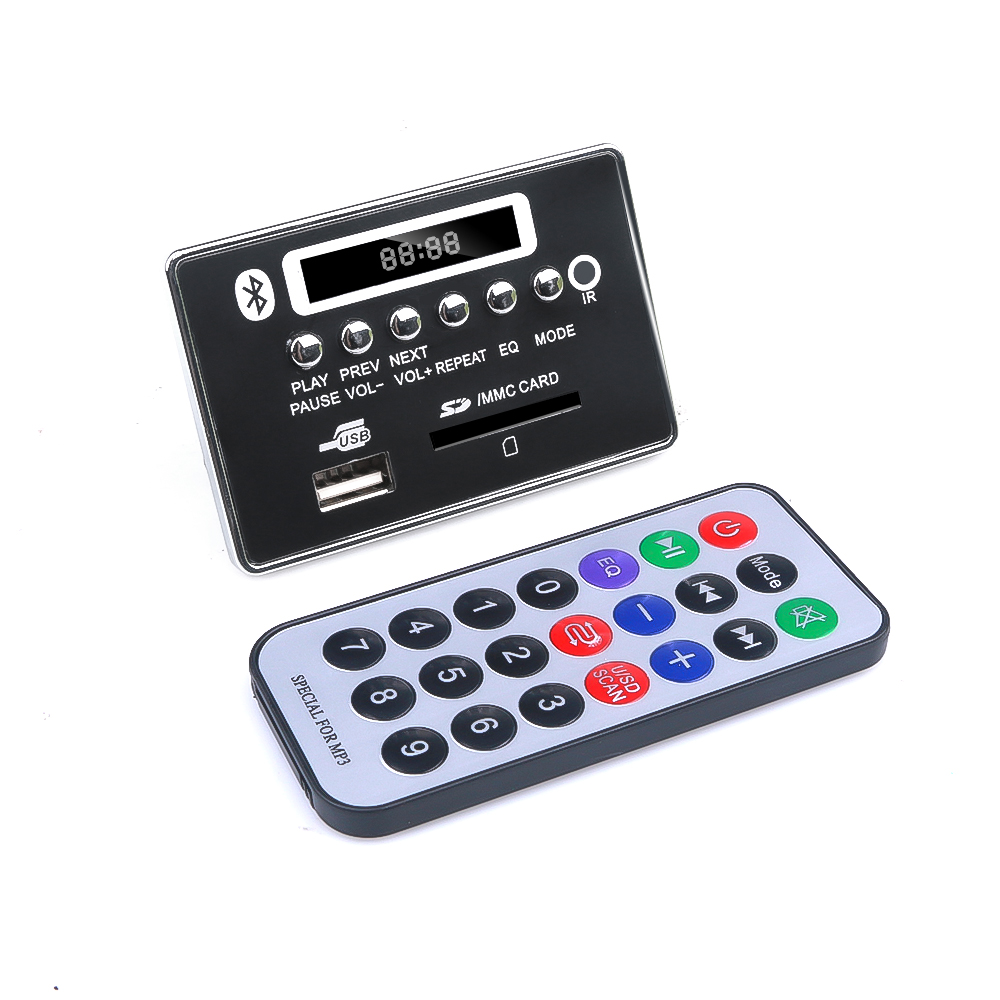

1 x MP3 Decoder Board with the Surface panel
1 x Remote Controller (Without battery)
2 x Power Cables

Note: This item comes without a retail box, but please rest assured that we will pack it well before shipping!
