Bo Mạch Giải Mã Âm Thanh Bluetooth 5.0 Mô-đun Giải Mã Âm Thanh Bluetooth Không Dây Màn Hình LCD DC 5V-12V Hỗ Trợ MP3 WMA WAV 3.5Mm AUX Thẻ TF Ổ USB Đài FM Máy Phát Nhạc Điều Khiển Từ Xa

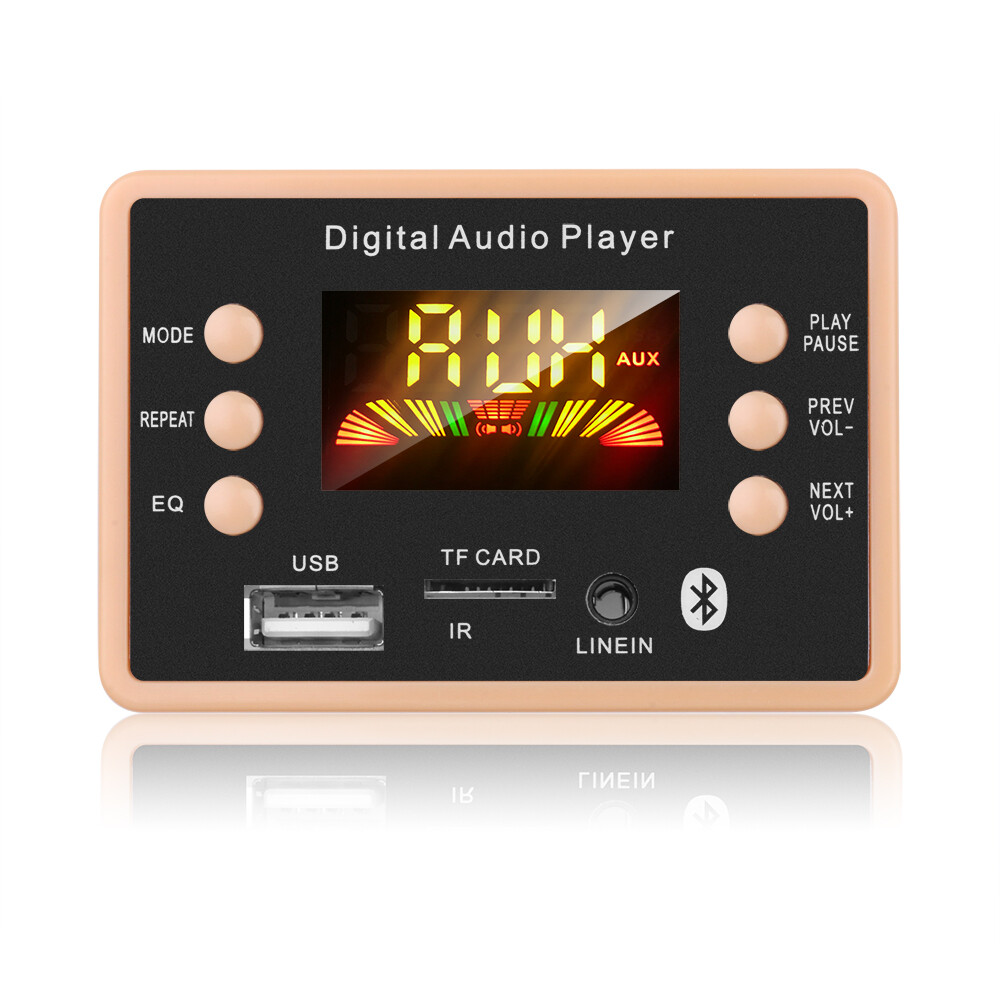

Feature:

MODE: USB / TF / FM / LINE IN / BLUETOOTH voice switching;

REPEAT: Press once to cycle through singles, press again to cancel cycle through singles;

EQ: sound field mode, test 6 kinds of sound quality; (classical) (jazz) (rock) (subwoofer) (pop) (normal);

LCD: digital screen display, yellow;

PLAY / PAUSE: the short press is to switch between pause and play; the long press is radio FM automatic station;

PREV / VOL-: the short press is to select the previous song; the long press is to decrease the volume;

NEXT / VOL +: the short press is to select the next song; the long press is to increase the volume;

USB: connect U disk (up to 32GB);

TF: Connect TF memory card (up to 32GB)

⑩IR: infrared receiving module;

⑾LINE IN: audio input interface;

Master IC: AC6926

Bluetooth IC: AC6926 Bluetooth version is 5.0

Music format: MP3 / WMA / WAV / FLAC / APE lossless format

Radio FM frequency: 87.5-107.5 MHZ

Support function introduction: support MP3 / USB / TF / LINE IN / FM / BLUETOOTH / remote control / DC 5V or 12V (optional)

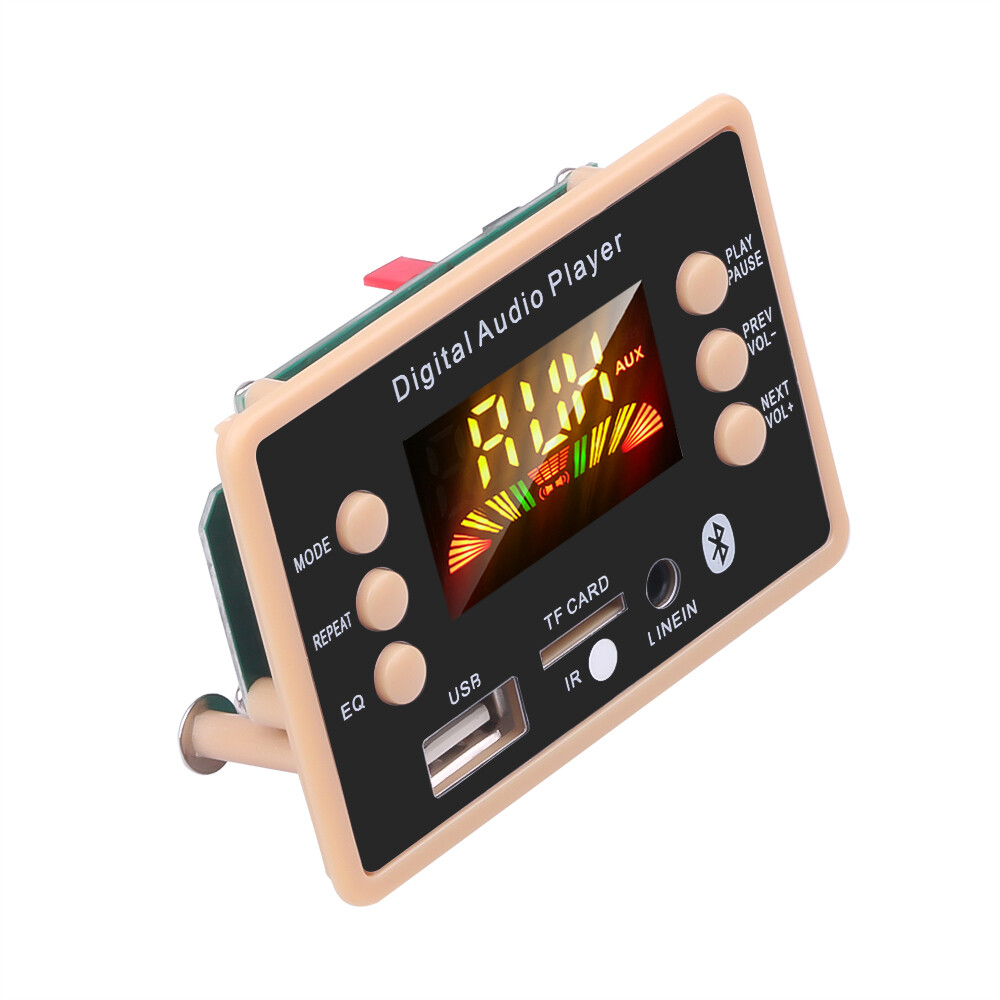

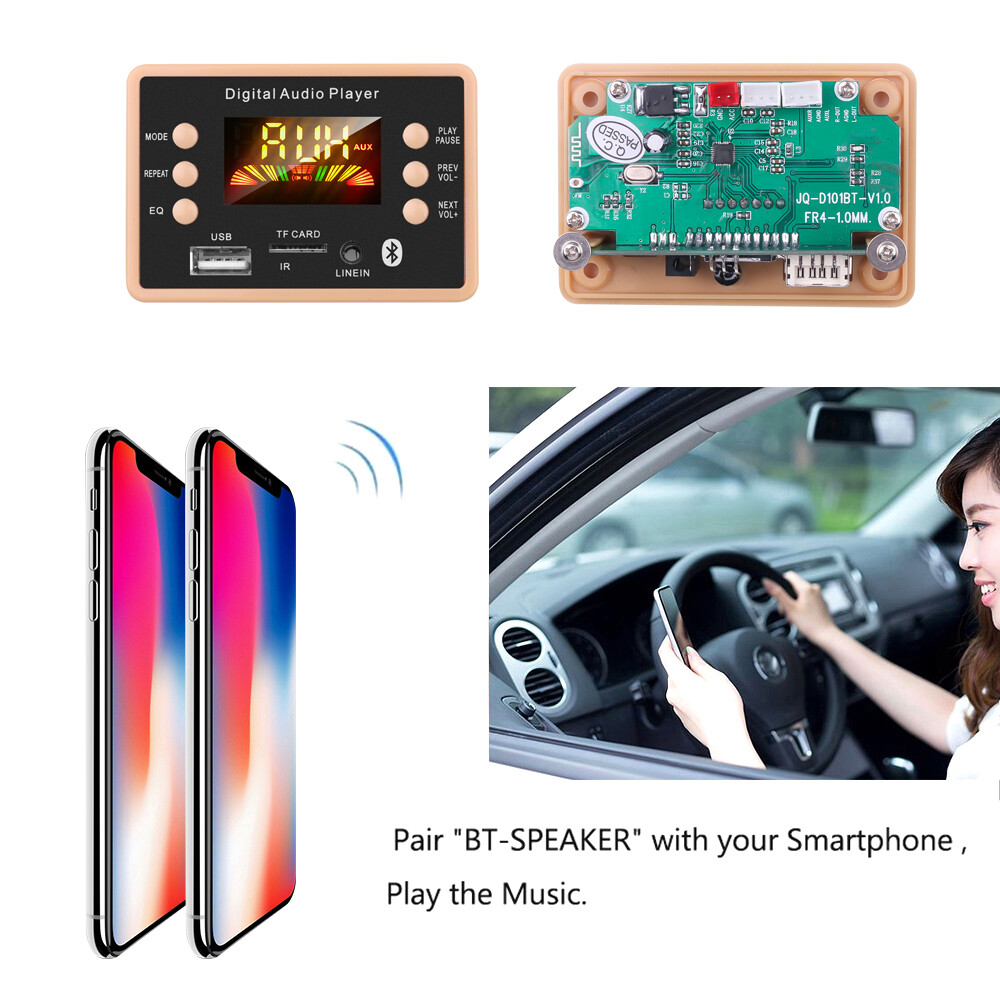

About the structure: panel size: 78 * 58 MM, the screw holes are located around the panel, and then the surface is covered with PVC lenses, the depth of the board is 23MM

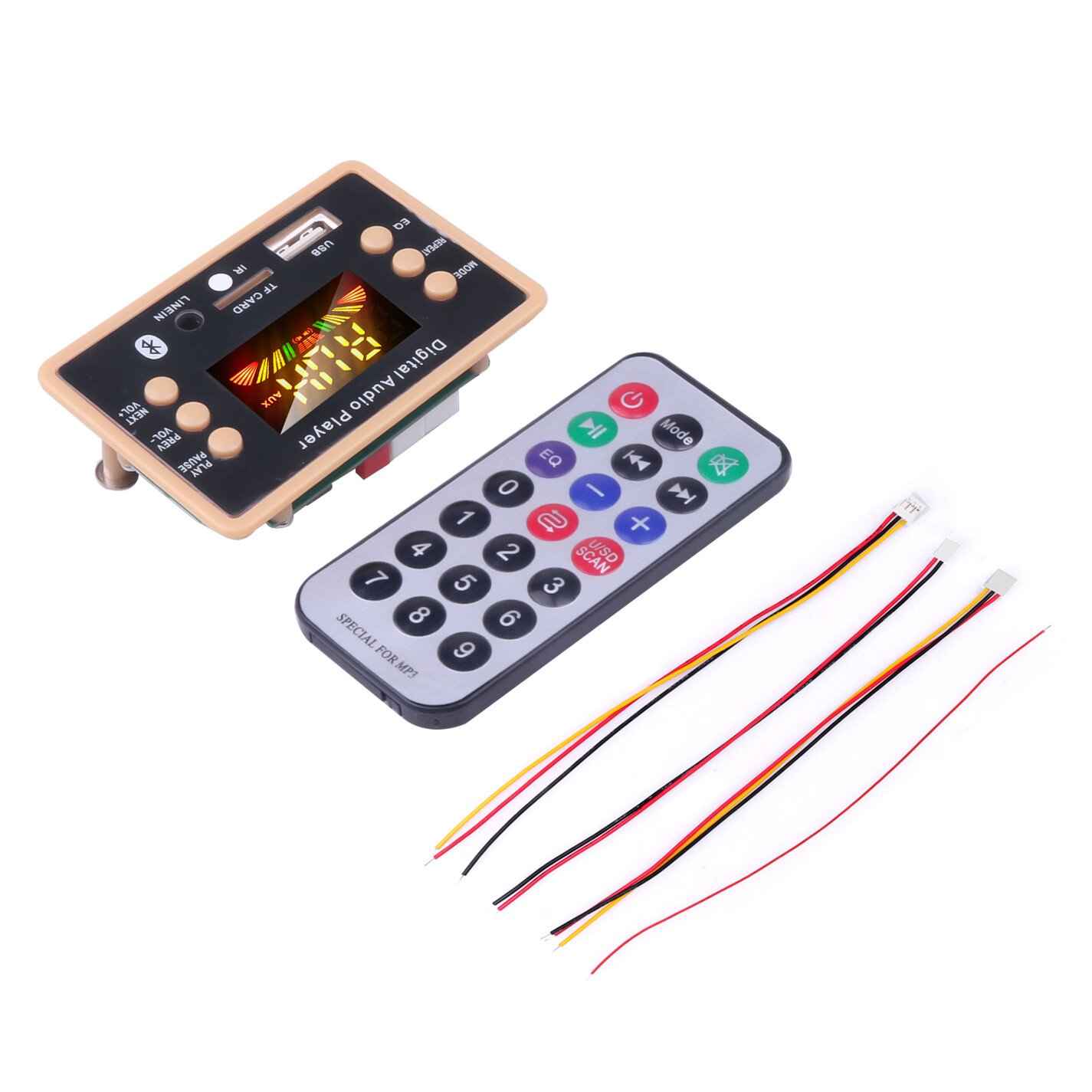

Package included:

1 X MP3 Decoder Board

1 x Remote control (without Battery)

3 x Cables

Note: This item with bubble bag packaging, without a retail box, but please rest assured that we will pack it well before shipping!
