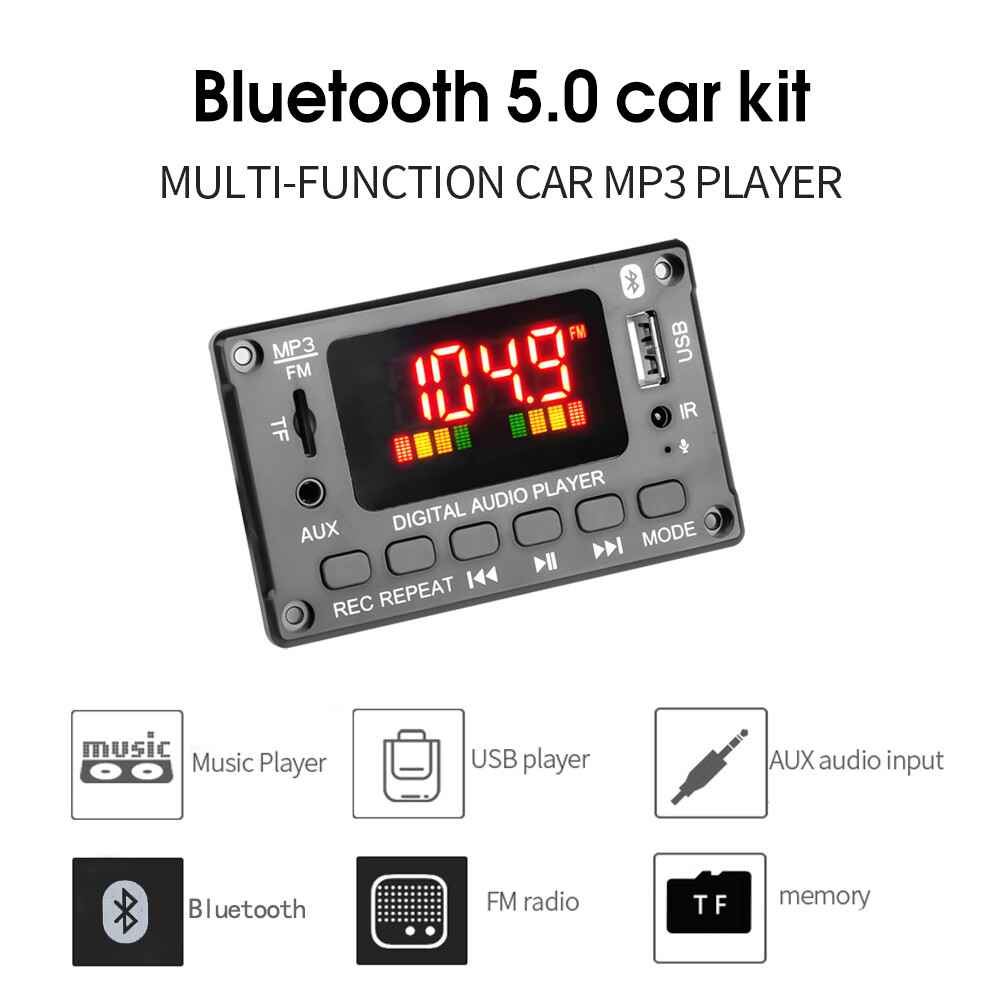

Bluetooth 5.0 MP3 Decoder Board 12V DC FM TF USB AUX Handsfree Call And Record Recording Function Decoding Board Module

Parameters:

Model: JQ-D118BT
Main control IC: Jerry AC6966B
Bluetooth IC: Jerry AC6966B
Bluetooth version 5.0
Bluetooth call function
Recording function
Music format: MP3/WMA/WAV/FLAC/APE lossless format music
Radiofrequency modulation frequency: 87.5-107.5 MHZ
Folder switching function

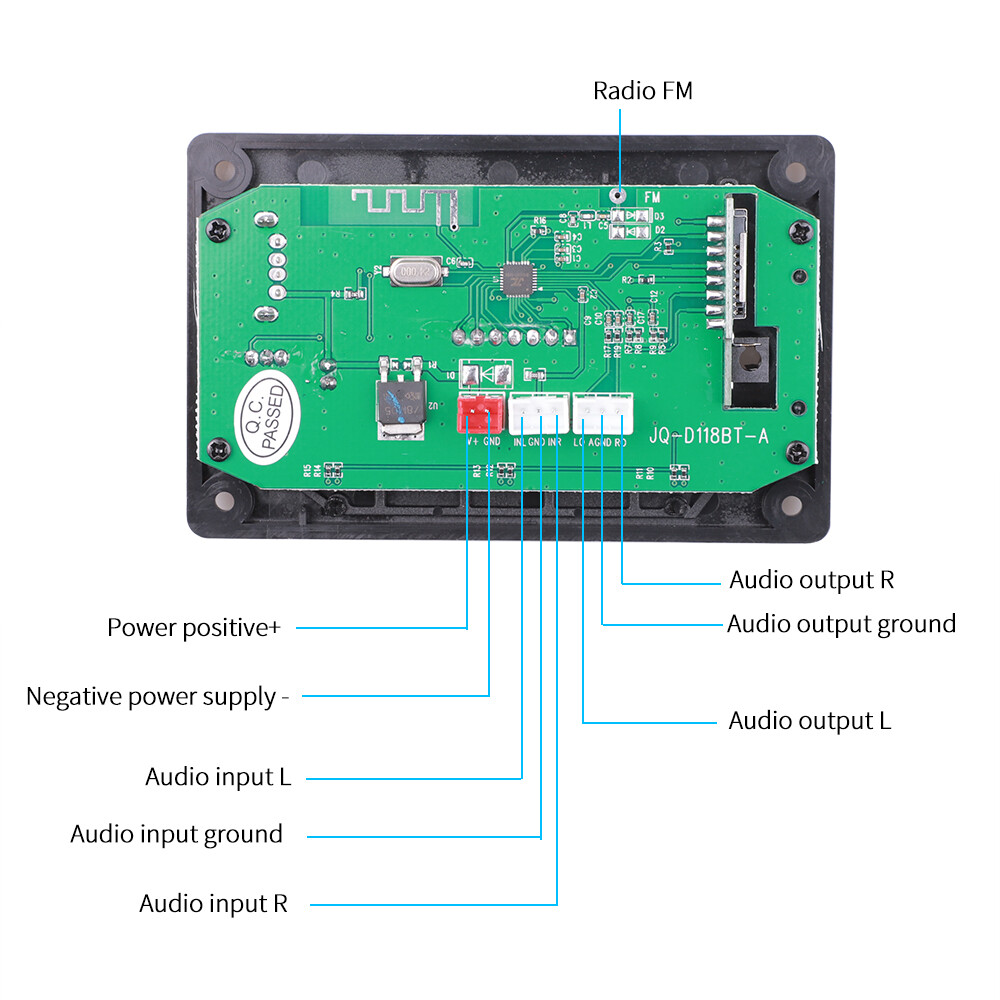

Support function introduction: support MP3/USB/TF/LINE IN/FM/BLUETOOTH/remote control connection/DC 12V

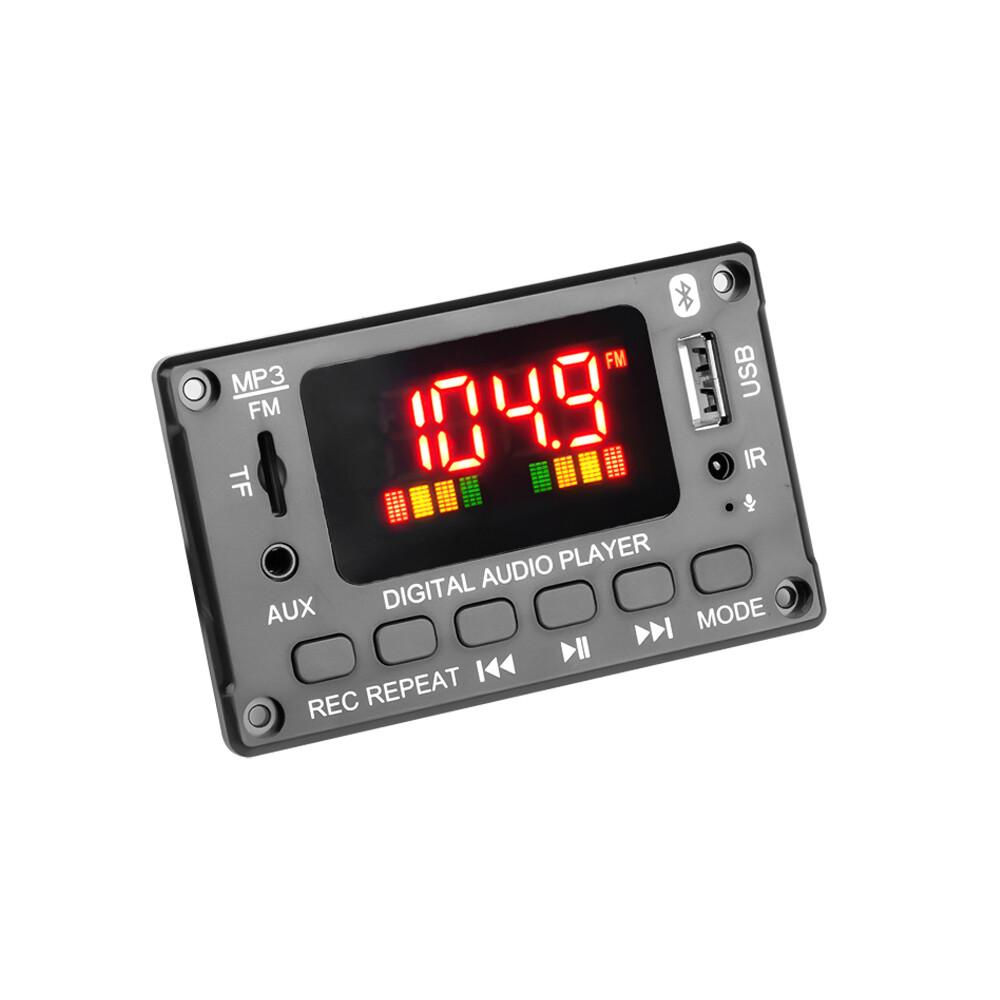

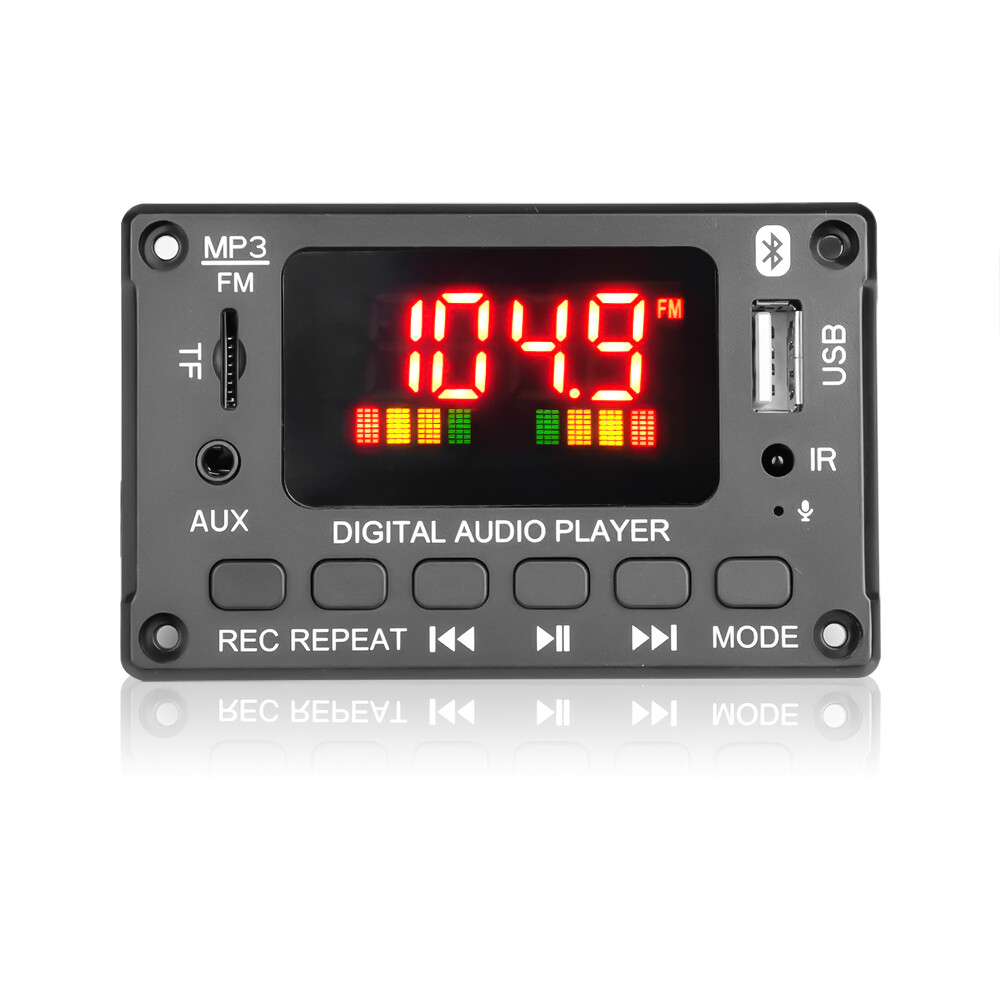

About the structure: Panel size: length 91*width 57MM, there are screw holes around the panel, and the board depth is 20MM

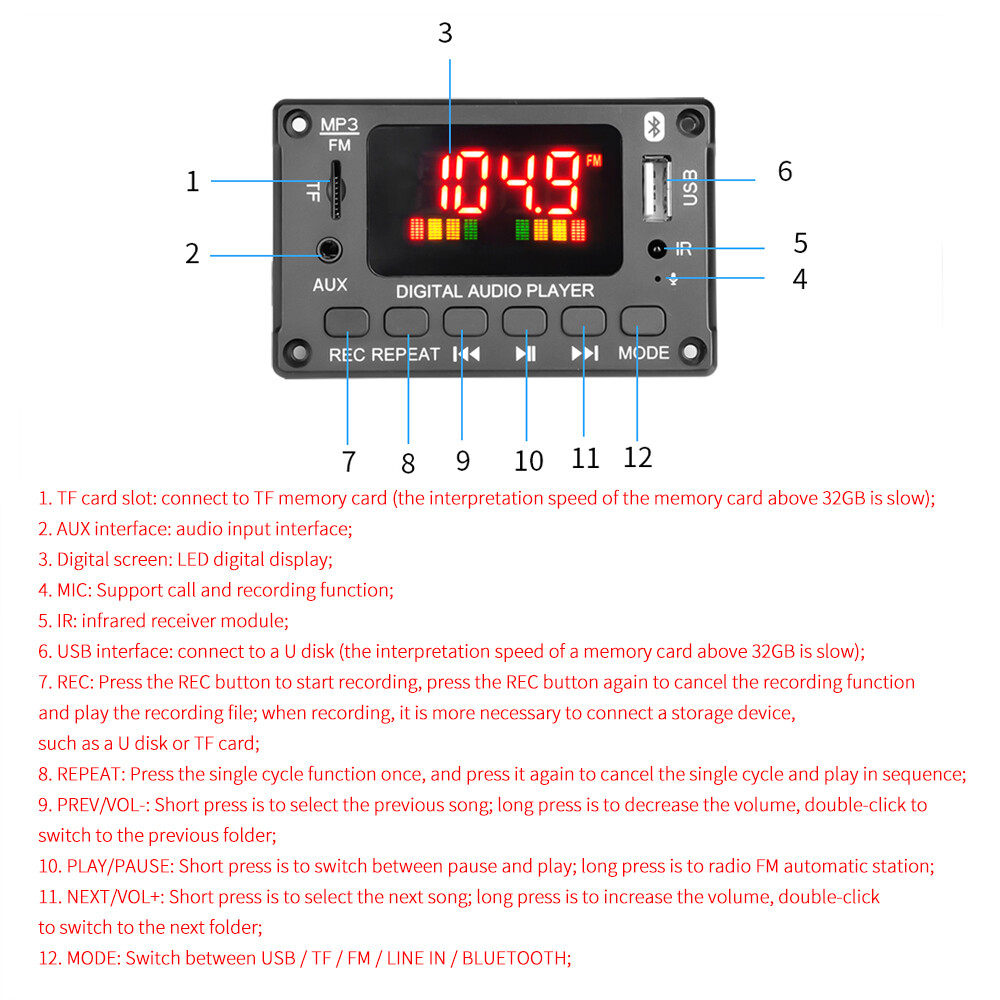

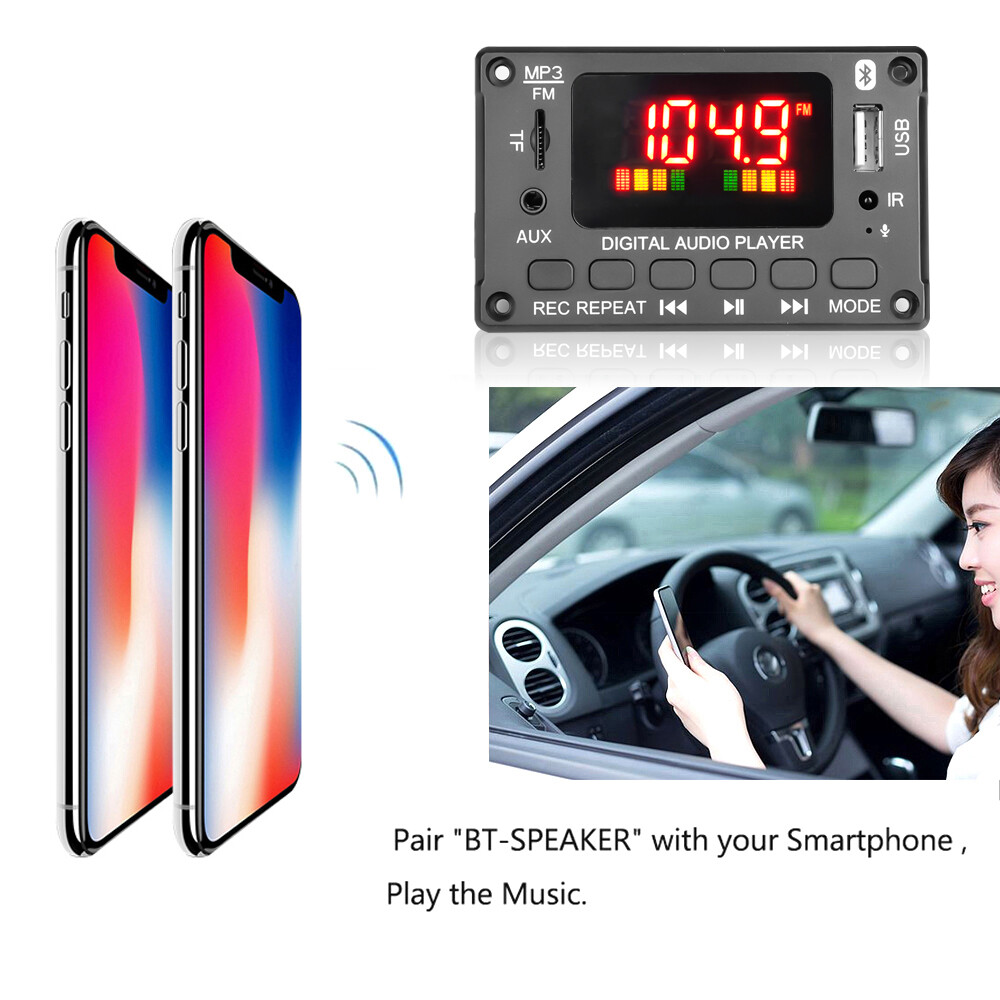

Button function and interface function:

1. TF card slot: connect to TF memory card (the resolution speed of memory card above 32GB is slower)
2. AUX interface: audio input interface
3. Digital screen: LED digital display
4. MIC: Support call and recording function

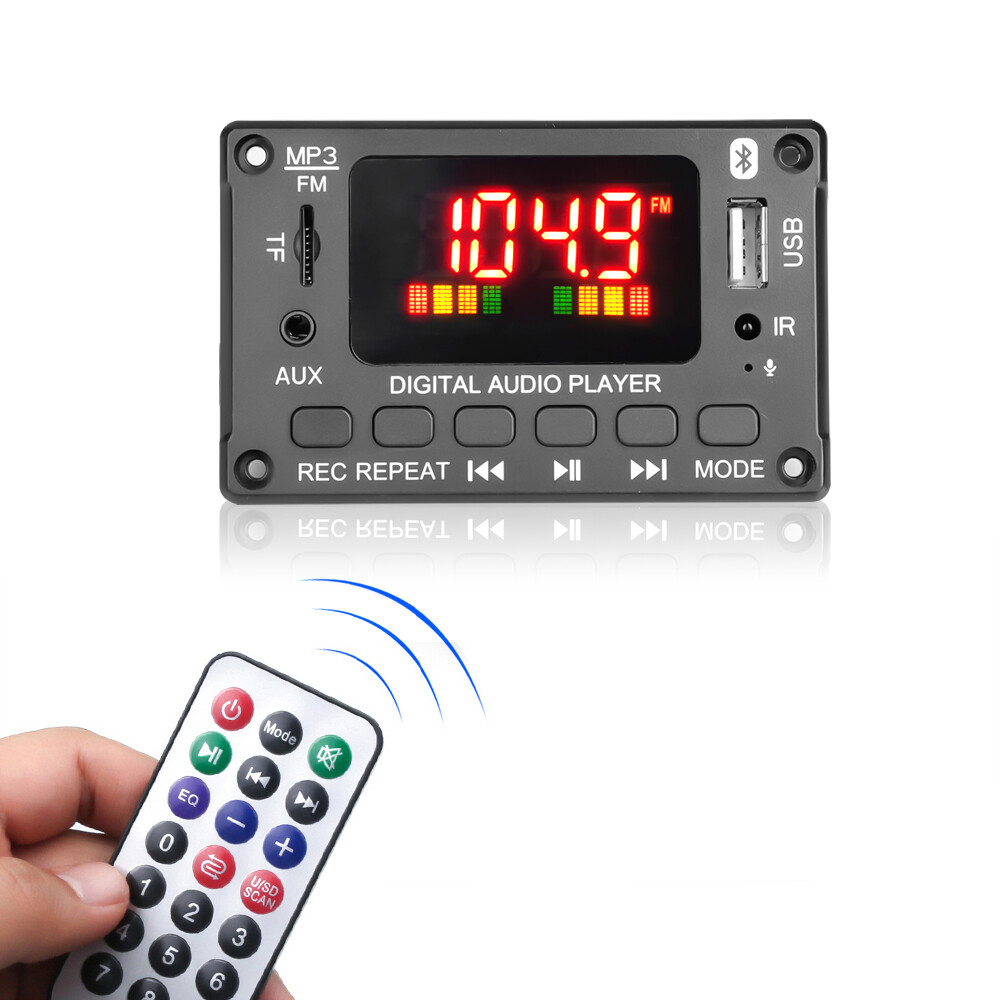

5. IR: an infrared receiver module
6. USB interface: connect to U disk (the resolution speed of memory cards above 32GB is slow)
7. REC: Press the REC button to start recording, then press the REC button to cancel the recording function and play the recording file; when recording, you need to connect a storage device such as a U disk or TF card
8. REPEAT: Press the single-cycle function once, press again to cancel the single cycle, and play in sequence
9. PREV/VOL-: Short press to select the previous song; long press to decrease the volume, double click to switch to the previous folder
10. PLAY/PAUSE: Short press is to switch between pause and play; the long press is radio FM automatic station;
11. NEXT/VOL+: Short press to select the next song; long press to increase the volume, double click to switch to the next folder
12. MODE: Switch between USB/TF/FM/LINE IN/BLUETOOTH

Package Included：

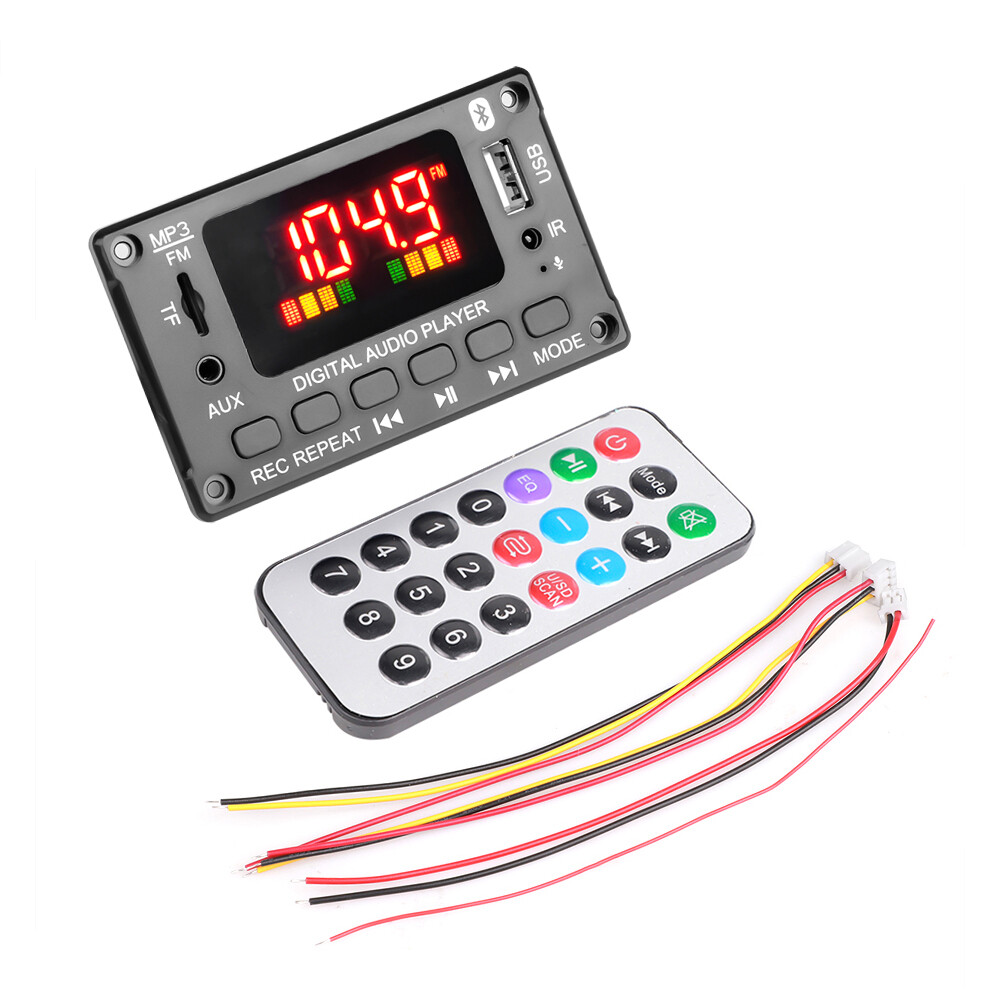

1 * Bluetooth 5.0 MP3 Decoder Board

Note: This item comes without a retail box, but please rest assured that we will pack it well before shipping!
