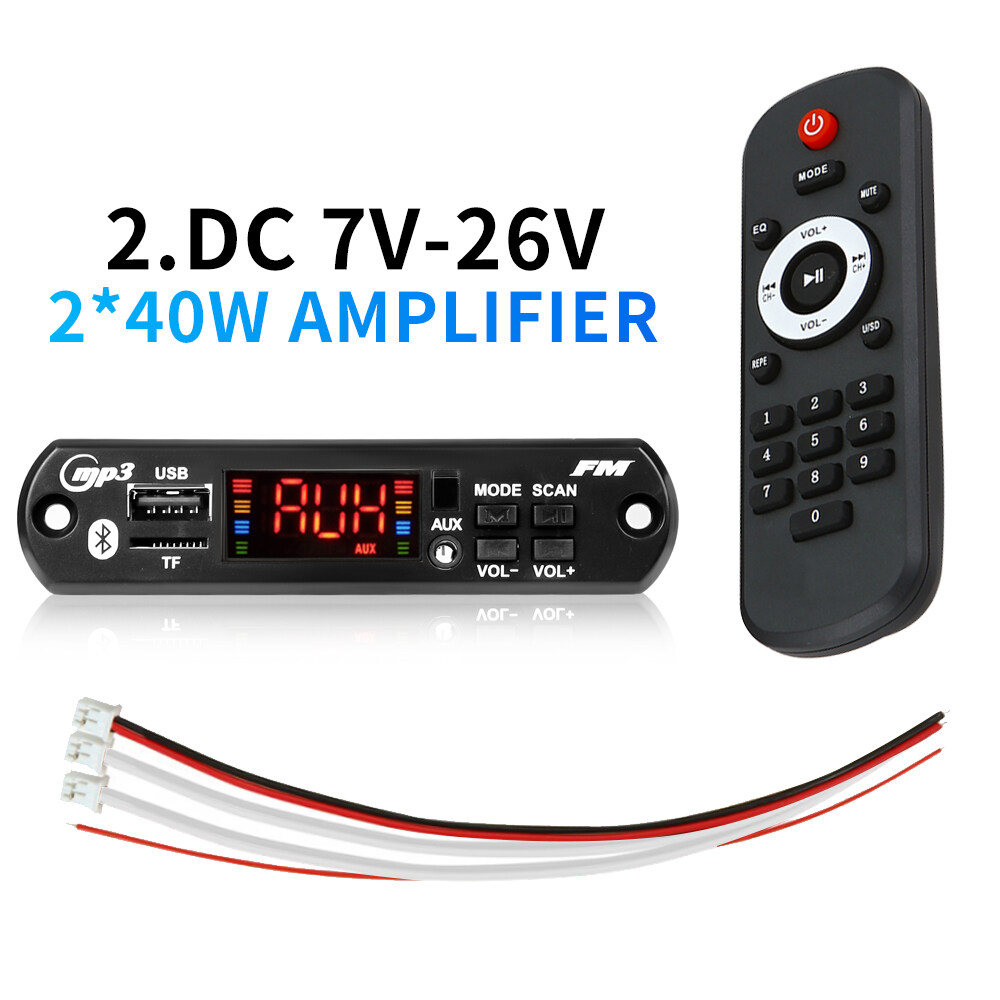

Model: JQ-D063BT

Bluetooth version 5.0

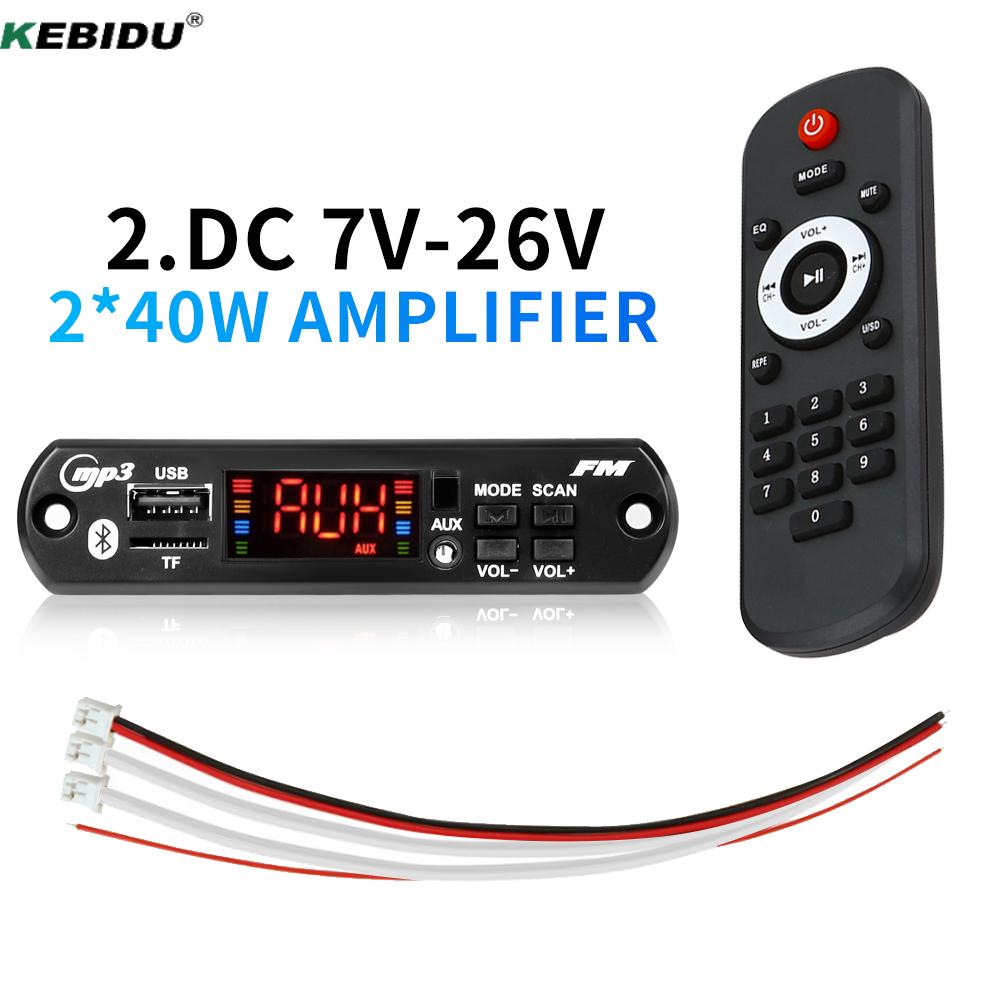

Power: 2*40W

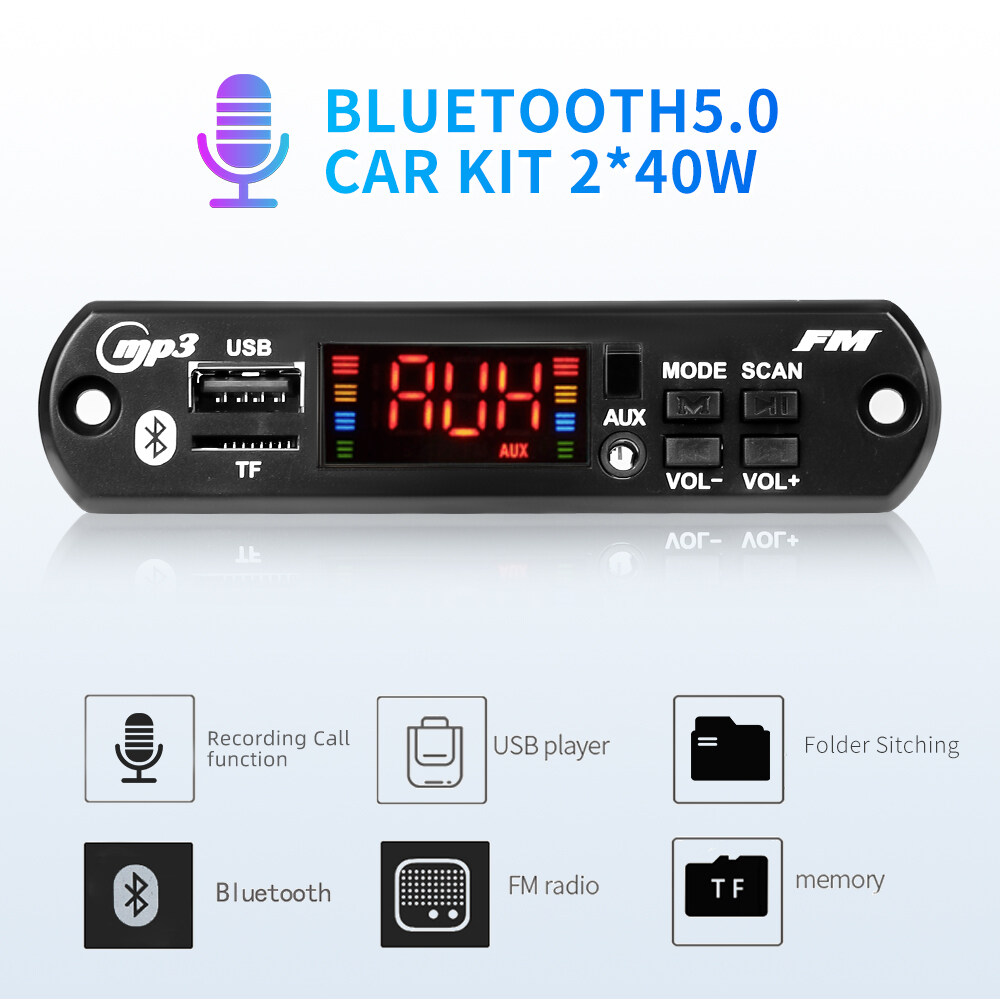

Bluetooth calling function

Recording function

Folder switching function

Music format: MP3/WMA/WAV/FLAC/APE lossless music.

Radio FM frequency: 87.5—107.5mhz.

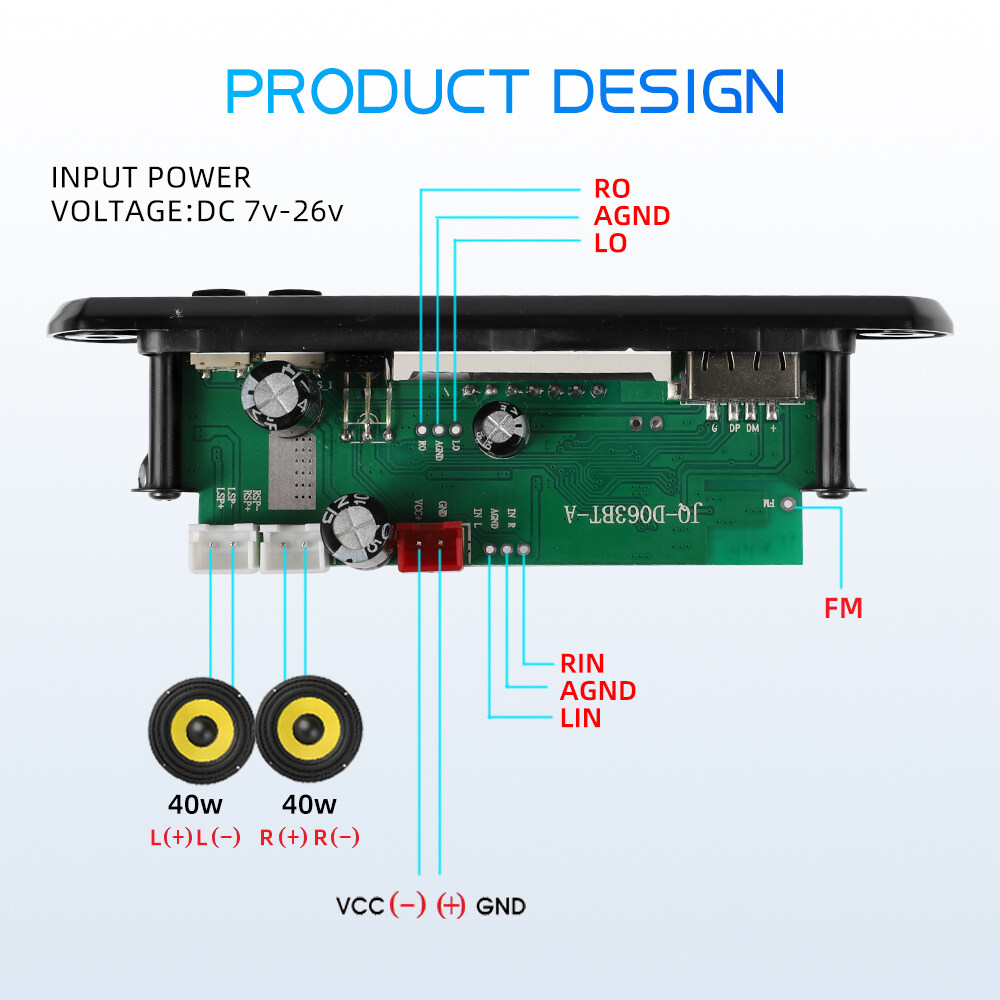

Support function introduction: support MP3 / USB / TF/ LINE IN / FM / BLUETOOTH/remote control connection/DC 7V-26V

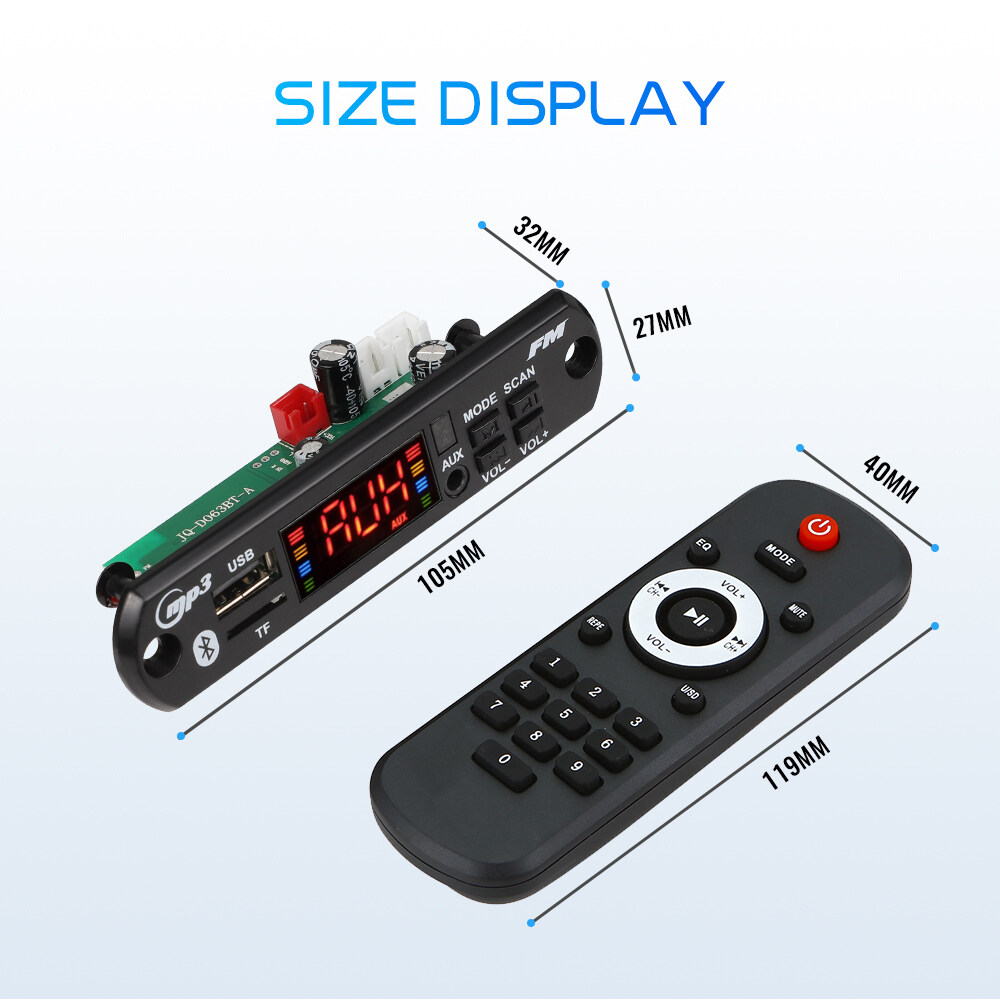

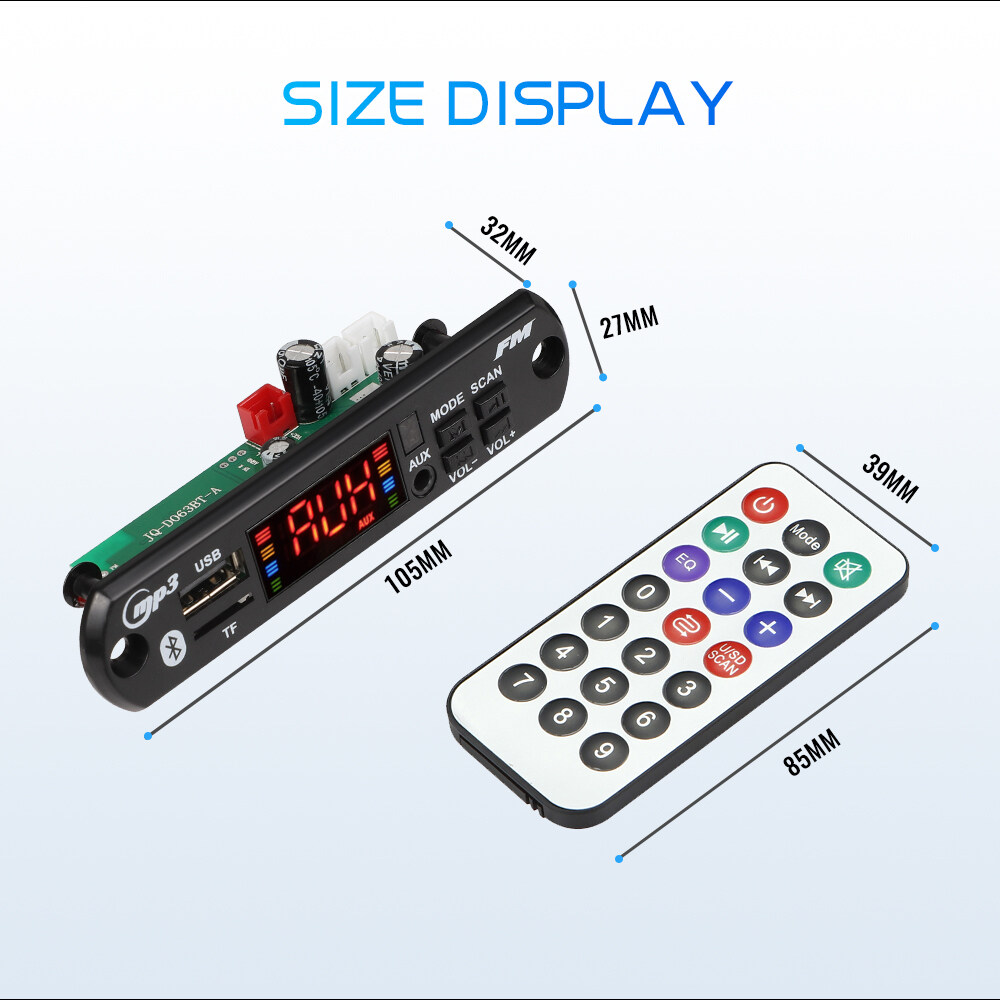

About the structure: Panel size: 108 * 25 MM, the panel is surrounded by screw holes, the depth of the board is 32MM

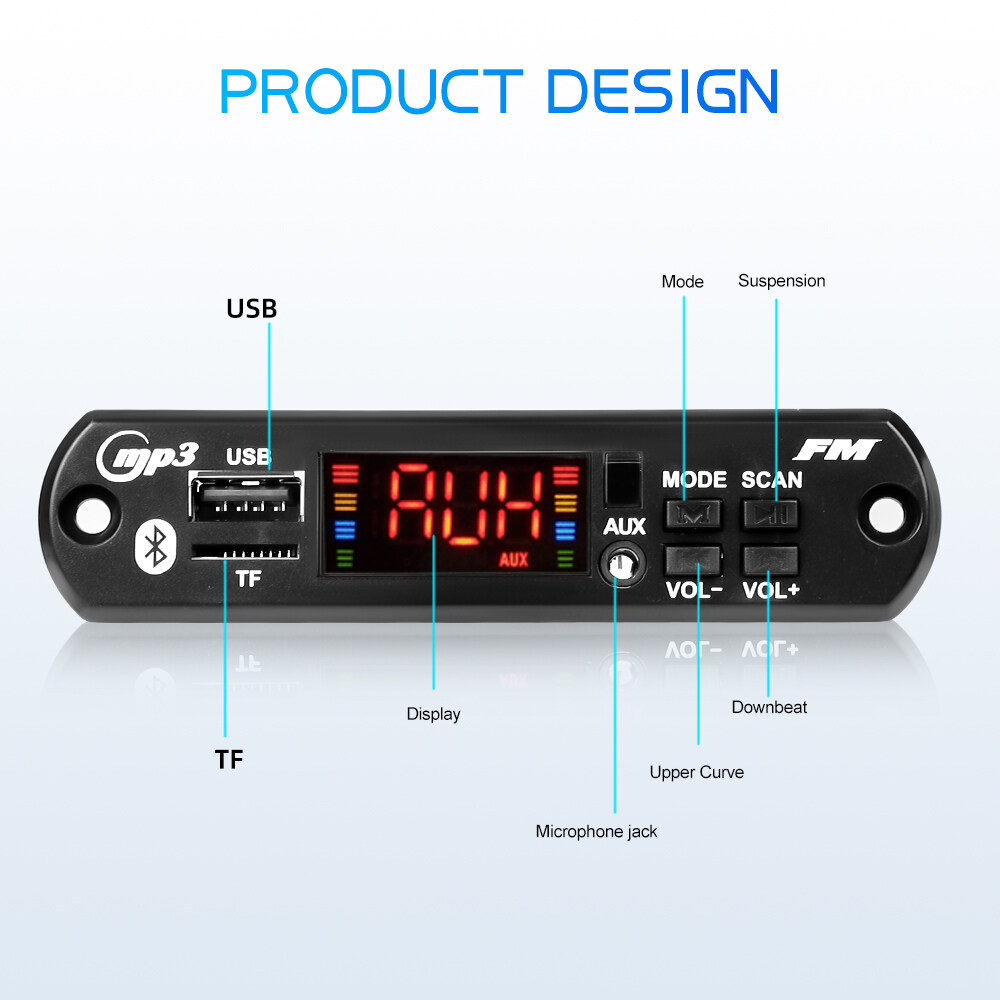

1. USB: connect a USB flash drive (maximum support 32 GB);

2. LED: digital screen display, color screen, red display;

3. IR: infrared receiving module;

4. mode: switching between USB/TF/FM/line in/Bluetooth;

5. SCAN: short press is to switch between pause and play; In the FM state, long press is the automatic station;

6. TF: Connect TF memory card (maximum support 32 GB);

7. AUX: audio input interface;

8. VOL-: Short press is to select the previous song; Long press is to reduce the volume, double click to switch to the previous folder;

9. VOL+: Short press is to select the next song; Long press is to increase the volume, double click to switch to the next folder;
