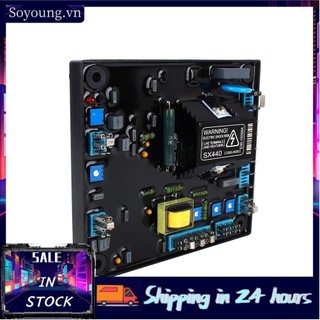

Automatic Regulator AVR SX440 For Generator Parts

• Origin:Mainland
• Model Number:SX440
• is_customized:Yes
• Condition:NEW
• Performance:Excellent
• stock:has
• Color:BLUE
• Place of Origin:Zhejiang, (Mainland)

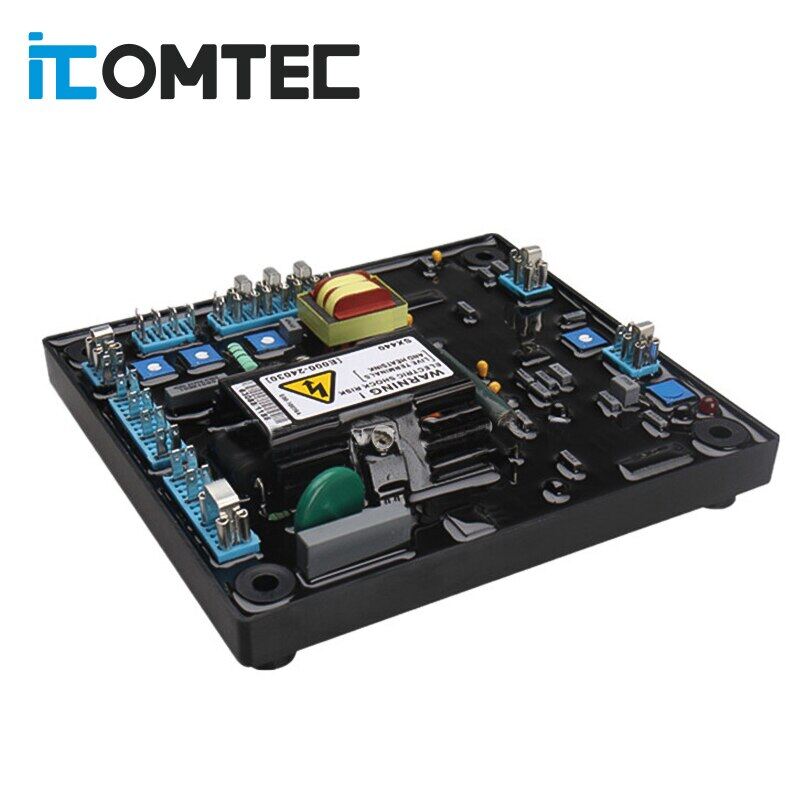

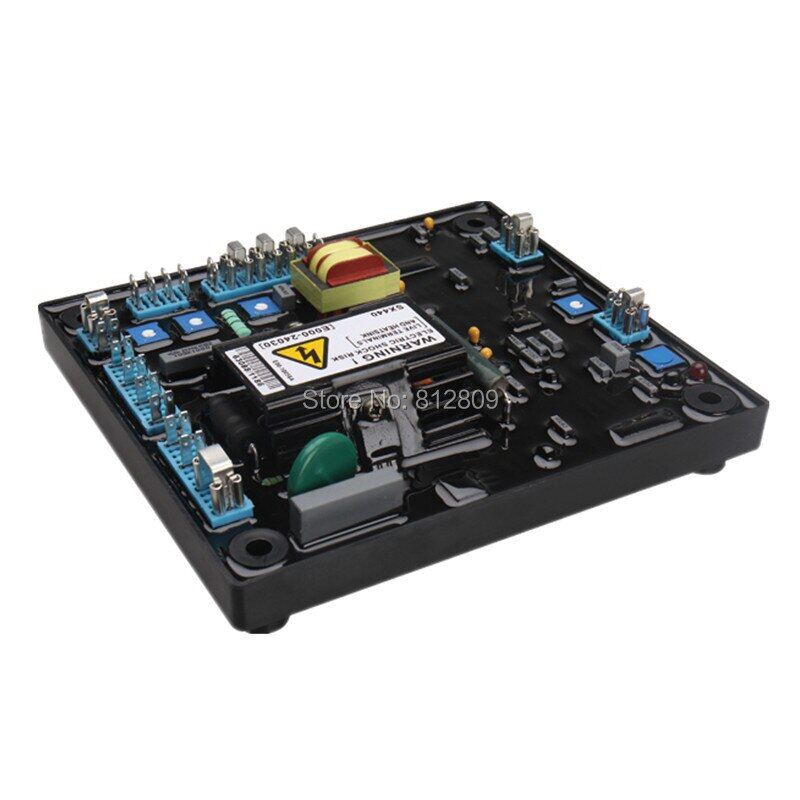

Automatic Regulator AVR SX440 For Generator parts

Description

SX440 is a half-wave phase-controlled thyristor type Automatic Regulator and forms part of the excitation system for a brushless generator. In addition to regulating the generator , the AVR circuitry includes under speed and sensing loss protection to ensure safe, reliable control of the generator

The Propose employs sur mount technology (SMT) for high integration of features in a minute footprint AVR. Positive build up from residual levels is ensured by the use of proficient semiconductors in the power circuitry of the AVR. The control and sensing circuits have separate terminals, allowing the excitation power to be resulting directly from the stator winding for necessary applications or from an auxiliary winding if sustained short circuit performance is essential. Which is linked with the main stator windings and the exciter field windings to offer closed loop control of the output with load regulations of +/- 1%

*Stability adjustment

*Under frequency roll off adjustment

*Trim adjustment

*Optimum response selection

*Droop adjustment

Input		190-264V ac
	Frequency	50-60 Hz nominal
	Phase	1
	Wire	2
Output		max 90V dc at 207V ac input
		continuous 4A dc, intermittent 6A for 10 secs
	Resistance	15 ohms minimum
Regulation		+/- 1.0%
Thermal Drift		0.04% per deg. C change in AVR ambient
Typical system response	AVR response	20ms
	Filed to 90%	80 ms
	Machine Volts to 97%	300ms
External adjustment		+/-10% with 1 k ohm 1 watt trimmer
Under frequency protection	Set point	95% Hz
	Slope	170% down to 30 Hz
Unit power dissipation		12 watts maximum
Build up		4 Volts @ AVR terminals
Analogue Input	Maximum input	±5V dc
	Sensitivity	1v for 5%
	Input resistance	1k ohm
Quadrature Droop Input		10 ohms burden
		Max. sensitivity: 0.07 A for 5% droop 0PF
		Max. input: 0.33A
Environmental	Vibration	20-100 Hz,50mm/se
		100Hz - 2kHz, 3.3g
	Operating temperature	-40 to +70 Deg. C
	Relative Humidity 0-70 Deg. C	95%
	Storage temperature
