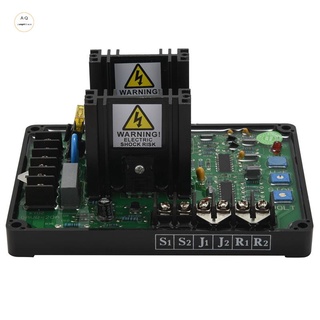

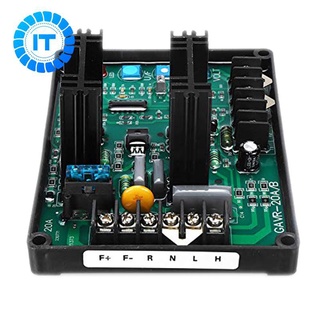

Gavr-20A Av Universal Brushless Automatic Voltage Regulator Module Avr Generator 220/400Vac Frequency Protection Emi Suppression

Material: metal + PC
Colour: Black
Features
Less than±0.5% Reglation
220/400 VAC Programmable Input
Rugged Compact Design
With Under Frequency Protection
oft Start Voltage Ramping
EMI Suppression
Buit-in High Capacity 15Amp Fuse
Specifications:
Sensing Input Voltage: 220/400VAC, 1 phase 2 Wire
Power Input Voltage:180~240V, 1 phase 2 Wire
Output Voltage: Max 90V dc @240V ac input
Current: Continuous 6A
Intermittent 12A for 10 secs
Resistance: Min.10 ohms Max.100 ohms
Volts Regulation: Less than±0.5% (with 4% engine governing)
Voltage Build-up:Residualvolts at AVR teminalGreater than5VAC
Soft Start Ramp Time: 3 seconds
External Voltage Adjustment: ±7% with 1 k ohm 1 watt trimmer
Unit Power Dissipation: 8 watts maximum
Thermal. Drift: 0.05% per °C chage in AVR ambient
Under Frequency: 60Hz system presets knee point at 57Hz
(Factory Settings) 50Hz system presets knee point at 47Hz
Operating Temperature:-40°C to 65°C
Storage Temperature:-40°C to 85°C
Relative Humidity:Less than95%
Package Included:
1 x GAVR-20A Automatic Voltage Regulator
1 x Instructions
