Aideepen ESP32 D1 Mini ESP-32 WiFi+Bluetooth Development Module Board Base on ESP8266 Fully Functional Compatible for WeMos D1 Mini

Product Introduction:

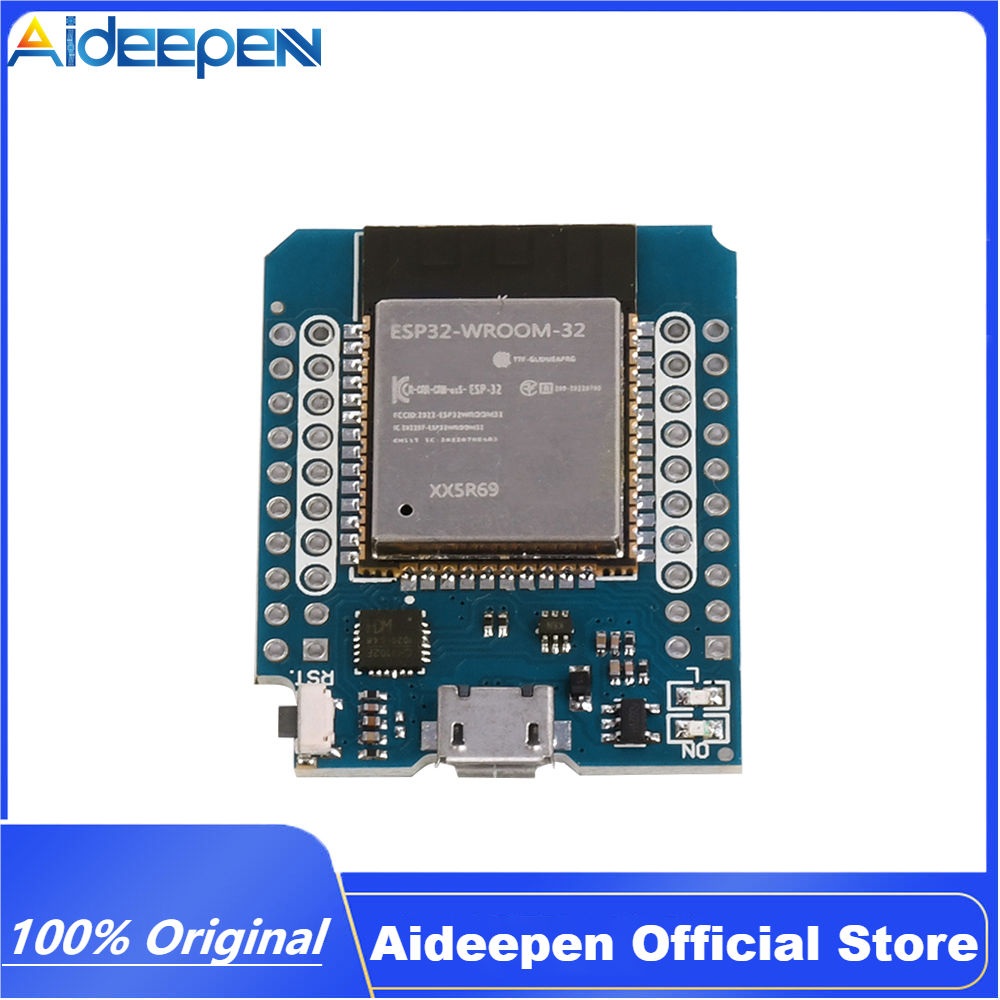

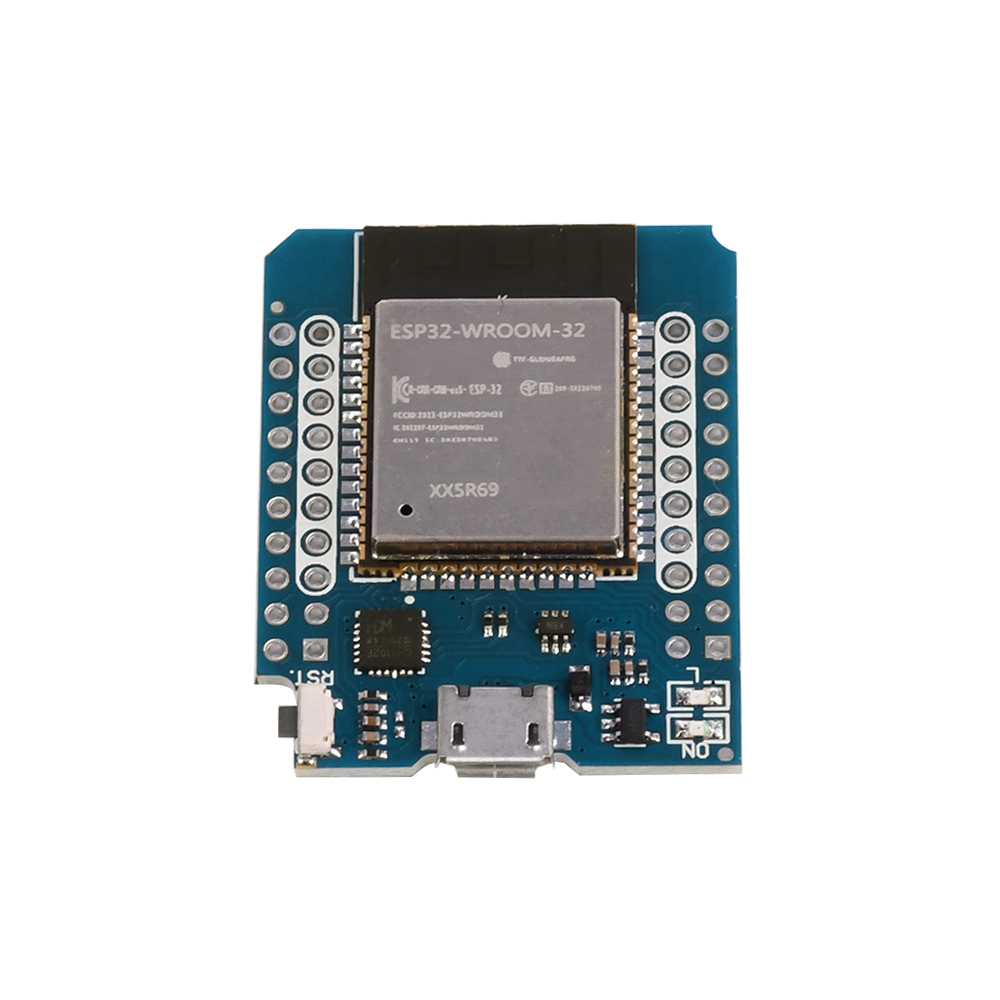

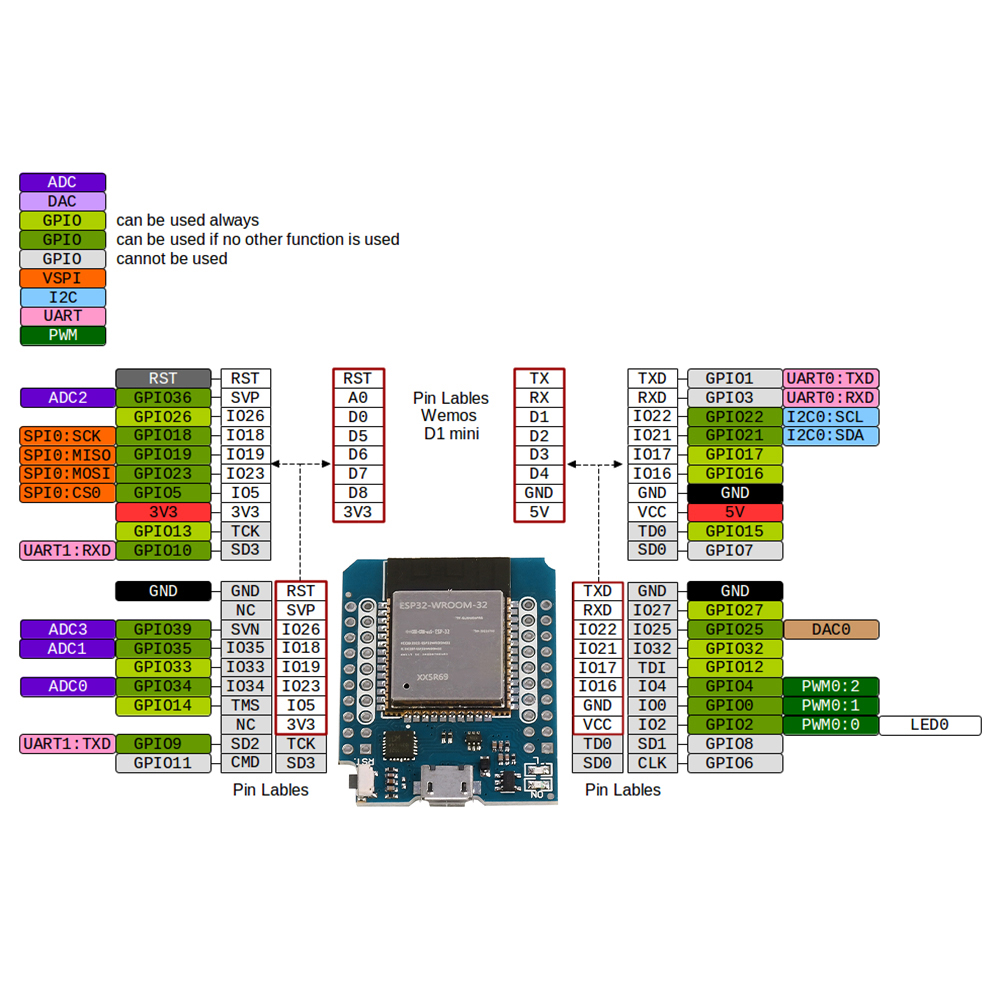

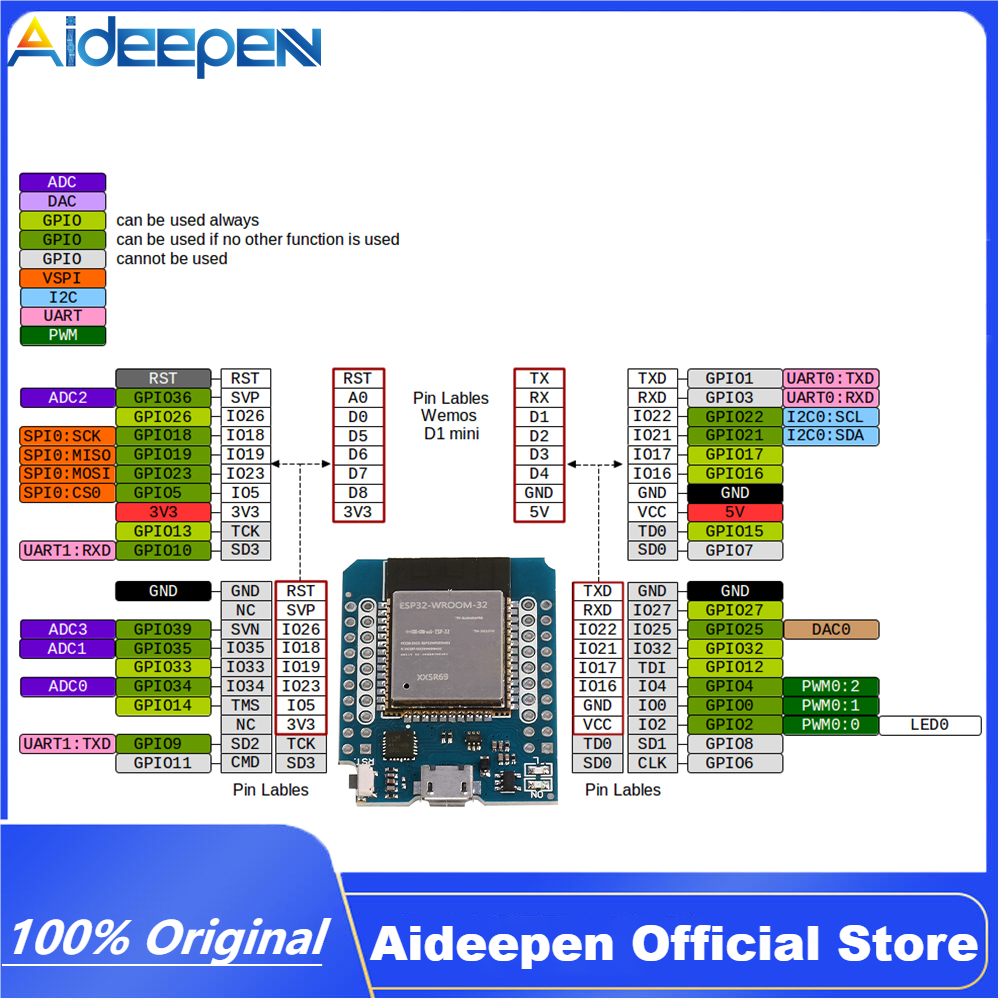

This small board has the same appearance as the Wemos D1 mini, except for two rows of pins on each side. The extended version and routines of the two boards can be universal~very convenient. The previous Esp82660 series routines can be migrated and used. Familiarize Esp8266 with the rapid development of Esp32 series chips by developers to meet the needs of projects with higher performance requirements and higher pin requirements.

ESP-WROOM-32 is a universal Wi Fi+BT+BLE MCU module with powerful functions and a wide range of applications. It can be used for low-power sensor networks and extremely demanding tasks such as voice encoding, audio streaming, and MP3 decoding.

This module has the characteristics of scalability and adaptability. Two CPU cores can be individually controlled or powered on. The adjustment range of clock frequency is from 80 MHz to 240 MHz. Users can cut off the power supply of the CPU and use low-power coprocessors to continuously monitor the status changes of peripherals or whether certain analog quantities exceed the threshold. ESP32 also integrates a variety of peripherals, including capacitive touch sensors, Hall sensors, low noise sensing amplifiers, SD card interfaces, Ethernet interfaces, high-speed SDIO/SPI, UART, I2S, and I2C.

Parameters:

Working voltage: 3.3-5V

Input current: minimum 500mA

Working current: average 80mA

Working environment: -40~80 ℃

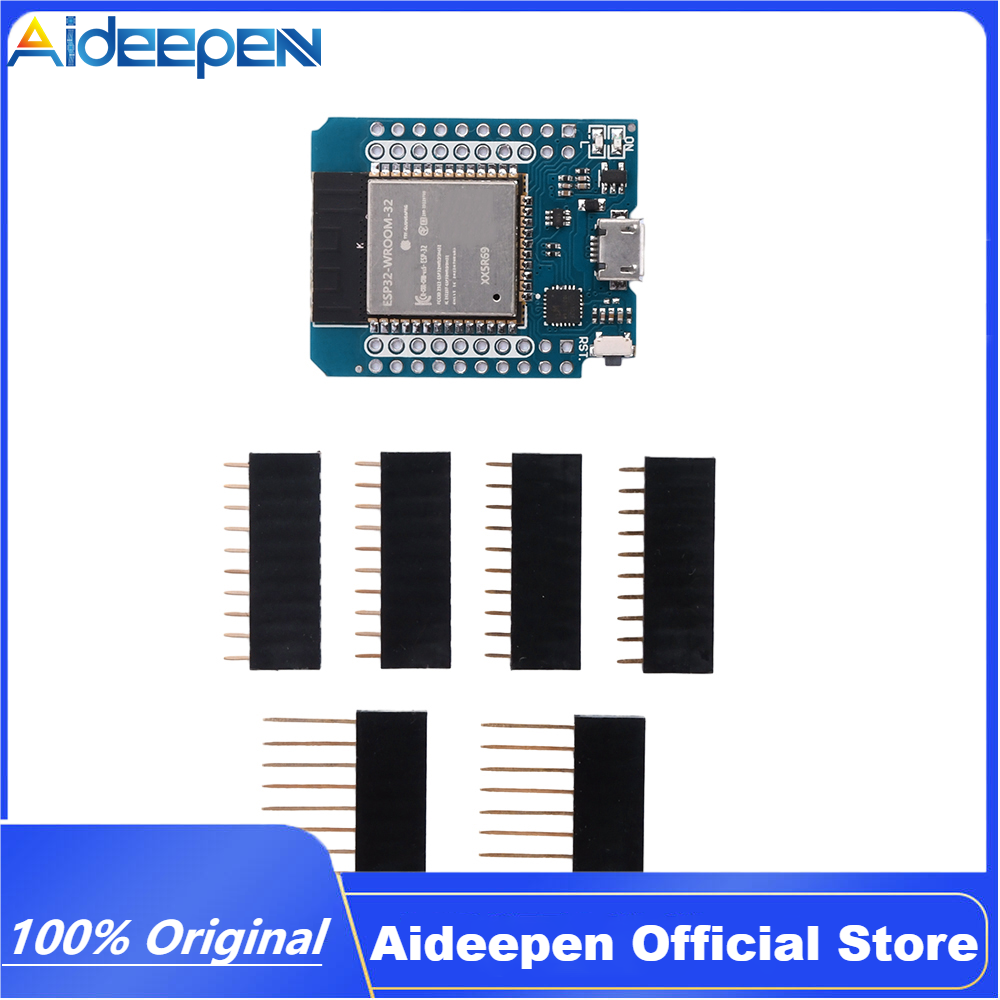

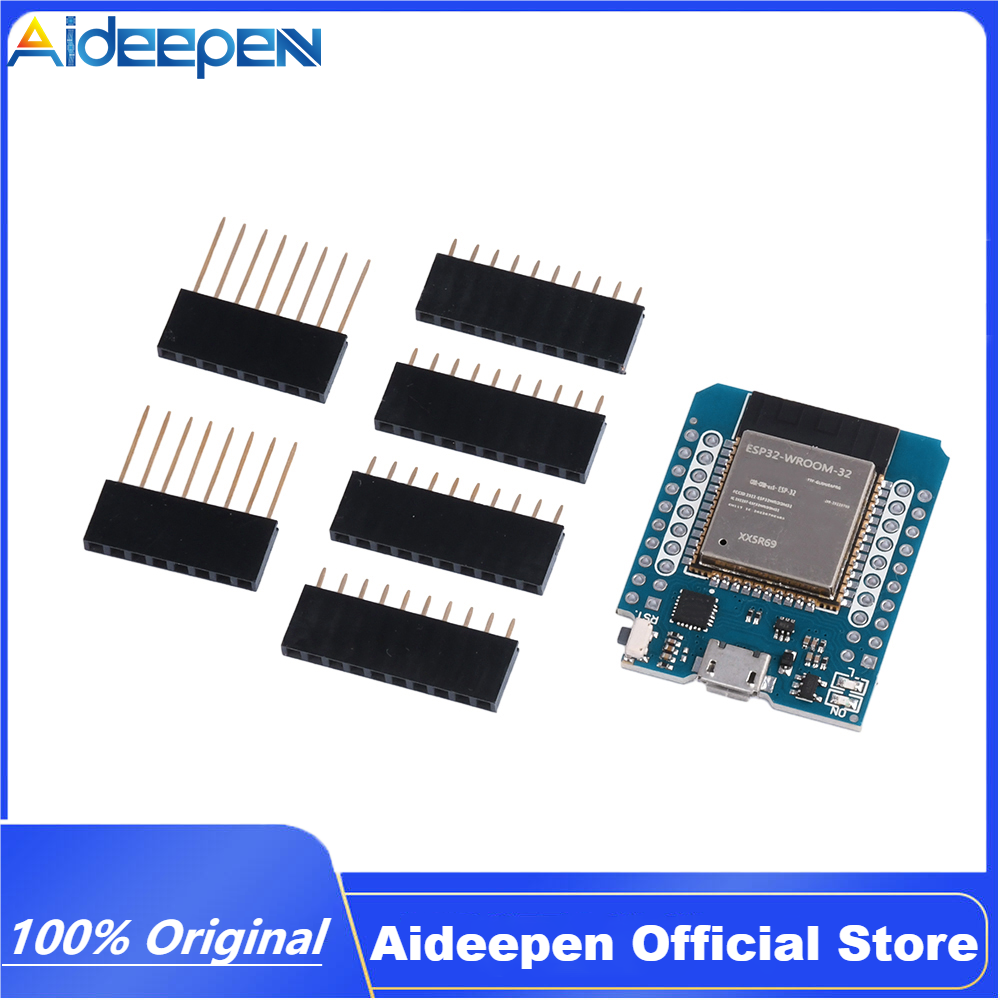

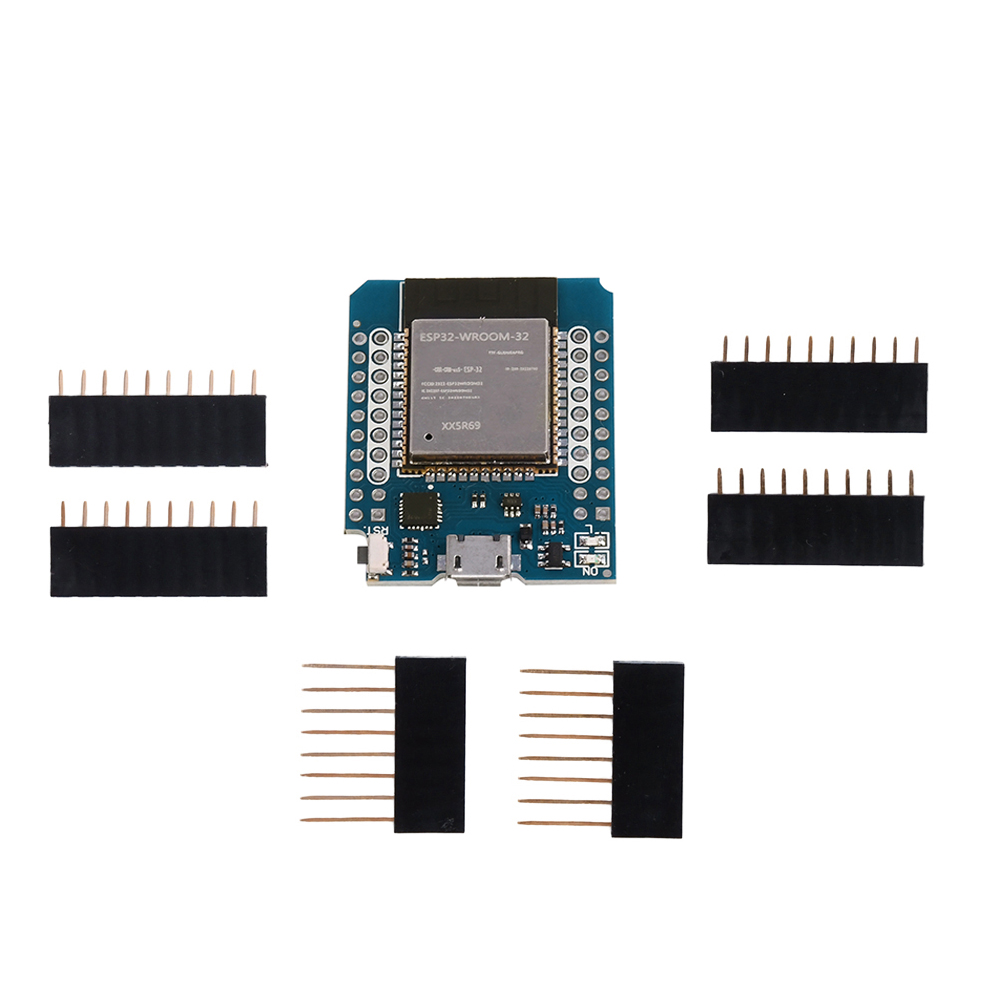

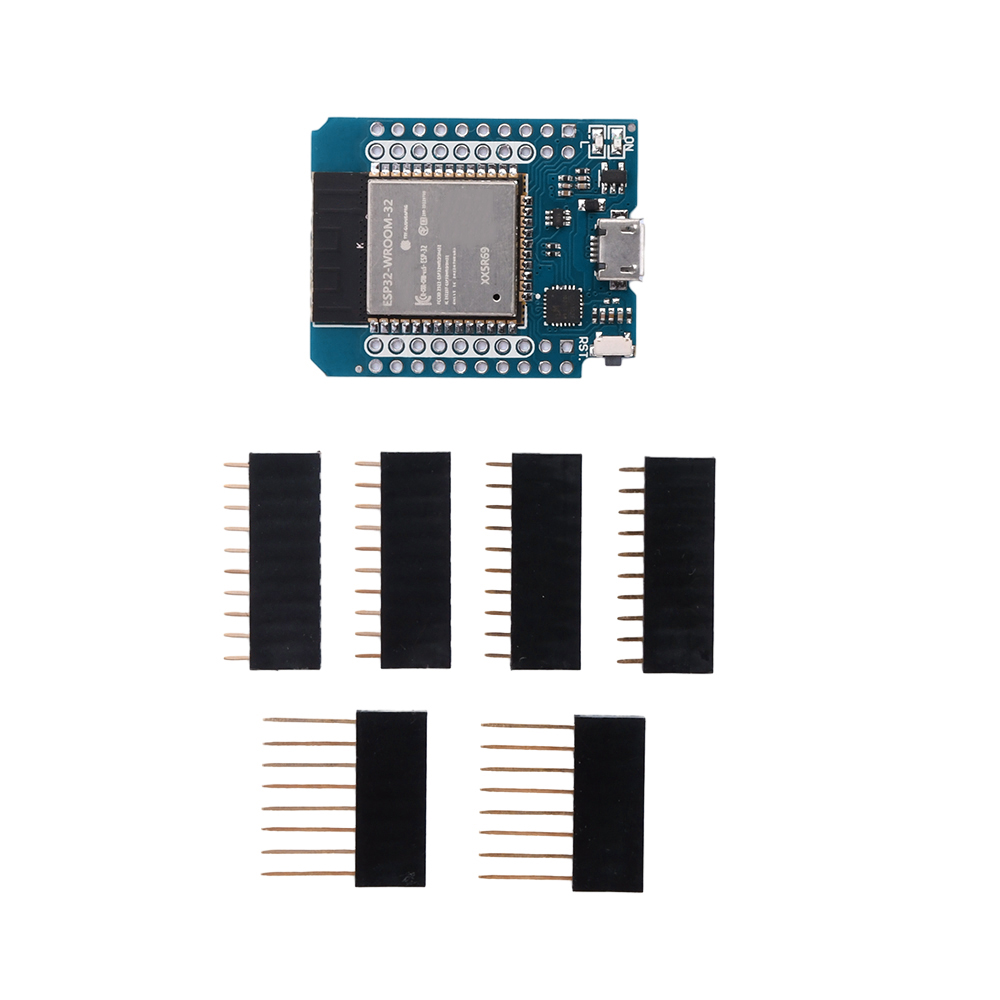

Package include:

Module X 1

Long busbar X 2

short busbar X 4
