diymore ESP32-C6 Wifi Bluetooth bảng mạch phát triển onboard mô-đun ESP32-C6-WROOM-1-N8 wifi6 risc-v bảng mạch phát triển

Product Introduction:

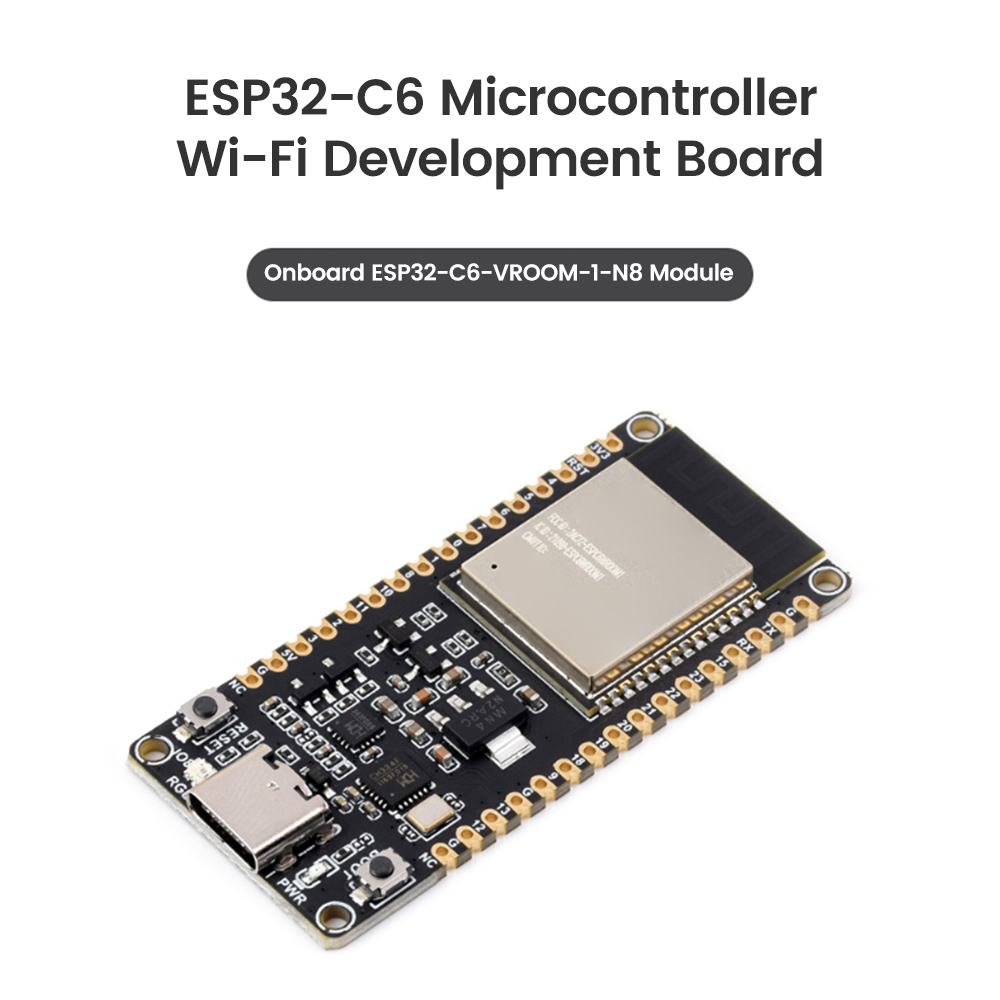

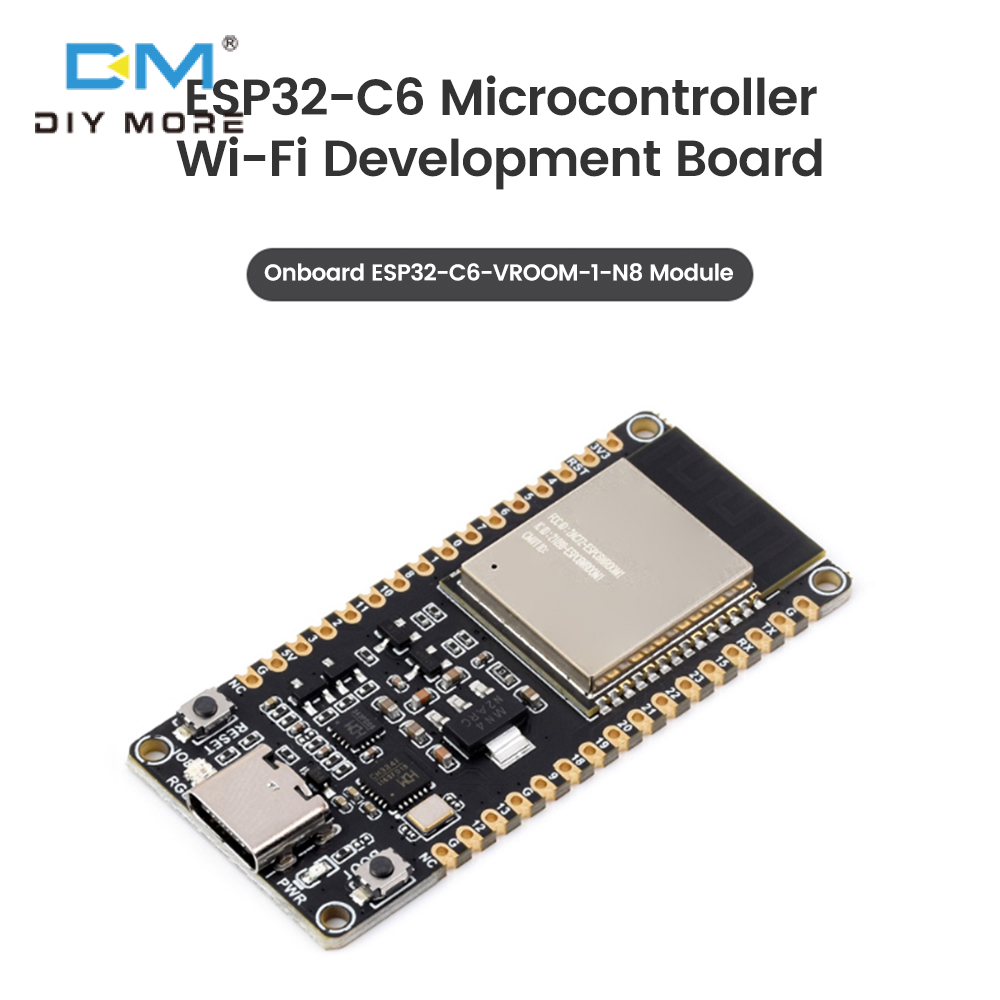

ESP32-C6-DEV-KIT-N8 is an entry-level RISC-V microcontroller development board that integrates WiFi 6, Bluetooth 5, and IEEE 802.15.4 (Zigbee 3.0 and Thread). It is compact, powerful, and has rich peripheral interfaces, and can be used in fields such as smart homes, industrial automation, healthcare, and consumer electronics.

In terms of hardware, the ESP32-C6-WROOM-1-N8 module is used, which is equipped with RISC-V 32-bit single core processor, supports up to 160MHz main frequency, built-in 8MB Flash, and integrates a variety of peripherals, including SPI, UART, I2C, 12S, LED PWM, SDIO and other interfaces； The CH343 serial port and CH334 USB HUB dual chip are also onboard, which can be used and developed for both USB and UART through a USB-C interface. The pin interface is compatible with the ESP32-C6-DevKitC-1-N8 development board, and can be compatible with expanding various peripheral devices, making it more convenient to use.

On the software side, you can choose the official ESP-IDF development environment for development, providing relevant sample programs and tutorials, making it easy for users to quickly get started with development and apply it to products.

Parameter Description:

Interface: Type-C interface

Module: Using ESP32-C6-WROOM-1-N8 module

Processor: Equipped with RISC-V 32-bit single core processor

Main frequency: up to 160MHz

Memory: built-in 8MB Flash memory

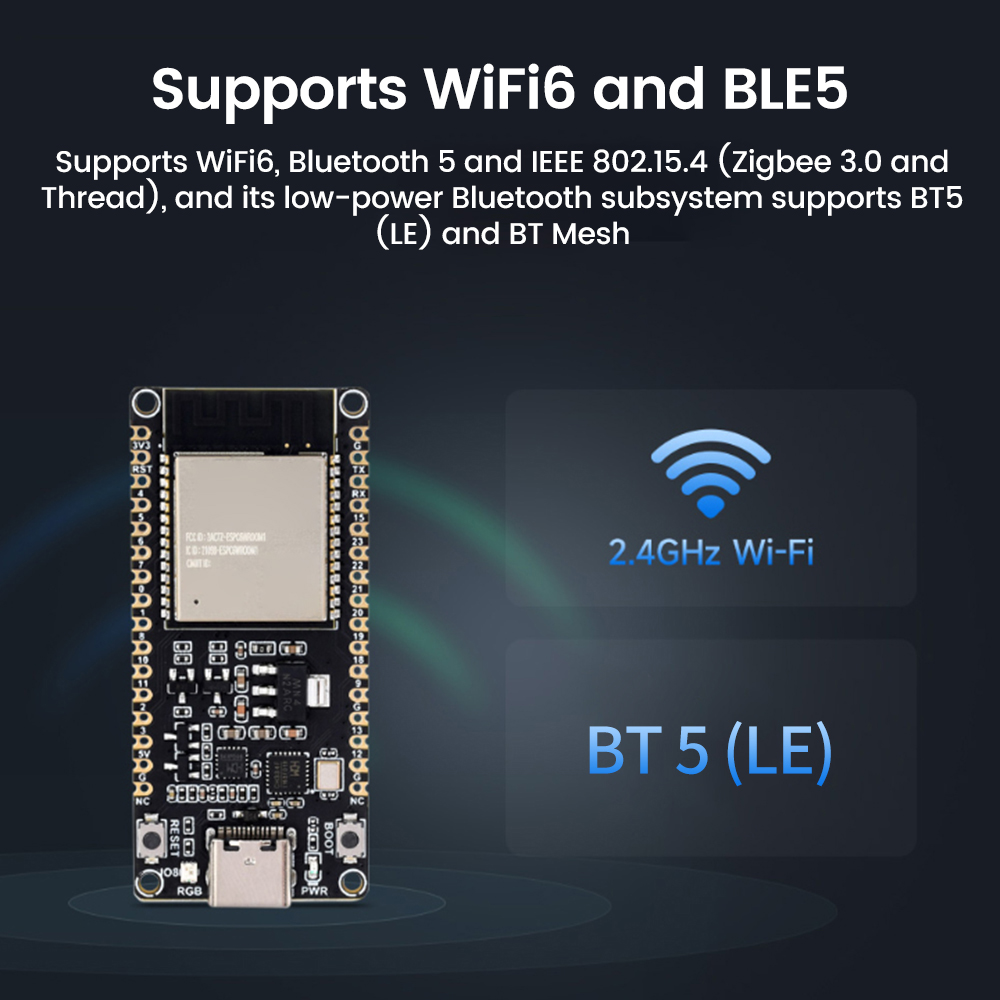

Integrated WiFi 6, Bluetooth 5, and IEEE 802.15.4 (Zigbee 3.0 and Thread) wireless communication with superior RF performance

Adopting USB Type-C interface, no need to worry about forward and backward insertion

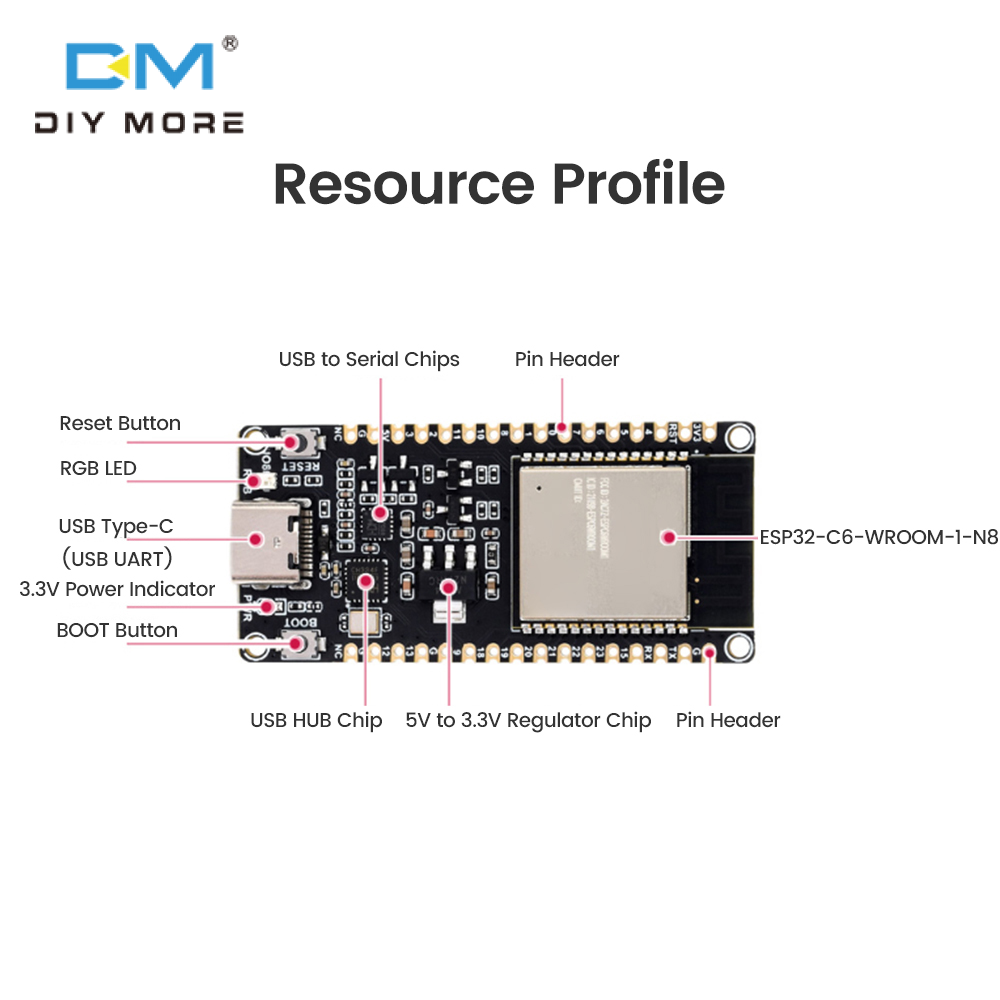

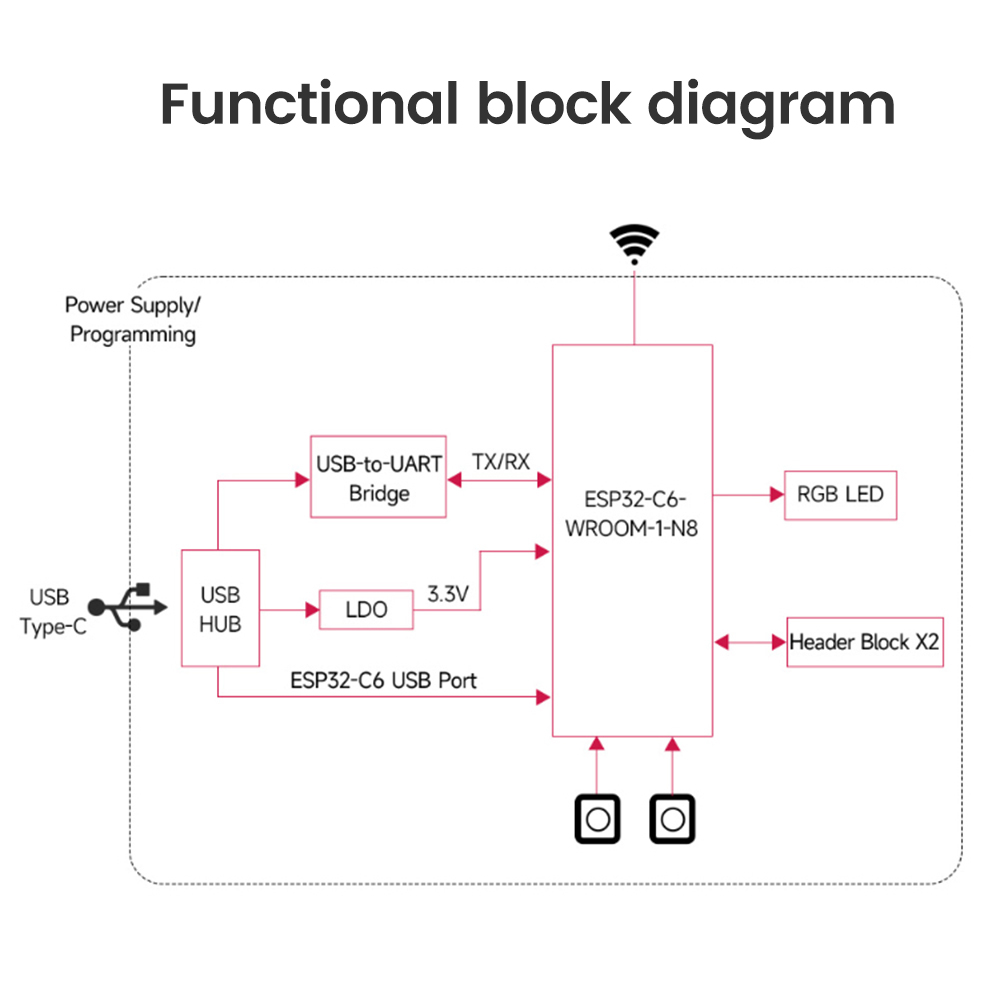

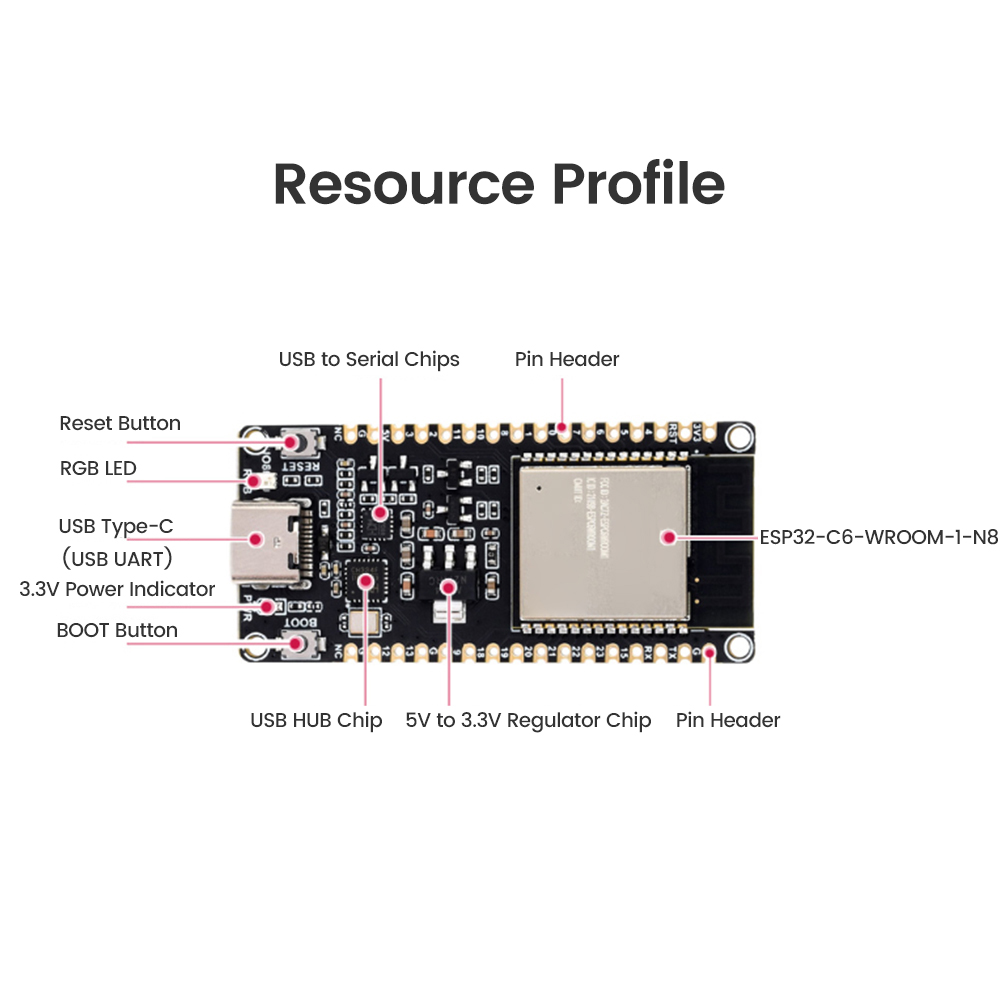

Onboard CH343 and CH334 chips can meet the development and usage requirements of USB and UART through a Type-C interface

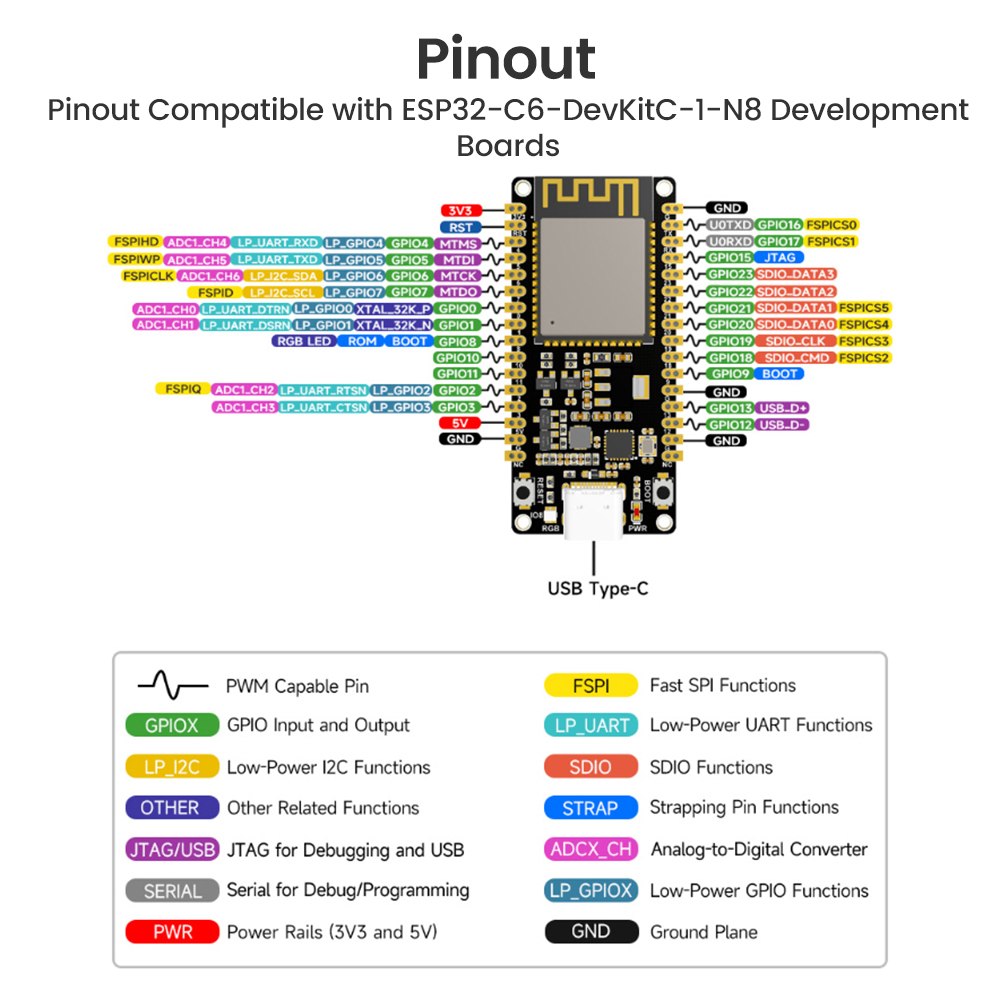

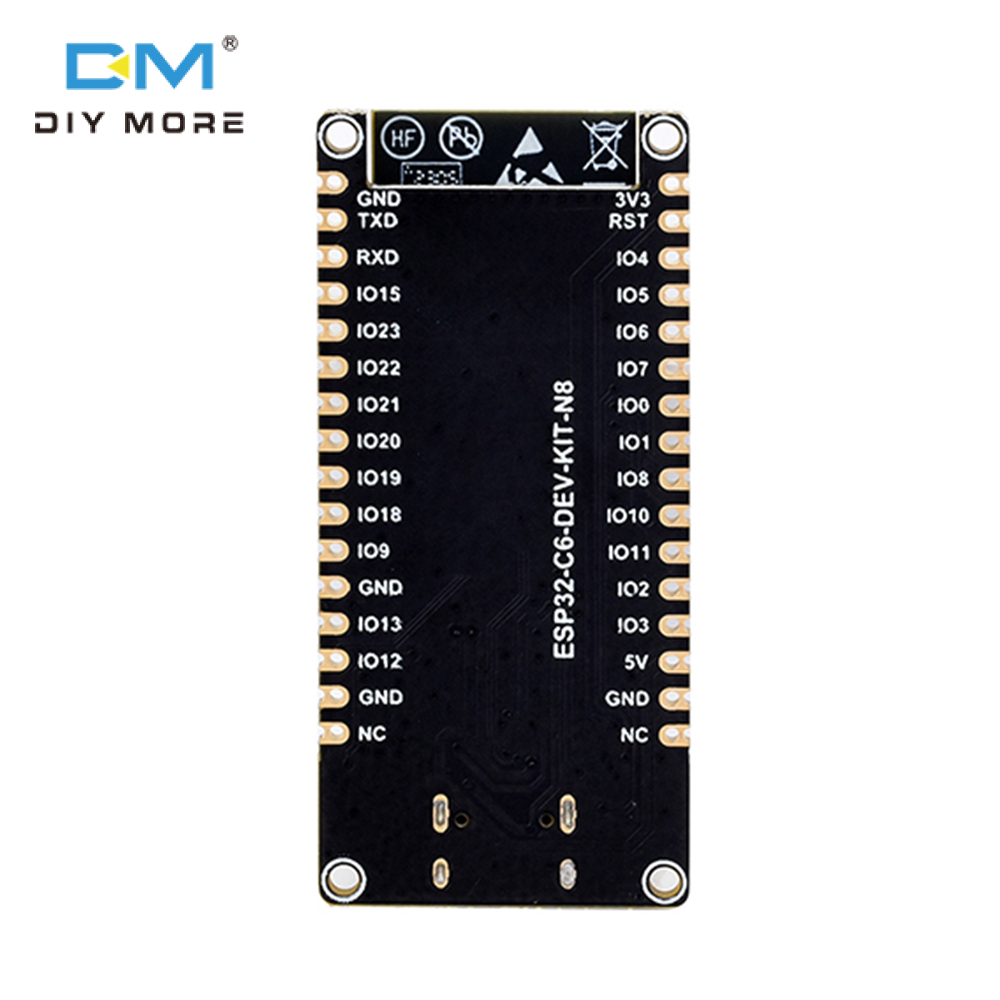

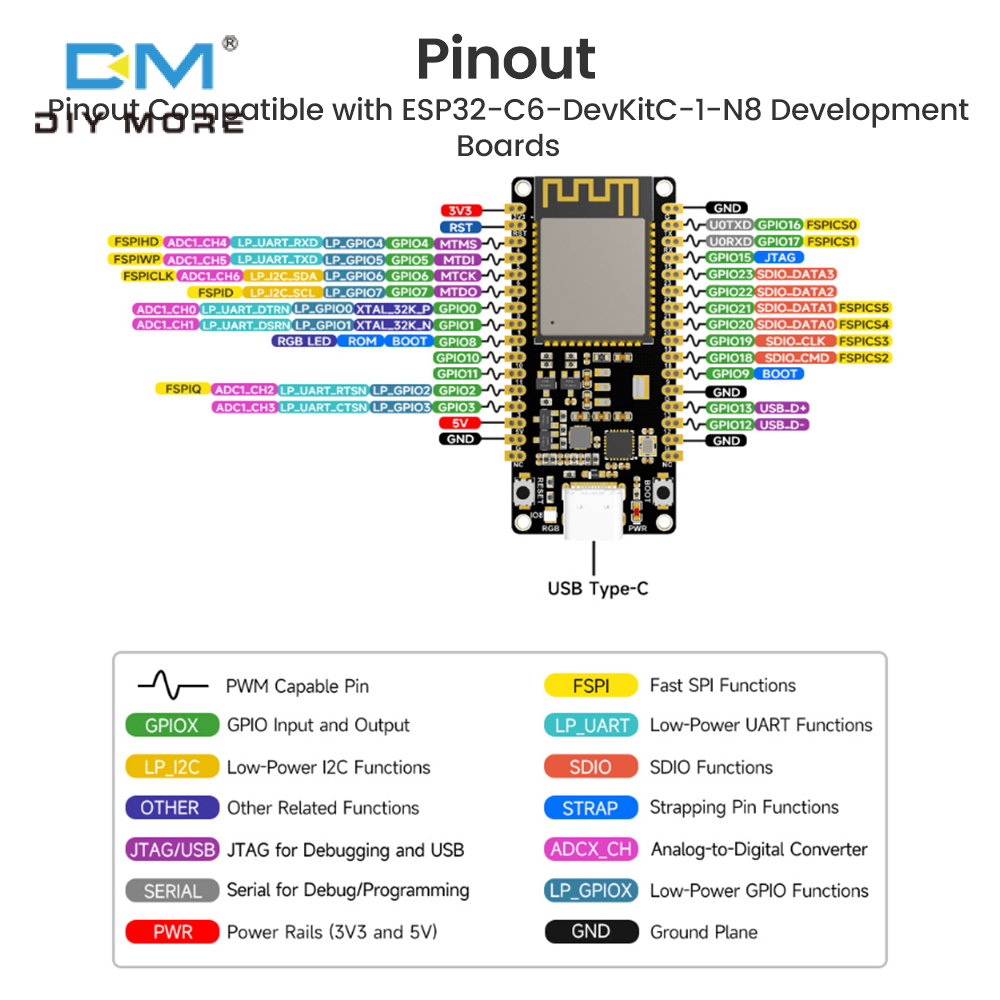

Introduce rich peripheral interfaces, pin compatible with ESP32-C6-DevKitC-1-N8 development board, strong compatibility and scalability

Stamp hole design, which can be directly welded and integrated into the user designed base plate

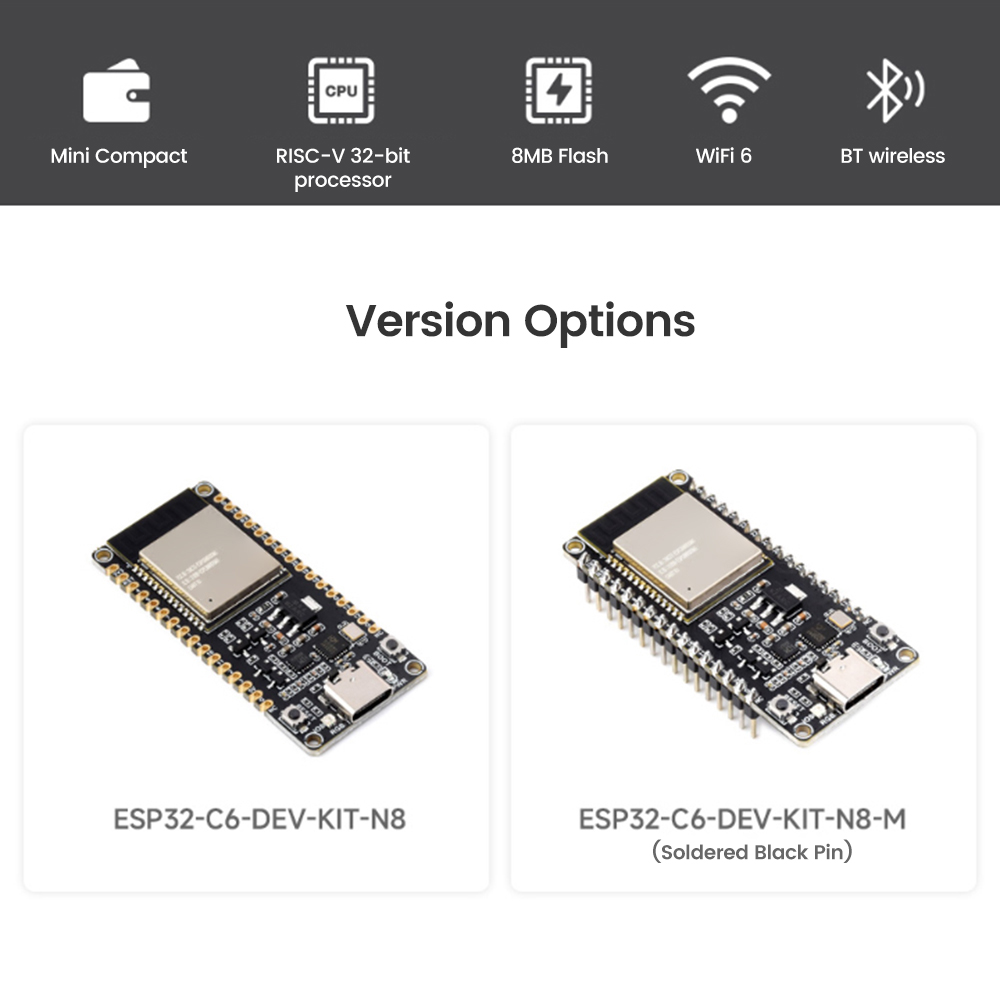

Package include:

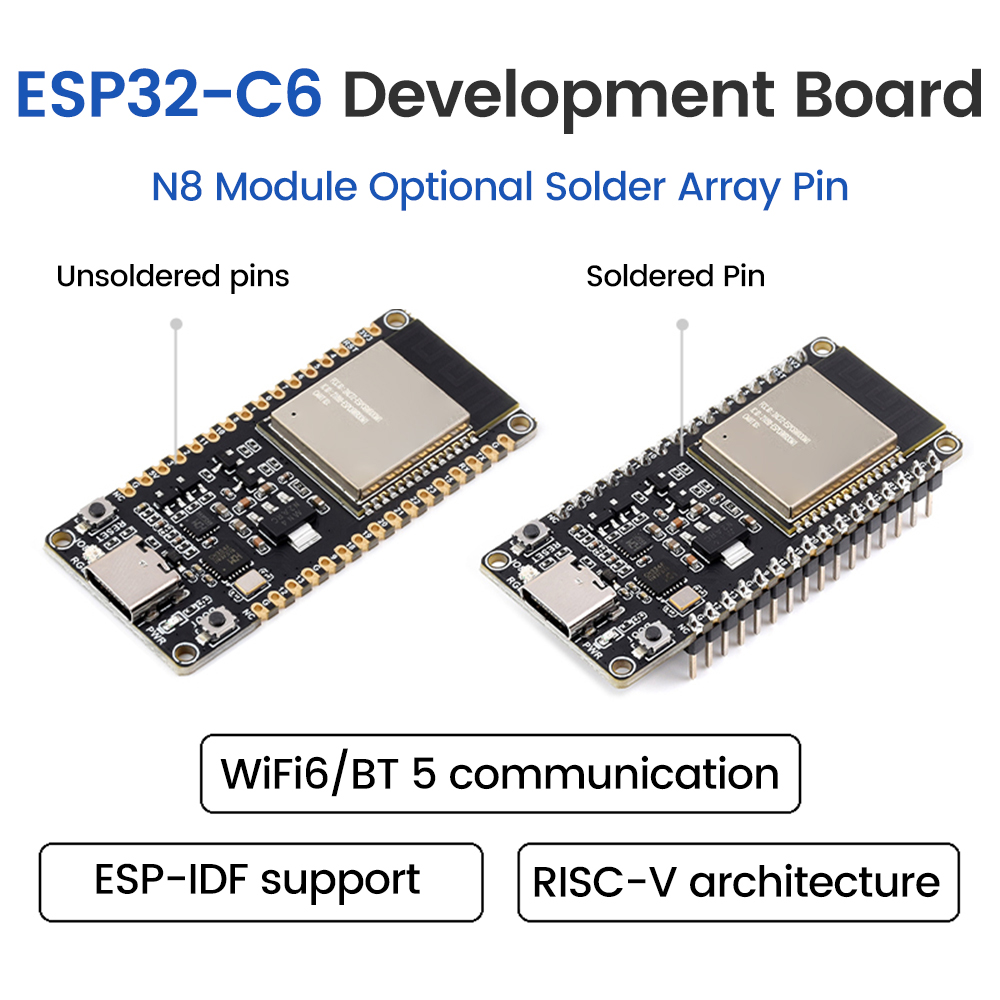

1X development board

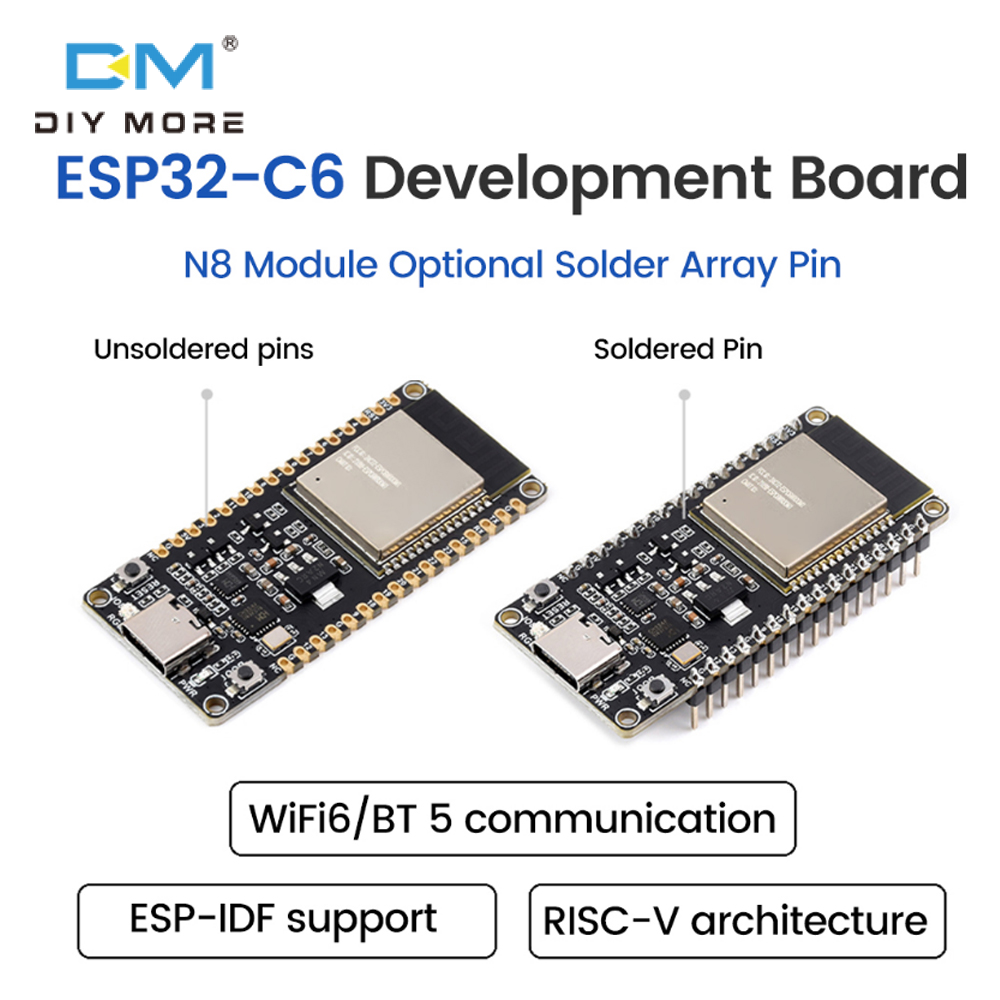

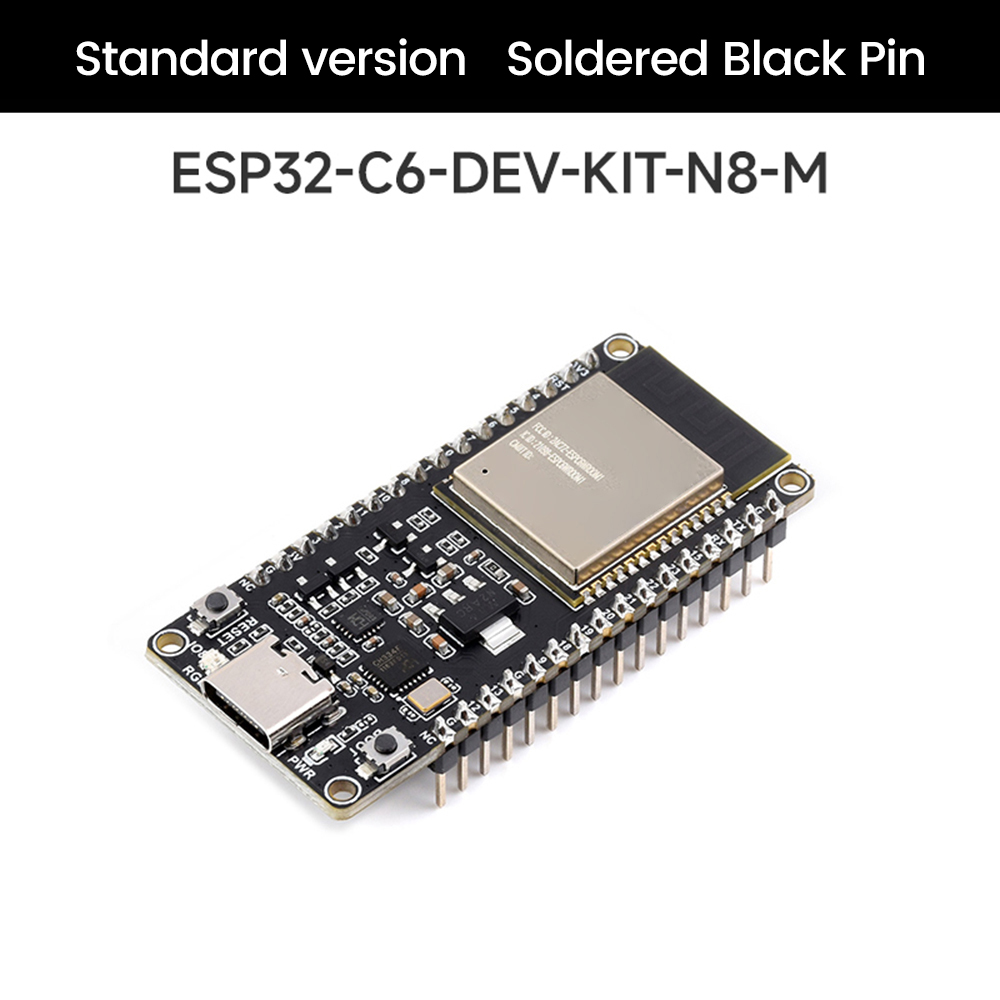

1X row of pins (optional if not welded or welded)
