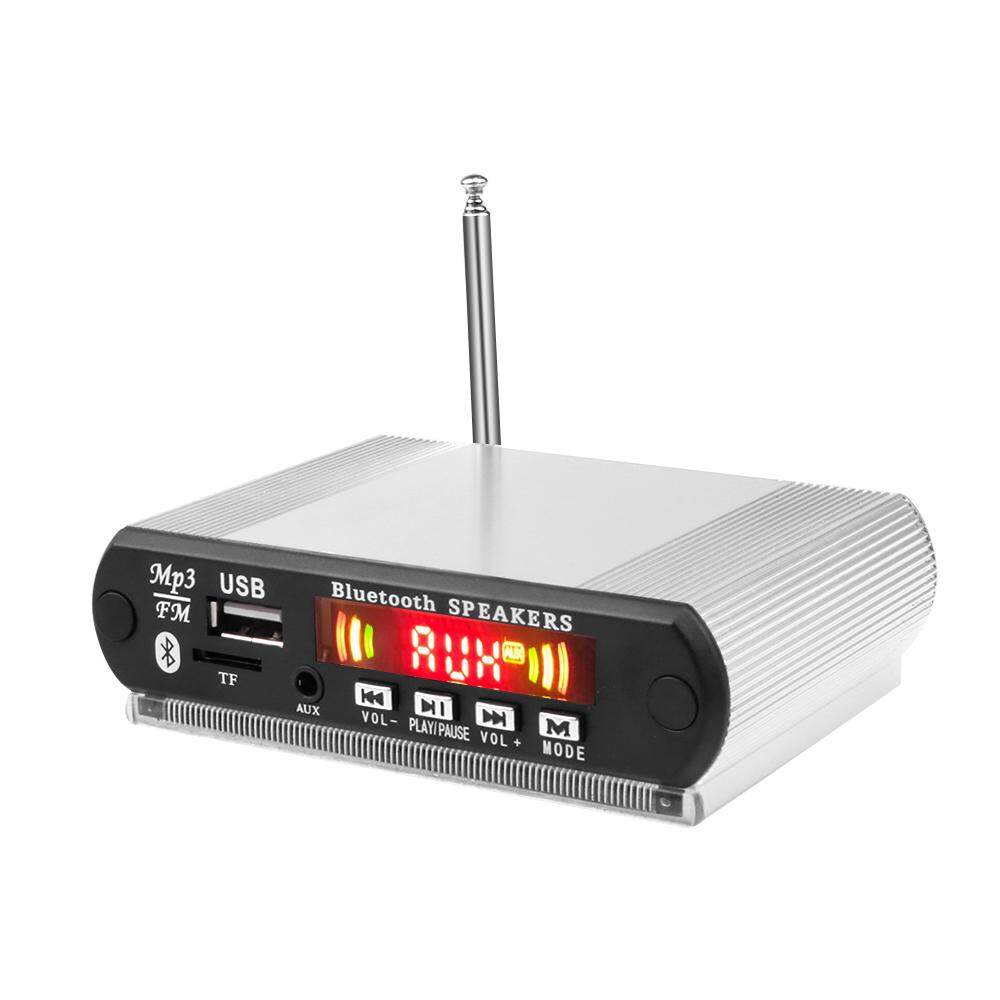

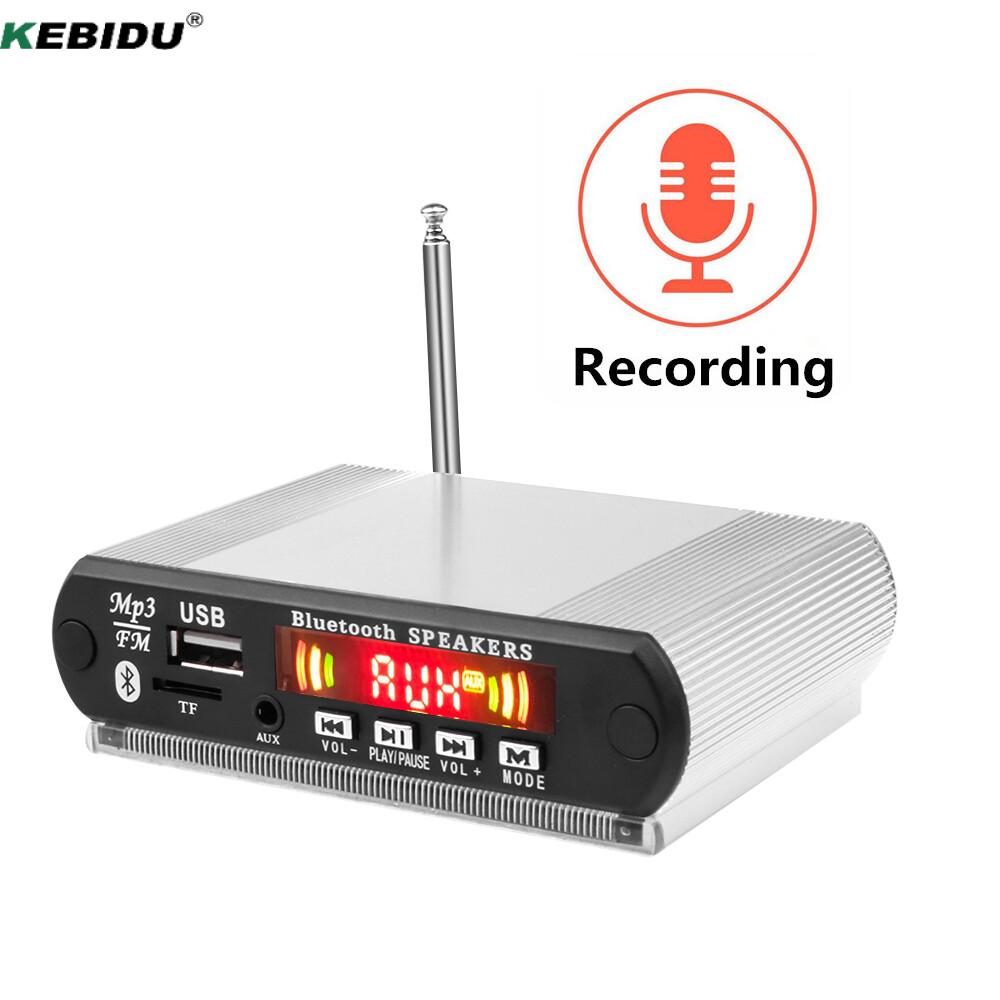

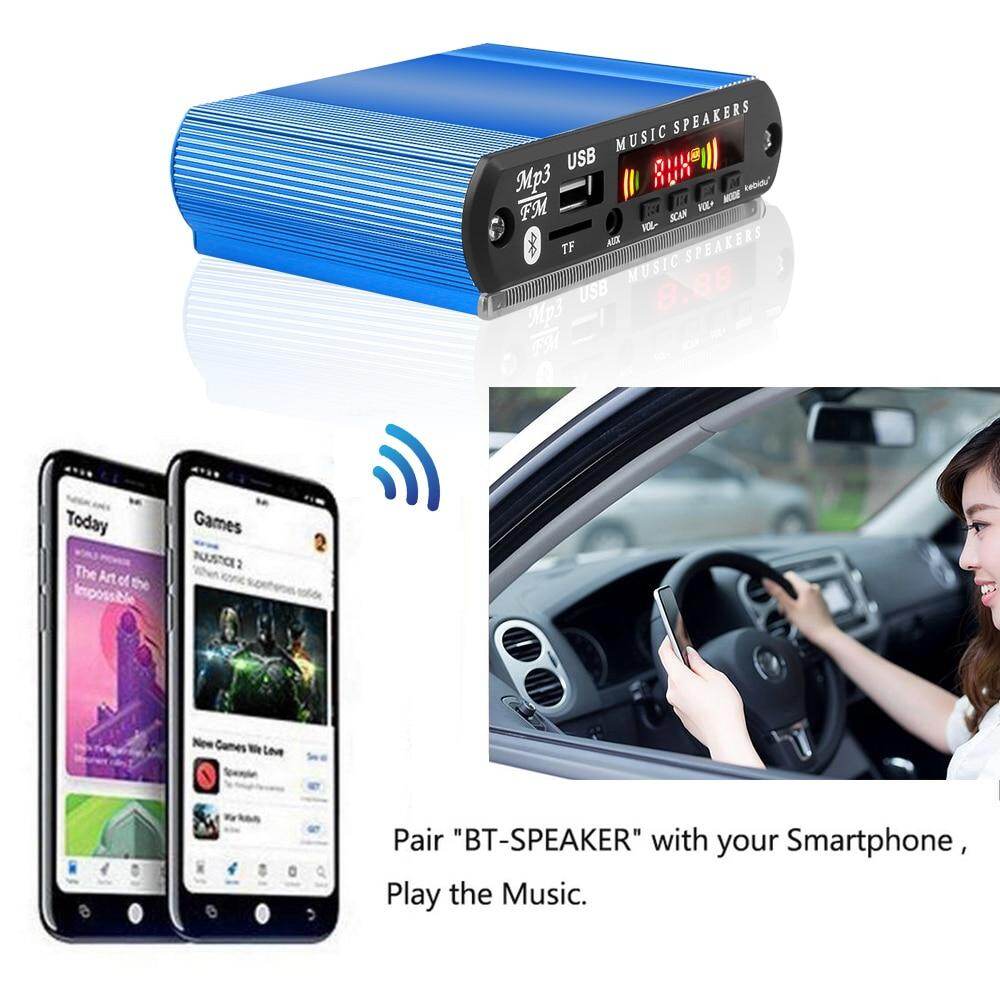

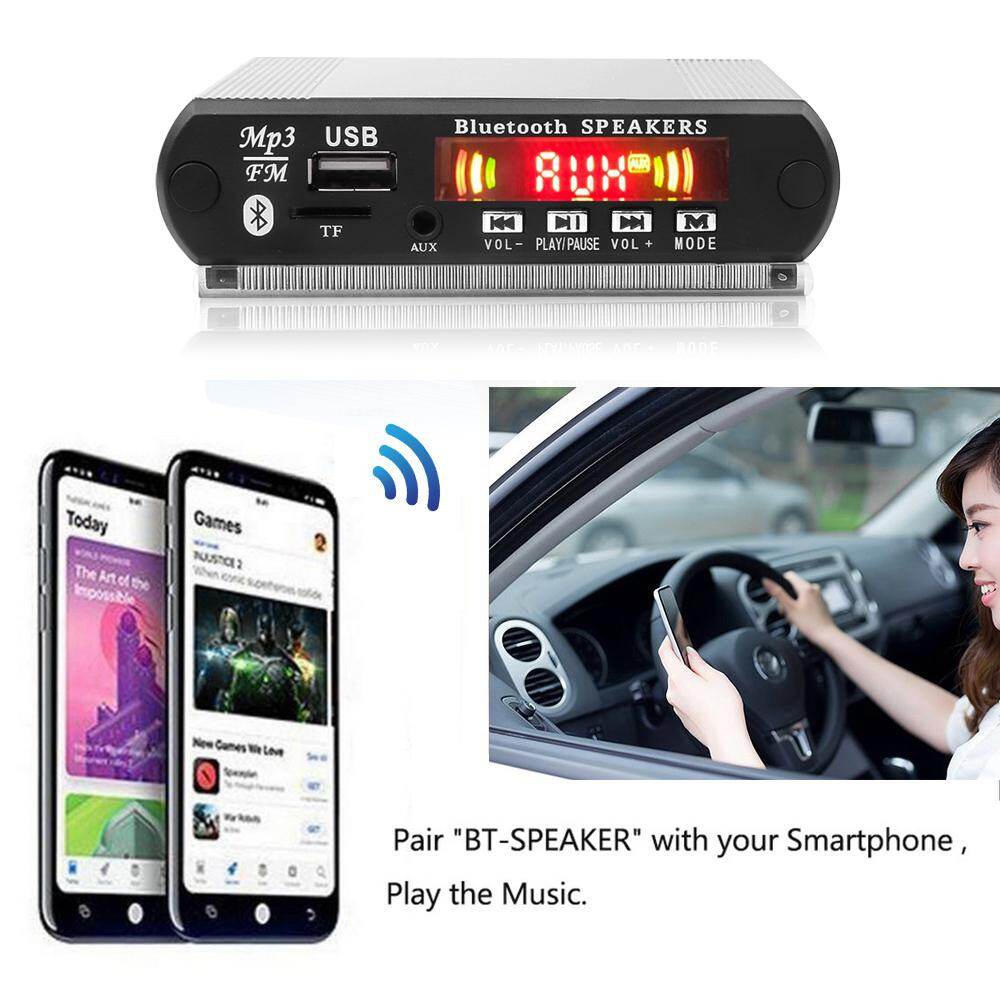

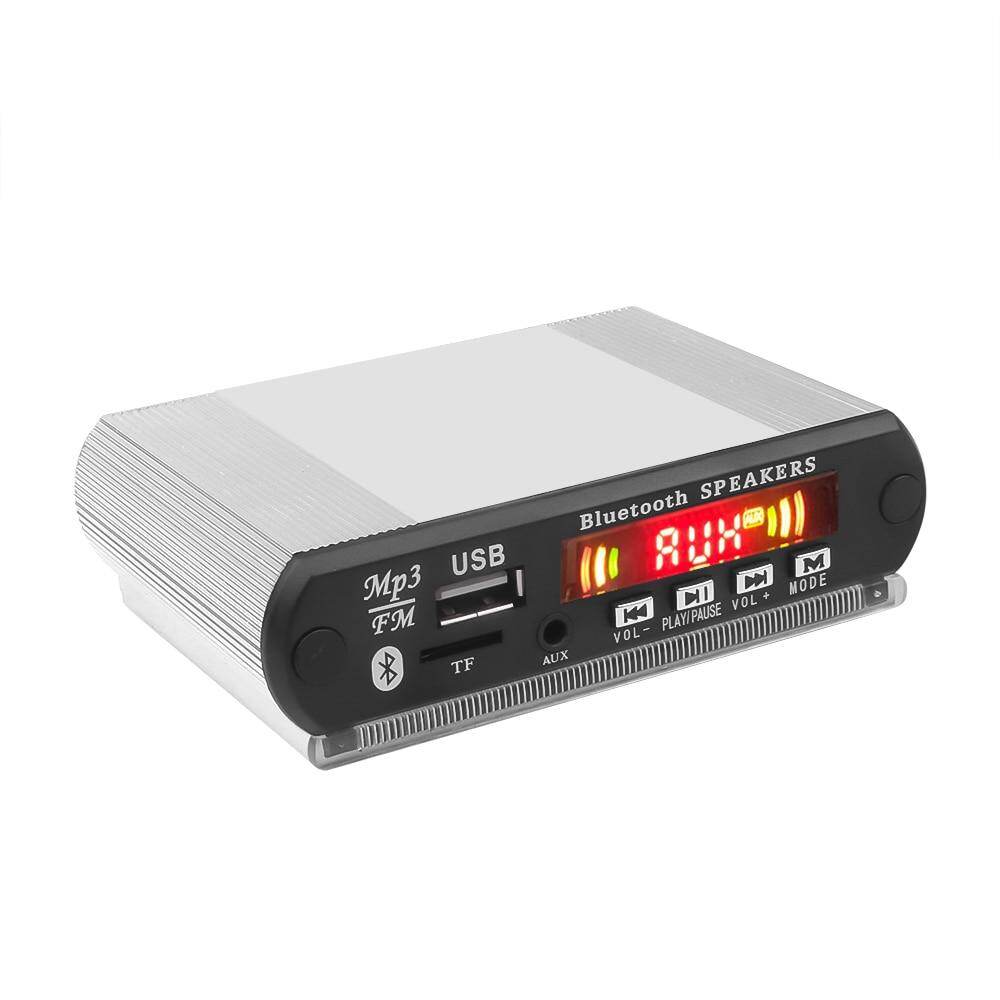

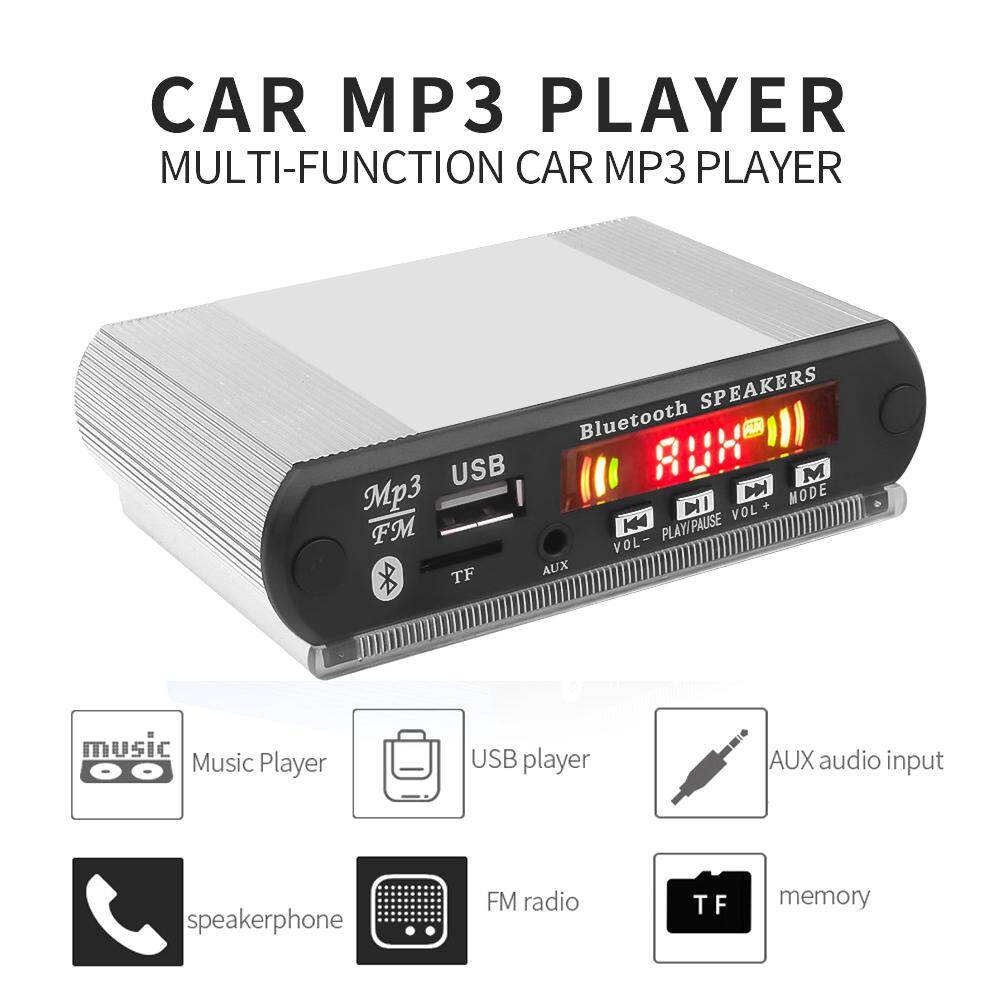

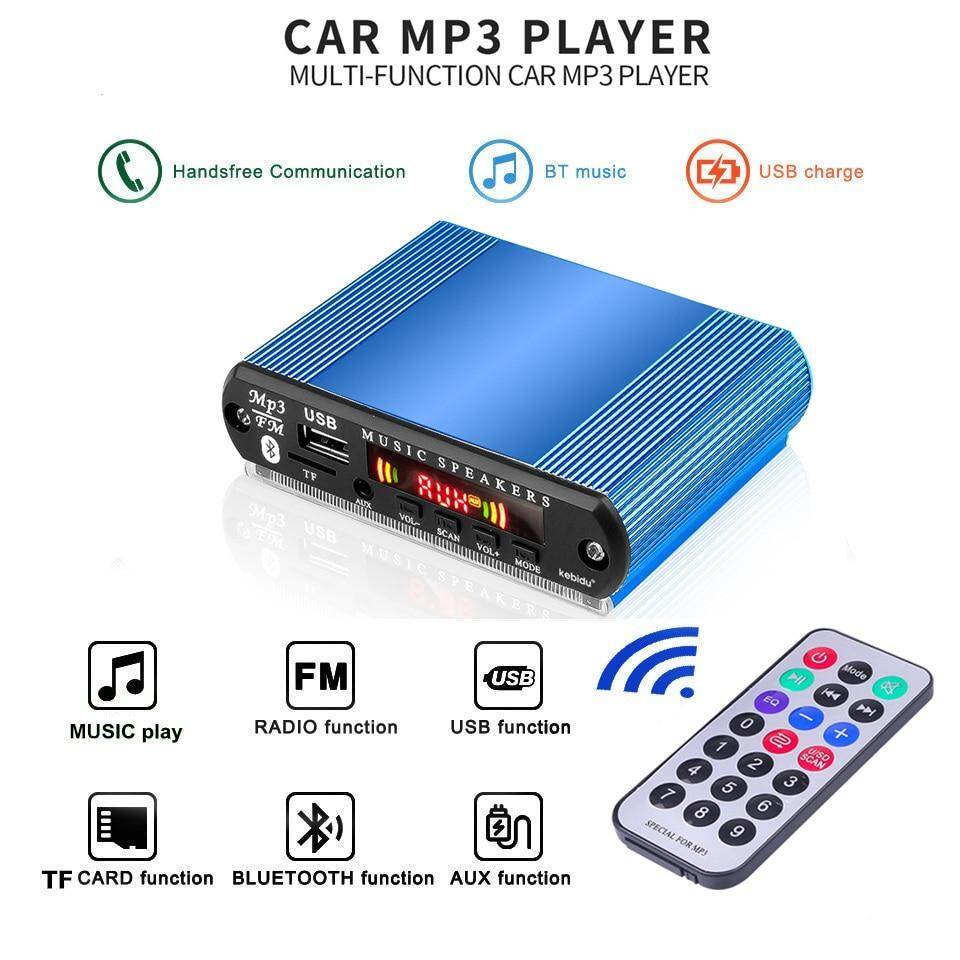

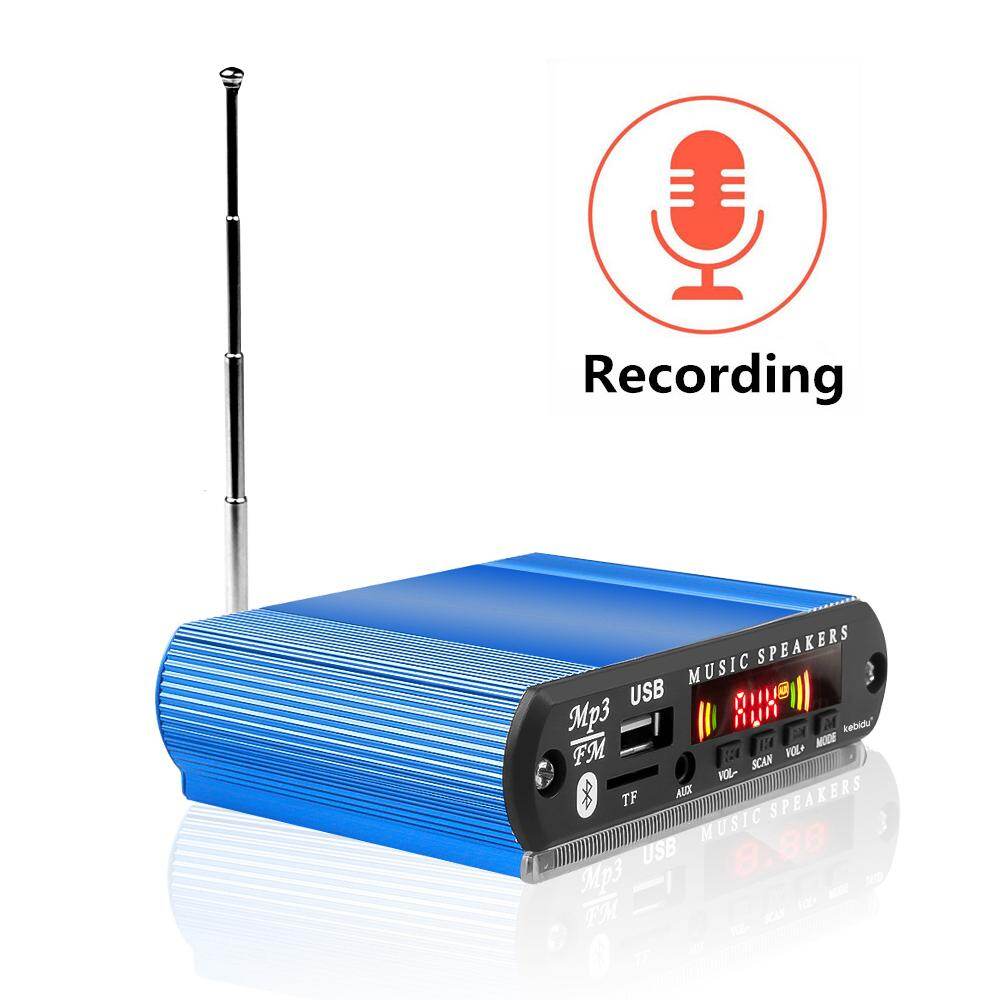

5V Bluetooth MP3 Player Decoder Board MP3 WMA Car Accessory With Recording Function Support USB TF Card FM 3.5mm Audio Module

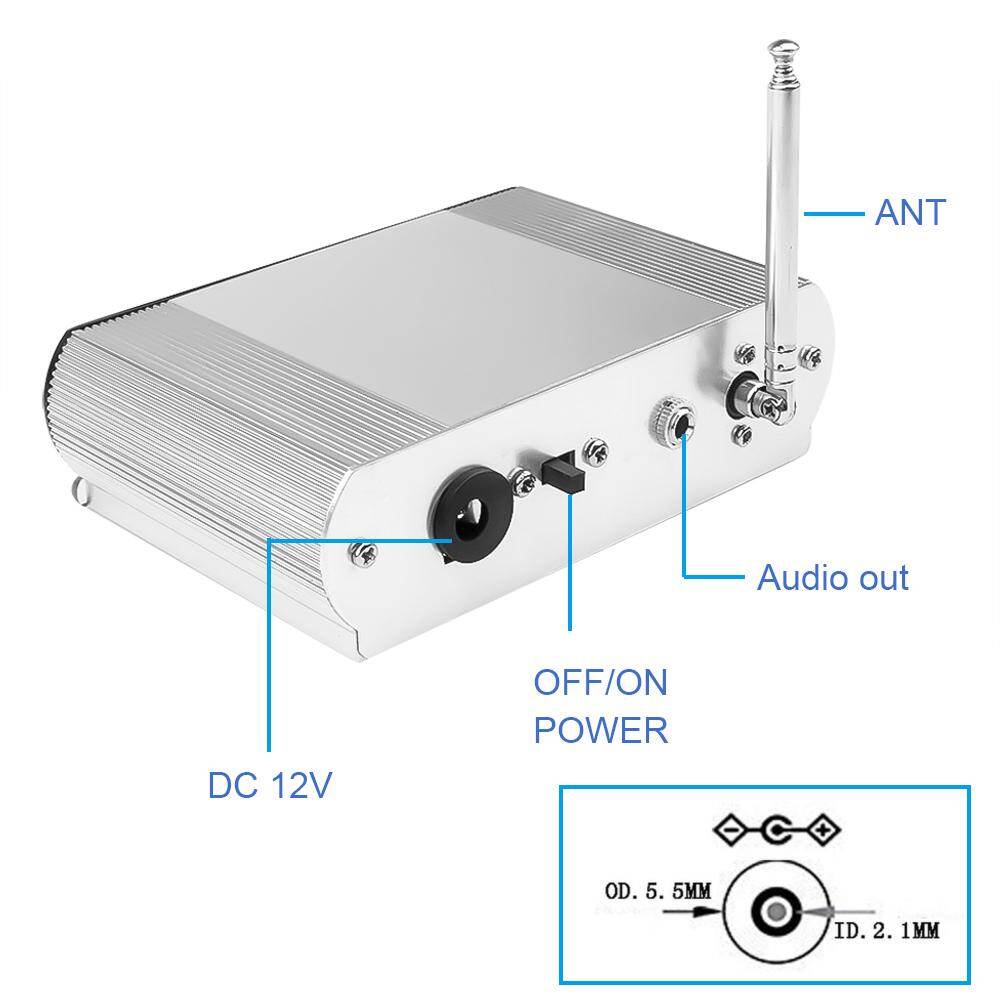

Note：Please use 5V power supply, 12V power supply may damage the product, please pay attention to use



Specification:

Main control IC: AC6925A
Bluetooth IC: AC6925A Bluetooth 5.0
Music format: MP3 / WMA / WAV / FLAC / APE lossless format
Radio FM frequency: 87.5-107.5 MHZ
Support function introduction: support MP3/USB/TF/LINE IN/FM/BLUETOOTH
Working voltage: 5V
Panel size: 50 * 24 mm, the depth of the board is 35mm



Description:

Voltage 5V universal
FM radio: 87.5 MHz-108 MHz auto scan with memory preset!
USB: Plug in a USB flash drive (maximum support 32GB)

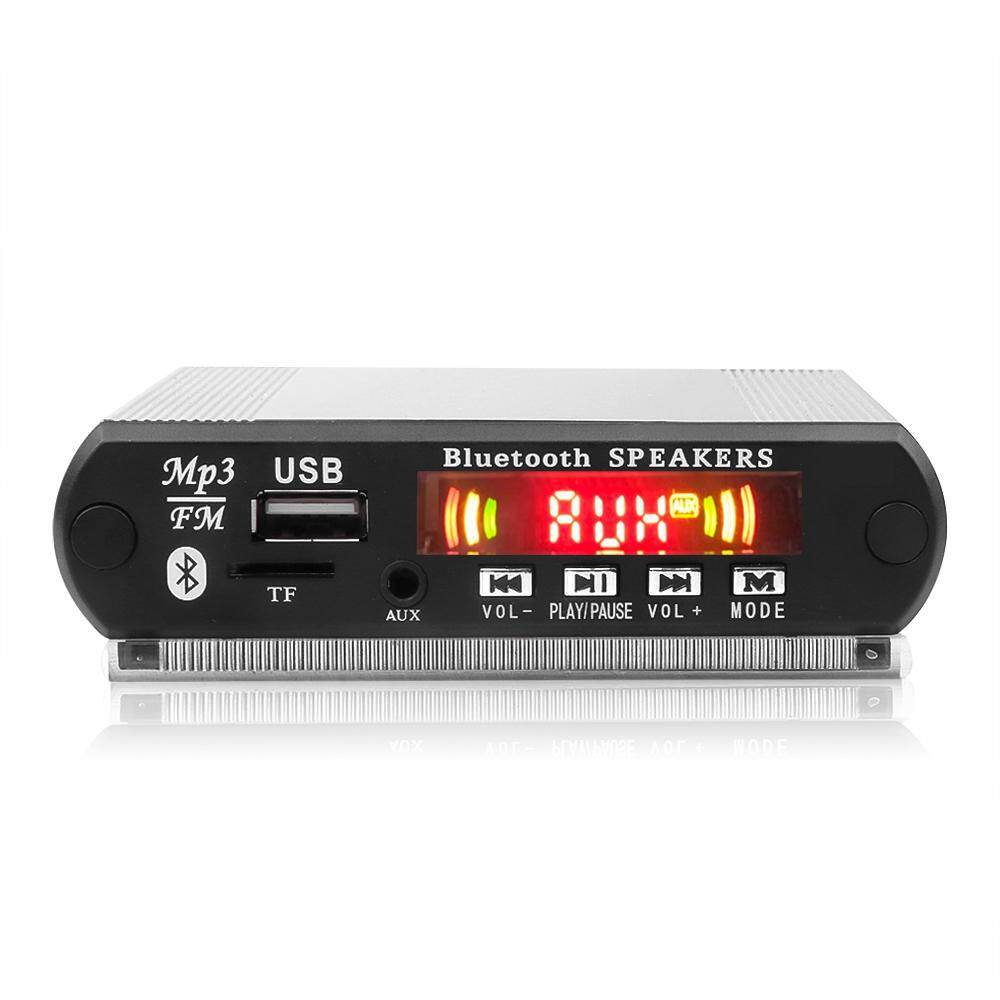

LED color screen: digital display, red
Infrared receiver module
TF: Connect TF card (maximum support 32GB)
AUX: audio input interface
VOL-: short press to select the previous song; Long press to decrease volume
Play / Pause: short press is a switch between pause and play; Long press is FM automatic station
VOL +: short press to select the next song; Long press to increase volume
Mode: Switch USB / TF / FM / LINE IN / BLUETOOTH
About design: Panel size: 107 * 25 mm, board depth 32 mm

Main functions:

(1) Support LED digital tube;
(2) Support USB, SD (TF), AUX, FM radio function;
(3) Support Bluetooth, Compatible with Bluetooth 3.0 and below;
(4) supports previous song, next song, play / pause, mode conversion;
(5) support for FAT16, FAT32 file systems;
(6) Support MP1 Layer3, MP2 Layer3, MP3 Layer3, song version;
(7) Support MP3 songs 32-320 kbps;

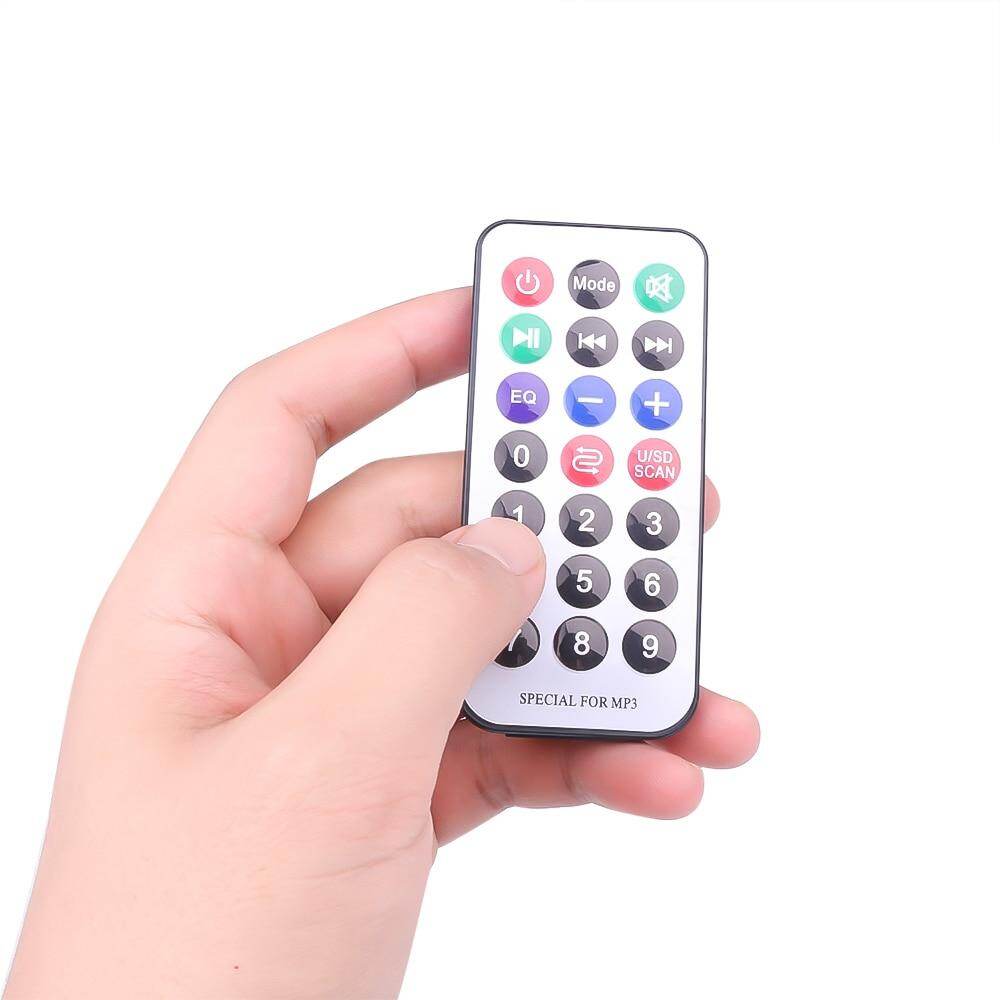

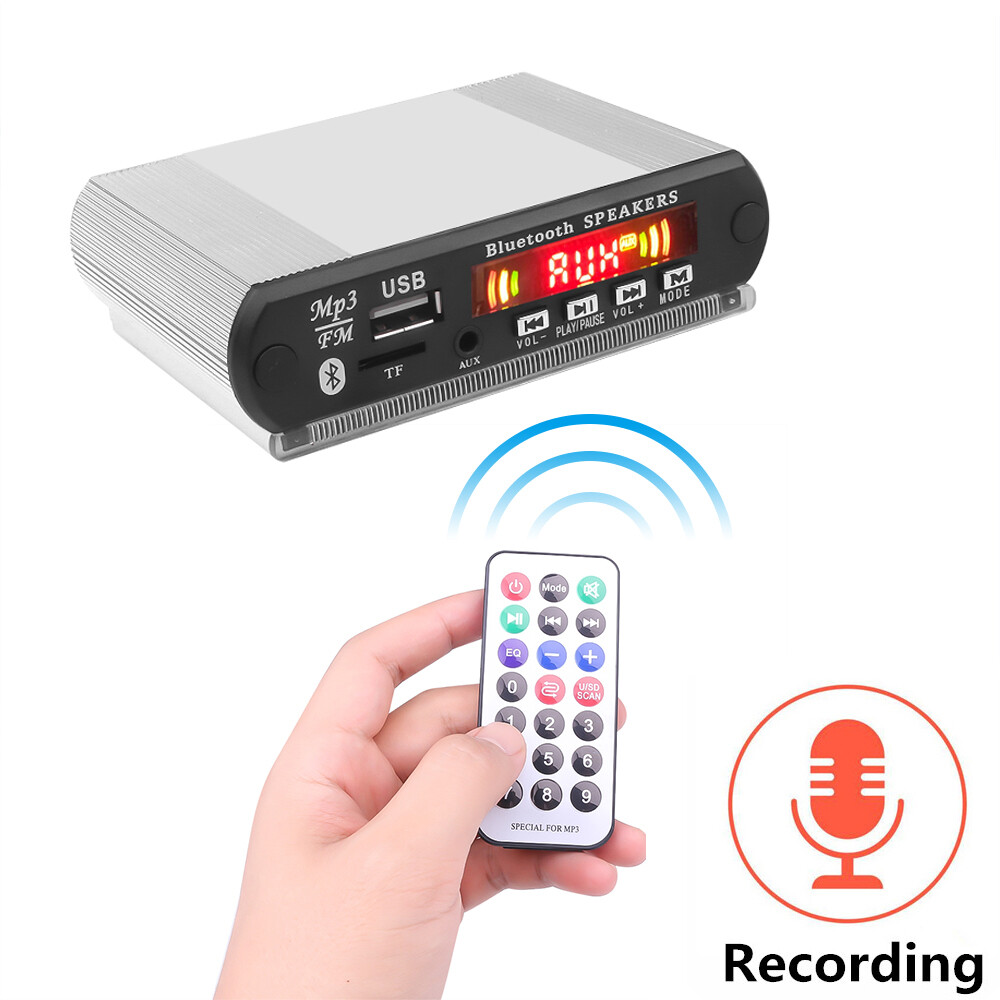

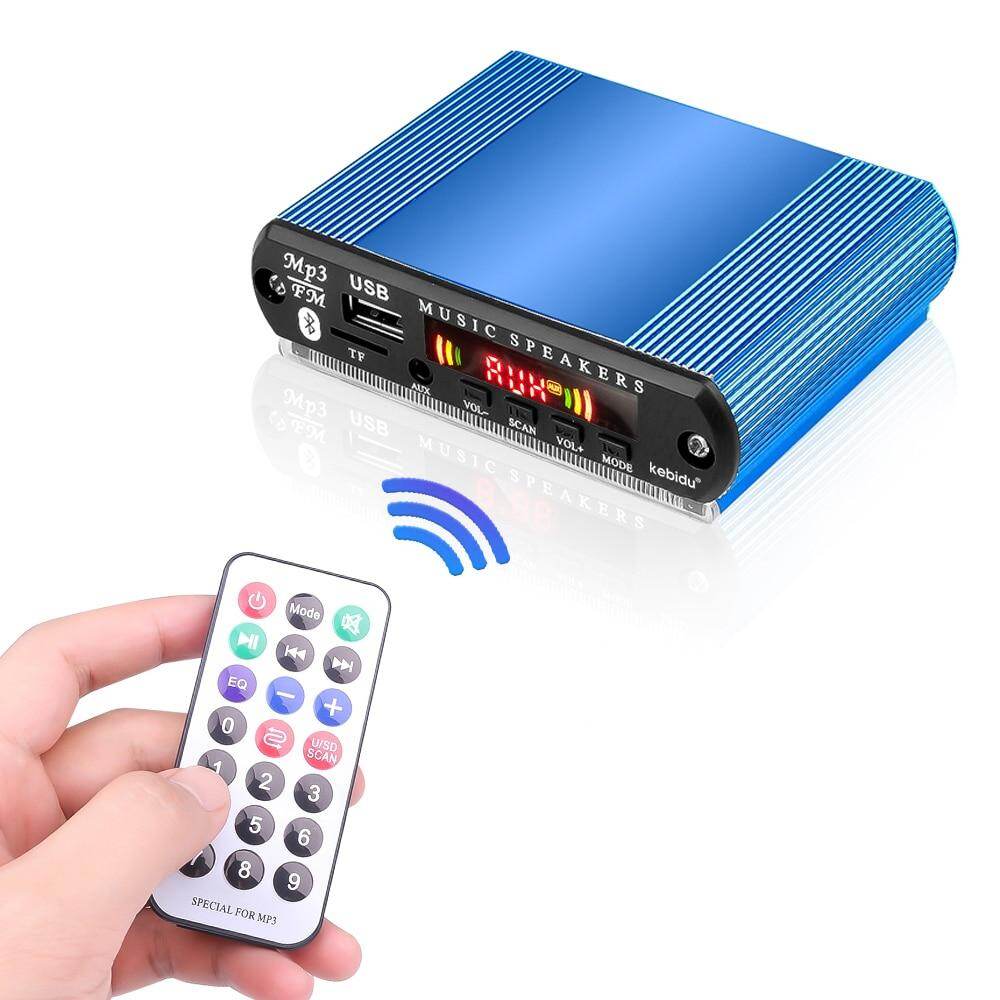

(8) Support infrared remote control
(9) the module contains an MP3 song decoding chip;

Host button:

1. '' prev '': Short press on the previous song in USB / SD / Bluetooth mode; short press the last station in FM mode, press and hold the volume down.
2. “play / PAUSE” short press play / pause in USB / SD / Bluetooth state, long press on the automatic scanning station in FM mode;
3. '' NEXT '': Press the short button in USB / SD / Bluetooth state; Press the station shortly in FM state and press and hold the volume.
4. “mode”: when there is an SD card and U disk: switching sequence-USB & rarr; SD/Bluetooth & rarr; FM/Aux/USB U disk only: USB-switching sequence & rarr; Bluetooth & rarr; FM/Aux/USB sd card time only: switch sequence-SD & rarr; bluetooth/FM/Aux/SD.

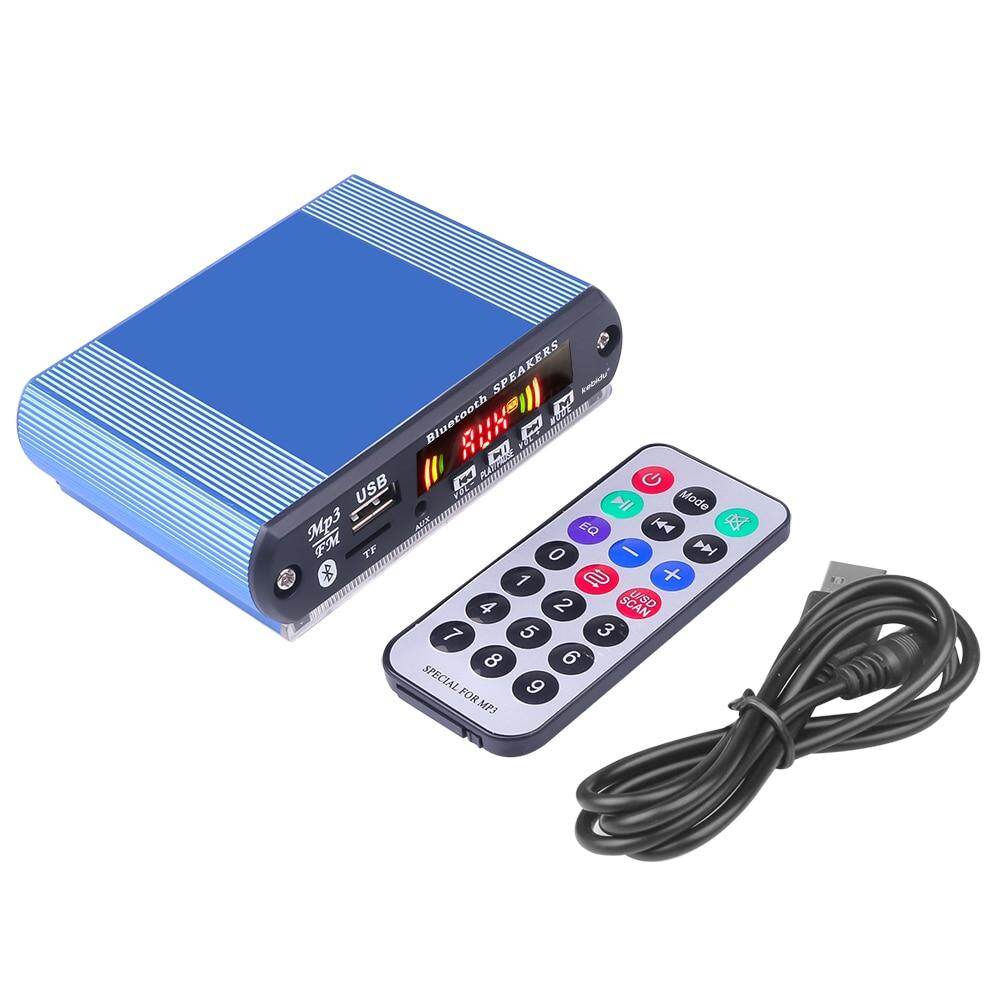

Package Included:

1 x MP3 Player

1 x power supply cable



Note: This item comes without a retail box, but please rest assured that we will pack it well before shipping!
