KEBETEME Bo Mạch Giải Mã MP3 LCD DC 12V Bộ Thu Âm Thanh DAC Bluetooth 5.0 Bộ Giải Mã APE FLAC Hỗ Trợ Màn Hình Lời Bài Hát Radio Ghi Âm Rảnh Tay

Model: JQ-D008BT with call and recording function

Main control IC: AC 6921

Bluetooth IC: AC 6921 Bluetooth version is 5.0

Music format: MP3/WMA/WAV/FLAC/APE lossless format

Bluetooth calling function

recording function

Folder switching function

Radio FM frequency: 87.5—107.5 MHZ

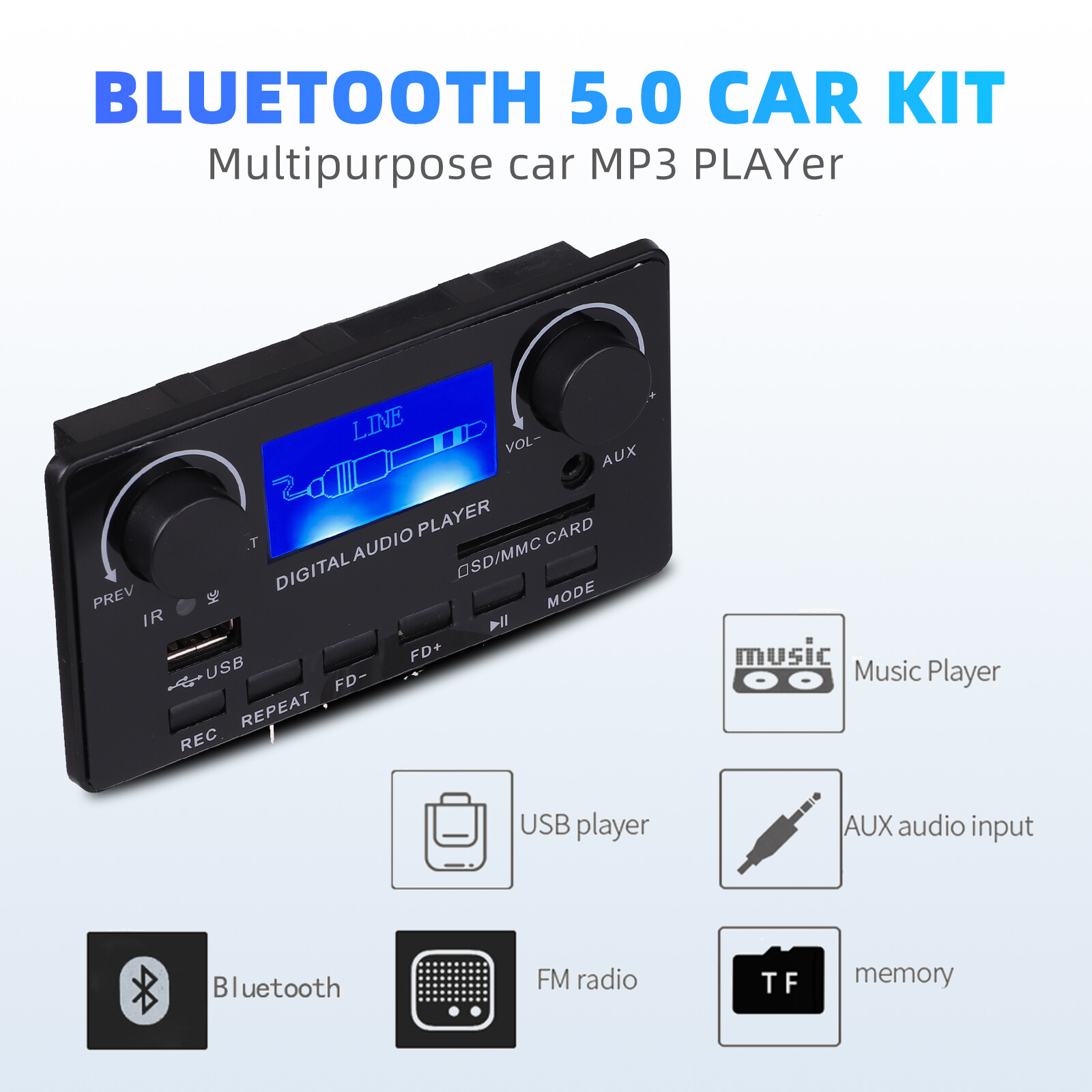

Support function introduction: support MP3 / USB / TF / LINE IN / FM / BLUETOOTH / remote control connection / DC 12V

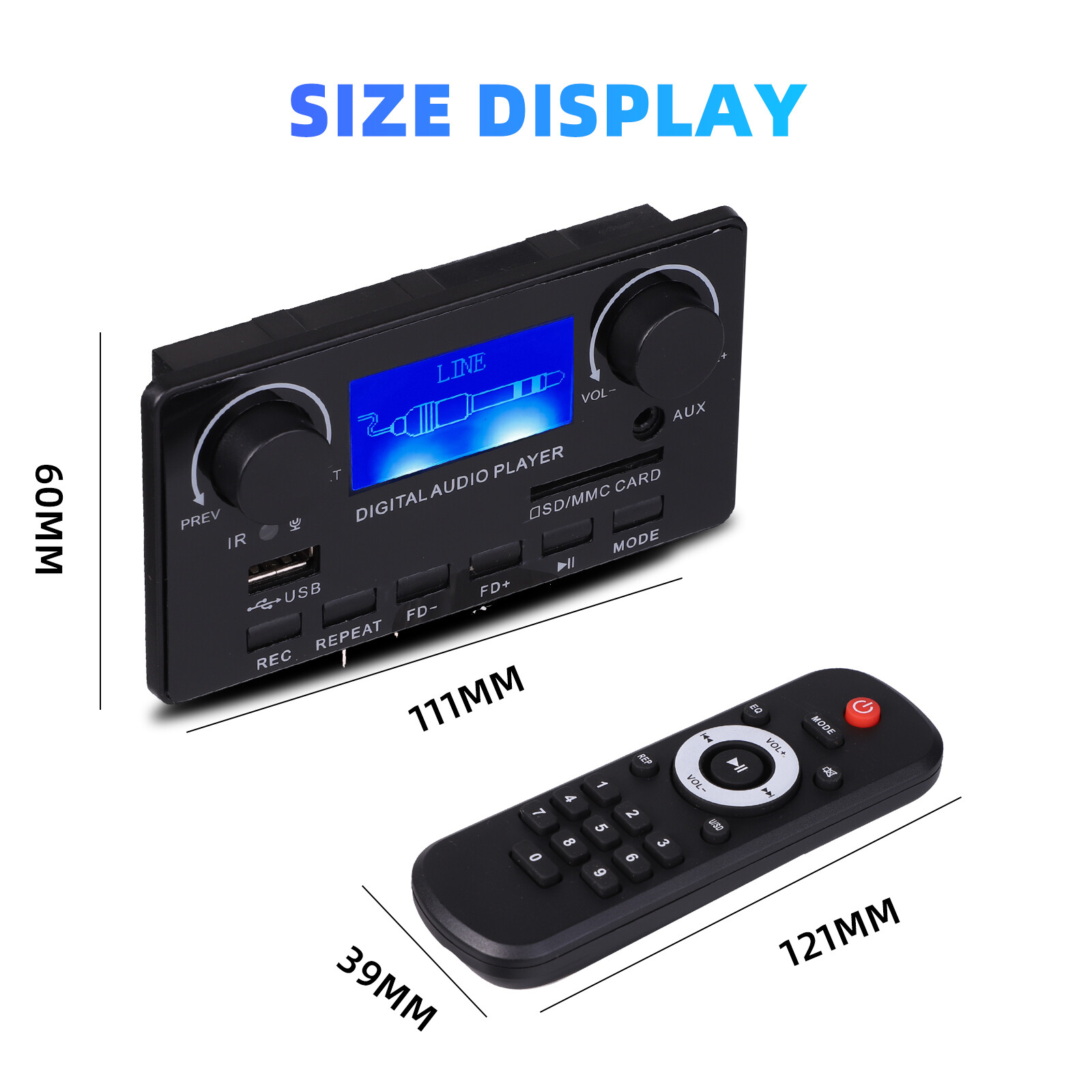

About the structure: Panel size: length 112 * width 62MM, the panel is surrounded by screw holes, the depth of the panel is 22MM

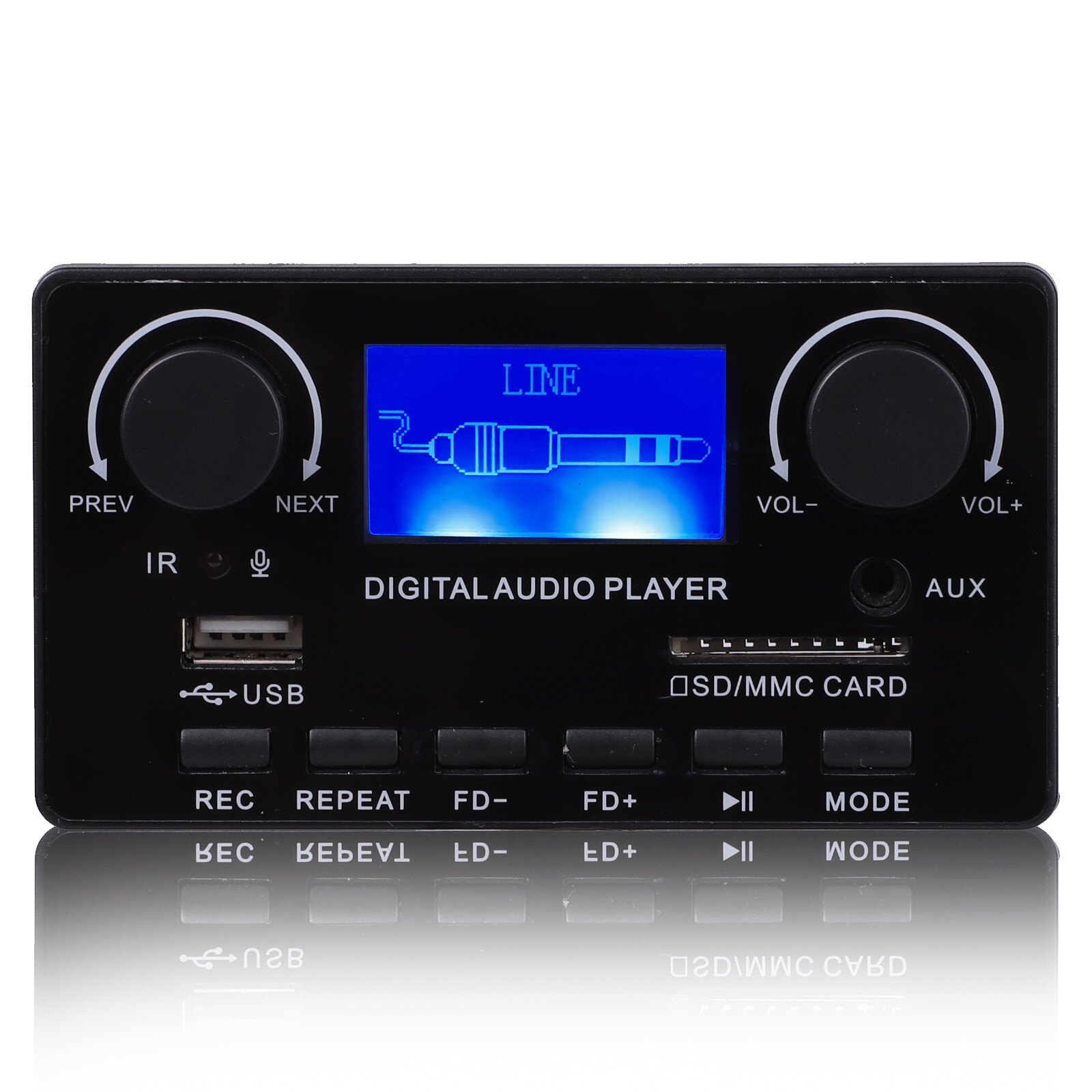

1. Button and interface function

1. PREV: Twist to the left to select the previous song;

NEXT: Twist right to select the next song;

2. IR: infrared receiving module;

3, MIC: support call and recording functions;

4. USB interface: connect U disk (maximum support 32GB);

5. LCD screen: synchronous display of lyrics;

6. SD card slot: connect SD memory card (maximum support 32GB);

7. AUX interface: audio input interface;

8. Volume knob: control the volume;

9. REC: Long press the REC button to start recording, press the REC button again to cancel the recording function and play the recorded file; when recording, you need to connect a storage device, such as a U disk or TF card;

10. REPEAT: Press the single loop function once, press it again to cancel the single loop, and play it in sequence;

11. FD-: The short key is to switch to the previous folder, and the long press is to rewind;

12. FD+: Short key is to switch to the next folder, long press is fast forward;

13. PLAY/PAUSE: Short press is to switch between pause and play; long press is to radio FM automatic station;

14. MODE: Switch between USB / TF / FM / AUX / BLUETOOTH;
