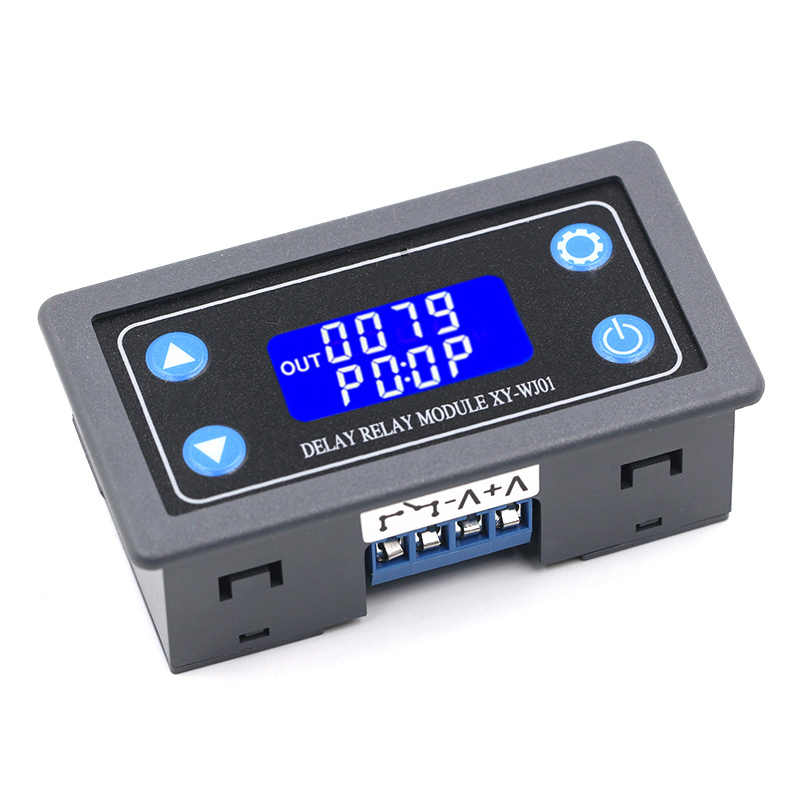

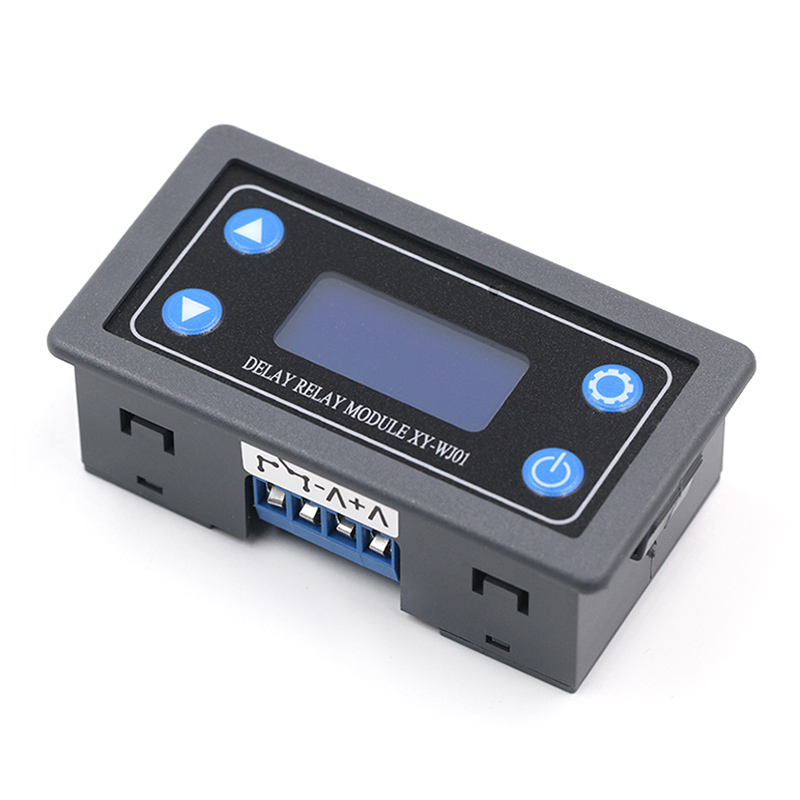

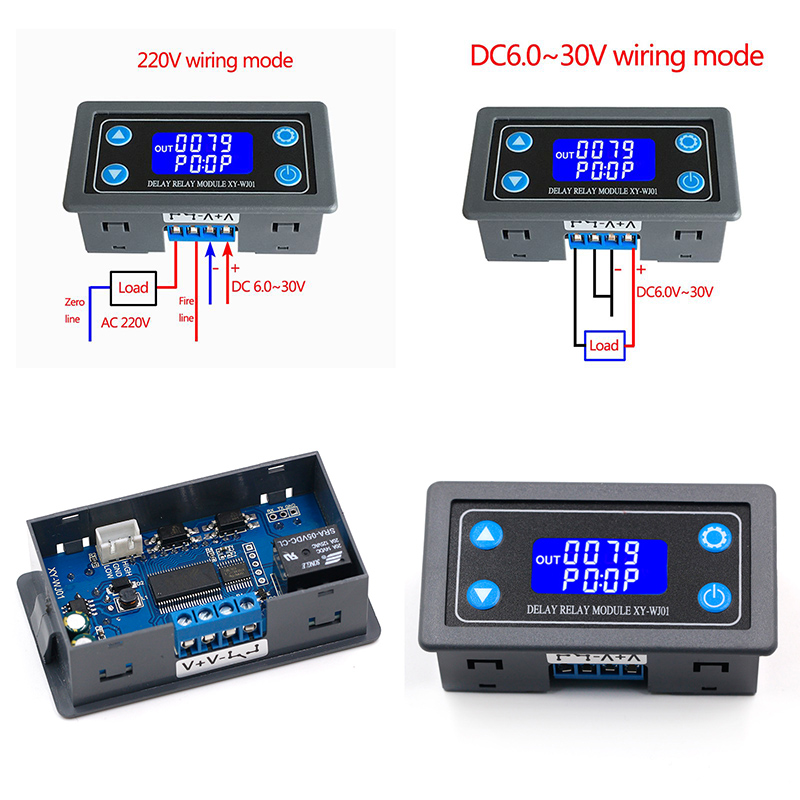

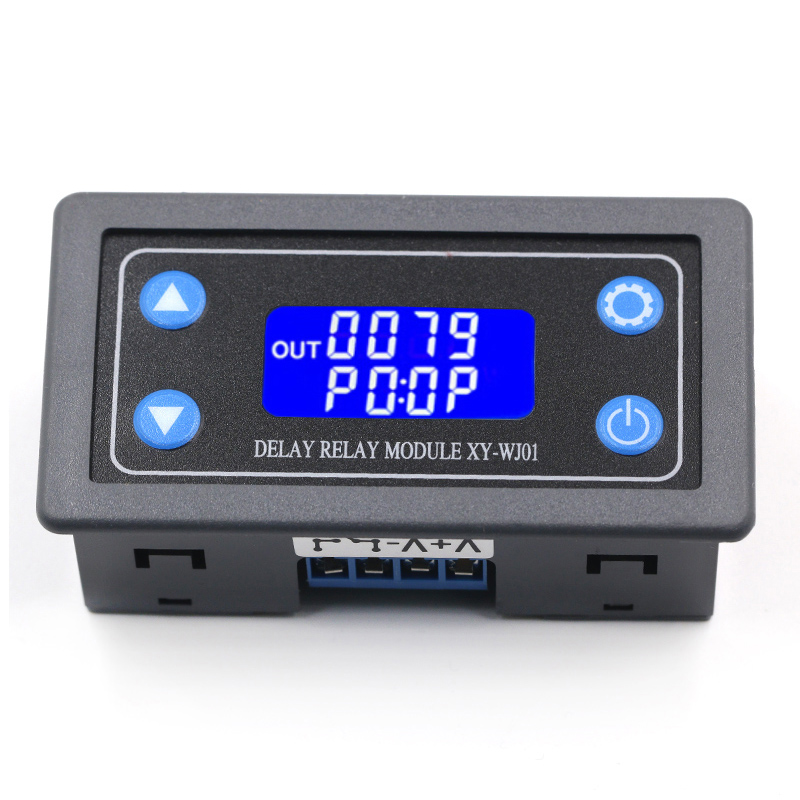

1PCS Time-delayed Trigger Cycle Timing Circuit Switch with Case XY-WJ01 LED Digital Time Delay Relay Switch Module

Time range: 0.01 sec ~ 9999 min

Please read the user instructions carefully before use.

Product highlights:

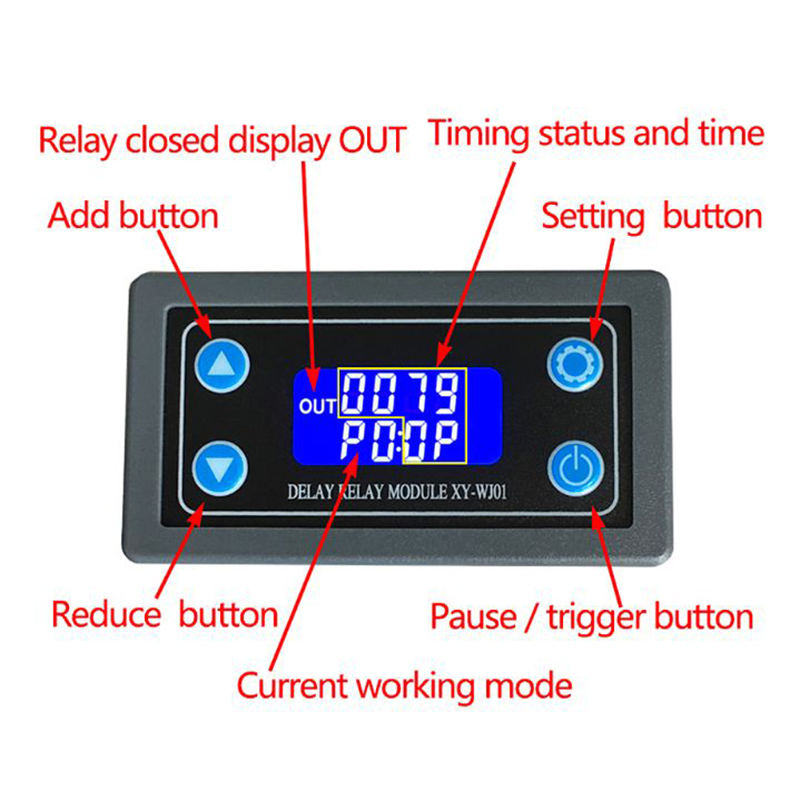

Display with two LCD columns, can display parameters directly;

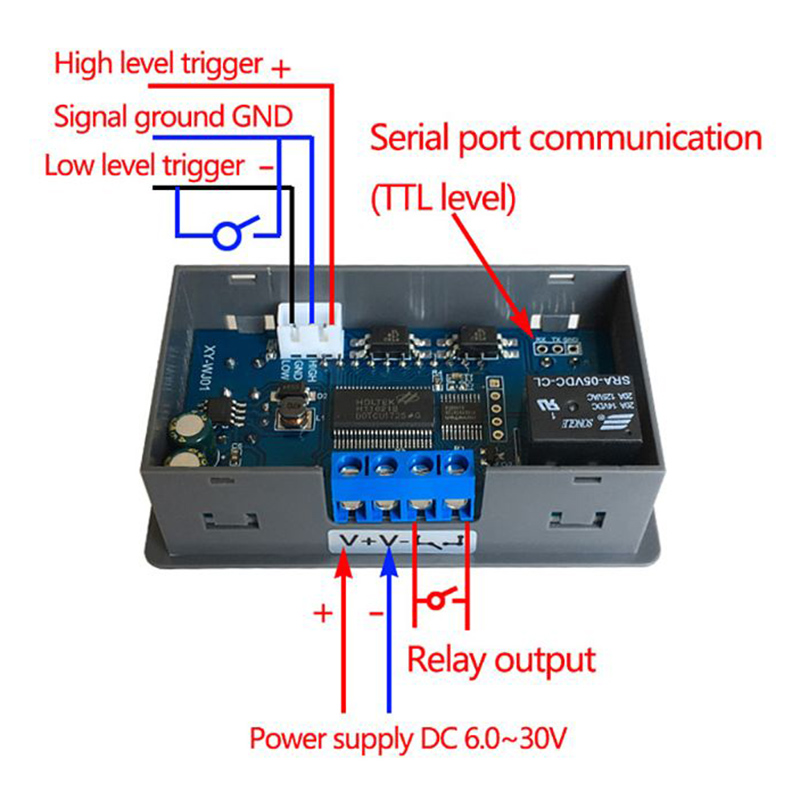

Trigger mode: high and low level, switch quantity. Meets most requirements.
Power supply: 6 ~ 30V.

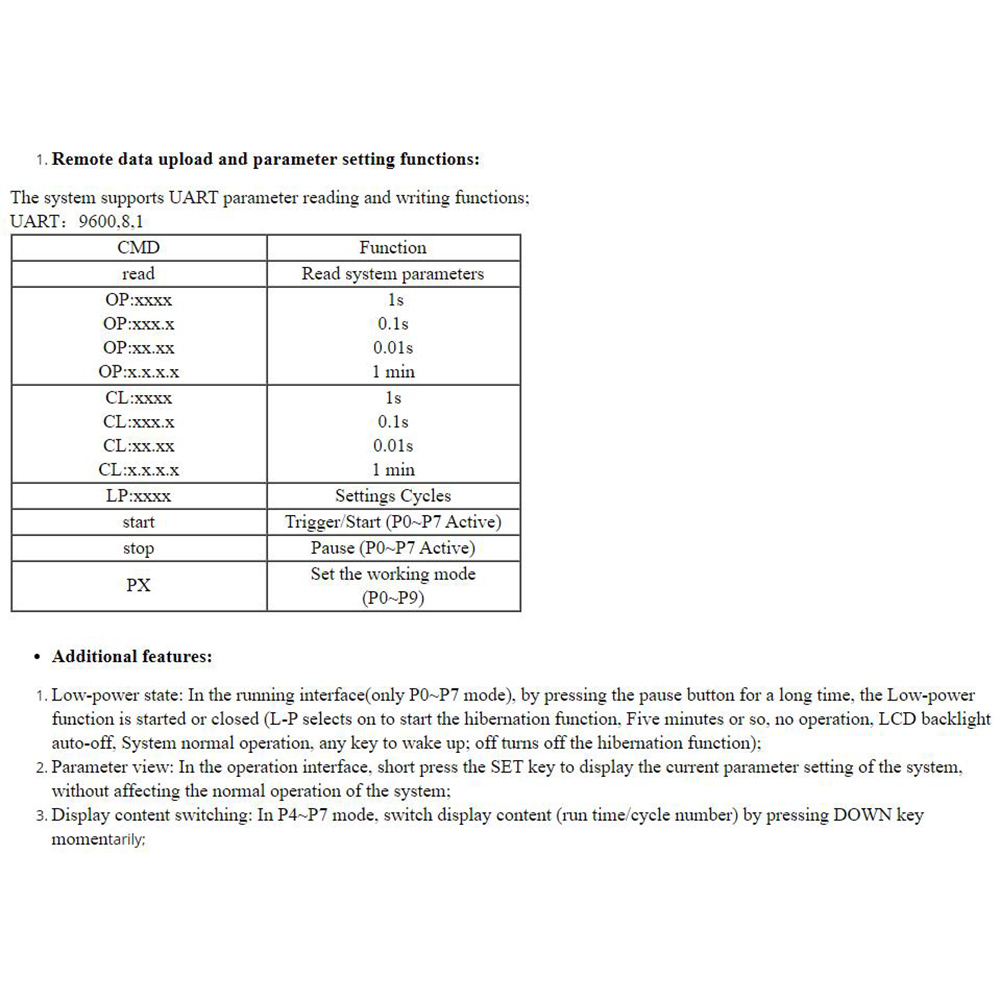

Parameters can be modified via UART.
Stop button to provide emergency stop function.
5 minutes without any operation into low power state. Any action wakes up.
OP/CL/LOP params can be modified individually
All parameters are saved automatically by the power.

Work mode introduction (P1 ~ P7)
P0: after the signal is triggered, the relay conduction in the OP time then disconnects; In OP time, the signal is invalid.
P1: after the signal is triggered, the relay conduction in the OP time then disconnects; In OP time, the signal triggers a new timer.
P2: after the signal is triggered, the relay conduction in the OP time then disconnect; In OP time, the signal trigger resets the timer, the relay is disconnected and the time stops.
P3: after the signal is triggered, the relay disconnects the CL time, and then the relay conduction.
P4: after the signal is triggered, the OP time relay conduction, and then the relay disconnects the CL time, and then the above action loop, gives the signal again in the loop, the relay disconnects, stops the timer; And the number of cycles (LOP) can be set; At the end of the cycle, make sure the relay is disconnected;
P5: after the signal is triggered, the relay disconnects the CL time, and then the OP time relay flow, and then the above action loop, give the signal again in the loop, the relay flow, stop the timer; And the number of cycles (LOP) can be set; End of cycle, save relay flow;
P6: no trigger signal after power, after the OP time relay flow, the relay disconnects the CL time, and then the above action loop, the signal is invalid in the loop, the number of cycles (LOP) can be set; The end of the cycle, keep the relay disconnected;
P7: no trigger signal after power, after the relay disconnects the CL time, the OP relay conduction time, and then the above action loop, the signal is invalid in the loop, the number of cycles (LOP) can be set; End of cycle, save relay flow;
P8: signal holding function: signal is maintained, time is cleared, and relay conduction; When the signal is lost, the relay disconnects after OP time; During time, there are other signals and time is cleared;
P9: signal holding function: signal is maintained, time is cleared, and relay is disconnected; When the signal is lost, the relay conduction after CL time; During time, there are other signals and time is cleared;

(P0 ~ P7) mode, press the short pause button, start time if the system is not timed; If the system is timed, the system stops using the timer, the relay is disconnected, flashes “out” to indicate a warning;

P8/P9 mode, pause button as trigger signal in run interface, short/long press failed;
