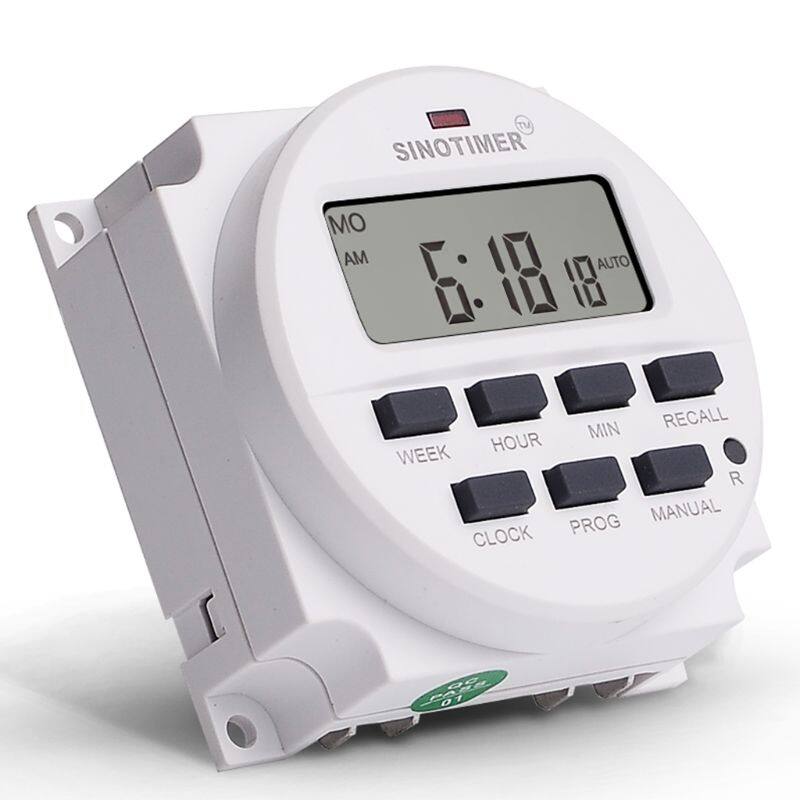

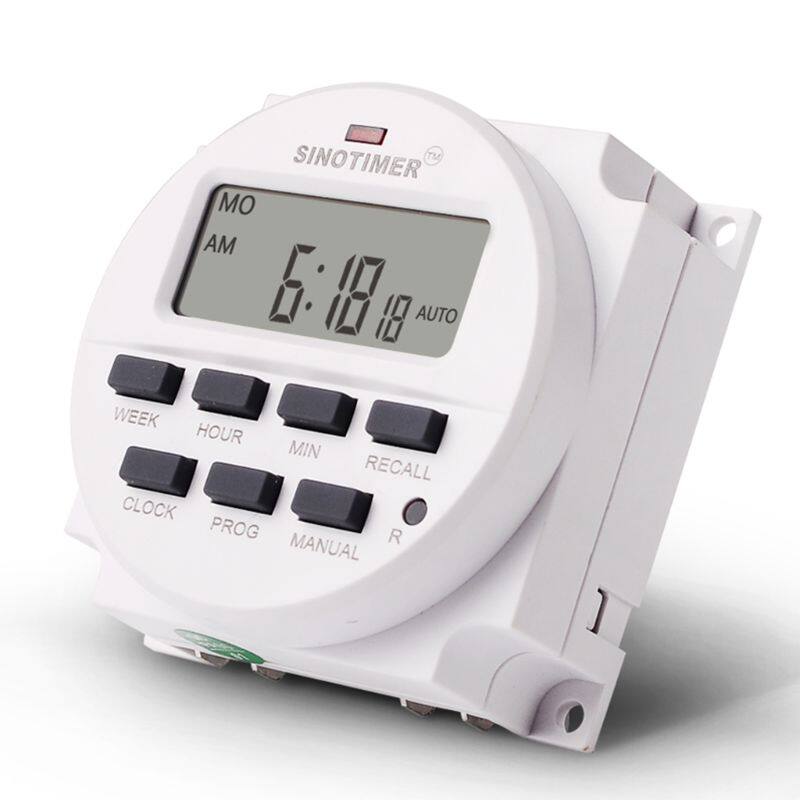

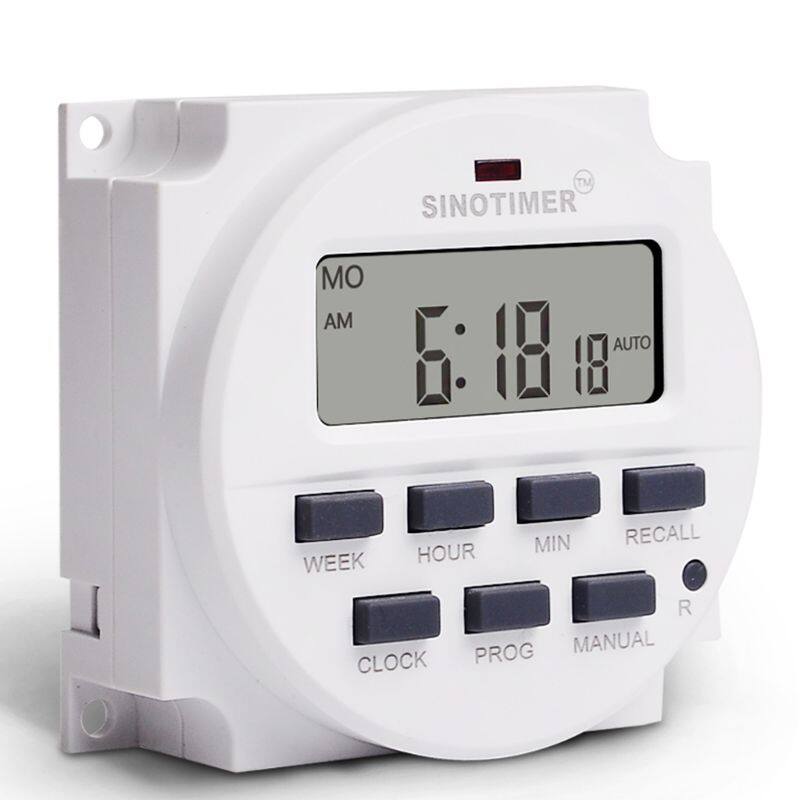

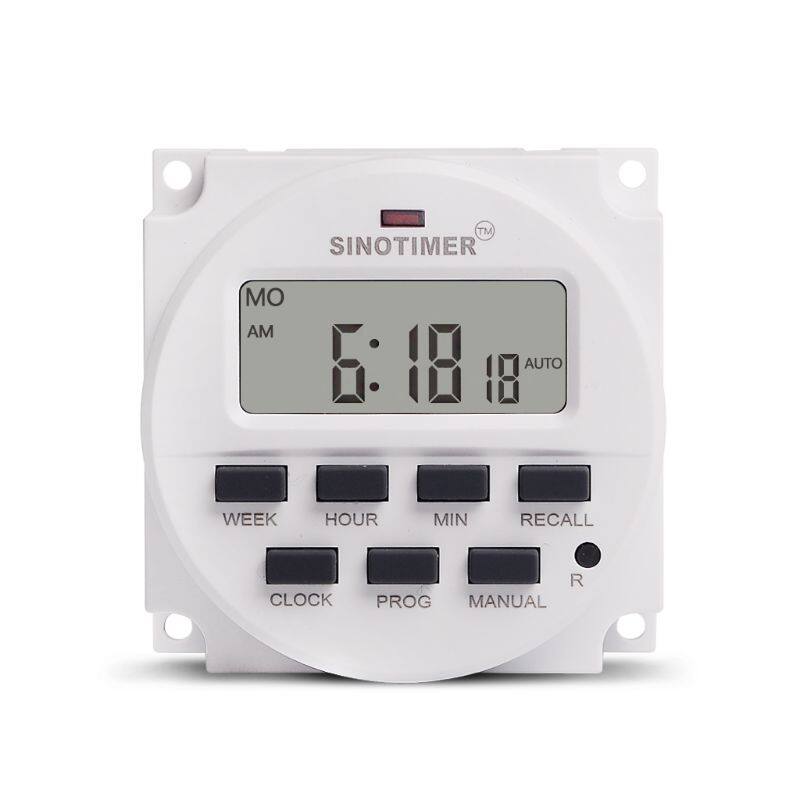

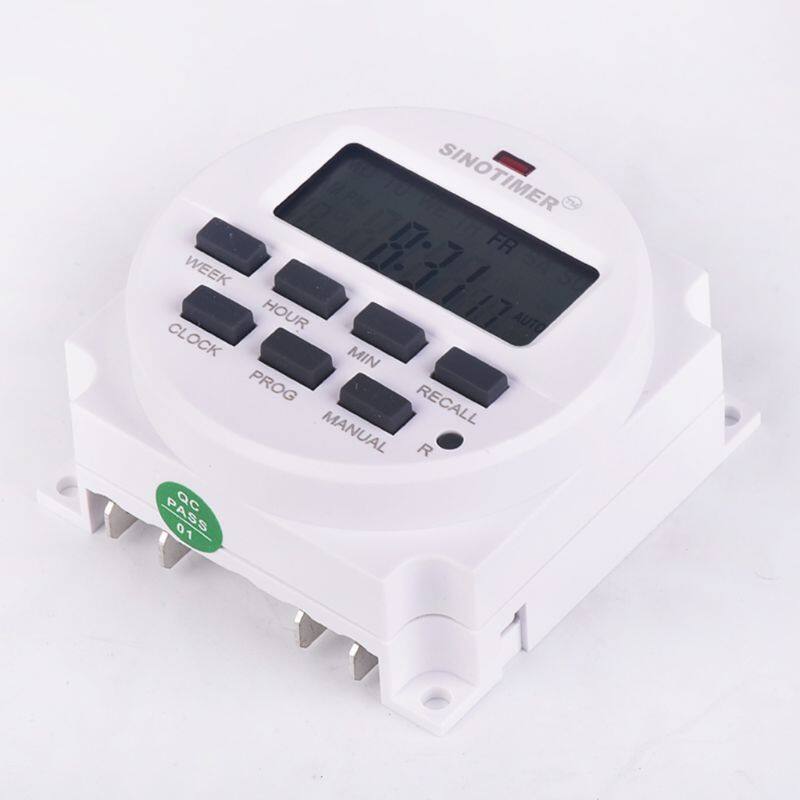

DC 12V AC Digital LCD 7 Days Programmable Timer Switch Time Relay Control Countdown Time Function

Usage:
The TM618 timer MODULE (1.6 INCH big LCD display) can open or close kinds of electrical apparatus and power automatically, according to the preset time, the items can be streetlight, neon light (sign), billboard, electrical appliances, broadcast equipments etc. , the digital timer switch is within rechargeable battery, in 1.2V/40Ma, high-accuracy CMOS chip, strongly anti-jamming, easy to use.

Why choose SinoTimer TM618?
1. 1.6 inch big screen LCD display.
2. Excellent load capacity, voltage-free output. 16amp@250Vac
3. Easy program, everyone can program it after he reads the manual JUST one time.
4. Stable performance because of professional manufacturing in power saver since 2002.
5. Confirm to CE standard, and with LVD, EMC certificate passed

Characteristics:
* You can use the timer to SWITCH ON/OFF any electrical equipments at a preset timer
* 16 ON/OFF programs per day, 15 combinations to a week.
* 24 hours / 7 days a week programmable.
* Countdown OFF time range 1 minute to 24 hours
* Built-in rechargeable battery for backup the memory (save the programs you set) when power failure
* Auto time error correction +/- 30 sec, weekly
* Repeat programs with 16 on/off settings, and setting on/off manually,
* Easy to read LCD display, LED indicators.

Techanical Data:

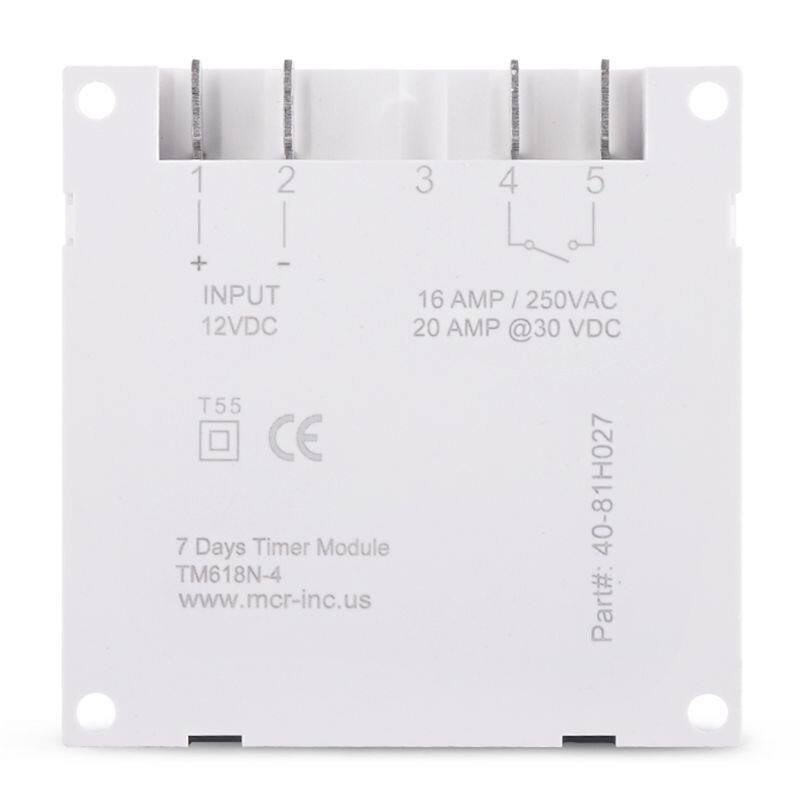

Model: TM618N-4
Power Supply: 12V DC/AC
Temp. range: -20°C+50°C
Display: LCD
Power consumption 4.5 VA (MAX)
Programs: 16 on/off each day or week
Switching contact: 1 changeover switch
Mini interval: 1 minute
Timer range: 1min~168hr
Countdown OFF time range: 1 min ~ 24 hours
Capacity: 16(8) 250V AC
Hysteresis 2 sec/day (25°C)
Black-out: 60 days
Built-in Recharge battery: 1.2V 40Ma
Average error: 1s/24h, 25°C

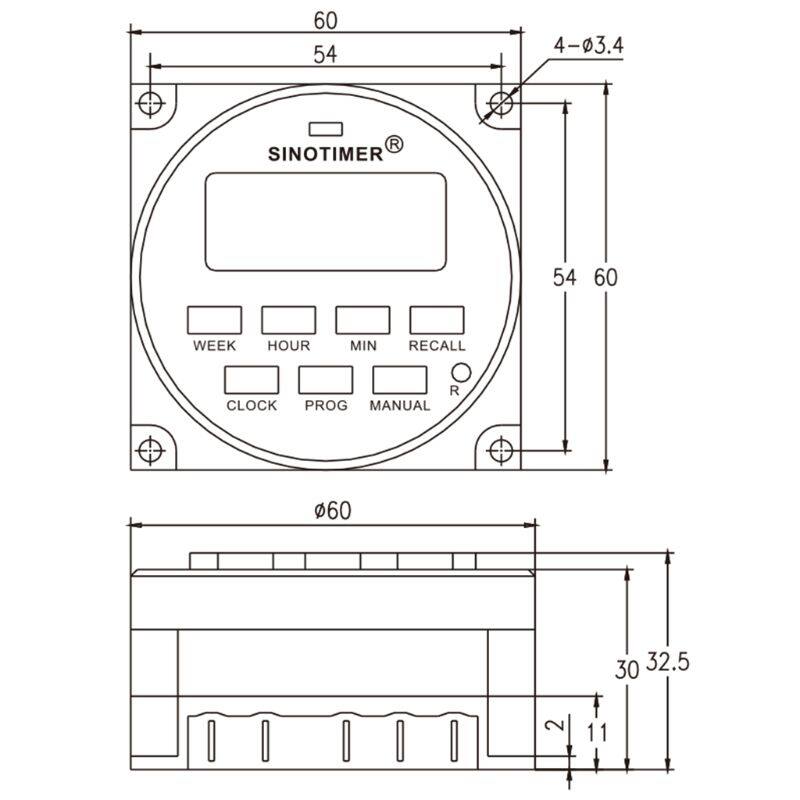

Size: approx. 60x60mm/2.36x2.36in
Material: Plastic
Color:White
Quantity: 1 Pc

Note:
No retail package.
Transition: 1cm=10mm=0.39inch.
Please allow 0-1cm error due to manual measurement. pls make sure you do not mind before you bid.
Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!

Package Includes:
1 x Timer Switch(other accessories demo in the picture is not included.)
