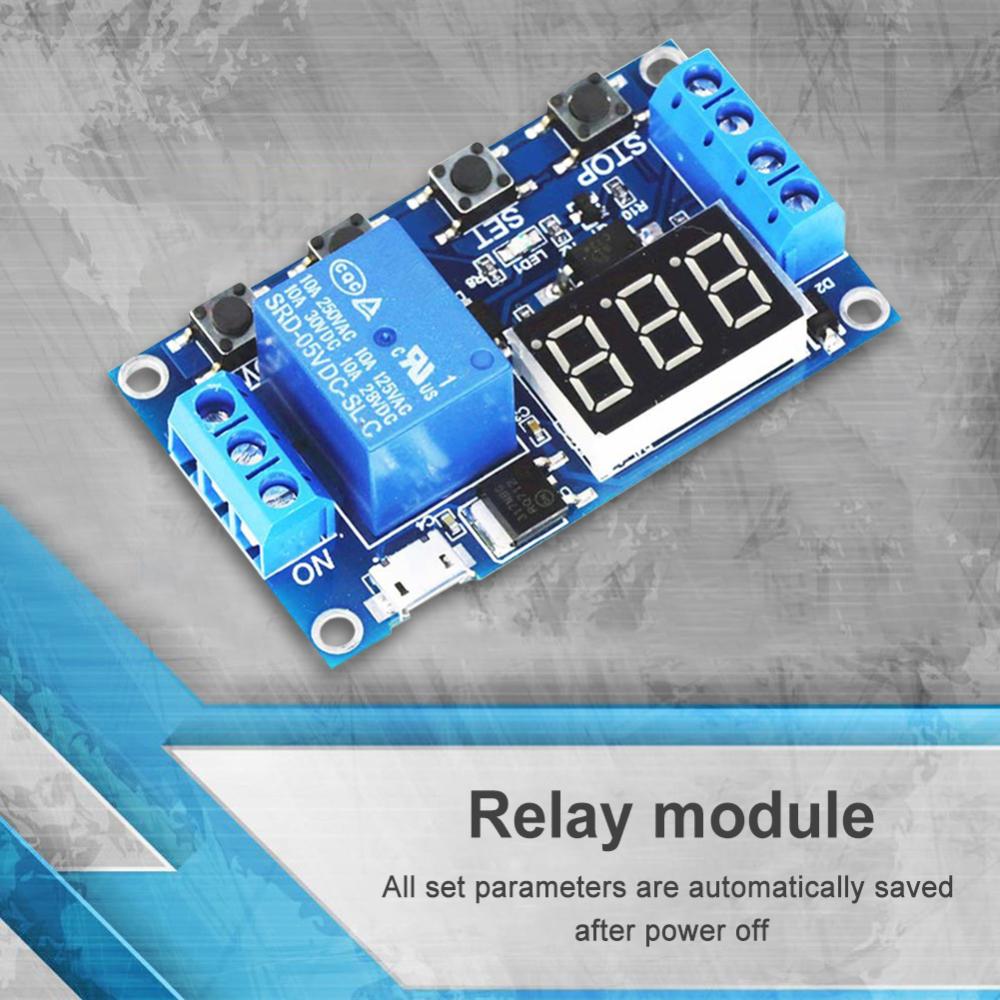

1 Channel Relay Cycle Timer Module Passive Contact Trigger Delay Relay Module Anti-interference Sleeping Mode Accessories

1 Channel Relay Cycle Timer Module 6-30V Trigger Delay Relay Module Passive Contact Anti-interference Sleeping Mode Accessories

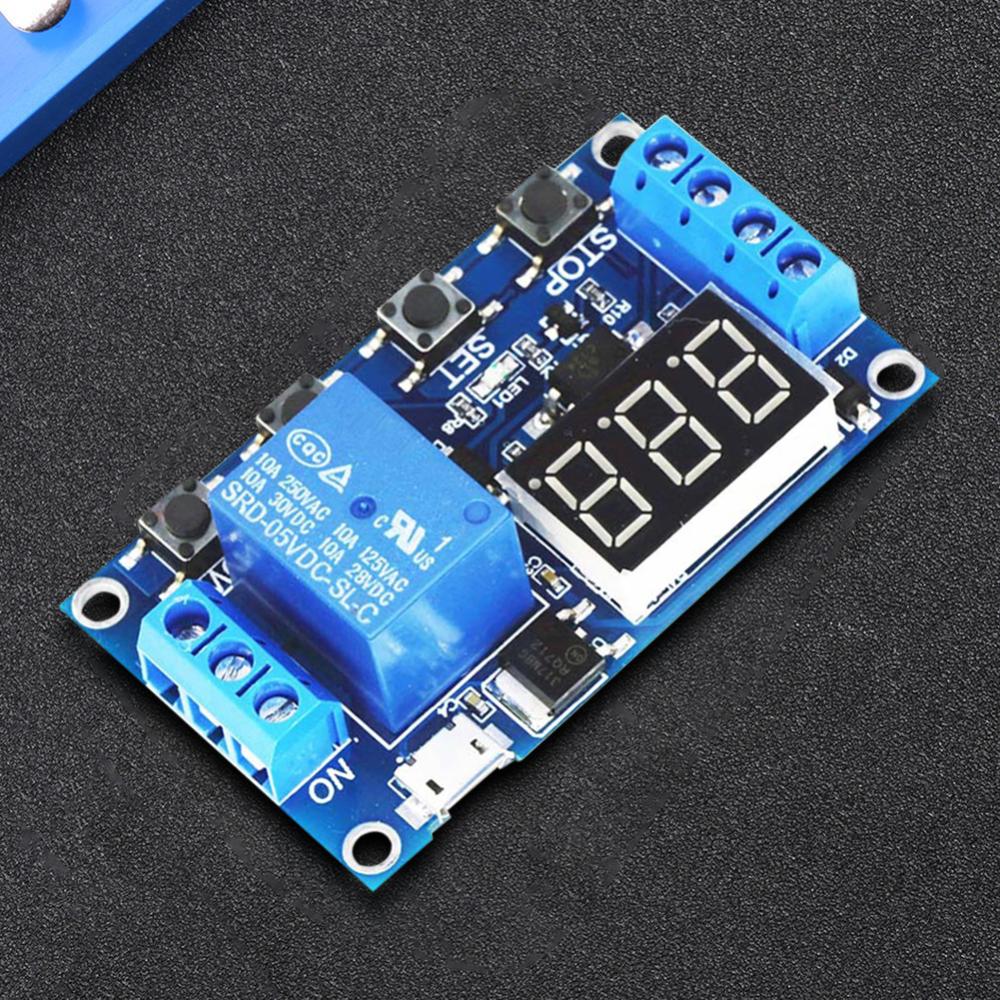

Feature:
1. Versatile and Reliable: The One-Way Relay Module supports a wide range of functions including Delay Shutdown, Trigger Delay, and Cycle Timing Circuit Switch. This makes it an essential component for various applications.
2. Enhanced Interference Resistance: Equipped with Optocoupler Isolation, this module provides superior interference resistance, making it highly reliable even in industrial environments.
3. Convenient Power Supply: This module can be powered by a wide range of voltages from 6V to 30V and also supports Micro USB 5.0V power supply, which makes it easy to use for different types of projects.

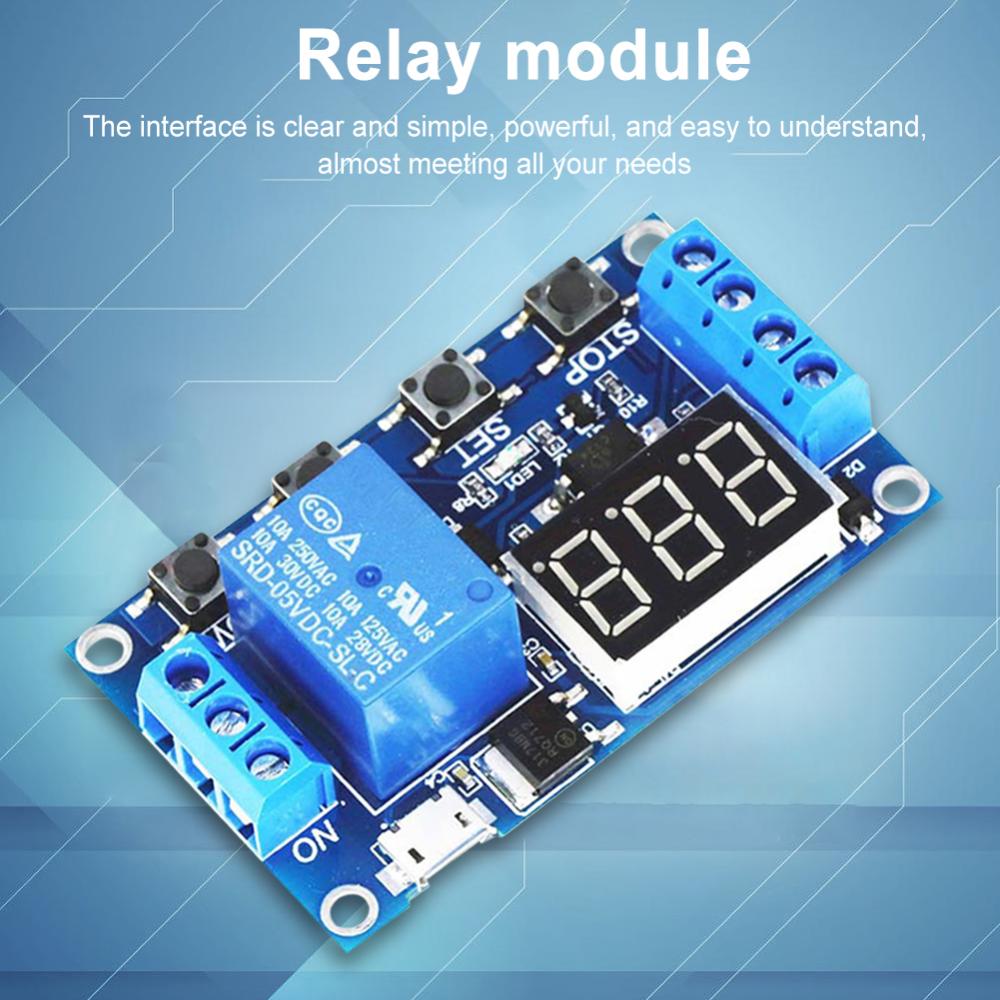

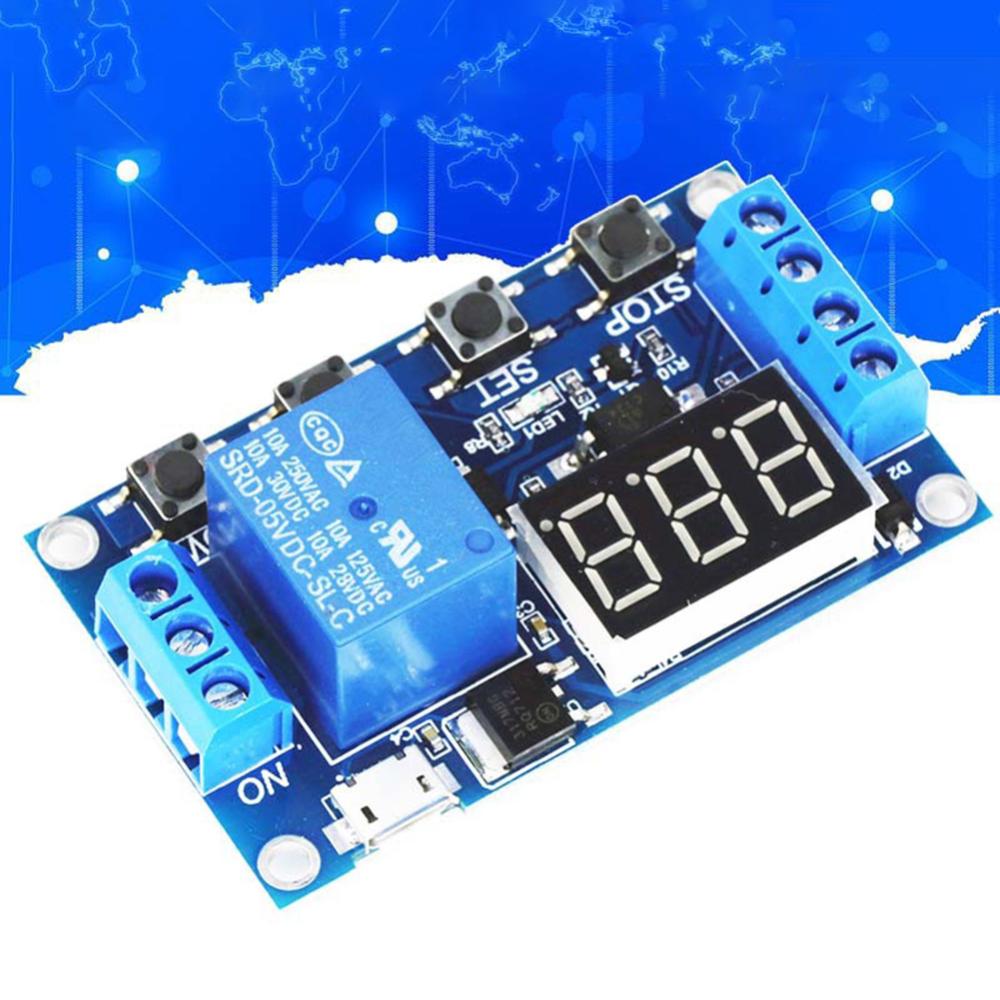

4. User-Friendly Interface: With its clear and simple interface, this module is easy to operate and understand, even for beginners. It offers a powerful set of features that almost meet all your needs.

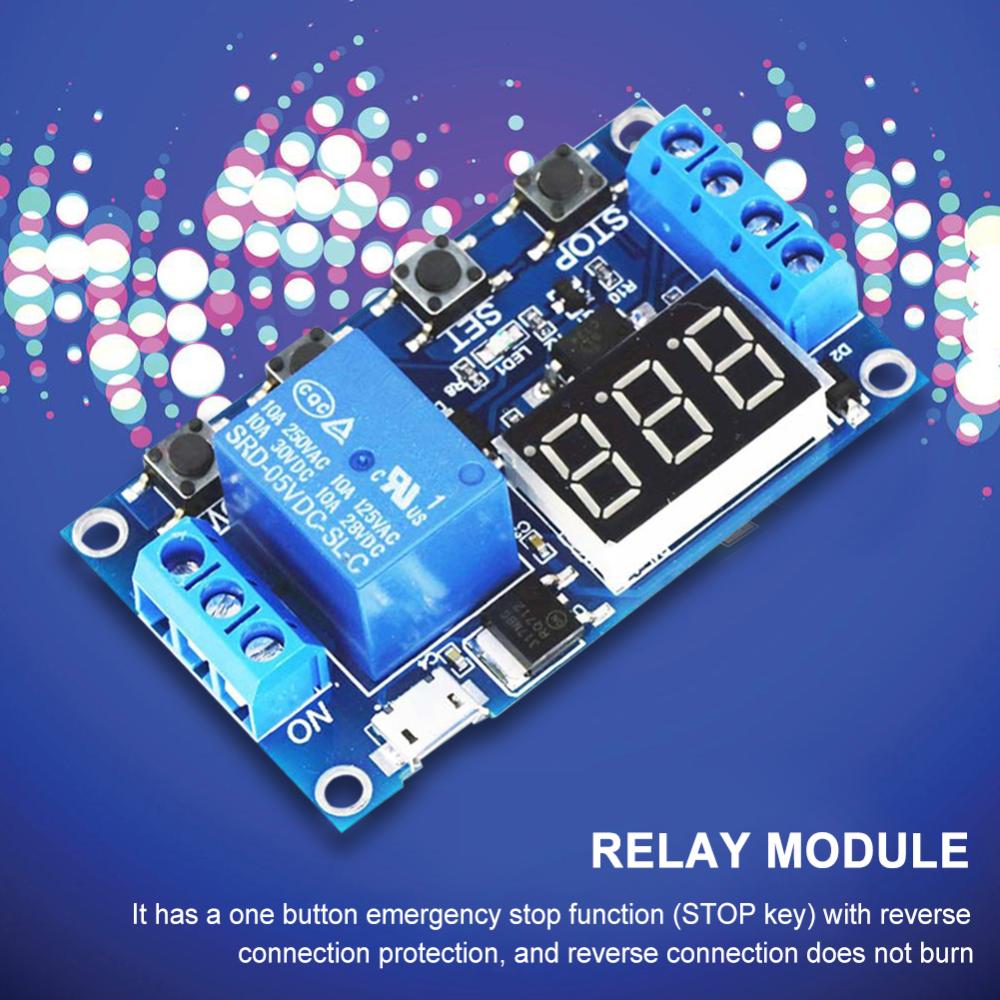

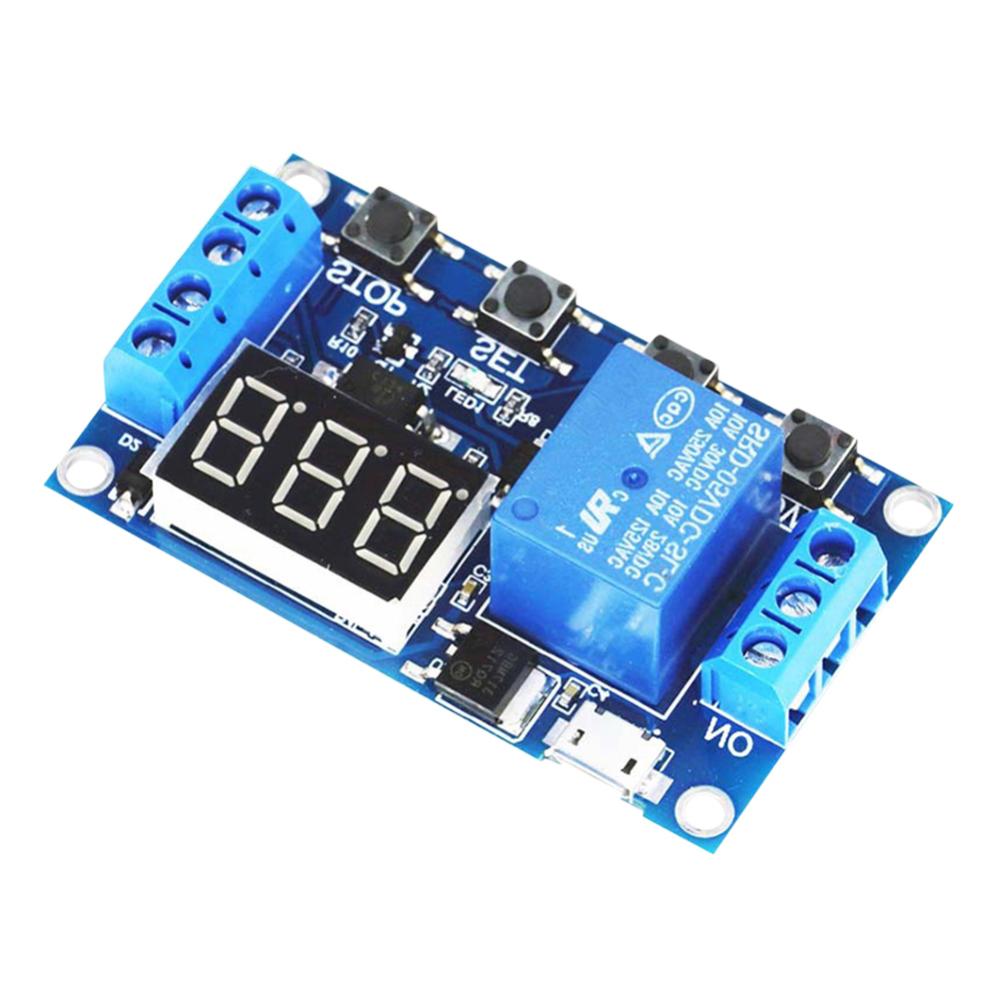

5. Intelligent Protection Design: This module is designed with intelligent protection features such as a One-Click Emergency Stop Function (STOP Button), Reverse Connection Protection, and Sleep Mode. These features ensure the safety and longevity of the device.


Specification:
Origin: Mainland China
Working voltage: 6-30V, supporting micro USB 5.0V power supply
Trigger signal source: High level trigger (3.0V-24V) Signal ground and system ground are not in common with the anti-interference ability of the system (can also be self short circuited to common ground)
Output capacity: can control devices within 30V DC or 220V AC
Static current: 20mA
Working current: 50mA
Service life: greater than 100000 times
Working temperature: -40-85 ℃
Net weight: 26g

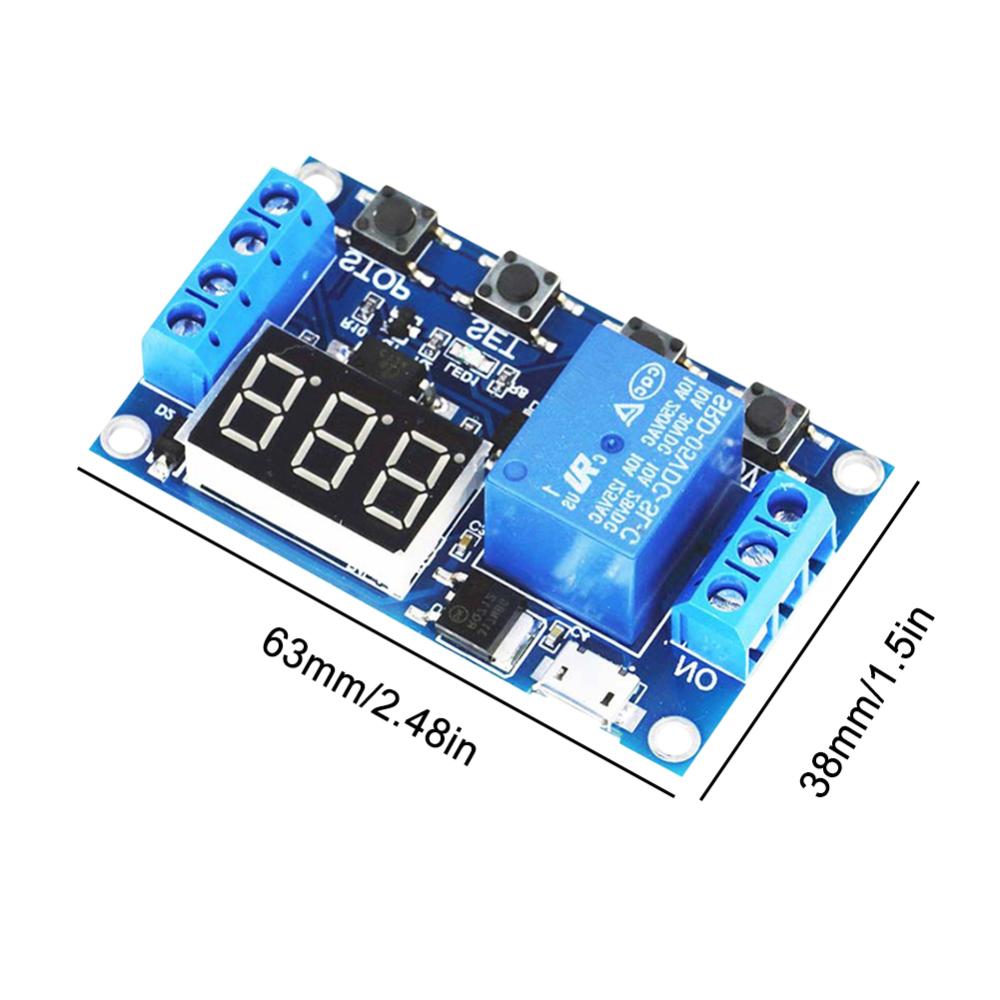

Product size: About 63x38mm/2.48x1.50in
Special attention: The relay output is a passive contact, with no live output, which controls the on-off of a line.
Working mode:
P1: After the signal is triggered, the relay conducts for OP time and then disconnects; During the OP time, proceed as follows
P1.1: Signal triggered again invalid
P1.2: Signal triggered again for re timing
P1.3: The signal triggers a reset again, the relay is disconnected, and the timing stops;
P-2: Give a trigger signal, after the relay is disconnected for CL time, the relay conducts for OP time, and after the timing is completed, disconnect the relay;
P3.1: After the trigger signal is given and the relay is turned on for OP time, the relay will disconnect for CL time, and then the above actions will be repeated. If the signal is given again during the cycle, the relay will disconnect and stop timing; The number of cycles (LOP) can be set;
P3.2: After powering on, there is no need to trigger the signal. The relay conducts OP time, and the relay disconnects CL time. Cycle the above actions; The number of cycles (LOP) can be set;
P-4: Signal holding function: If there is a trigger signal, the timer will be reset and the relay will remain conductive; When the signal disappears, time OP and disconnect the relay; During the timing period, if there is another signal, the timing will be reset to zero;
Timing range: 0.1 seconds (small)~999 minutes (large) continuously adjustable
How to select a timing range:
After setting the parameter values on the mode selection interface, press the STOP key briefly to select the timing range;
XXX Decimal point in one place, timing range: 1 second to 999 seconds
XX. X decimal point to the tenth place, timing range: 0.1 seconds to 99.9 seconds
X. X.X. All decimal points are on, timing range: 1 minute to 999 minutes
For example, if you want to set OP to 3.2 seconds, move the decimal point to the tenth place, and the Nixie tube will display 03.2
Parameter description: OP conduction time, CL disconnection time, number of LOP cycles (1-999, "---" represents infinite cycles)
These parameters are independent of each other, but each mode shares these parameters. For example, if the conduction time OP is set to 5 seconds in P1.1 and the user wants to switch to P1.2 mode, when entering P1.2 to set the corresponding parameters, the OP will also be 5 seconds;
Short press the SET button on the main interface (displaying 000) to display OP (CL, LOP) and corresponding time XXX;
If there is only OP time in the mode (such as mode P1.1, P1.2, P1.3), short pressing the SET key will only display OP and the corresponding time;
If there are OP, CL, and LOP in the mode (such as modes P3.1 and P3.2), pressing the SET key briefly will display OP and corresponding time, CL and corresponding time, LOP and corresponding times;
After setting the mode, you can easily view the parameters set in the current mode by briefly pressing the SET key on the main interface
How to set parameters:
1. Determine the working mode of the relay;
2. According to the working mode of the relay, in the main interface (when the module is powered on, it will flash the current working mode (default P1.1 mode), and then enter the main interface.) "Press and hold the SET button for 2 seconds and then release" to enter the mode selection interface. Select the mode to be set (P1.1~P-4) by short pressing the UP and DOWN buttons;
3. After selecting the mode to be set (such as P3.2), press the SET key briefly to set the corresponding parameters. At this time, the parameters to be set will flash (OP conduction time, CL disconnection time, LOP cycle times ("-" represents infinite cycles)). Adjust the parameter values through UP and DOWN, and support long press (fast increase or decrease) and short press (increase or decrease by 1 unit); After setting the parameter values, press the STOP key briefly to select the decimal point position and timing range (corresponding time of 0.1 seconds to 999 minutes); Short press the SET key to set the next parameter for the current mode, the process is the same as above;
4. After setting the parameters for the selected mode, press and hold the SET key for 2 seconds before releasing it. The currently set mode will flash and then return to the main interface. Setting the parameters successfully is very simple!
Main interface: Display "000" (without decimal point) when the relay is not working, with decimal point when the relay is working, very clear!
Mode selection interface: Press and hold the SET key to enter. After setting, press and hold the SET key to exit and return to the main interface
Relay Enable Mode:
1. ON: The relay is allowed to conduct during the OP conduction time;
2. OFF: The relay is prohibited from conducting and always in a closed state;
Short press the STOP button on the main interface to switch between ON and OFF, and the current state will flash before returning to the main interface. (This function is an emergency stop function, which opens and closes the relay with one click)
Sleep mode:
1. C-P sleep mode: within five minutes, the Nixie tube automatically turns off the display and the program runs normally;
2. O-d normal mode: Nixie tube is always on display;
Press and hold the STOP button for 2 seconds and release it to switch between C-P and O-d states. The current state will flash and then return to the main interface.

Note:
Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
Please allow 1-2cm measuring deviation due to manual measurement.
