YB‑2J‑F Liquid Level Transmitter 5m Cable Water Level Sensor Detector 12‑32VDC 4‑20mA 0-4m

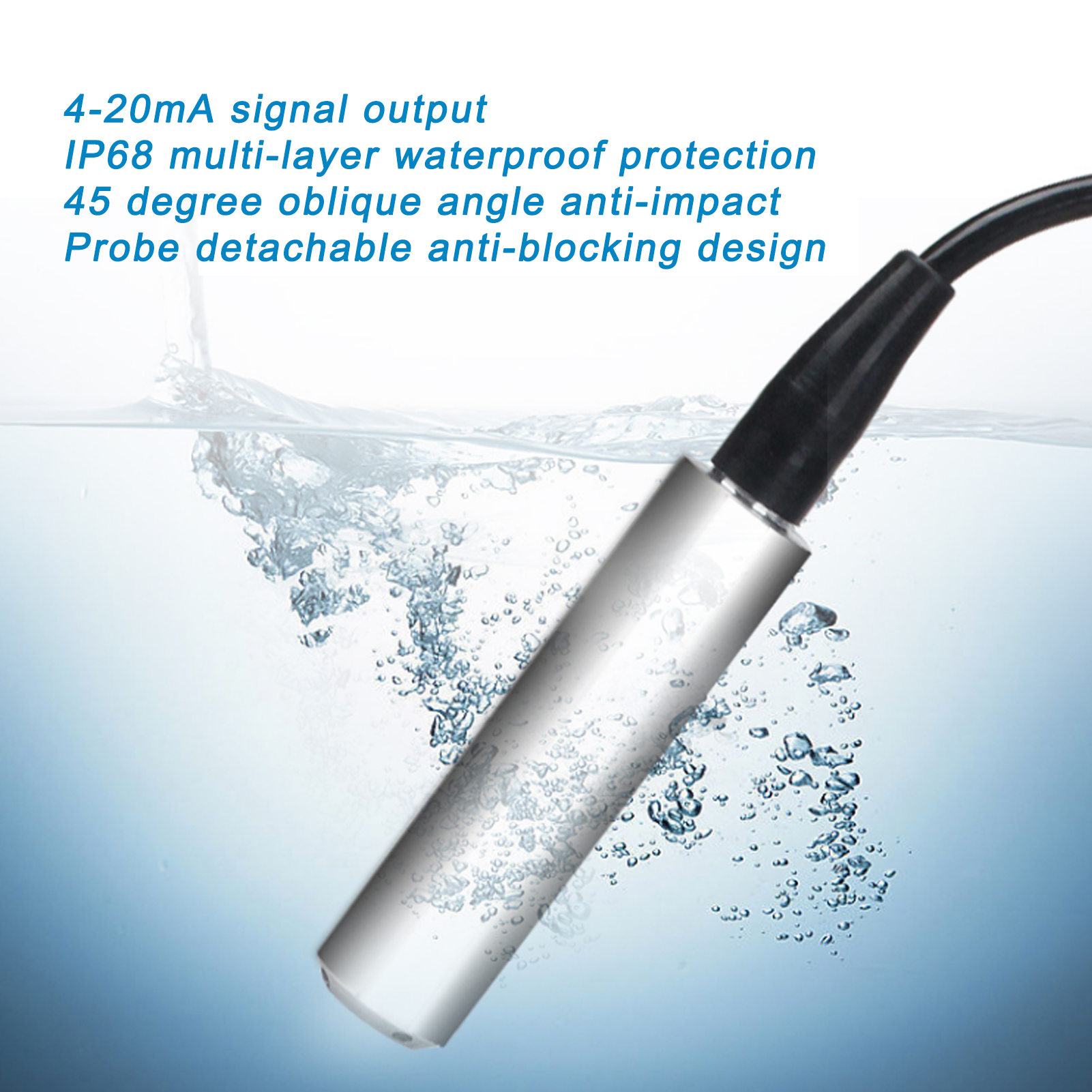

Feature:

1. Input level transmitter and high‑precision diffusion of silicon for more accurate monitoring of water level.
2. Full digital conditioning circuit, 4‑20mA signal output ensure more stable performance.
3. IP68 multi‑layer waterproof protection ensure safe use and long service time.
4. 45 degree oblique angle anti‑impact, probe detachable anti‑blocking design.
5. The measured medium is water, do not test liquids that will corrode stainless steel.

Specification:

Condition: 100% Brand New
Item Type: Liquid Level Transmitter
Material: 304 stainless steel
Model: YB-2J-F
Measured medium: water (absolutely cannot measure the liquid corrosive to stainless steel, except water, it is not recommended to measure other liquids)
Air Guide Cable Length: Approx. 5m / 16.4ft
Measurement Accuracy: 0.5%FS
Output Signal: 4-20mA
Power Supply Voltage: 12-32VDC
Medium Temperature: -40-70℃
Environmental Temperature: -40-80℃
Temperature Compensation: -10-70℃
Overload Capacity: <200%
Protection Level: IP68
Temperature Source Shift: ±0.01%FS/℃
Long-Term Stability: ±0.2%FS/year
Machine Impact: 20g (20-5000HZ)

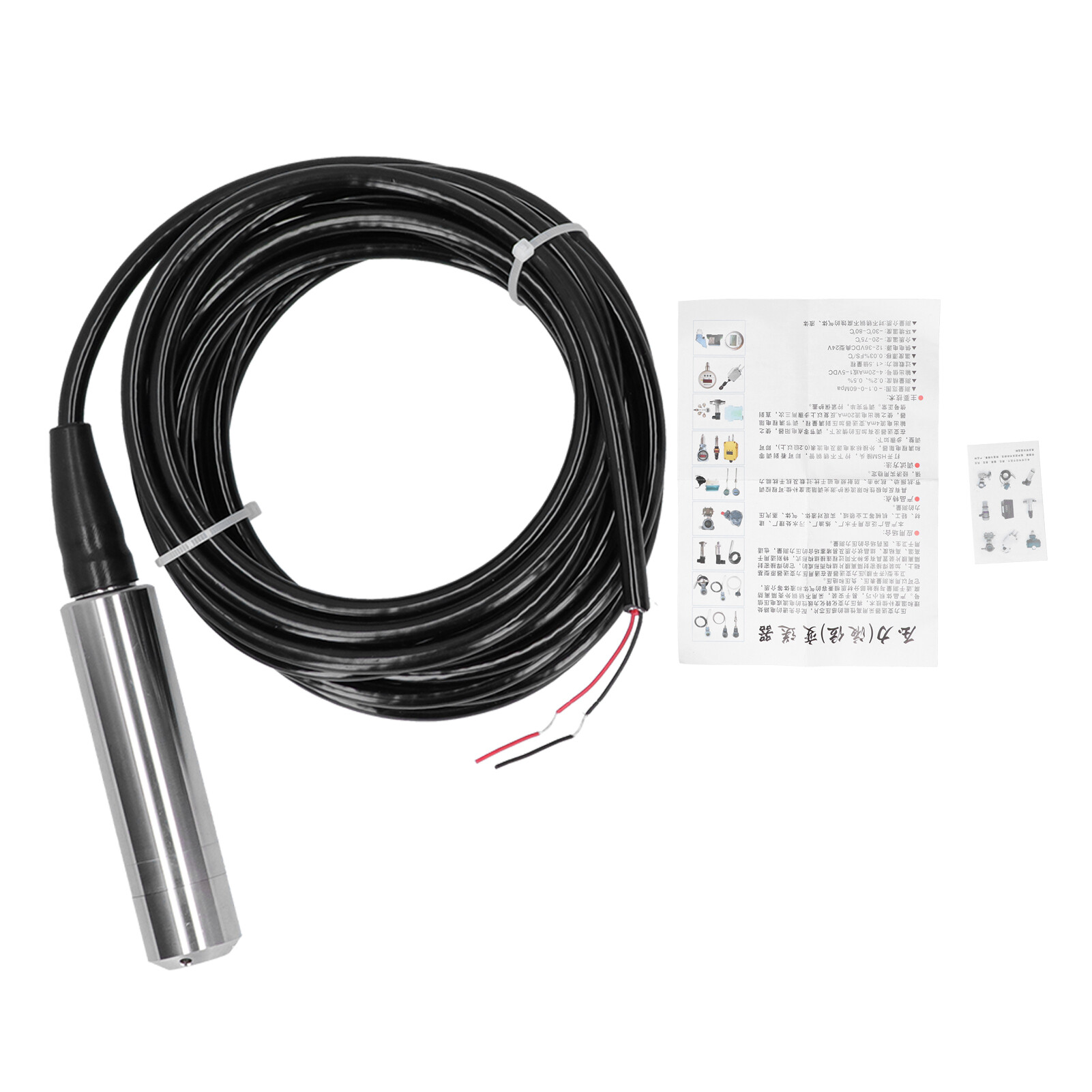

Package List:

1 x Liquid Level Transmitter

Note:

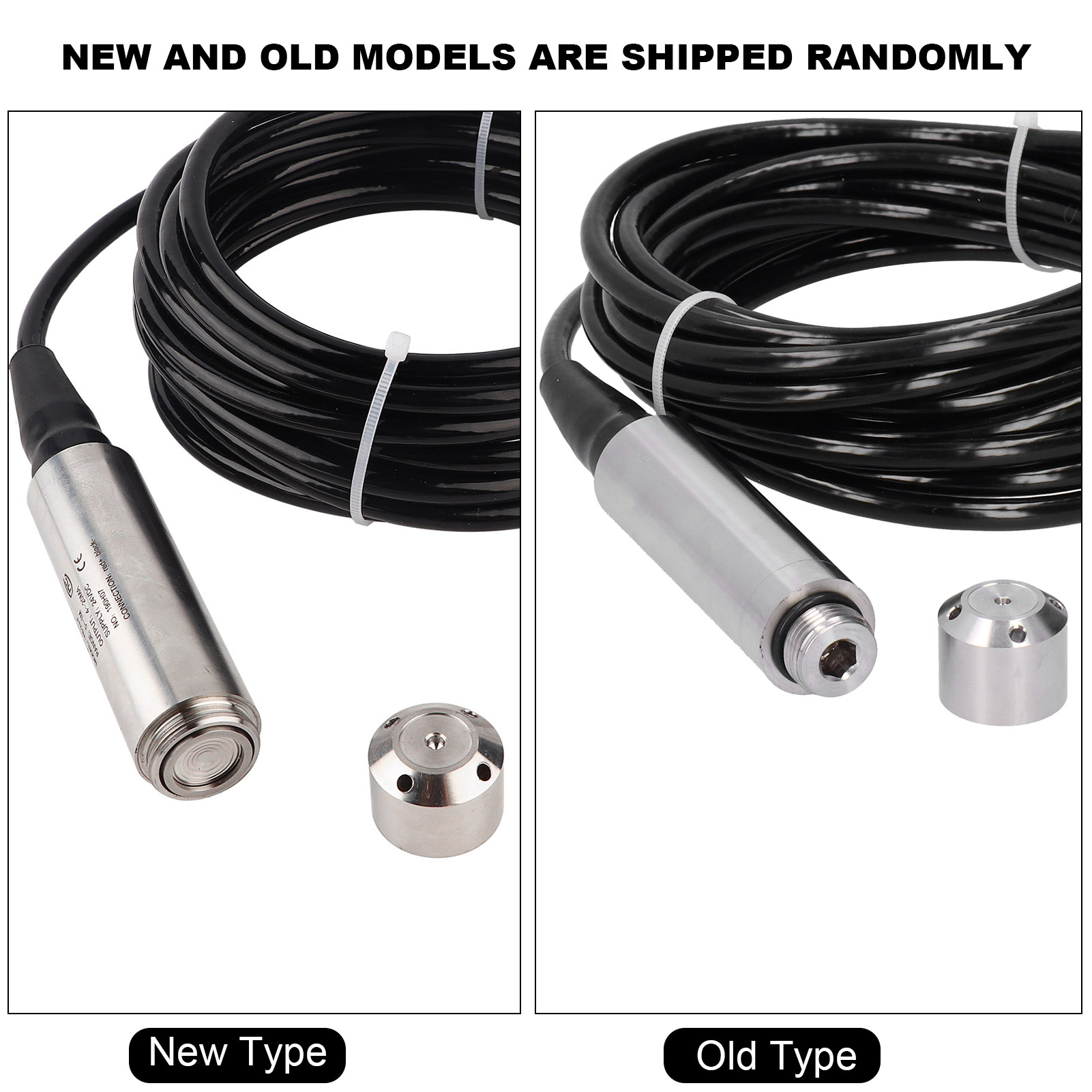

Probe can be unscrewed and removed.
