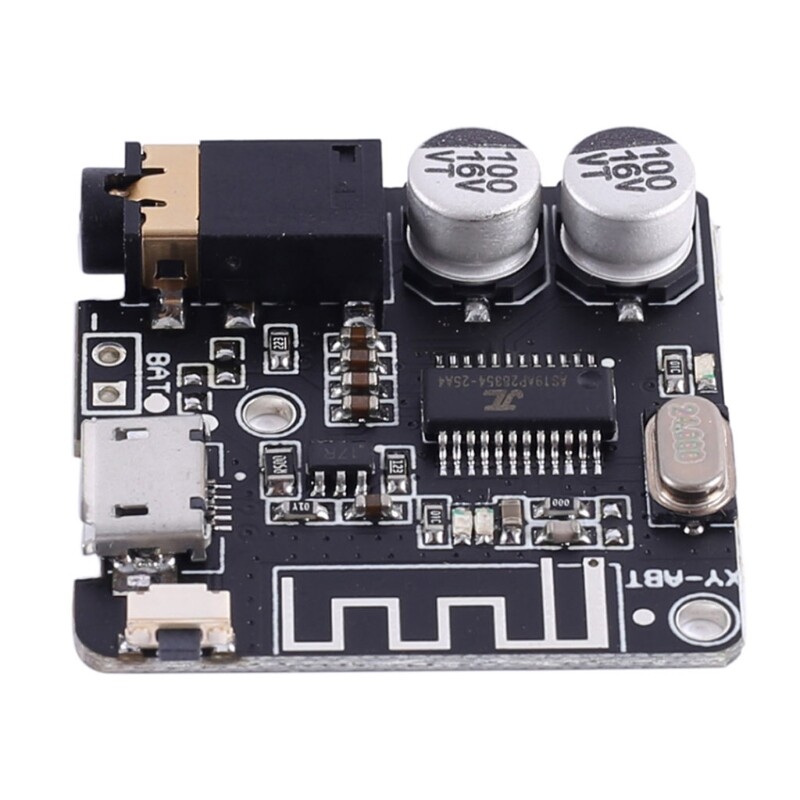

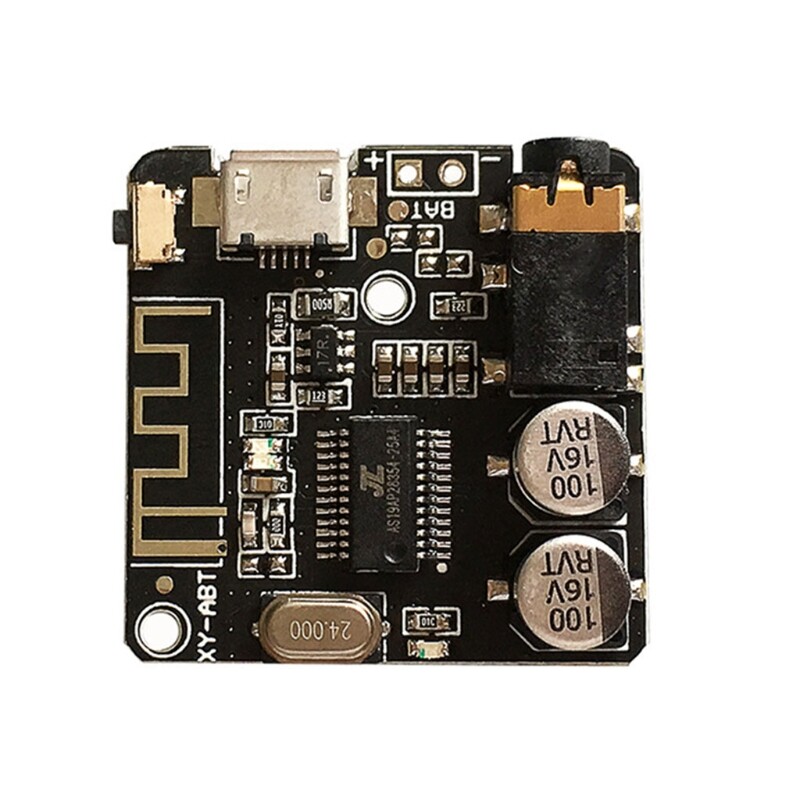

XY-ABT DIY Bluetooth-compatible 5.0 Audio-Receiver Module Car Speaker Amplifier Board MP3 Bluetooth-compatible Decoder

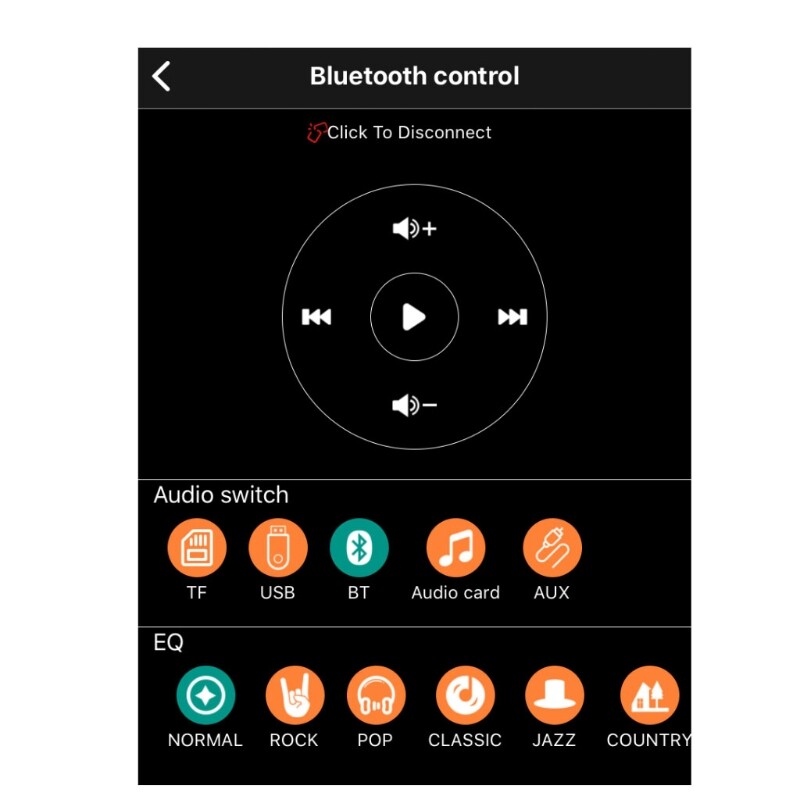

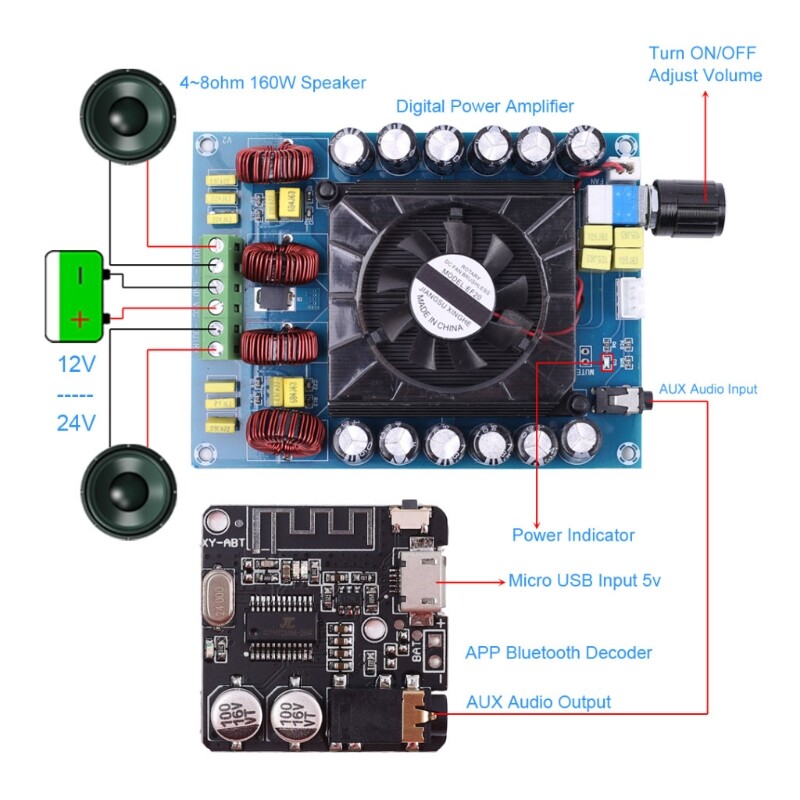

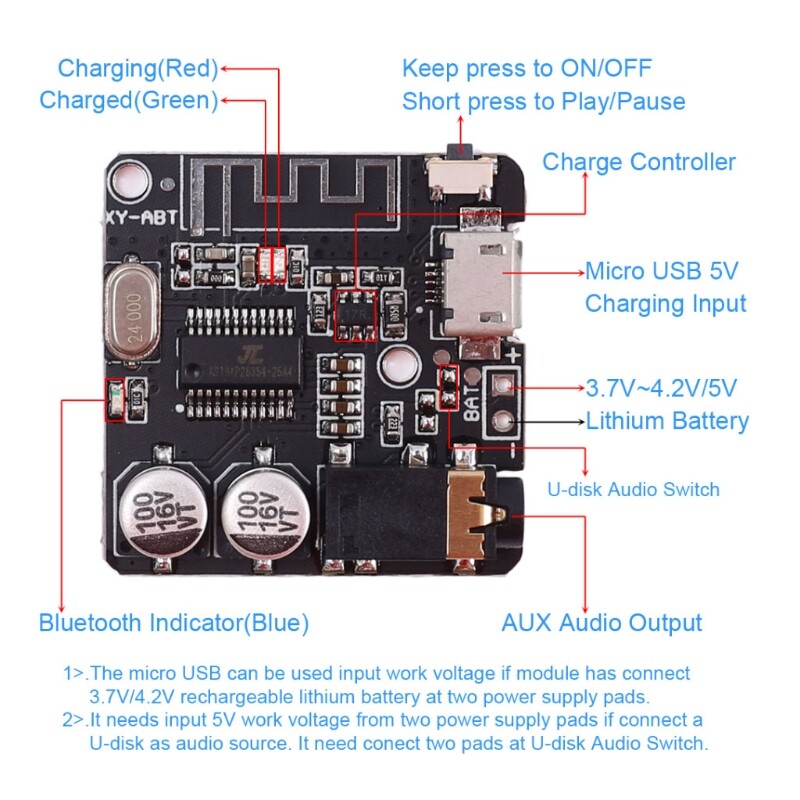

["Description:\nXY-ABT is a MP3 Bluetooth-compatible Decoder Module.Dual channels audio-signal output. It is ideal for DIY wireless Bluetooth-compatible speakers and transponders.\nIt can work with APP Sinilink which can display can monitor the current voice source and switch Equalizer.\n100% brand new and high quality\nFeatures:\n1. Audio-input modes.\n2. Bluetooth-compatible automatic re-connection.\n3. Dual channel stereo output.\n4. APP Bluetooth-compatible control.\n5. Battery charge controller.\n6. MP3 lossless decoding.\nUse steps:\nChoose the right speaker and connect as shown in wiring diagram.\nConnect to right power supply from input terminal.LED indicator will flashing and it means that module enters pairing mode.And then speak prompt voice and it means that module is waiting for pairing.\nTurn ON Bluetooth-compatible in phone.\nSelect Bluetooth-compatible device ‘XY-ABT’ in your Bluetooth-compatible device listing.\nLED indicator will keep ON and it means that module is successfully connected and is waiting for playing.\nModule will playing music after select music in phone.LED indicator will keep slowly blinking.Note: It is a music decoder so it needs connect to amplifier and then connect speaker.\nPlay or pause by press button.\nOpen APP Sinilink and register an account if need control by APP.\nClick the dot on the right.\nSelect ‘Con Blu Dev’ and then Search Bluetooth.\nSelect devices ‘Sinilink-APP’ to connect module.\nUser can adjust volume,select next or previous,play/pause and select EQ.\nModule will speak prompt voice if disconnected.\nApplication:\nModified speaker\nAmplifier equipment\nCar Bluetooth-compatible device\nNote:\nThe power amplifier board should be as far away as possible from the WIFI signal (router) avoid signal interference.\nIt is a music decoder so it needs connect to amplifier and then connect speaker.\nPlease don’t use too long wires to avoid signal interference.\nThe format of U-disk must be FAT32 and the maximum memory is 32G.\nThe module can charge 3.7V/4.2V lithium battery, but does not support charging or discharging protection function.\nThe micro USB can be used input work voltage if module has connect 3.7V/4.2V rechargeable lithium battery at two power supply pads.\nIt needs input work voltage from two power supply pads if connect a U-disk as audio source.\nPlease read use manual and description before use.\nDecoder Module only,other accessories demo in the picture is not included.\n\nSpecification:\nProduct Name:XY-ABT Bluetooth-compatible Decoder Module\nProduct Number:XY-ABT\nWorking Voltage:DC 5V\nControl Type:Bluetooth/APP Sinilink Control\nAudio-input type:Bluetooth/U-disk\nBluetooth-compatible version:BLE 5.0\nCommunication distance:15meter(Max)\nChannel:Dual channel stereo output\nWorking Temperature range:-40℃~85℃\nWorking Humidity Range:5%-95%RH\nMaterial: ABS\nSize: app.3x3cm/1.18x1.18in\nColor: As the pictures shown\nQuantity: 1 Pc\n\nNote:\nNo retail package.\nPlease allow 0-1cm error due to manual measurement. pls make sure you do not mind before you bid.\nDue to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!\n\n
