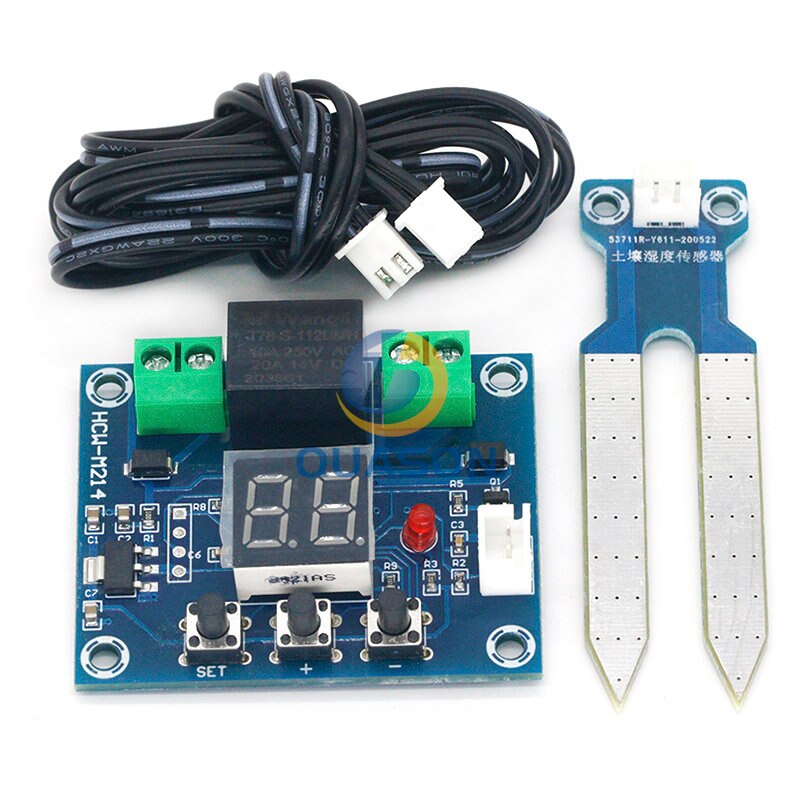

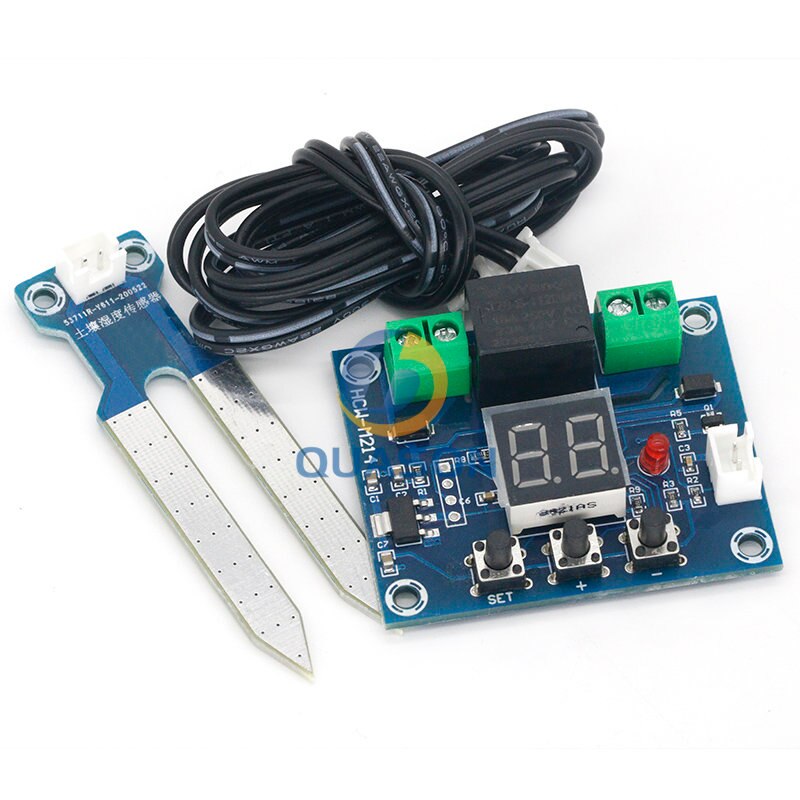

XH-M214 Humidity Controller Soil Sensor Module 20-99%RH Precise Automatic Control Irrigation Red Digital Display

• Package:DIY KIT
• is_customized:Yes
• Model Number:XH-M214
• Operating Temperature:-40-+85
• Dissipation Power:..
• Supply :..
• Application:Switch And Sensor For Arduino STM
• Condition:New
• Type: Regulator
• Origin:Mainland

Product description

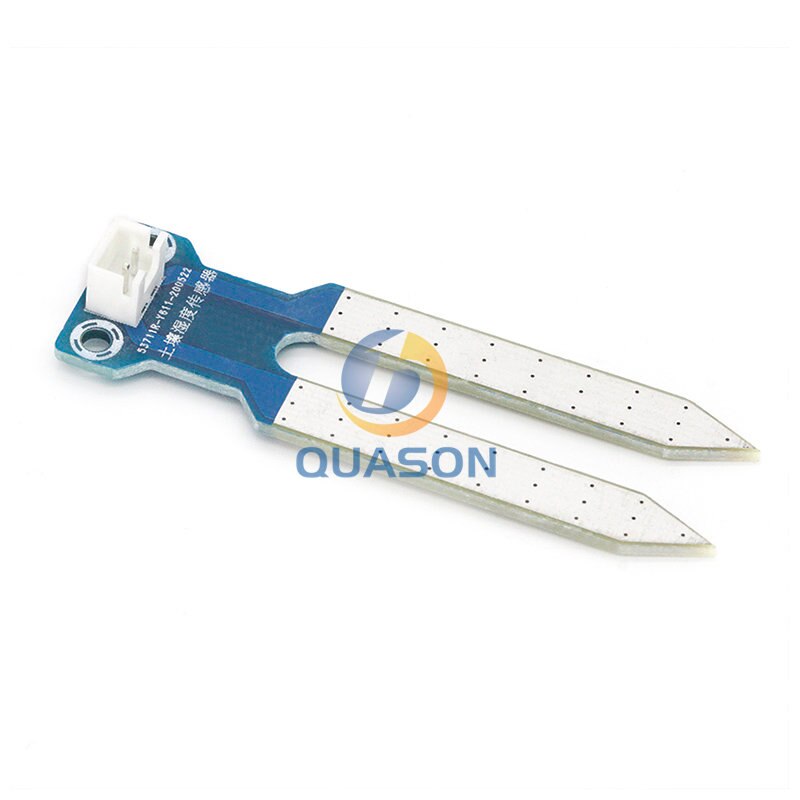

The probe can be inserted directly into the soil. It is a digital display of soil moisture. When the humidity is below the set value starting pump starts wate, when humidity reaches the set value to stop wate. The operation is very simple. It is intelligent humanization.
Product Parameter
Parameter: Value
Product name: Soil Moisture Controller Module
Model: XH - M214
Power supply : DC 12 V
Output way: Output switch
Humidity range: 20-99% RH
Control precision: 1% RH
Control : 10 A
Net weight: About 28g

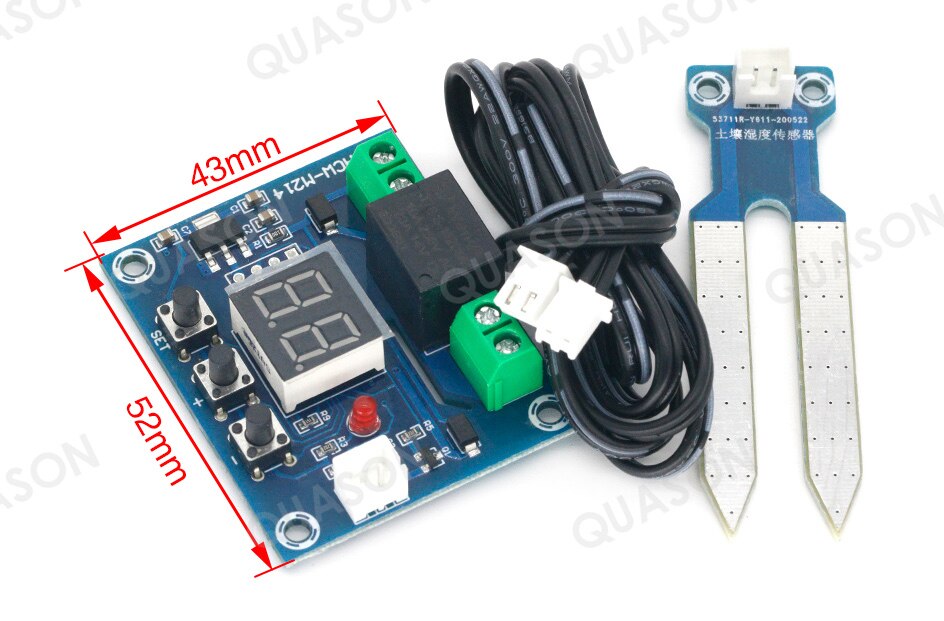

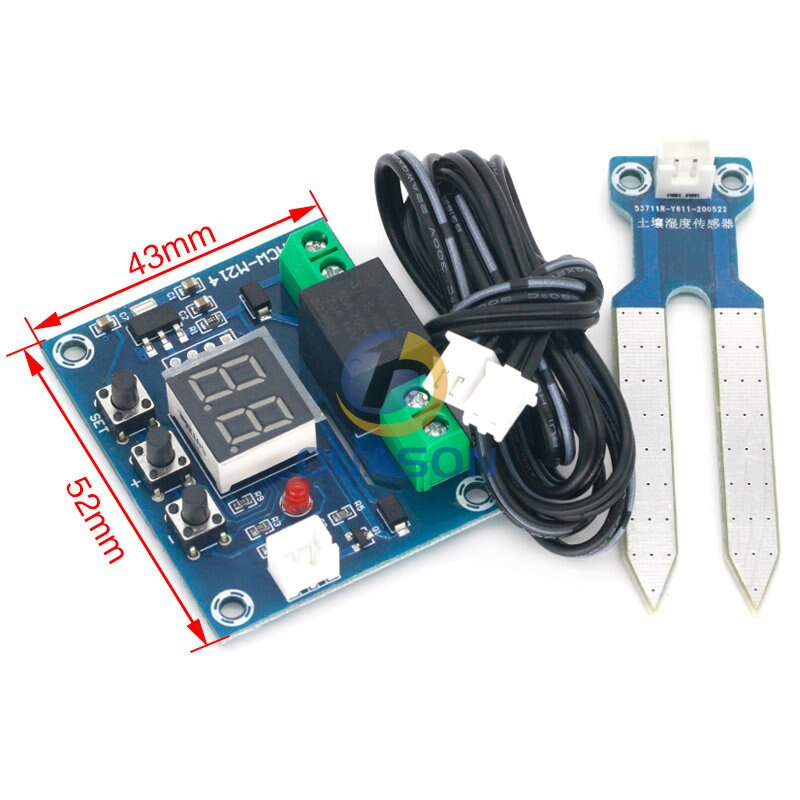

Size:52*43*16 mm
Using attention

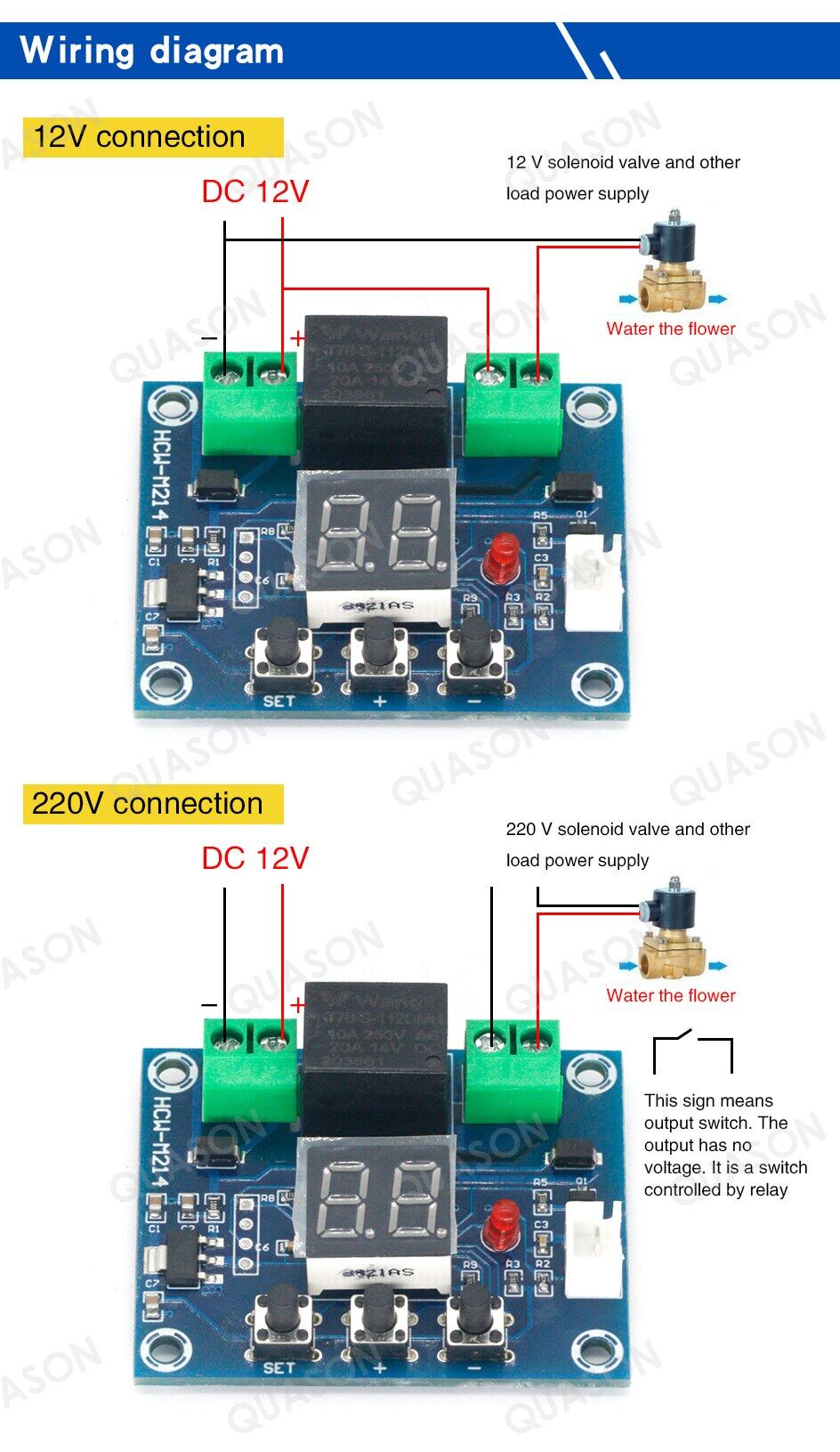

Please follow the wi diagram of the description . You can choose the appropriate wi mode ording to the load you use

1 >. FO setting start humidity ( the humidity of the solenoid valve or the pump start working )
Press the "SET " button to display "F0" and press the " SET " button to display the start humidity , and press + / button to "SET " the humidity value

2>. F1 setting stop humidity (the humidity of the solenoid valve or the pump stops working)
Press + / -button to switch to "F1 " , press the "SET"
button to display the stop humidity value, and press +/button to SET the humidity value

3>. F2 humidity correction
Normal use without correction error.The correction of values in the use of multiple modules at the same time
is conducive to a unified management operation.
