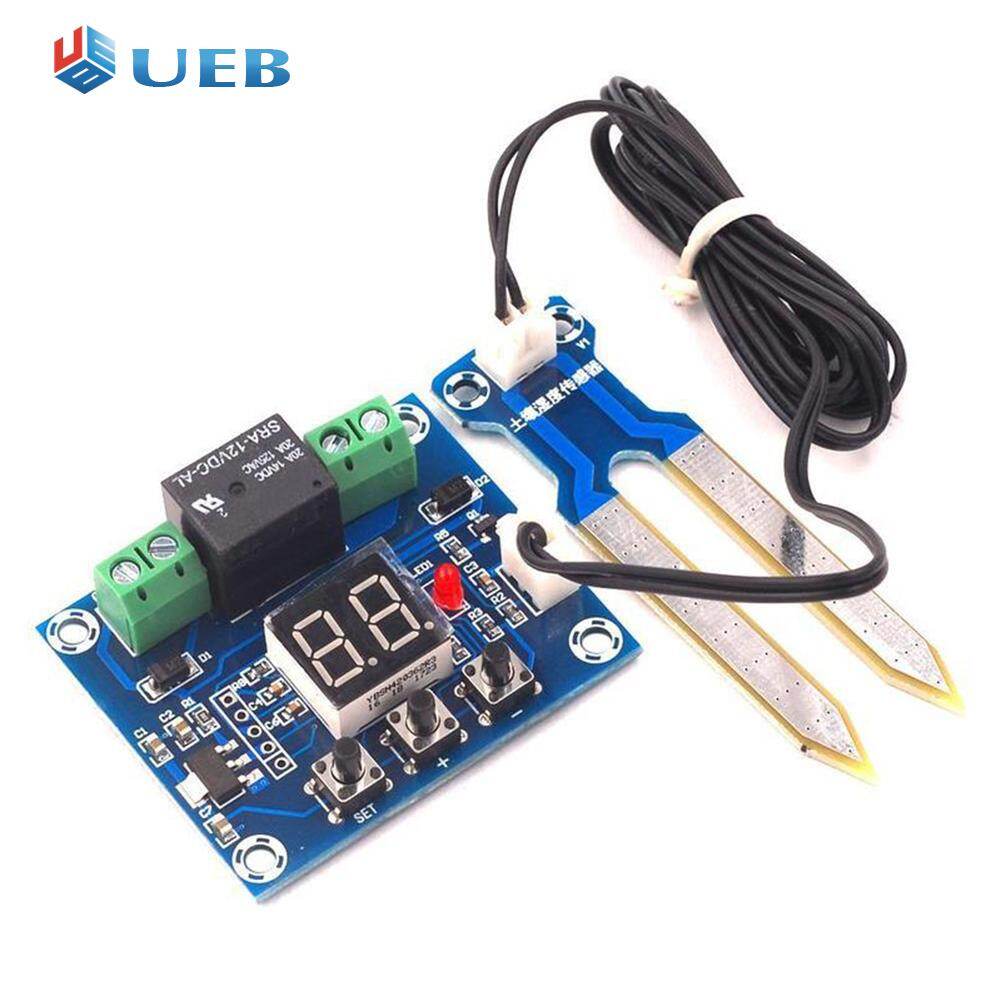

XH-M214 12V Digital Soil Humidity Sensor Controller Irrigation System Automatic Watering Detector

XH-M214 12V Digital Soil Humidity Sensor Controller Irrigation System Automatic Watering Detector Module Soil Moisture Test Probe
Description:
The probe can be inserted directly into the soil.
It is a digital display of soil moisture.
When the humidity is lower than the set value, start the pump to start watering, and stop watering when the humidity reaches the set value.
The operation is very simple. It is intelligent and humane.

Specification:
Item: Soil moisture controller module
Model: XH-M214
Power supply voltage: DC 12V
Output mode: output switch
Humidity range: 20-99% RH
Control accuracy: 1% RH
Control current: 10A
Net weight: 30g
Size: 52*43*16mm

Use Tips:
Please follow the wiring diagram in the instructions. You can choose the appropriate wiring method according to the load voltage you use
1. F0 set the starting humidity (the humidity at which the solenoid valve or pump starts to work), press the "SET" key to display "F0", press the "SET" key to display the start humidity, and press the +/ key to display the "SET" humidity value
2. F1 set the stop humidity (the humidity at which the solenoid valve or pump stops working) press the +/- key to switch to "F1", press the "SET" key to display the stop humidity value, press the +/ key to set the humidity value
3. F2 humidity correction
There is no correction error for normal use. Numerical correction when multiple modules are used at the same time is conducive to unified management and operation.

Note:
Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
Please allow 1-2cm measuring deviation due to manual measurement.
