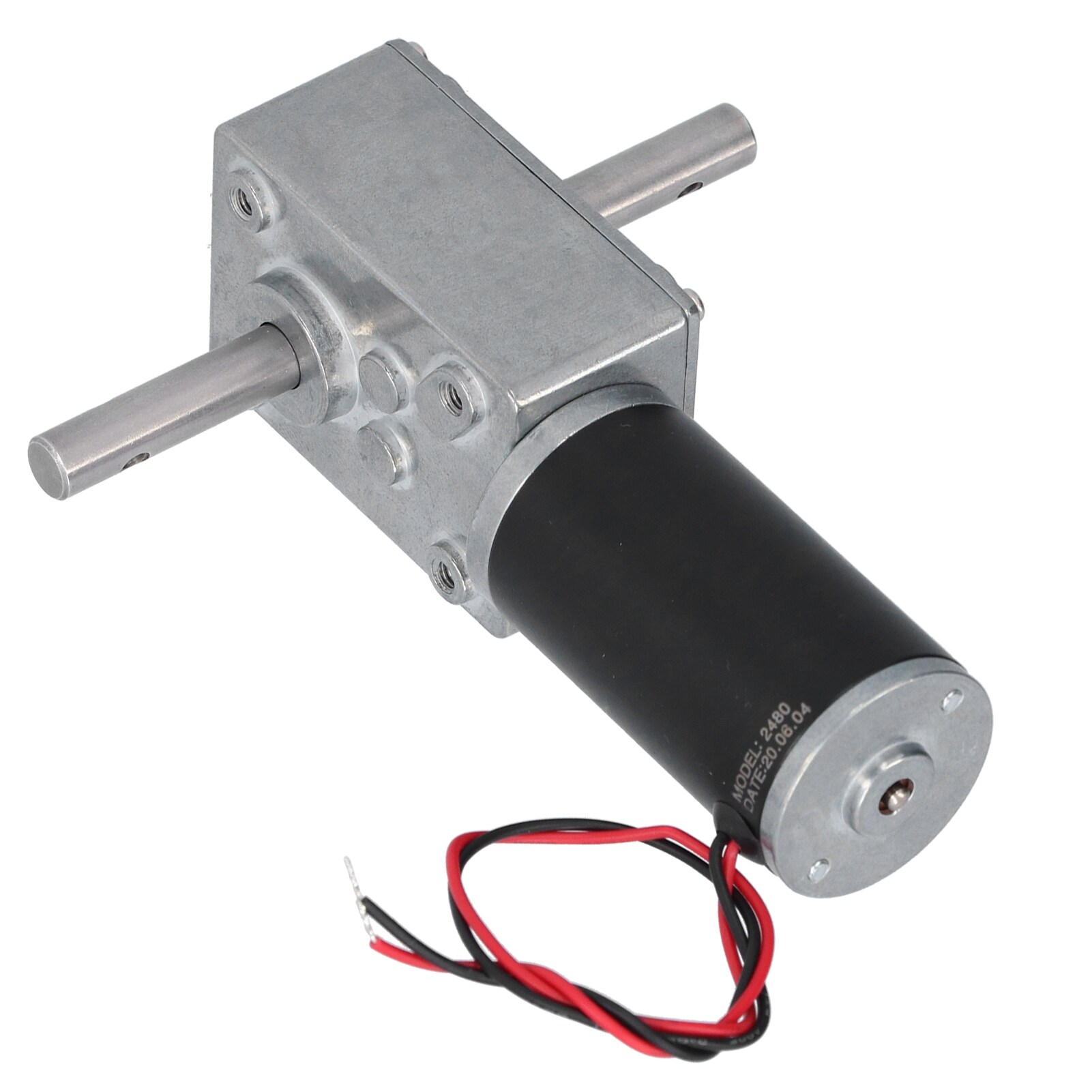

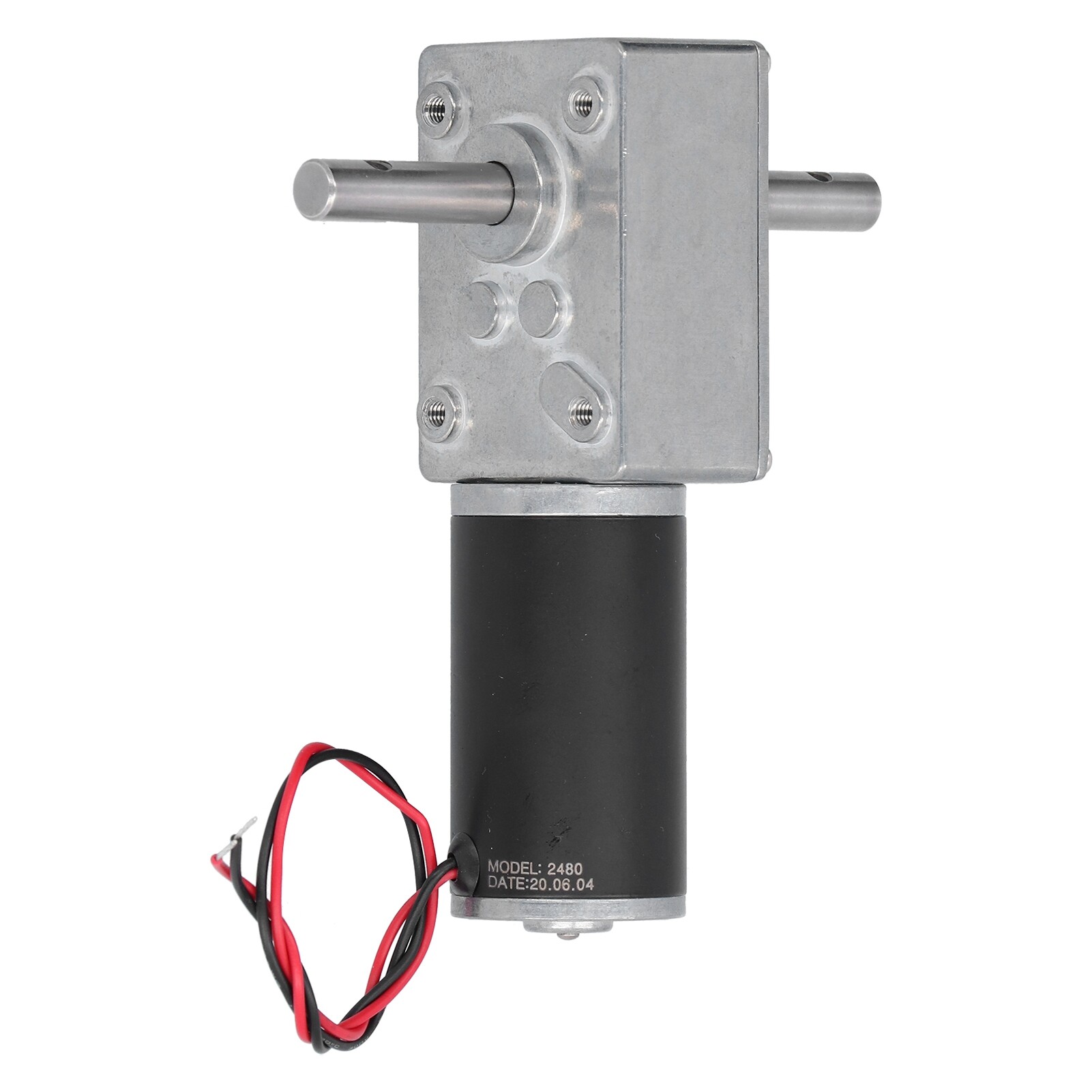

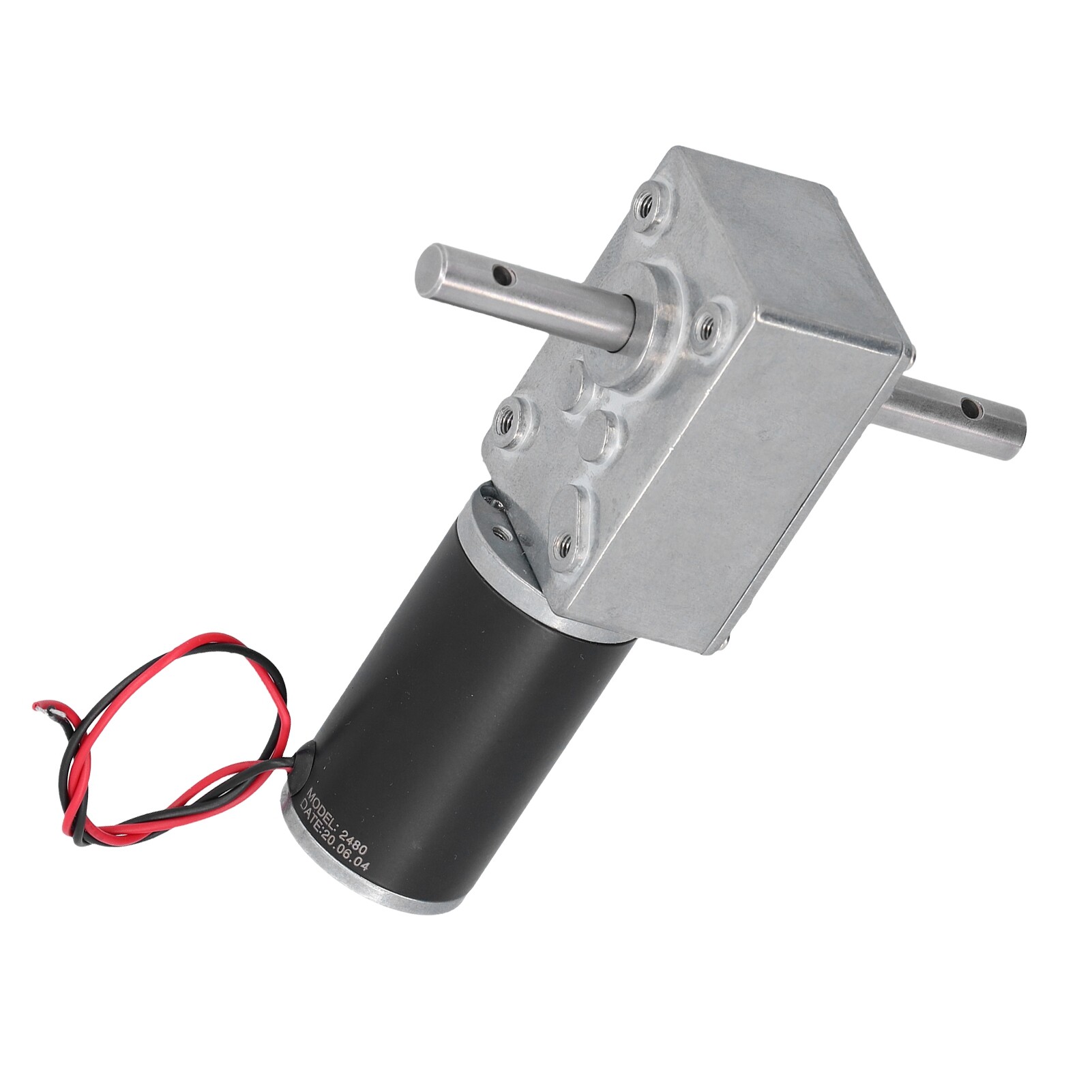

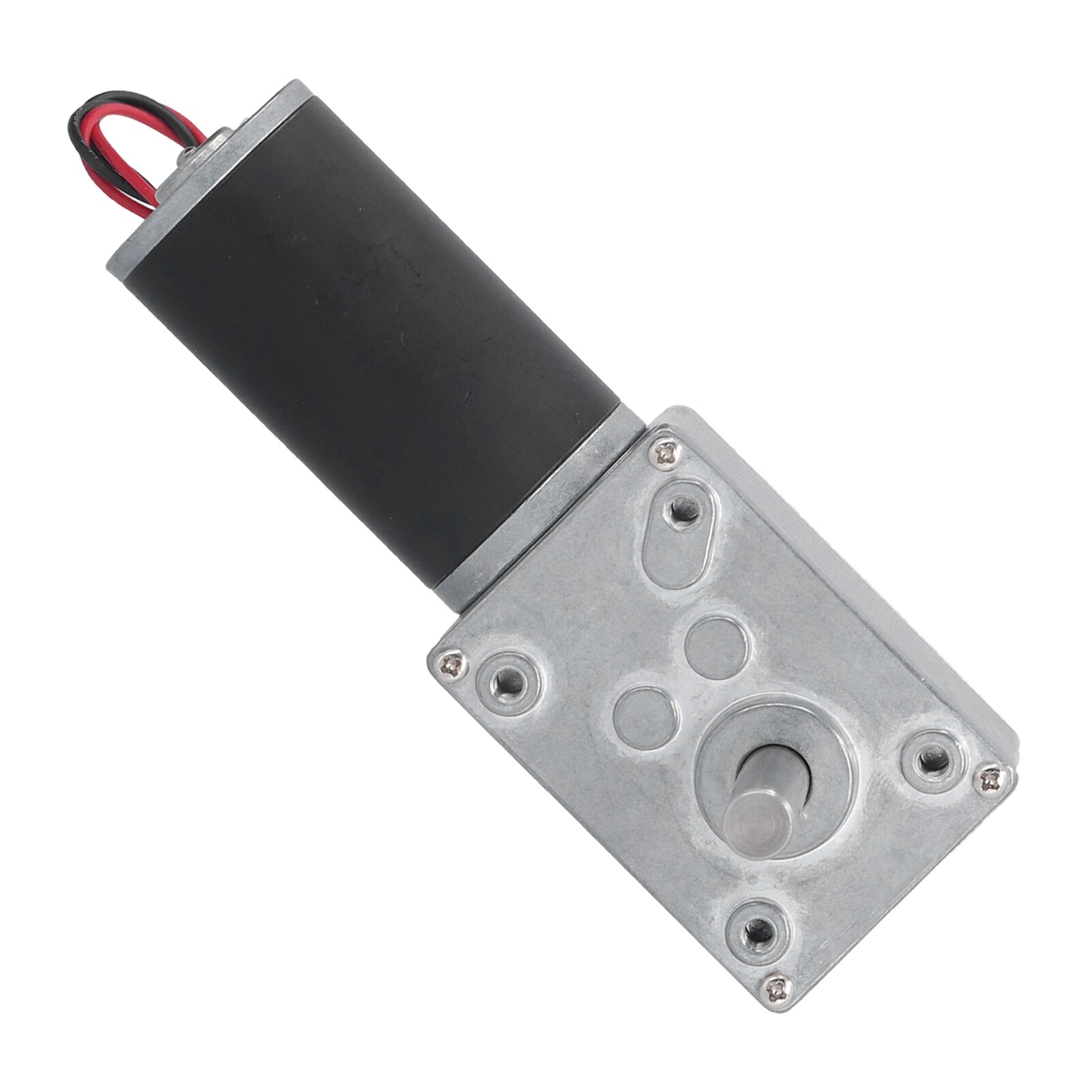

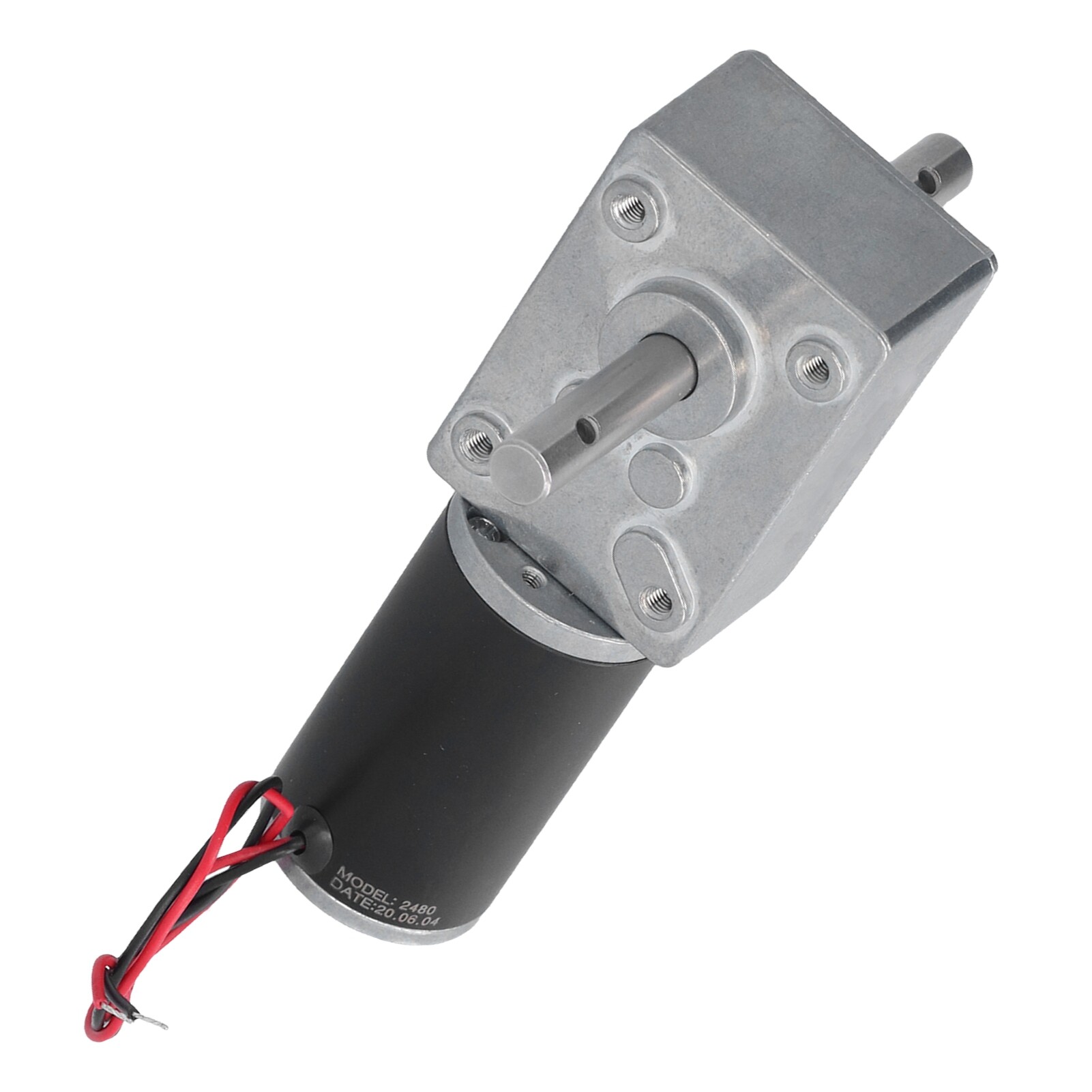

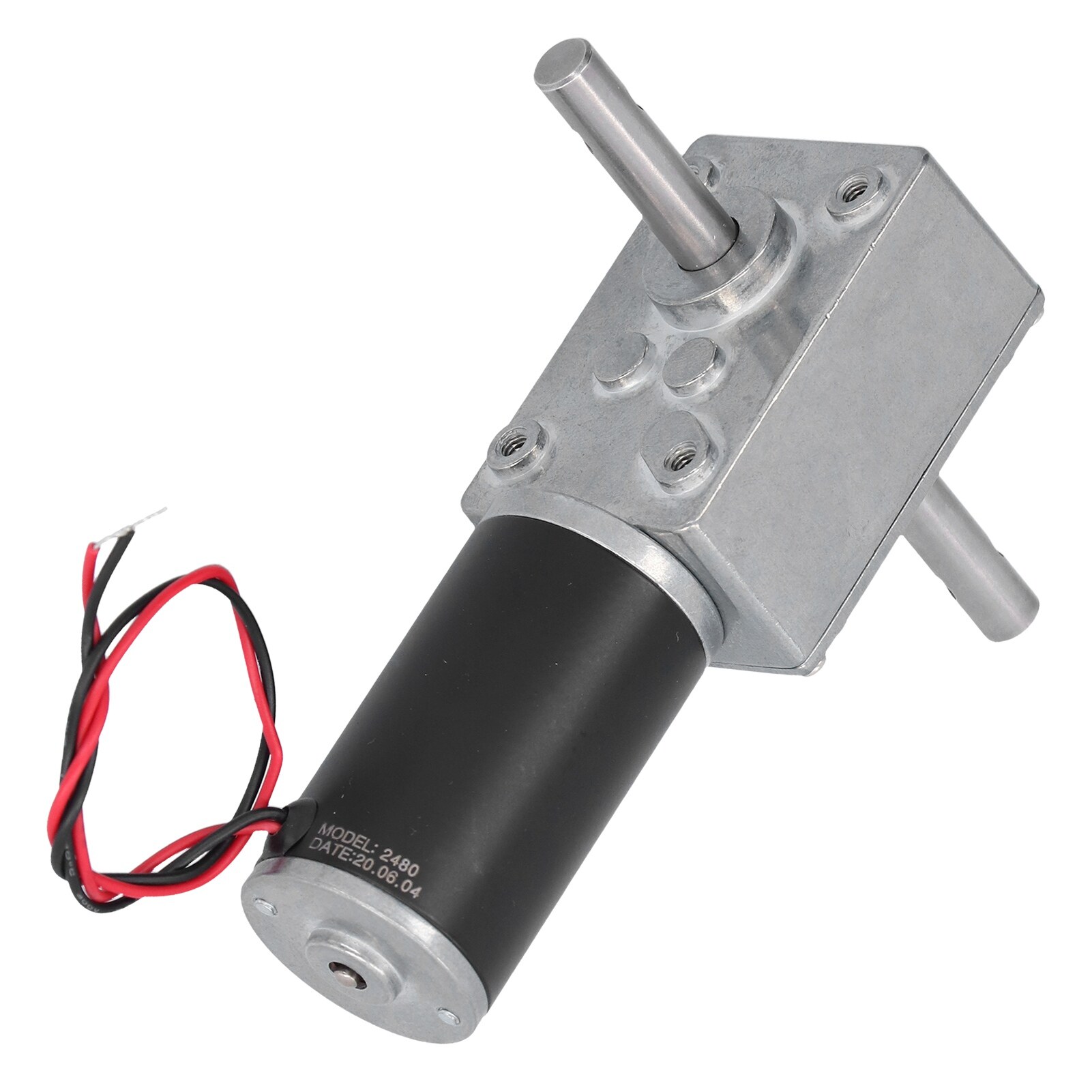

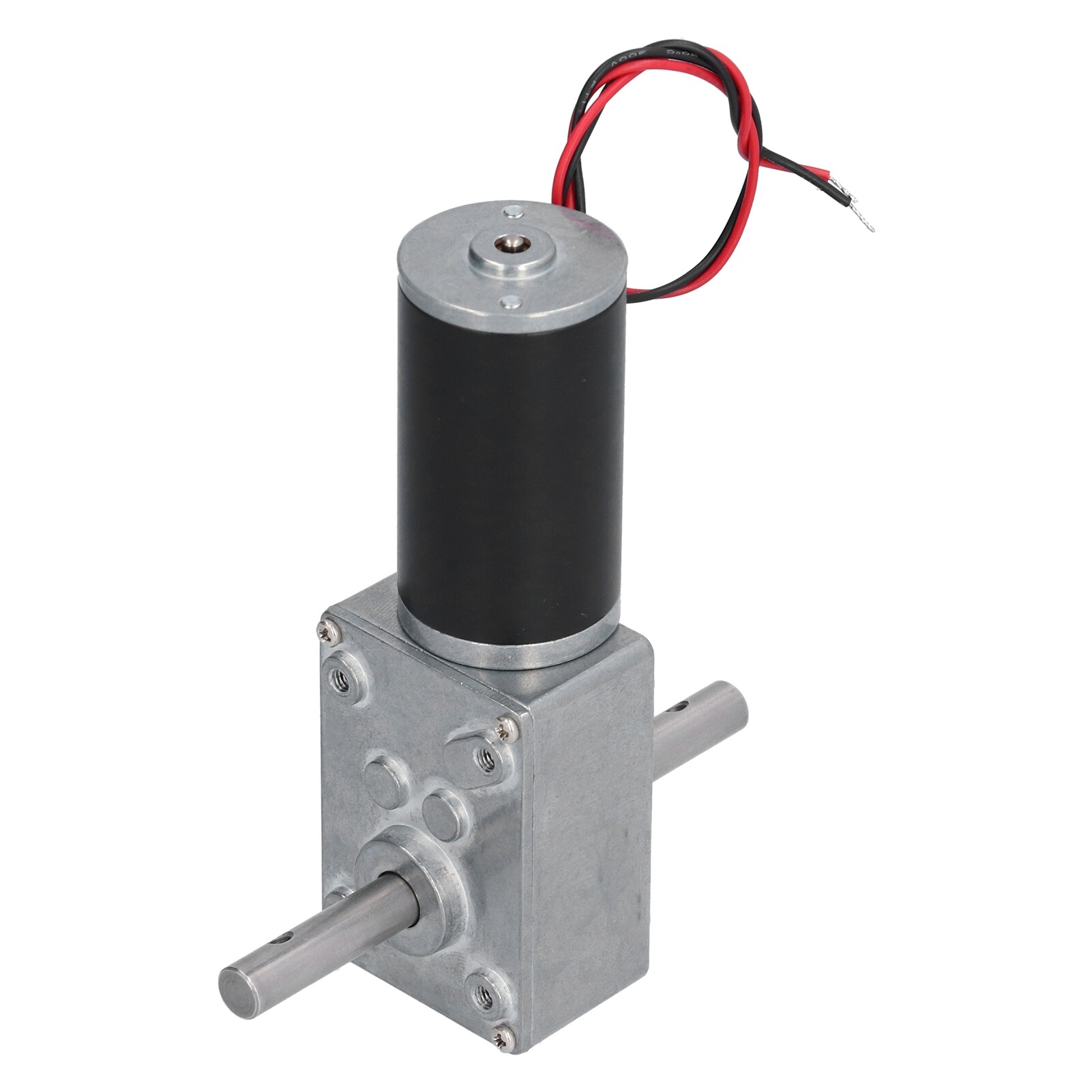

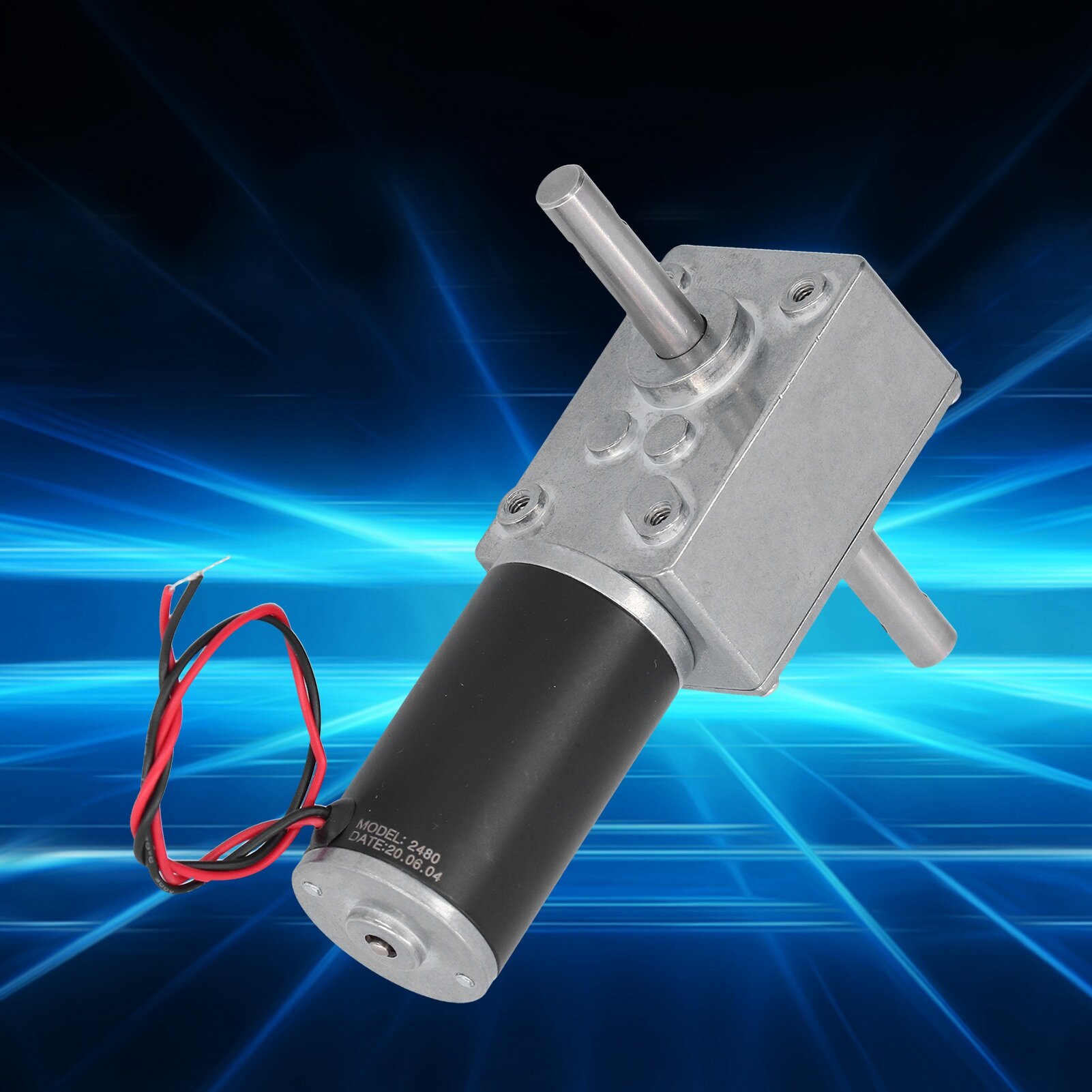

Worm Motor, Small Size DC Motor Low Noise for Office Equipment

Feature:

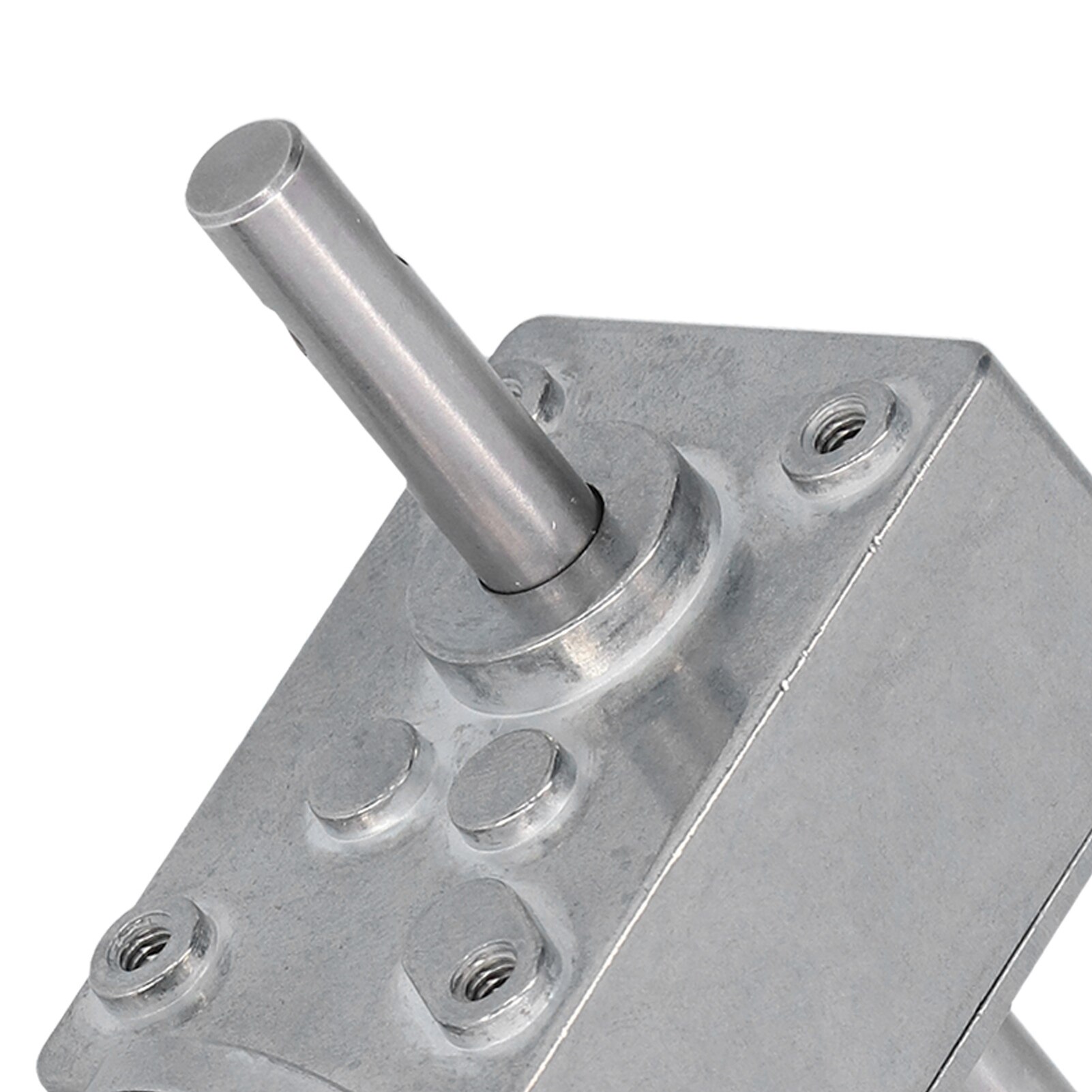

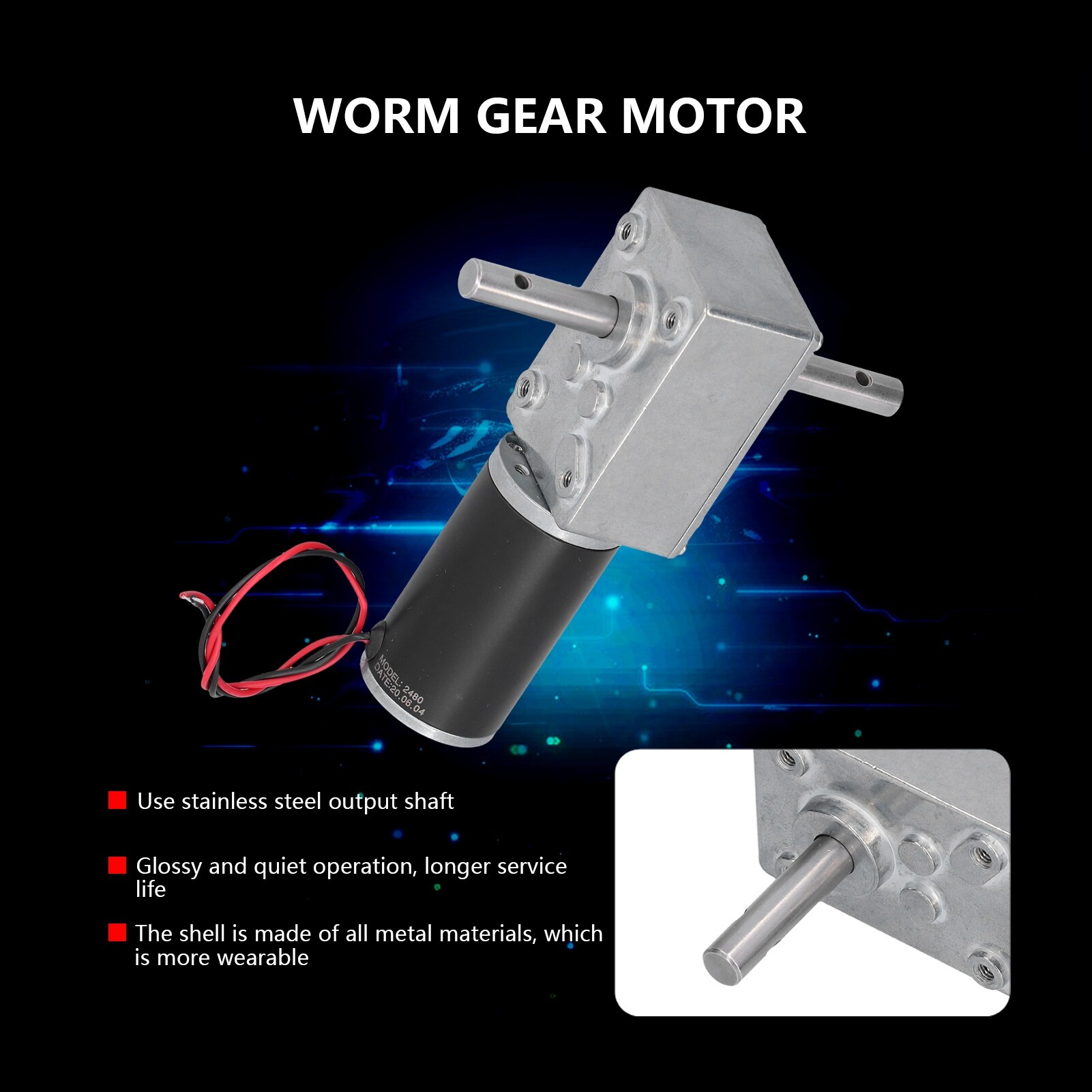

1. With 8mm0.3in dual output shaft, using stainless steel output shaft, which is glossy and quiet operation, longer service life
2. The shell is made of all metal materials, which is more wearable, not easy to rust, not easy to corrode, and has stable thermal conductivity

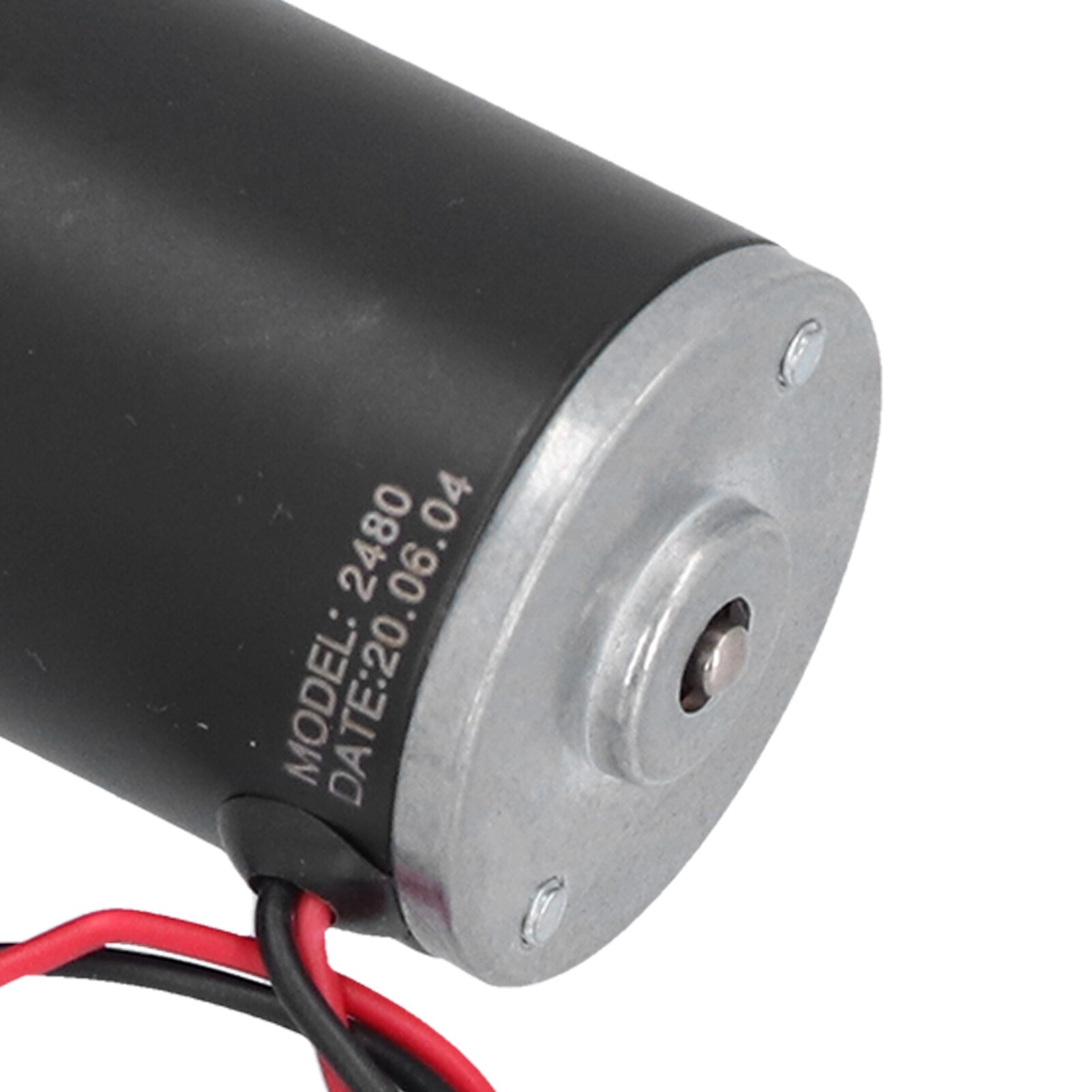

3. Adopting fully machined steel teeth, brass worm gear and double ball bearings. The 31mm/1.2in copper motor has the characteristics of small size, high torsion, long life, low noise, etc
4. After the gear is ground, heat treatment is used. Imported lubricating oil is filled between the gears of the reduction box, with low friction, low power consumption, slow temperature rise, and quieter

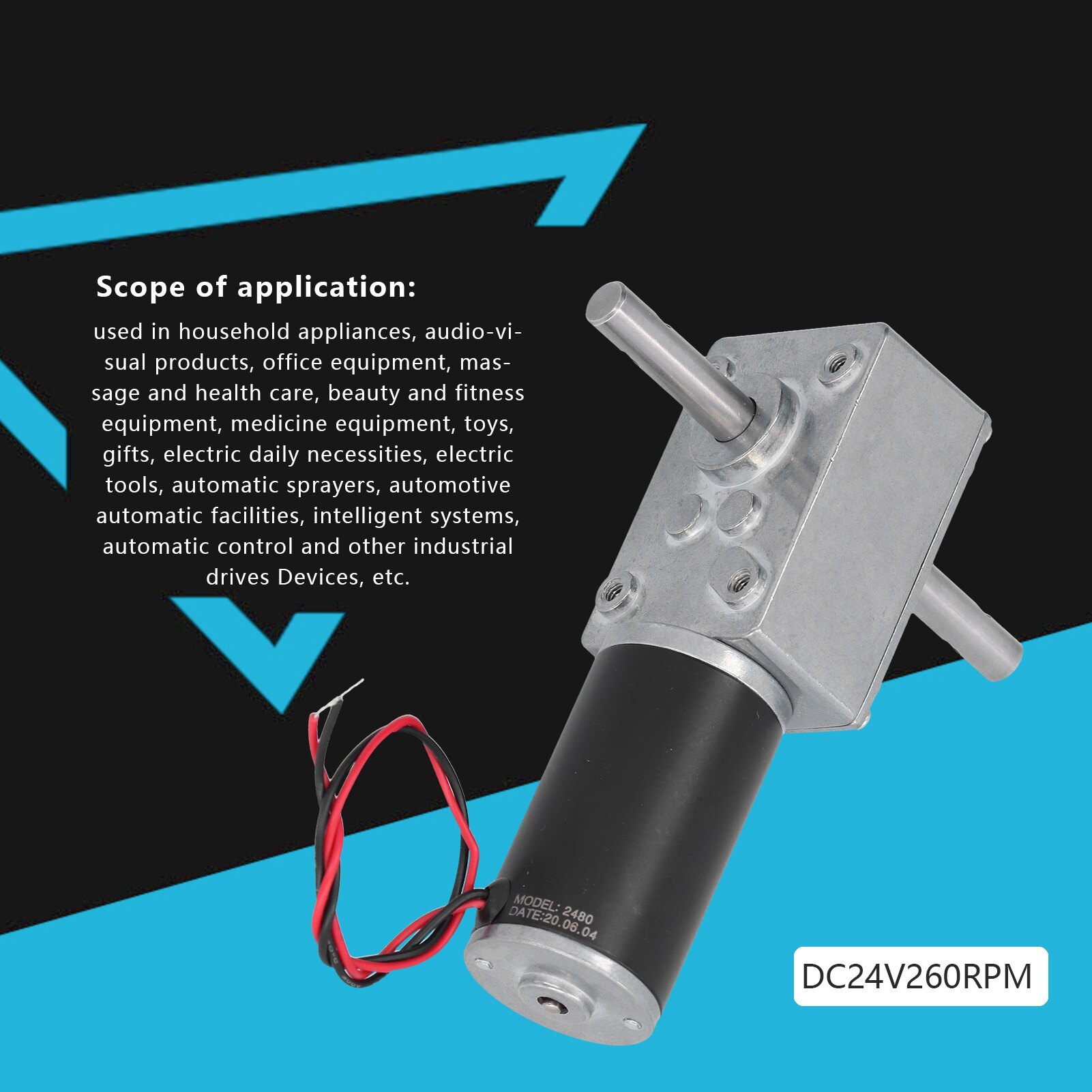

5. Used in household appliances, office equipment, medicine equipment, electric daily necessities, electric tools, automotive automatic facilities, intelligent systems, and other industrial drive devices, etc

Specification:

Item Type: DC Motor
Material: Stainless Steel, Copper, Brass
Purpose: Industrial Drive Device
Output Shaft Size (diameter x Length): Approx. 8 x 33mm / 0.3 x 1.3in
DC 12V Parameter Table:

Model	Voltage	No Load		Specified Load				Stall
		Rotating speed	Current	Rotating speed	Current	Torsion	Power	Current	Torsion
	V	r/min	A	r/min	A	Kg.cm	W	A	Kg.cm
5840-31ZY-B-1280-17K	12	470	0.3	405	1	0.85	3.6	6.5	5.1
5840-31ZY-B-1280-31K	12	260	0.3	225	1	1.55	3.7	6.5	9.3
5840-31ZY-B-1280-50K	12	160	0.3	140	1	2.5	3.7	6.5	15
5840-31ZY-B-1280-100K	12	80	0.3	71	1	5	3.7	6.5	30
5840-31ZY-B-1280-200K	12	40	0.3	35	1	10	3.7	6.5	60
5840-31ZY-B-1280-290K	12	27	0.3	23	1	14.5	3.5	Prohibit	Stall
5840-31ZY-B-1280-500K	12	16	0.3	14	1	25	3.7	Prohibit	Stall
5840-31ZY-B-1280-670K	12	12	0.3	10	1	33.5	3.5	Prohibit	Stall

DC 24V Parameter Table:

Model	Voltage	No Load		Specified Load				Stall
		Rotating speed	Current	Rotating speed	Current	Torsion	Power	Current	Torsion
	V	r/min	A	r/min	A	Kg.cm	W	A	Kg.cm
5840-31ZY-B-2480-17K	24	470	0.2	405	0.6	1	4.3	4.4	5.1
5840-31ZY-B-2480-31K	24	260	0.2	225	0.6	1.9	4.4	4.4	9.3
5840-31ZY-B-2480-50K	24	160	0.2	140	0.6	3	4.4	4.4	15
5840-31ZY-B-2480-100K	24	80	0.2	71	0.6	6	4.5	4.4	30
5840-31ZY-B-2480-200K	24	40	0.2	35	0.6	12	4.4	4.4	60
5840-31ZY-B-2480-290K	24	27	0.2	23	0.6	17.4	4.2	Prohibit	Stall
5840-31ZY-B-2480-500K	24	16	0.2	14	0.6	30	4.4	Prohibit	Stall
5840-31ZY-B-2480-670K	24	12	0.2	10	0.6	40.2	4.2	Prohibit	Stall

Package List:

1 x DC Motor

Note:

1. Do Not Place the Product in an Environment That is Too Corrosive, Humid and High Temperature!

2. Please Supply Power According to the Operating Voltage, Using Other Voltages May Cause Fire and Product Damage!
