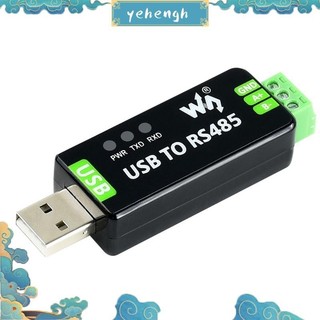

Waveshare USB to RS485 Serial Converter RS485 Communication Module 300-921600Bps Built-in ESD Protection Circuit

Waveshare USB to RS485 Serial Converter RS485 Communication Module 300-921600Bps Built-in ESD Protection Circuit

Details

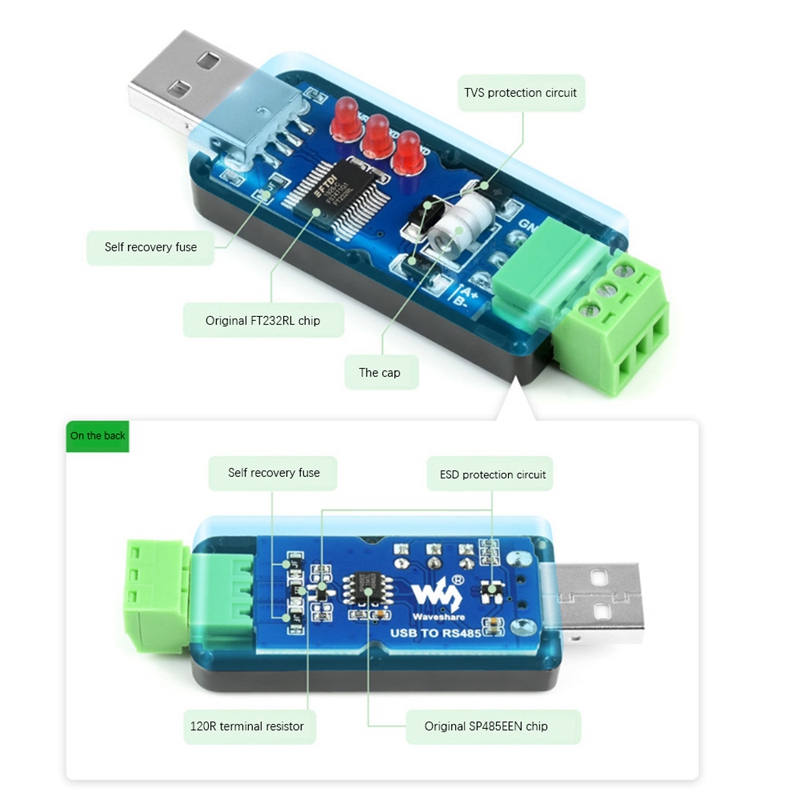

Support USB to RS485 communication, using two imported chips, FT232RL and SP485EEN, high-speed communication, stable, reliable and good compatibility.
The onboard TVS (transient voltage suppression tube) can effectively suppress the surge voltage and transient spike voltage in the circuit, and it is anti-thunder and anti-static.
The onboard self-recovery fuse and protection diode can ensure stable output of current and voltage, prevent overcurrent and overvoltage, and improve impact resistance.
There are 3 LED indicators on board for easy viewing of power supply and signal transceiver status.
Industrial-grade USB to RS485 converter, using two imported chip solutions FT232RL and SP485EEN, stable communication, suitable for various industrial control equipment or applications with high communication requirements.

Communication rate: 300-921600bps
Host interface: USB
Device interface: RS485
USB interface: working level: 5V
Interface form: USB-A type interface
Interface protection: 200mA self-recovery fuse, ESD electrostatic protection
Transmission distance: about 5 meters

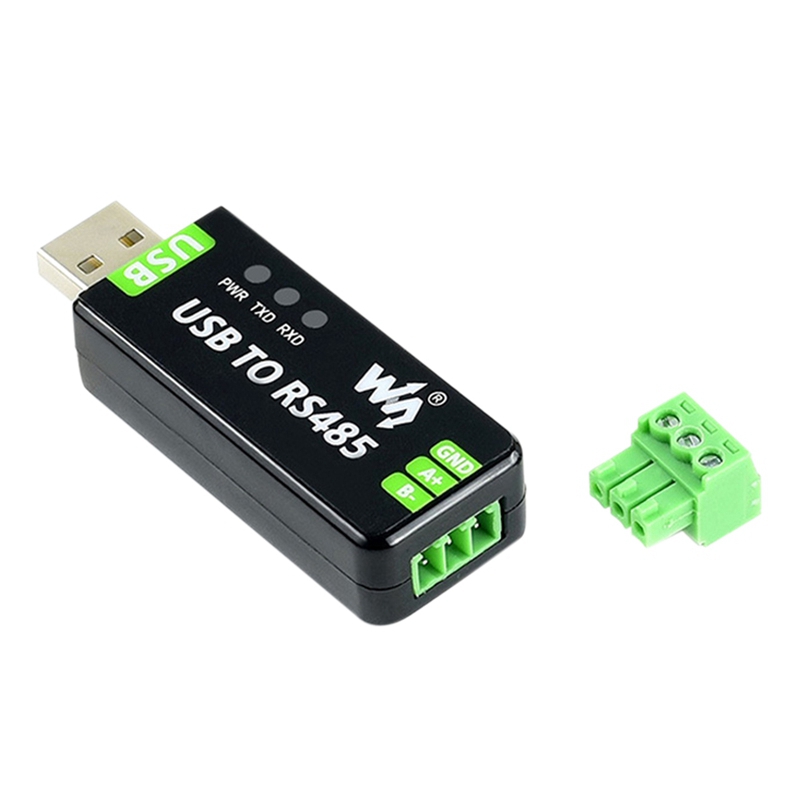

Interface form: terminal block
Interface pins: A+, B-, GND
Direction control: hardware automatically distinguishes and controls the direction of data transmission
RS485 interface: interface protection: provide 600W thunder protection, surge and 15KV electrostatic protection (onboard 120R balance resistance)

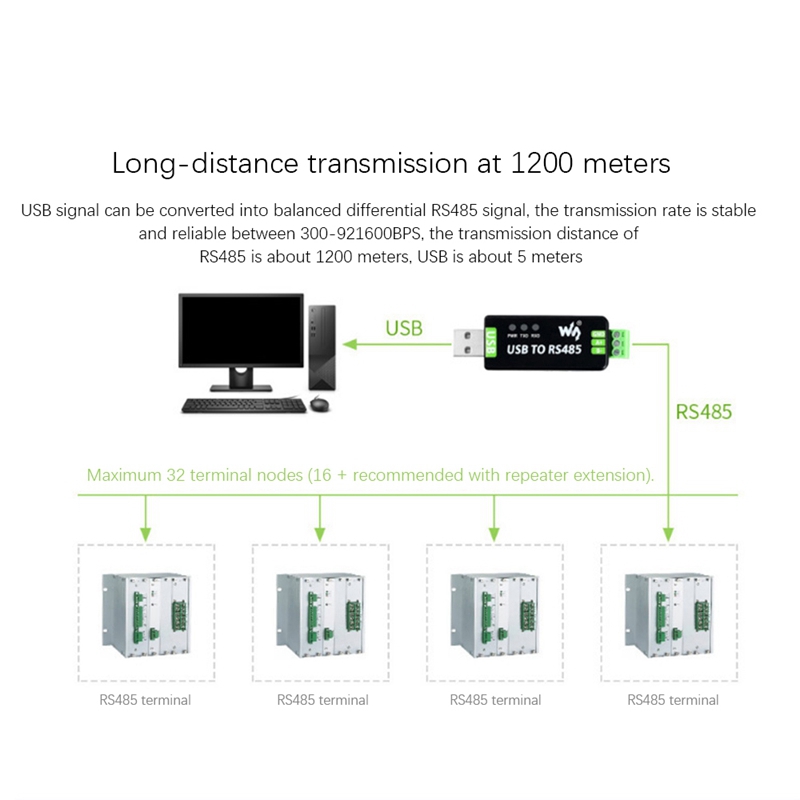

Transmission distance: about 1200 meters (under low-speed conditions)
Transmission mode: point-to-many (up to 32 nodes, repeater is recommended for more than 16 nodes)

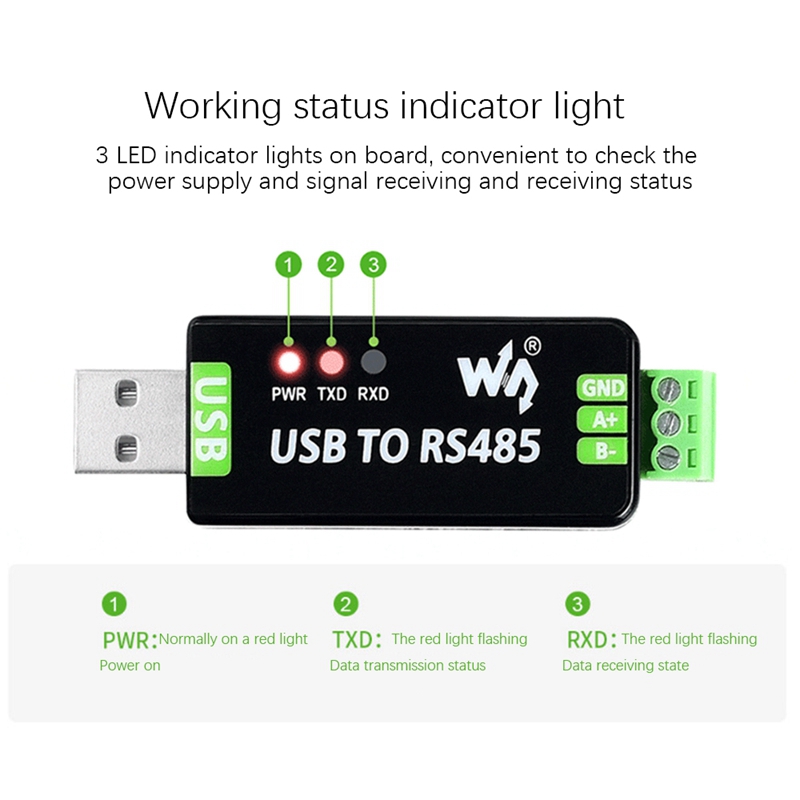

Indicator light: PWR power indicator, connected to USB, red light will be on when voltage is detected
TXD transmission indicator, red light when data is sent from the USB port
RXD receiving indicator, red light when there is data s
