Waveshare 2.13Inch E-Ink Display HAT, Black,White Two-Color 250X122 Pixel E-Paper Screen LCD for Raspberry Pi 4B/3B+/3B/2B/Zero

Waveshare 2.13Inch E-Ink Display HAT, Black,White Two-Color 250X122 Pixel E-Paper Screen LCD for Raspberry Pi 4B/3B+/3B/2B/Zero

Details

This is 2.13inch E-Ink display HAT for Raspberry Pi,250x122 resolution, with embedded controller, communicating via SPI interface, supports partial refresh. Due to the advantages like ultra low power consumption, wide viewing angle, clear display without electricity, it is a perfect choice for applications such as shelf label, industrial instrument, and so on.

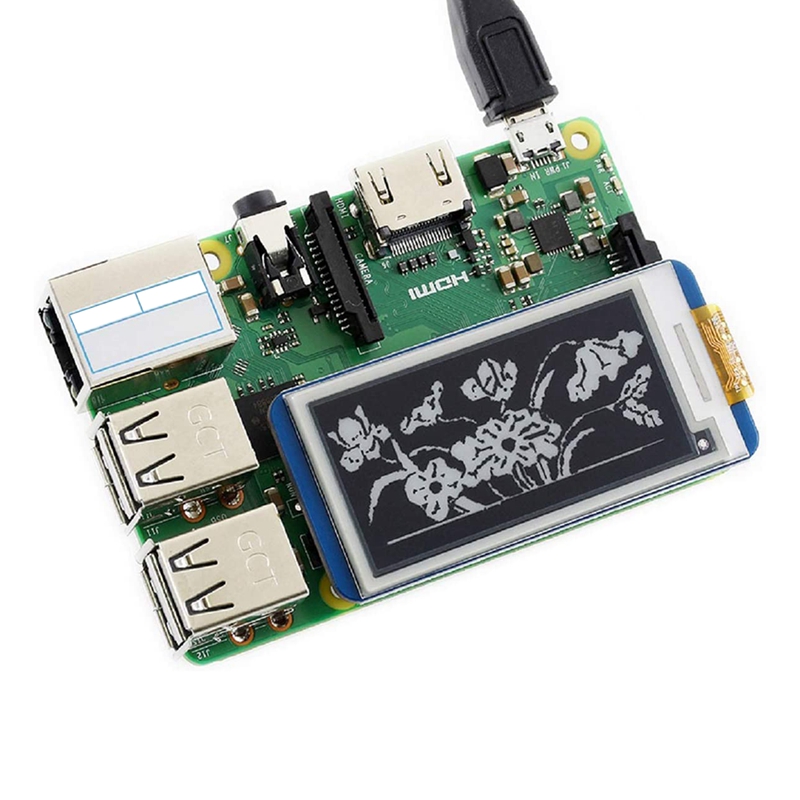

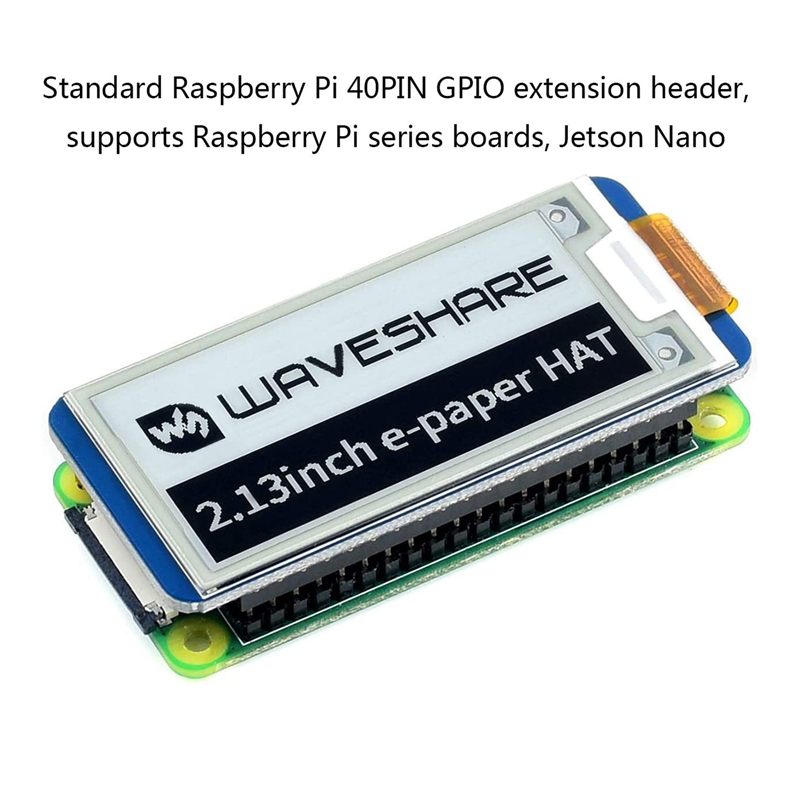

No backlight, keeps displaying last content for a long time even when power down Ultra low power consumption, basically power is only required for refreshing Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards, Jetson Nano.

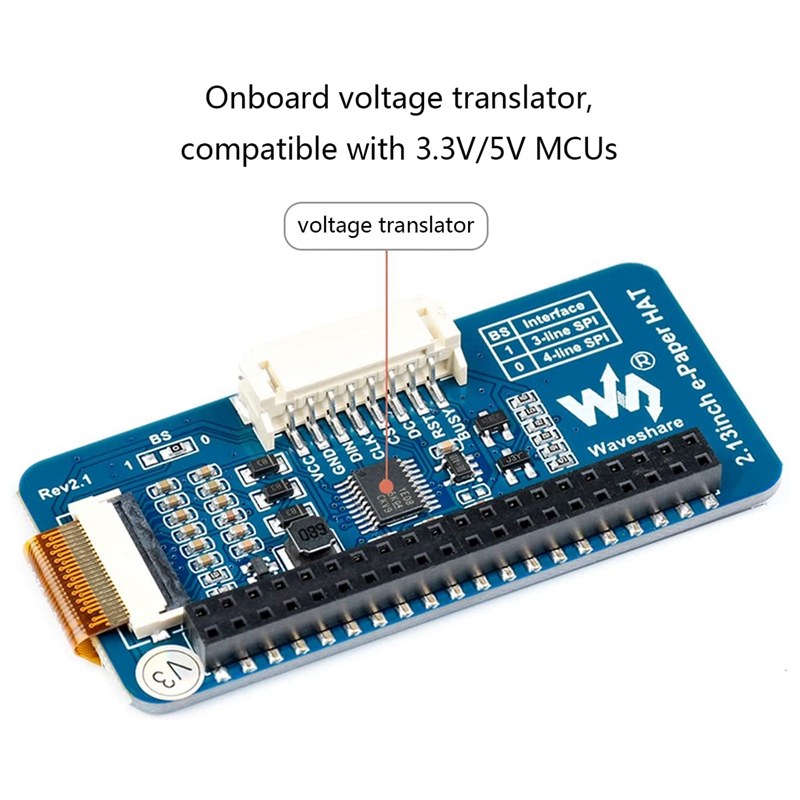

Preserved solder pads for SPI interface, for connecting with other controller boards like Arduino/Nucleo, etc.Onboard voltage translator, compatible with 3.3V/5V MCUs

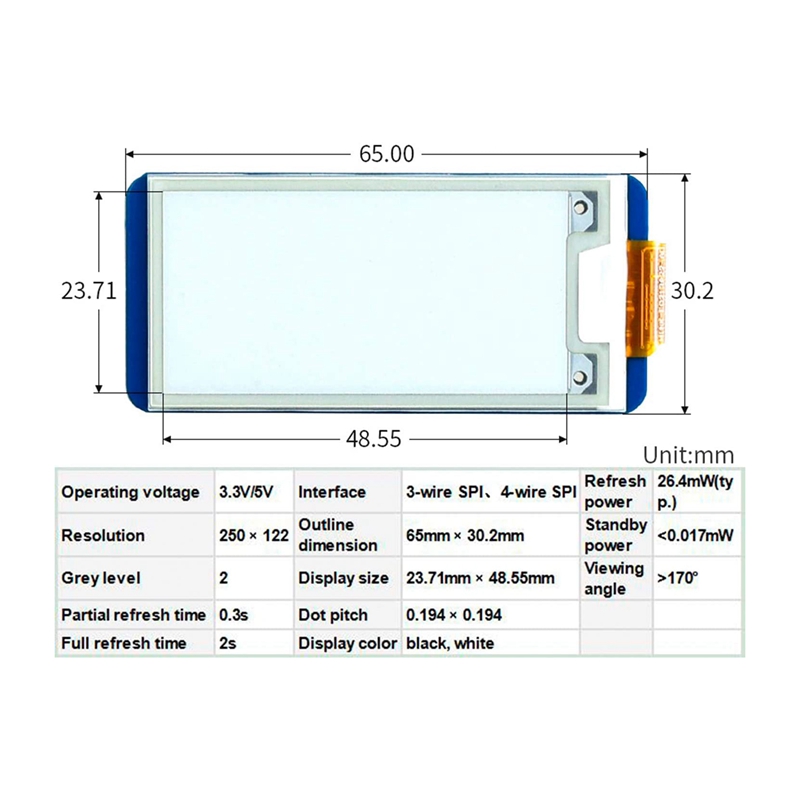

Operating voltage: 3.3V/5V. Interface: SPI. Outline dimension: 65mm x 30.2mm. Display size: 23.71mm x 48.55mm. Dot pitch: 0.194 x 0.194. Resolution: 250 x 122. Display color: black, white. Grey level: 2. Partial refresh time: 0.3s. Full refresh time: 2s. Refresh power: 26.4mW(typ.). Standby power: 170°.

color:Blue
Material:PCB

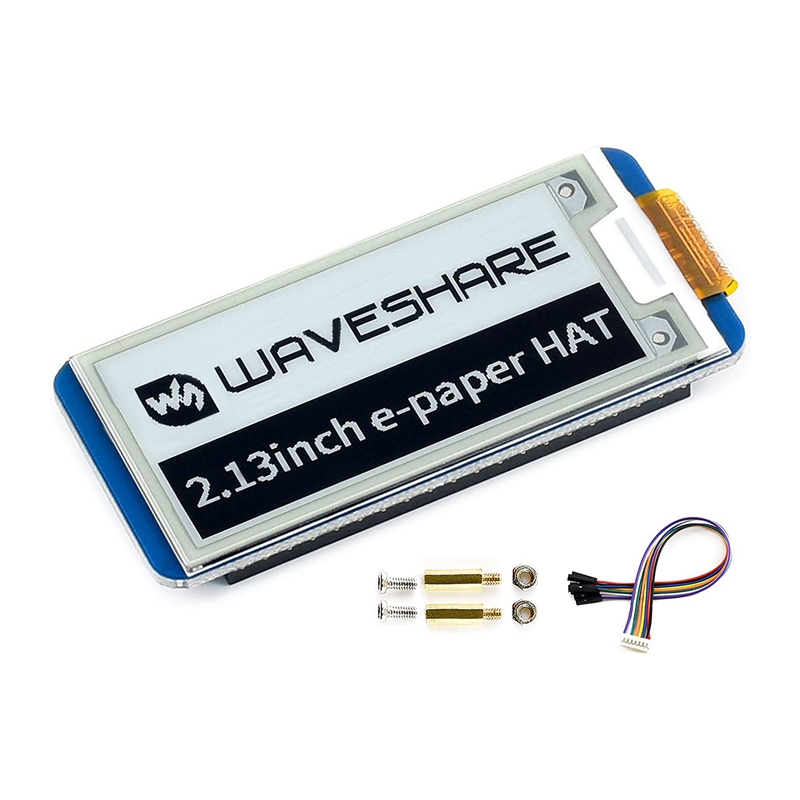

Package Contents:
1 x 2.13inch e-Paper HAT
1 x RPi screws pack
1 x 20cm 8Pin Cable
