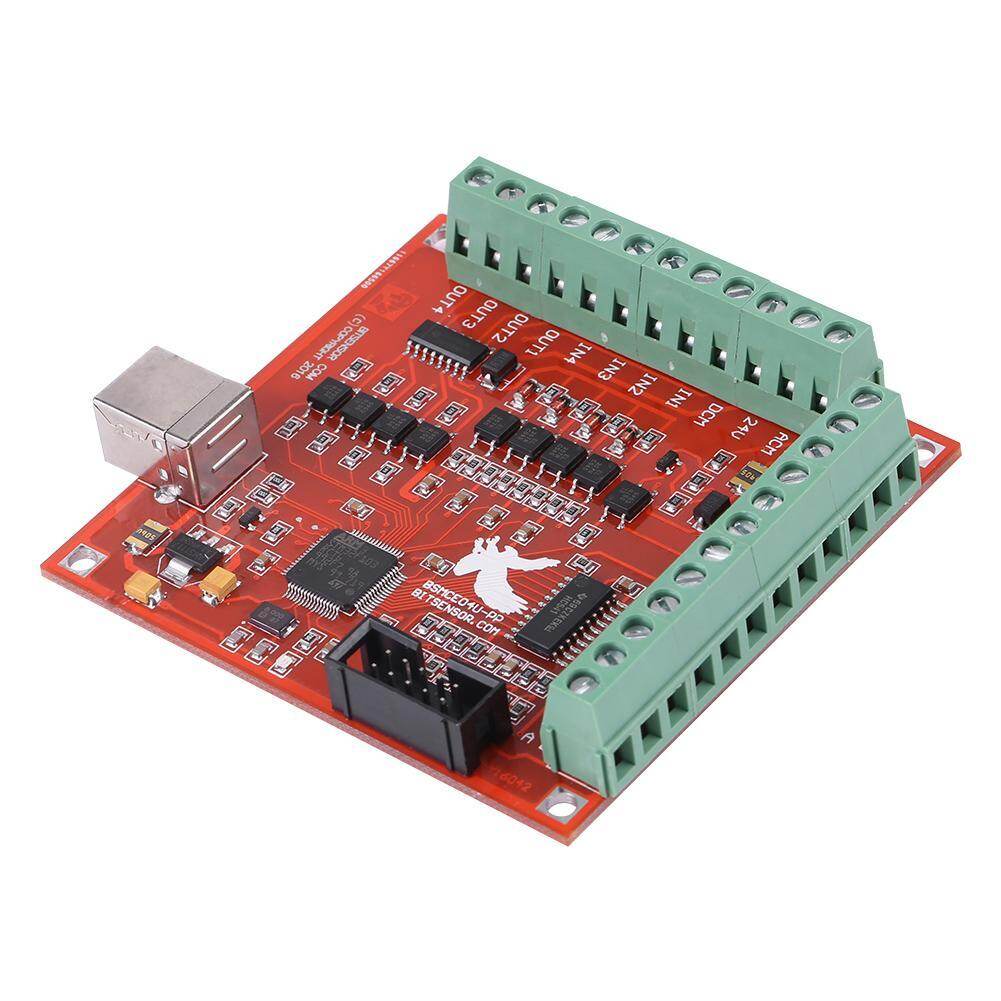

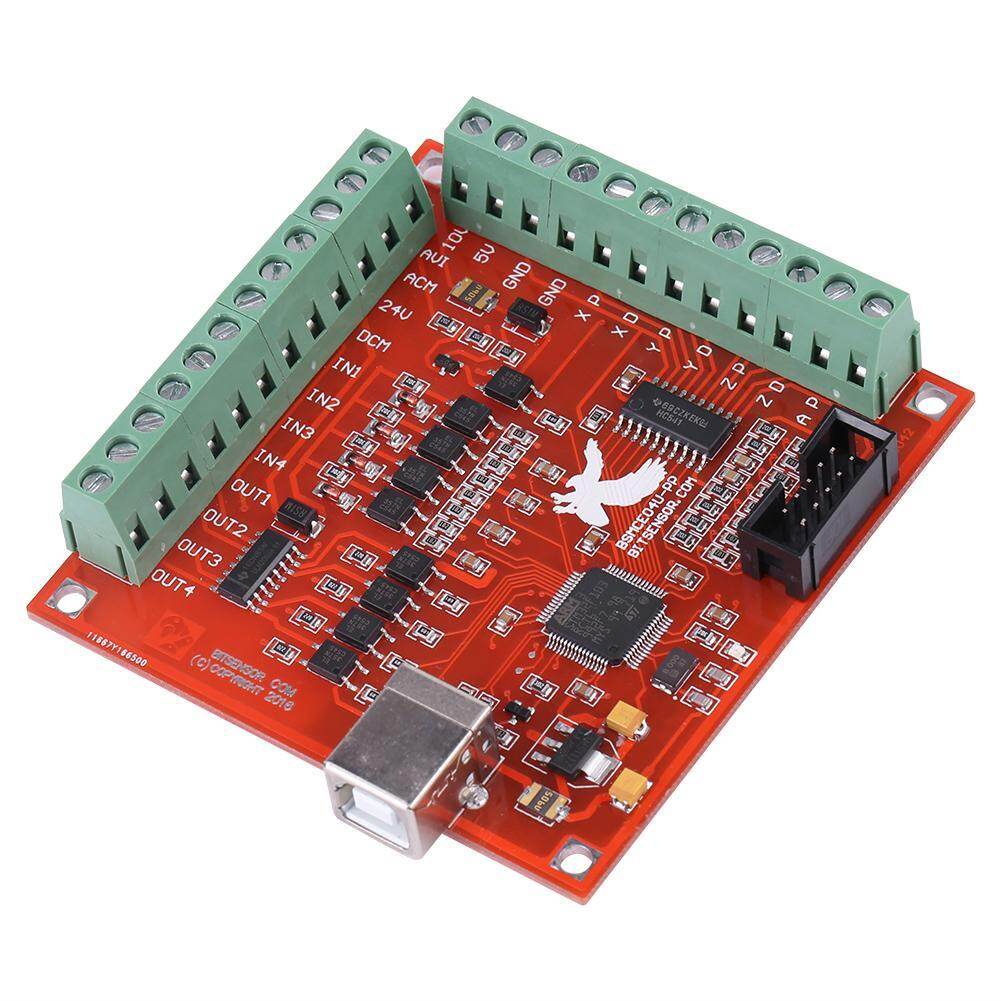

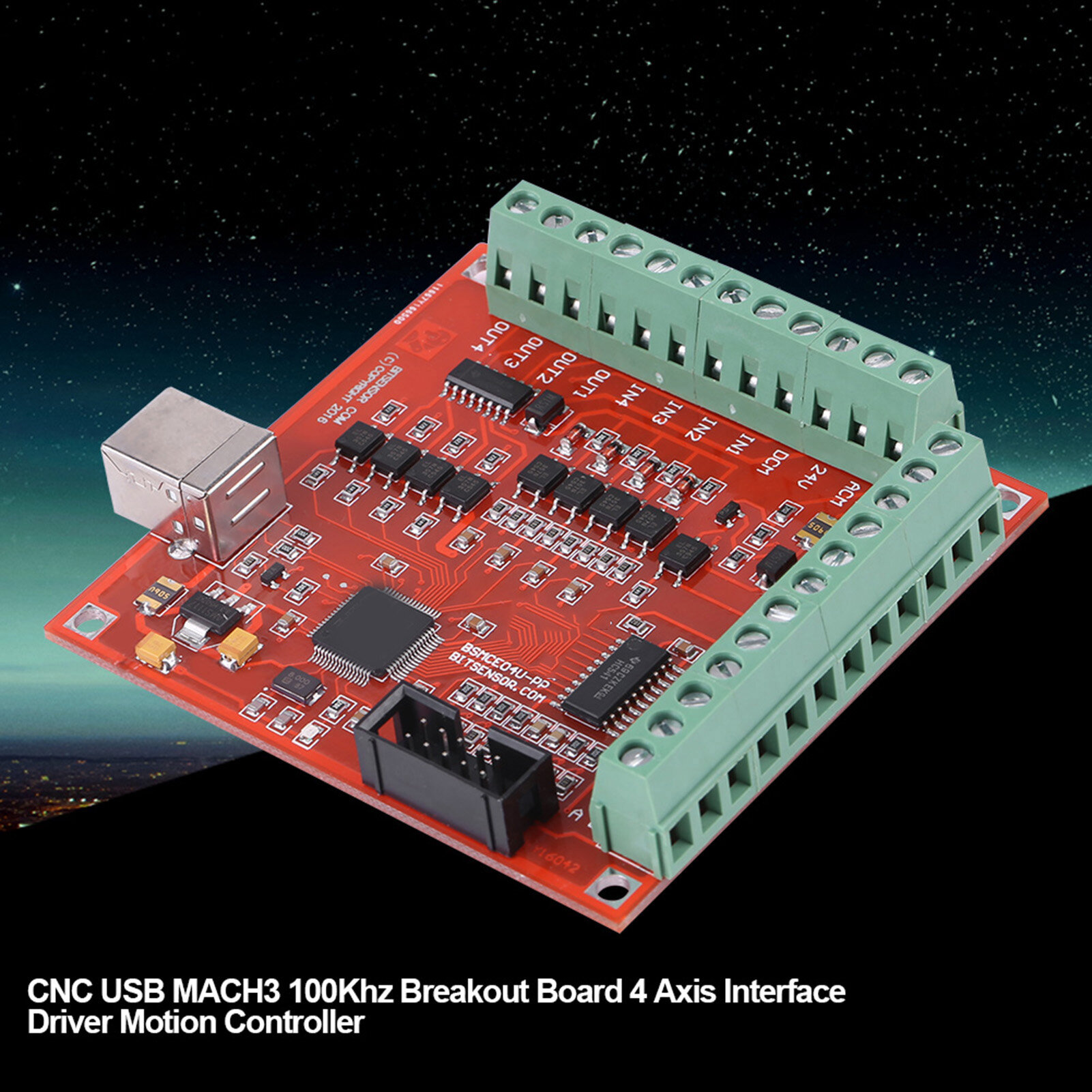

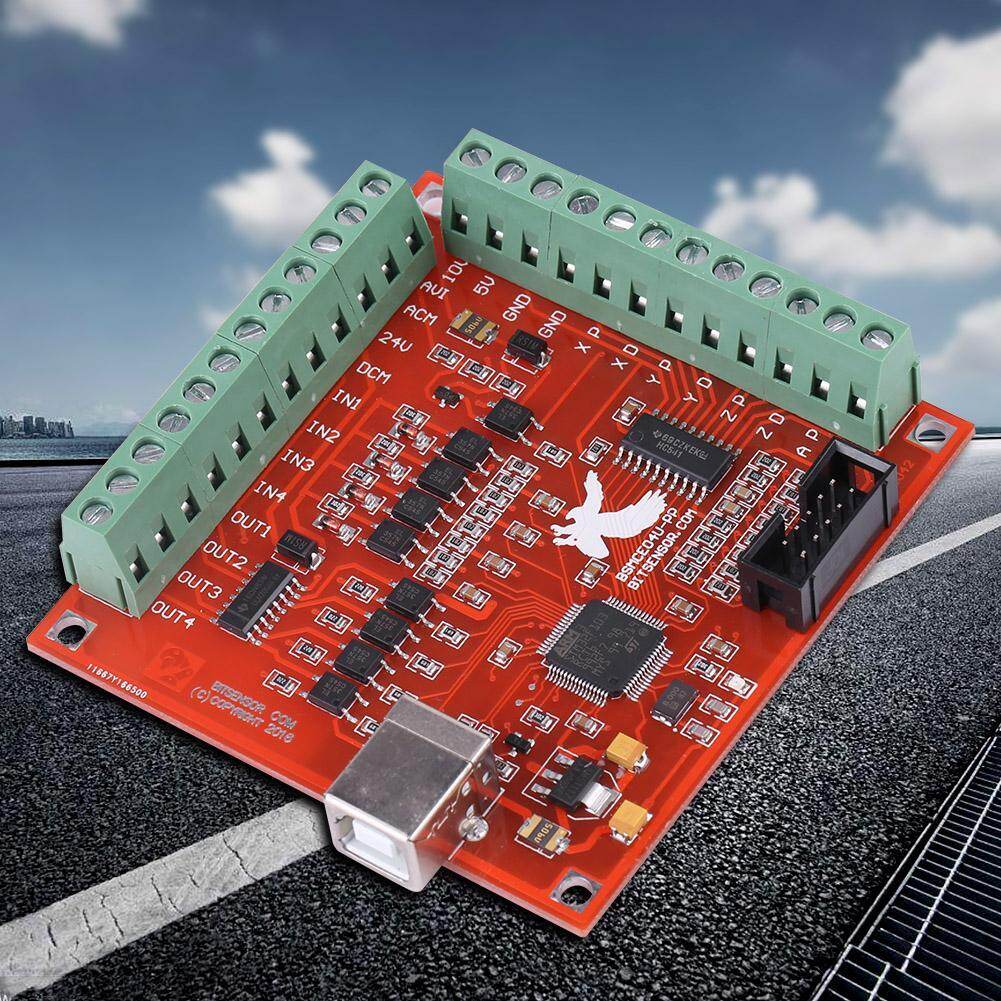

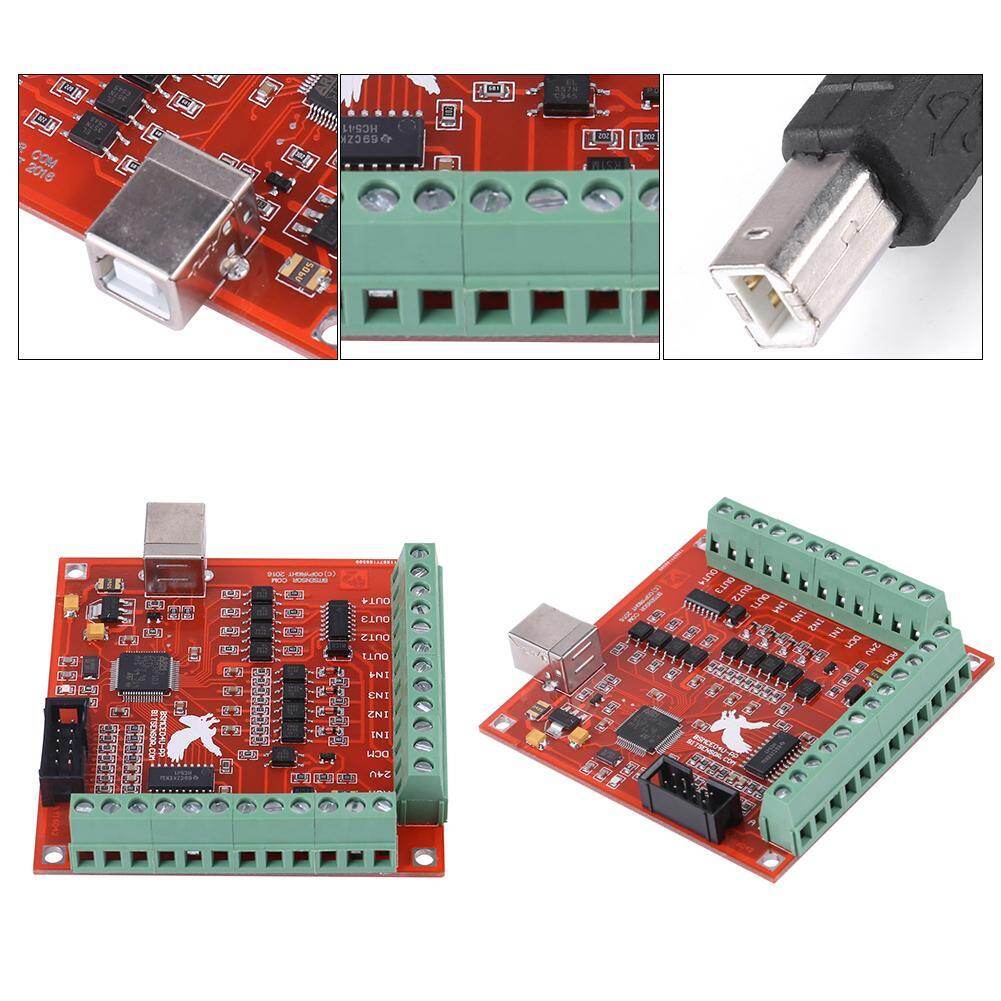

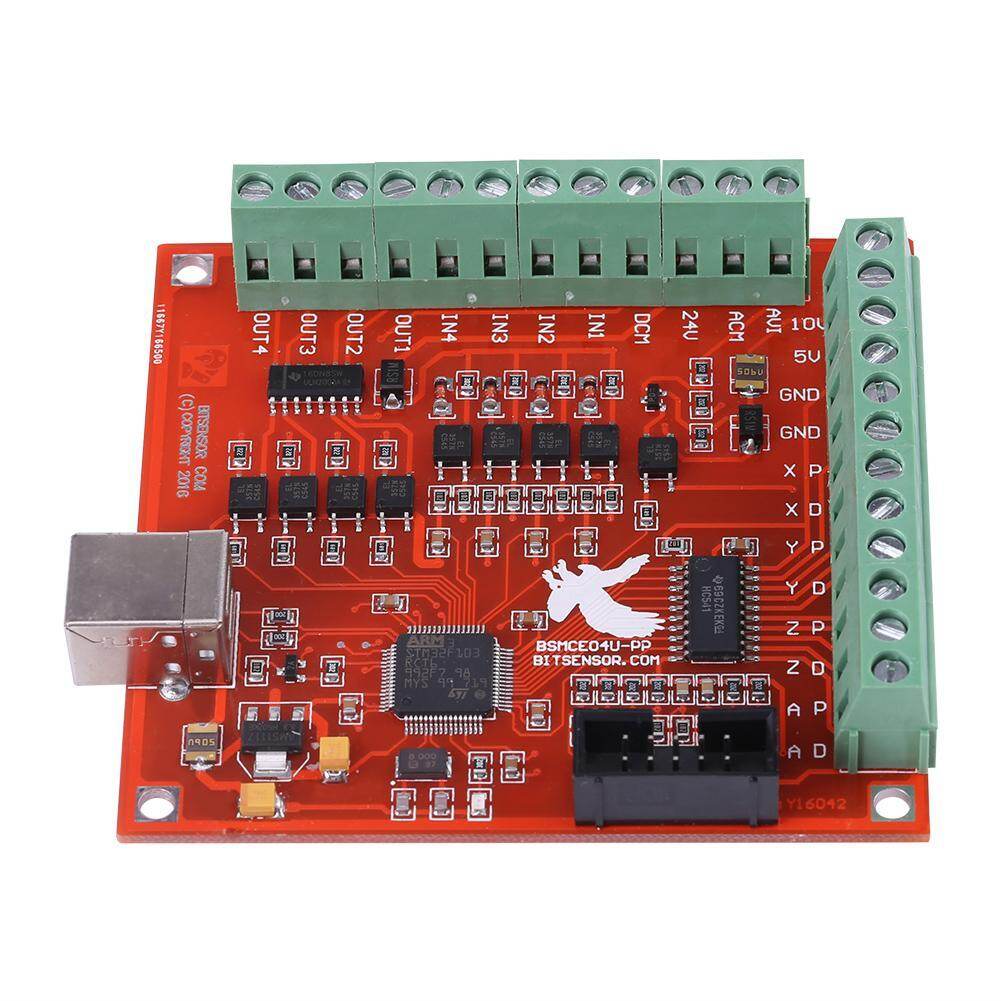

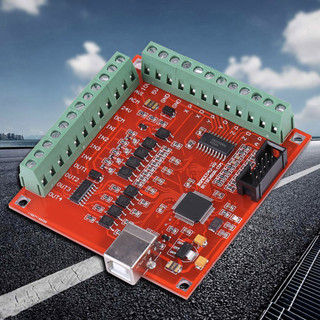

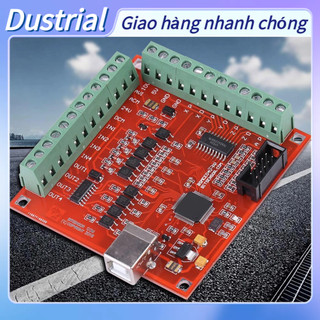

USB MACH3 100Khz Motion Controller Card Breakout Board for CNC Engraving

Features:

• Support for 4-axis linkage, you can connect four stepper motor drives or servo drives.
• Maximum step-pulse frequency is 100KHz, which is suitable for the servo or stepping motor.
• Support automatic probe tool.
• Support emergency input.
• Support for limit switch.
• Support for connecting electronic hand wheel.
• Need use external 24V DC power supply to isolate USB and external port, and to make the system more stable.
• Have 0-10V output port, you can use MACH3 software to control the spindle motor speed.
• 4 general-purpose inputs, you can connect the limit switch, estop switch, probe switch, back to zero and other device.
• 4 general-purpose isolated relay drive output interface, can drive four relays for controlling the spindle starts, forward rotating and reverse rotating, pumps and other device.
• Status LED, indicate connection status on the board.

Specifications:

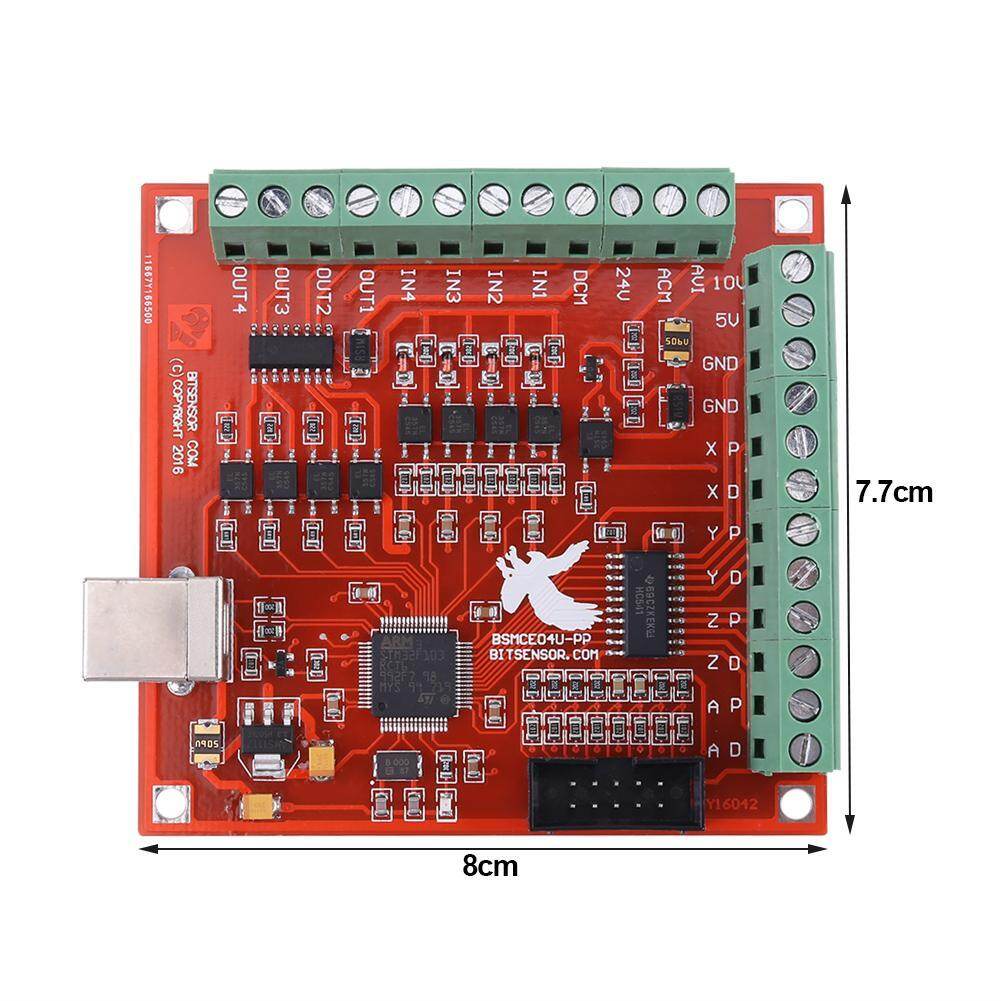

Size: 8 x 7.7cm/3.15 x 3.03inch

Weight: 160g

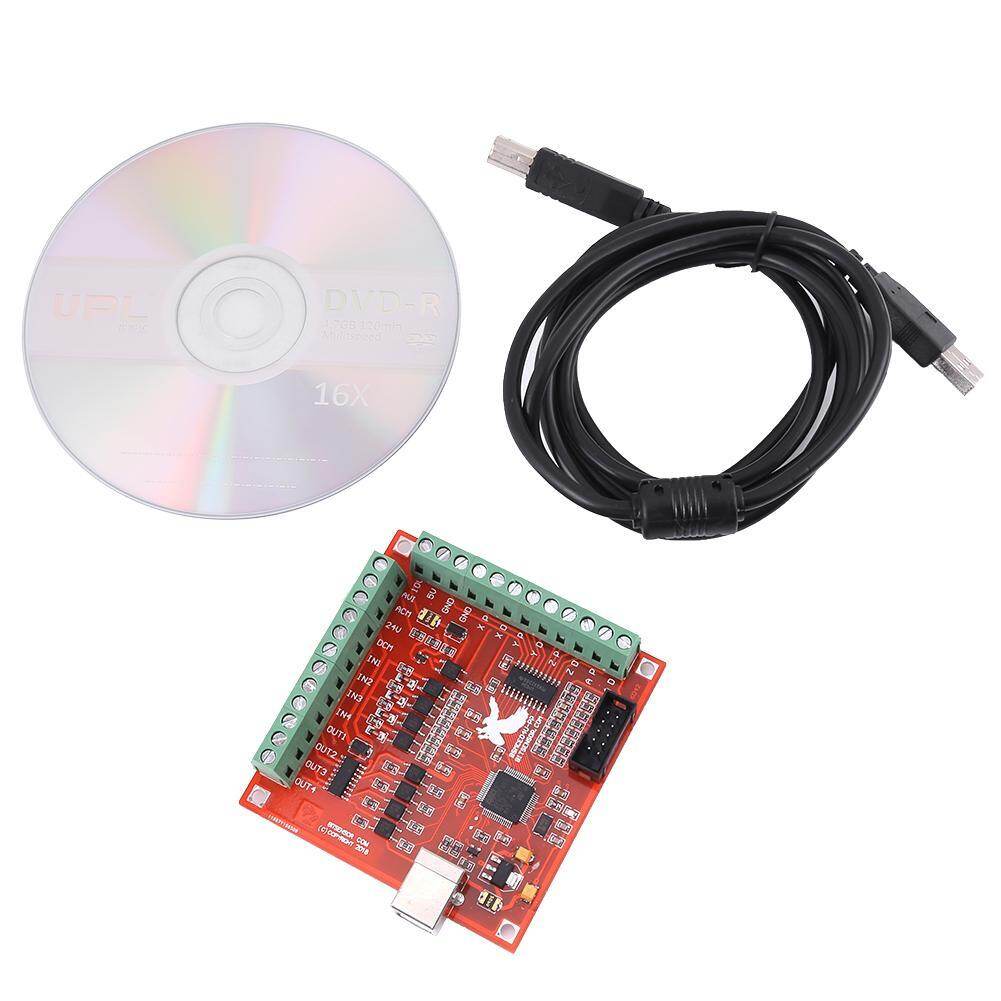

Package Included:

1 x USB CNC Controller Card
1 x USB cable
1 x CD
