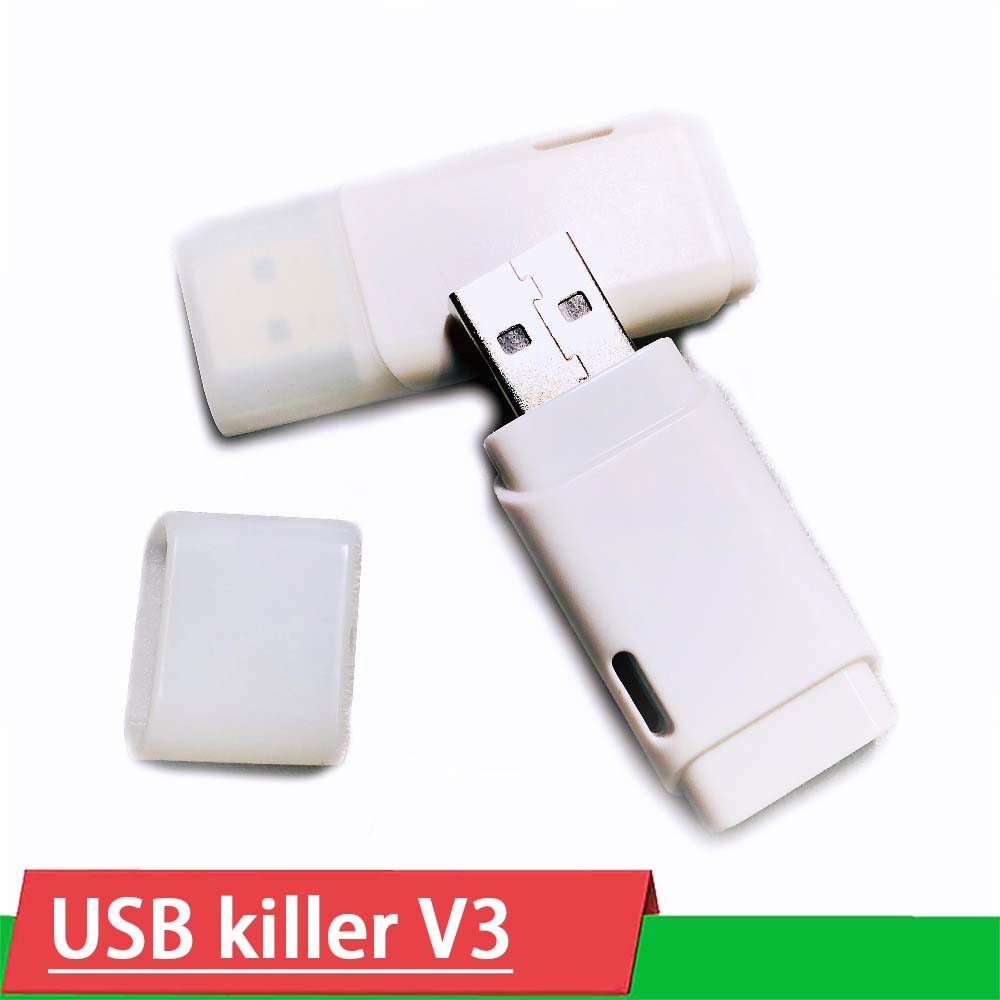

USB killer V3 U Disk power High Voltage Pulse Generator USBkiller FOR computer PC Destroy Motherboard killer

USBkiller V3 USB killer USB maintain world peace U Disk Miniatur power High Voltage Pulse Generator

This product is used for USB interface pressure test, can not be used against the law and ethical behavior! !

NOTE :Only for testing and research, any disputes and adverse consequences shop is not responsible for, please consider carefully before buying! ! !

This product is plugged into the required USB interface. It will automatically discharge. You only need to record the data you need to measure with other measuring instruments while it is discharging. However,it is recommended that the connection work time is less than 10 seconds.

In the limit case, it does not exceed 30 seconds. Because the product has many components placed on a very small area, the effect is obvious. Under the premise of not being able to wait for good heat dissipation (forced cooling), please do not exceed the above working time.

This product is only suitable for computer motherboards, industrial control equipment, medical equipment, testing of measuring instruments and other discrete power supply mainframes or their options.

Its interface is USB TYPE-A.

Not applicable: microusb .Usb typec. Lighting .A pin-intensive interface.

The pictures used in this manual may differ slightly from the actual product's appearance or measurement results, which may be caused by slight differences in the electrical characteristics of the components, the type and batch of components.

This product uses different components, product updates, and the contents of the instructions are subject to change without notice.

Safety Precautions

Keep products and packaging materials out of the reach of infants and young children.

This product does not contain a battery, but it generates high voltage during operation (the booster circuit output is fixed at 300V, when the output is connected to the load, the voltage is pulled down to the discharge threshold voltage, the center value is 230V, and the error is ±30%).

Therefore, do not remove or damage the heat-shrinkable tube skin attached to this product (the heat-shrinkable tube has a withstand voltage of 600V). If the heat-shrinkable tube skin is damaged, stop using it.

If any abnormal conditions such as abnormal output voltage (too high or too low), abnormal sound, excessive heat or even fire occur during operation, immediately turn off the power.

Please put this product in a place that is not accessible to infants and young children. If the baby is accidentally ingested, please seek medical advice immediately.

Do not heat or throw the unit into a fire, as this may result in fire or accidental injury.

Operational precautions

Avoid using and storing this product in areas that are above the temperature limit, excessive humidity and excessive dust.

Do not excessively impact, crush or bend the product.

Do not attempt to disassemble this product.

To clean the outside of the product, use an antistatic brush.

Whenever you discard this product, be sure to follow the laws and regulations in your area.

getting Started

1 Brief

This product is a test instrument for sustainable output pulse voltage based on the Boost boost structure. The input energy is taken from the output of the USB interface itself (5V 1A or higher), so there is no need to charge it

Electricity, but it requires the output capability of the USB interface: the output voltage is 5V, the error is no more than ±20%, and the current output is not less than 1A. Doing so may cause the product to malfunction.

This product may emit a slight sound during operation, sound or sound from the inductance of the DCM (intermittent mode) and the slight discharge sound of the gas discharge tube (with the blue-violet generated by the arc)

Light. )
