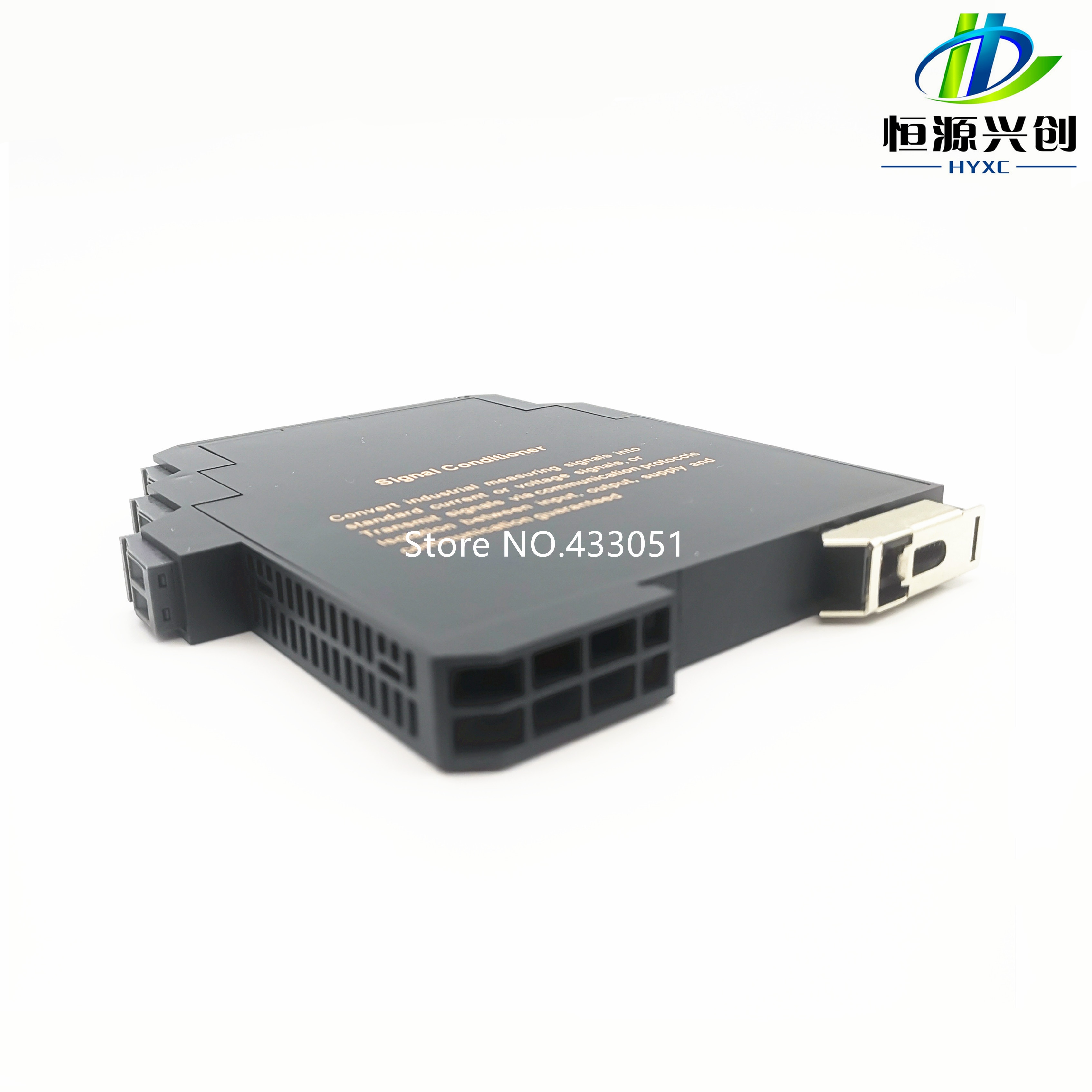

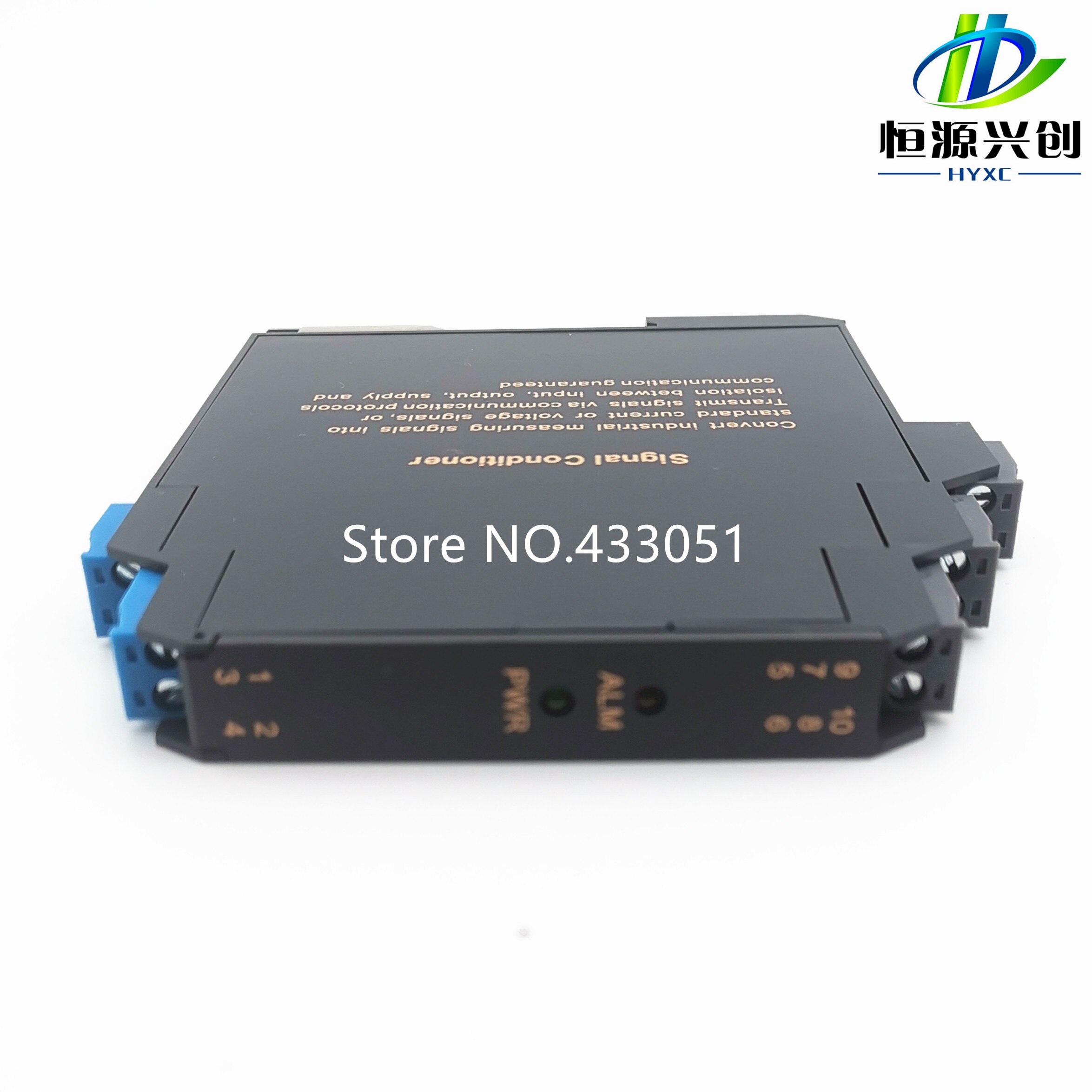

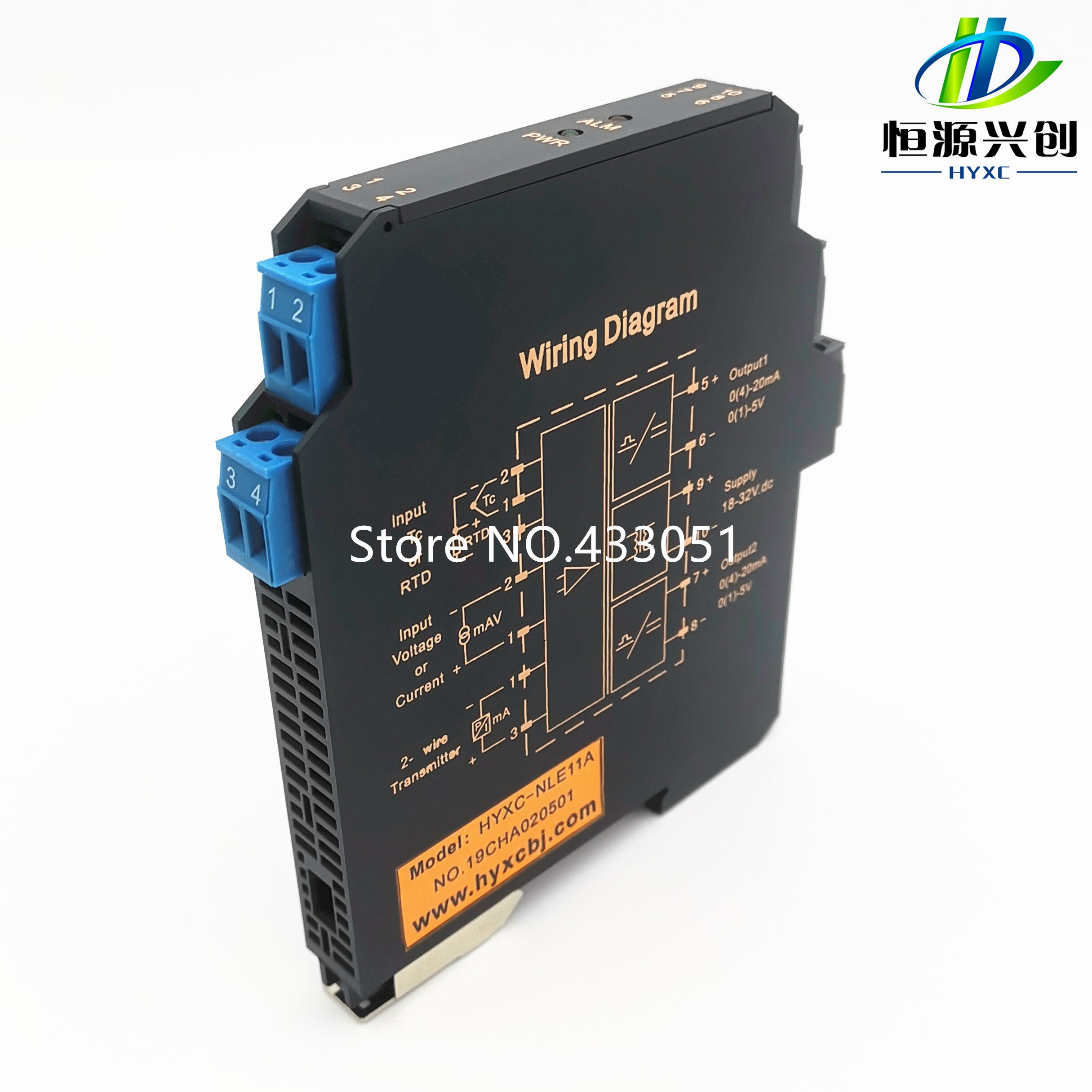

Ultra-Thin Signal Isolation Transmitter Current, Transmitter Multi-Input, Multi-Output 4-20MA, 0-5V, 0-10V, Power Supply

• Operating Temperature:-20~+55 degrees Celsius
• Supply :18~32VDC
• Accuracy Class:0.1%F.S
• Model Number:HYXC_NLXXX
• Display Type:Analog Only
• DIY Supplies:ELECTRICAL
• Origin:Mainland China

Welcome to Global electronics wholesale

                          We provide low price & high quality and best service.

                         100% Customer satisfaction is our goal

                        Please note that we are Wholesale products.

                        If you need products in large quantities,

                          Please contact us, to negotiate! Cooperation Happy!!

Product features

●DC18~24V power supply provides isolated power distribution for the site's transmitter, and the current signal generated by the transmitter is transmitted from the field to the control room, PLC, DCS, etc.

●Input inter current source, two-wire, three-wire transmitter universal; internal use of efficient magnetic isolation technology, input, output, power supply isolation between each other, with high precision, high linearity, low temperature drift and so on.

Technical parameters

Input signal	4~20mA, 0~20mA, 0~10mA,0~5V, 0~10V, 1~5V (Other signals need to be customized)
Distribution	24VDC
Input impedance	Current type ≤100Ω type≥300KΩ
Output signal	4~20mA, 0~20mA, 0~10mA,0~5V, 0~10V, 1~5V (Other signals need to be customized)
Output load resistance	Current type: 4~20mADC, 0~20mADC (Load resistance = 10VDC / output current )≤ 500Ω; type: 0~5VDC, 0~10VDC (Load resistance = Input / 10mADC )≥10KΩ
Power supply	DC 18V~DC32V
Accuracy	0.1%F.S
Output ripple	≤0.5% RO
Current consumption	Input 1--- Output 1 Input 1--- Output 2
Response time	≤10mS (0-90%)(TYP)
Compressive strength	AC2KVrms/1min
Insulation resistance	≥100MΩ(DC500V)
Working temperature	-20~+55℃
Electromagnetic Compatibility	GB/T18268 (IEC61326-1)
Field equipment	Two-wire/Three-wire transmitter; current source

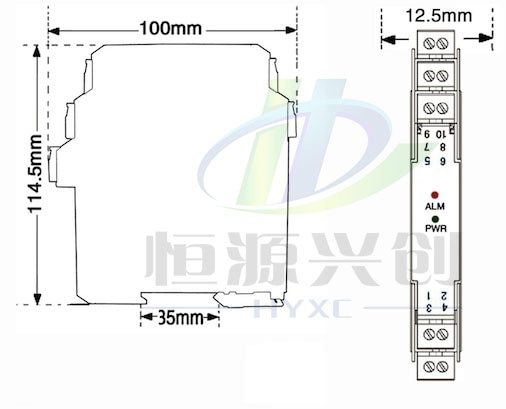

Overall dimensions:(mm)

Selection table

HYXC-NL	X	X	X
Specifications	A				One input- One output
	B				One input- Two outputs
Input signal		1			4~20mA
		2			0~20mA
		3			0~10mA
		4			0~5V
		5			1~5V
		6			0~10V
		7			Customize other parameters
Output signal			1		4~20mA
			2		0~20mA
			3		0~10mA
			4		0~5V
			5		1~5V
			6		0~10V
			7		Customize other parameters
Power supply				A	DC 18~ 32V

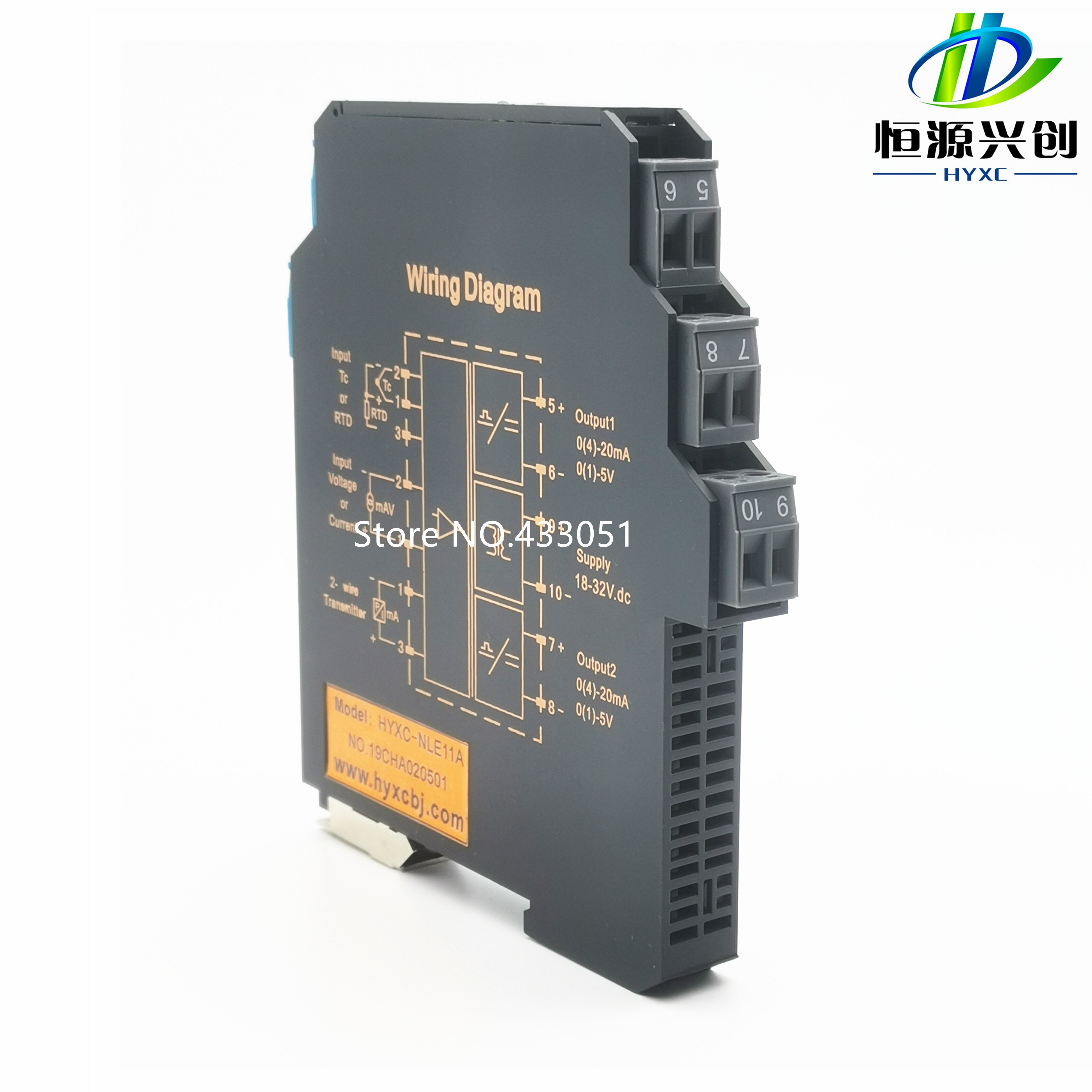

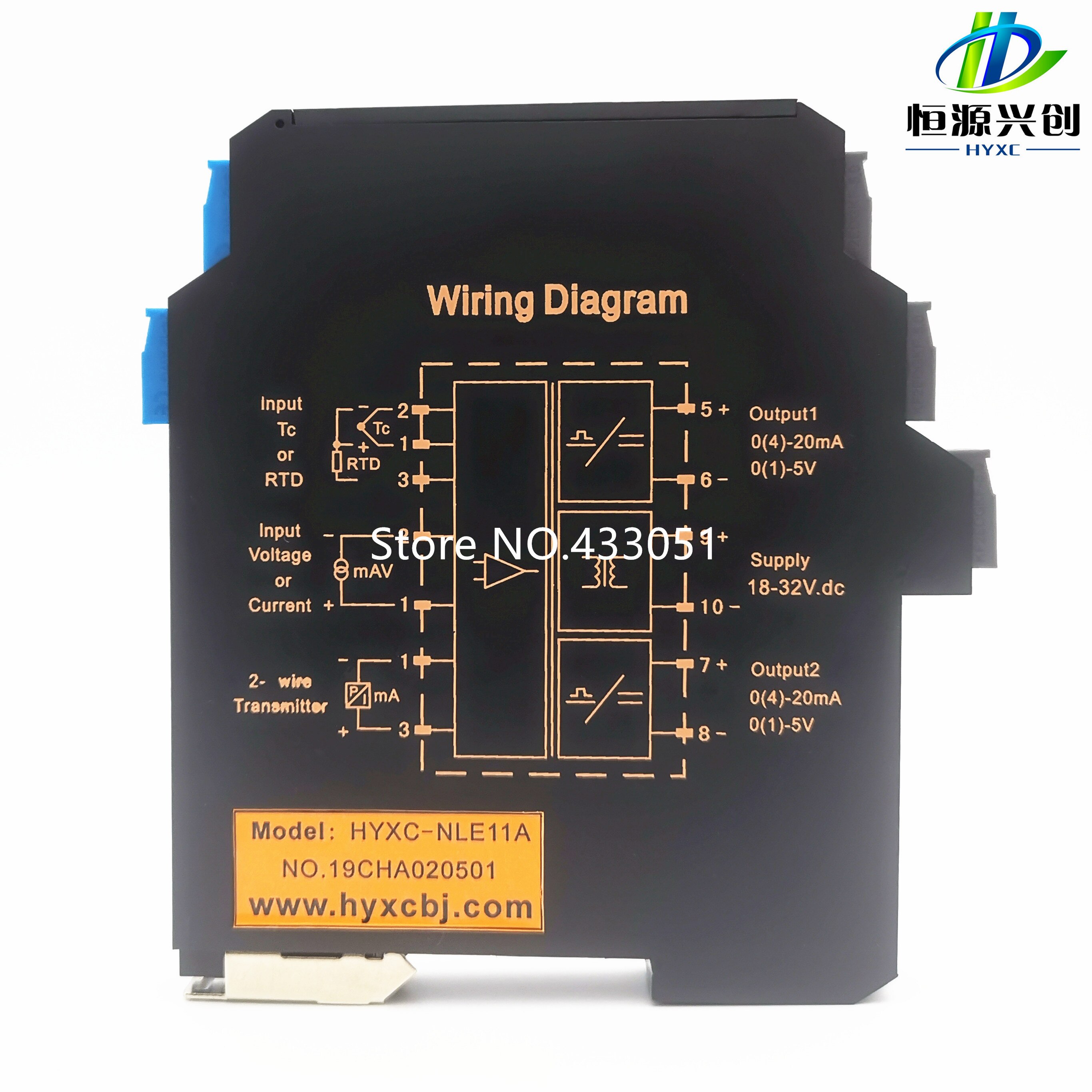

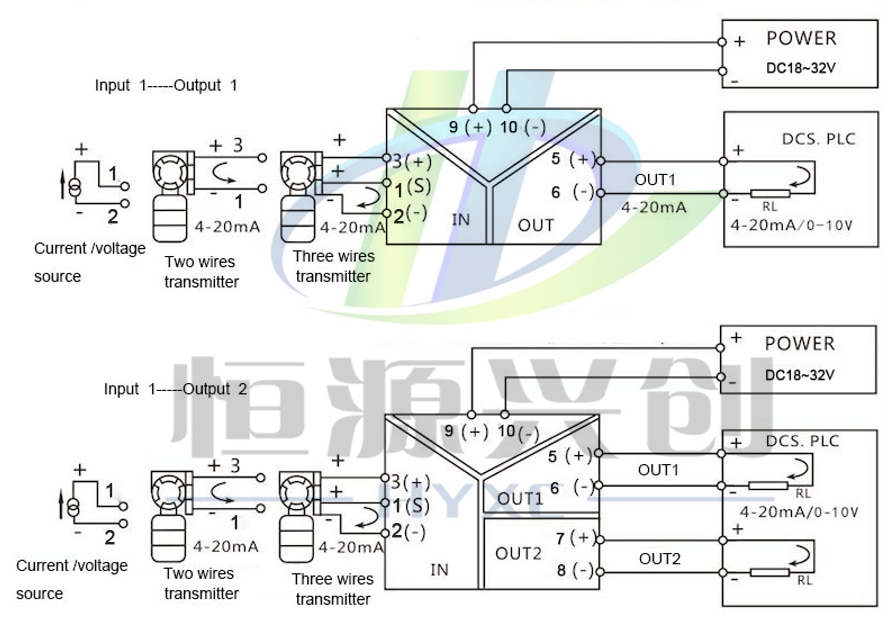

Wiring diagram

Note: Please refer to the label for the specific wiring diagram.
