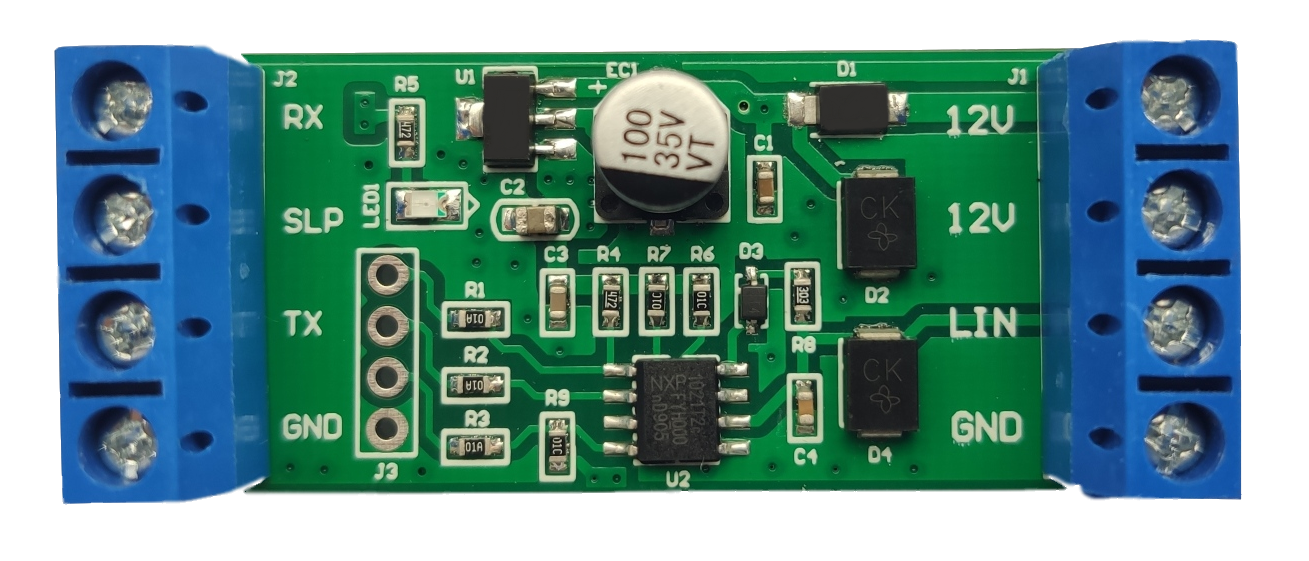

：》“{： UART To LIN Bus Module 5V 3.3V

• DIY Supplies:ELECTRICAL
• Origin:Mainland China

modname=ckeditor

Product Description:

1, the module USES TJA1021 scheme design, the main use of LIN bus slave machine equipment learning and development, LIN bus equipment communication monitoring and maintenance.

2. The module has a red power indicator light, which will be on after power supply.

3. The measured baud rate of the module can reach 57600bps.

4. The maximum baud rate of the recommended module is less than 20Kbps.

Note:

1. This module is only a level conversion module and does not participate in conversion analysis such as software protocol. When the module is connected to the computer COM port, the computer can receive data, but if you want to be the host and from the device communication is not achieved, the computer COM port can not produce LIN protocol in the 13BIT starting bit, but can be connected to the development board such as MCU.

2. The product does not provide software or technical support in terms of the agreement, so novice users are advised to BUY carefully

Shipping list:

1. Transfer UART to LIN bus module

2. Free --LIN communication tutorial PPT, LIN2.2 Standard protocol, TJA1021 chip information (you can only ask customer service or technical support after taking the payment)

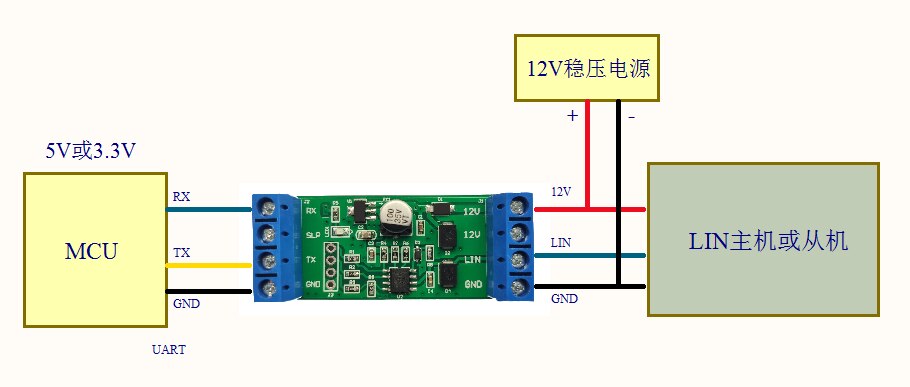

schematic diagram

Presentation of complimentary materials:
