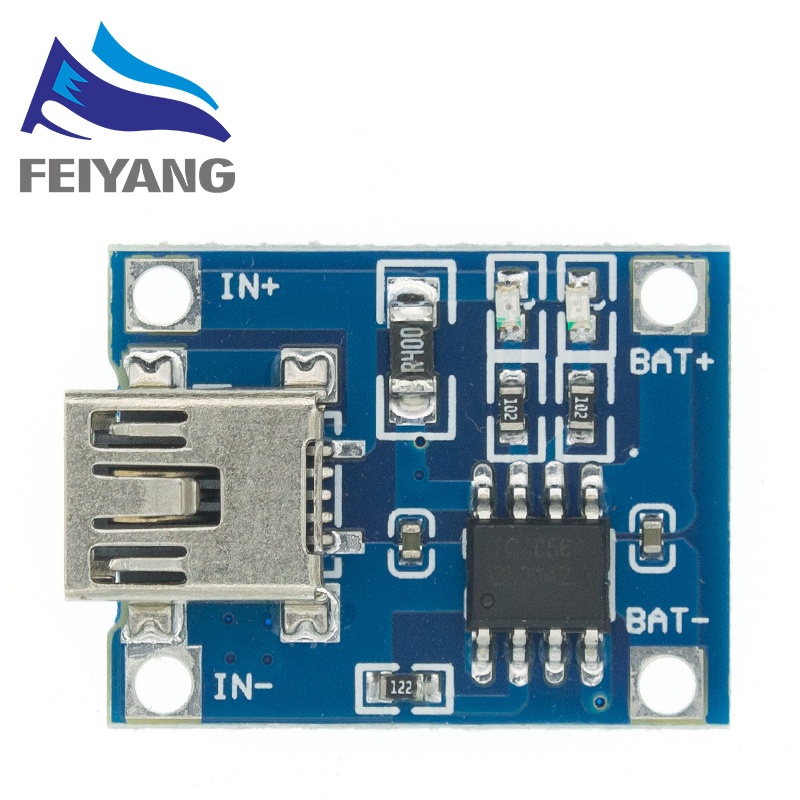

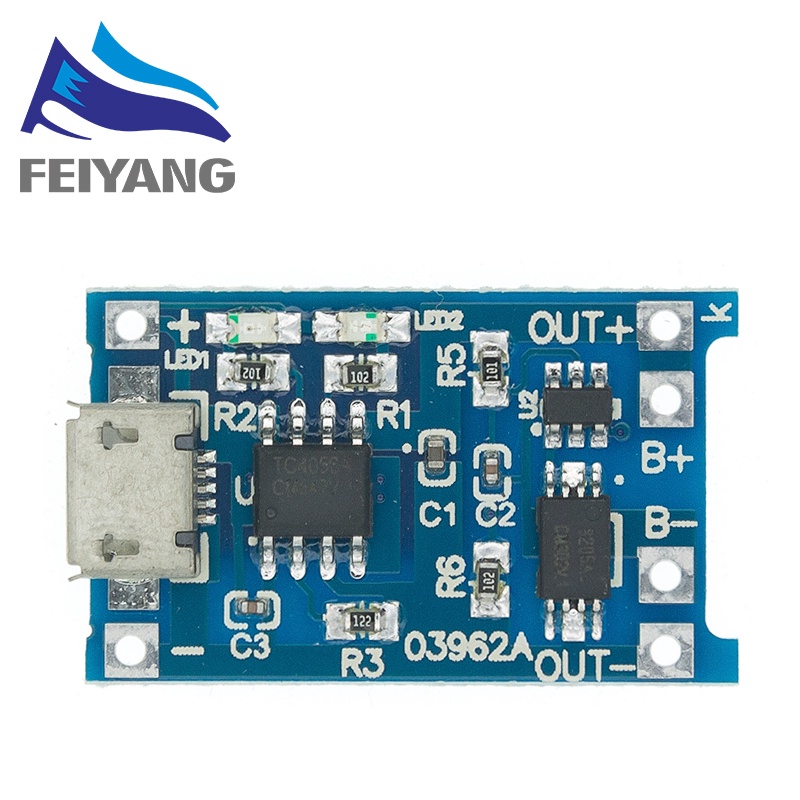

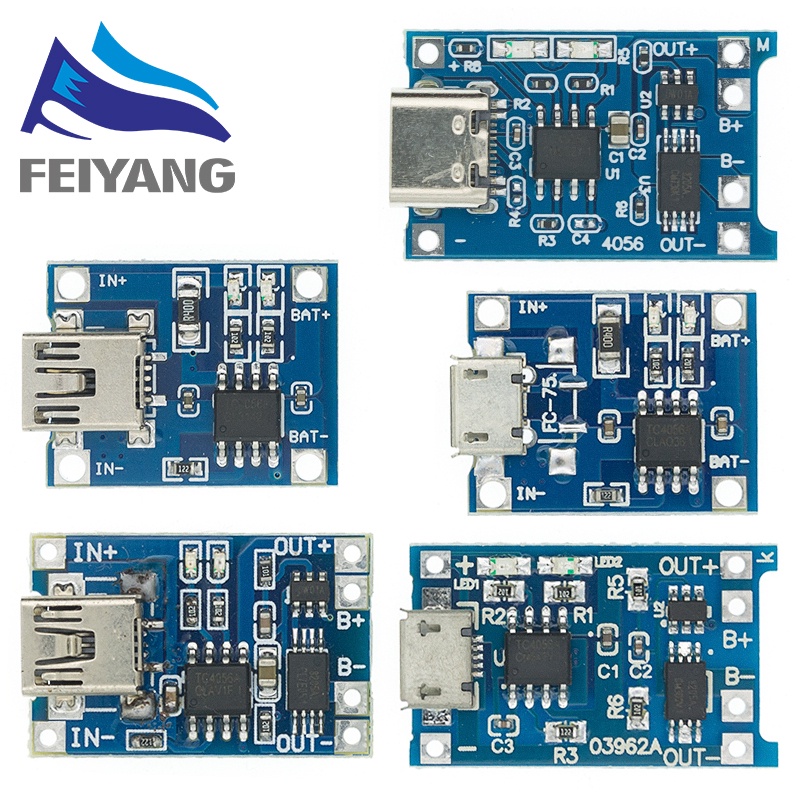

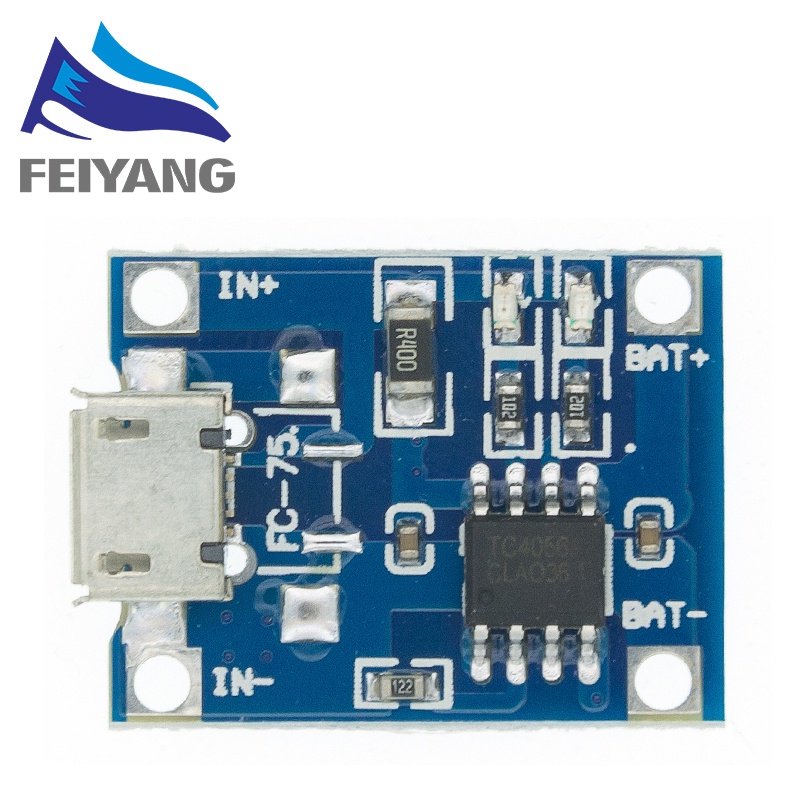

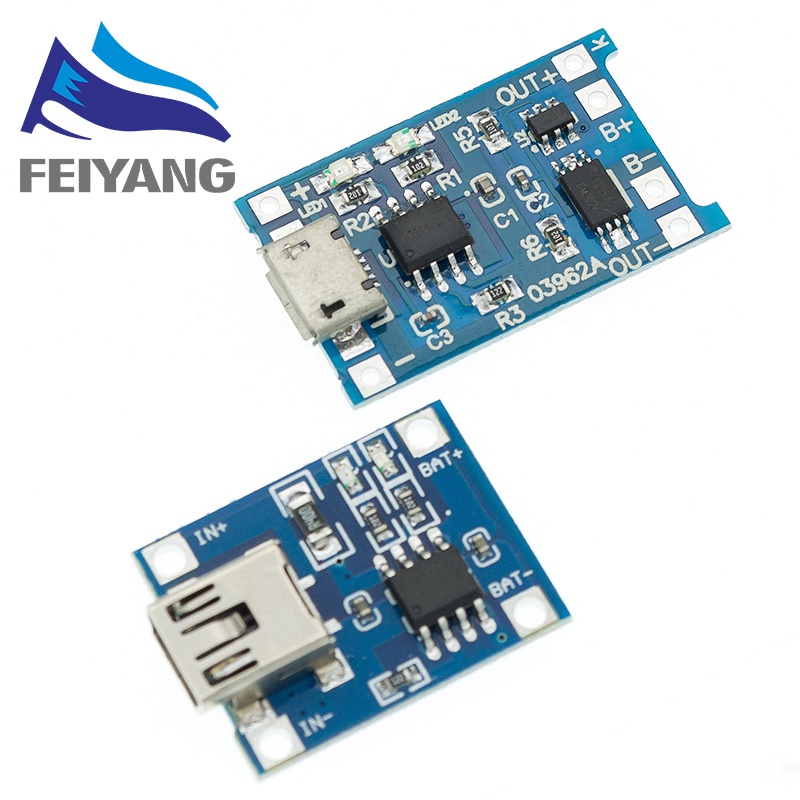

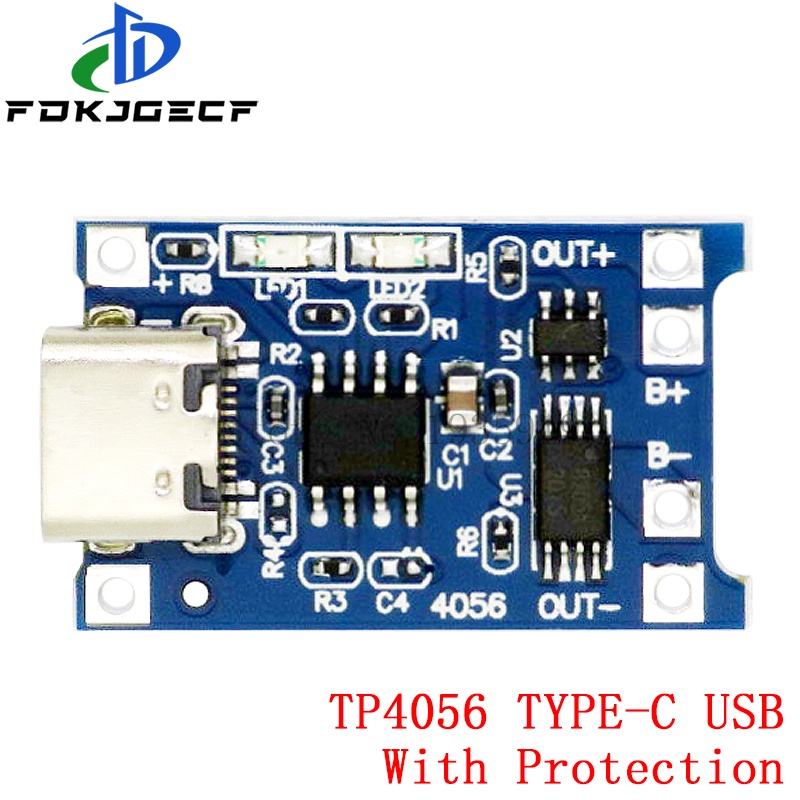

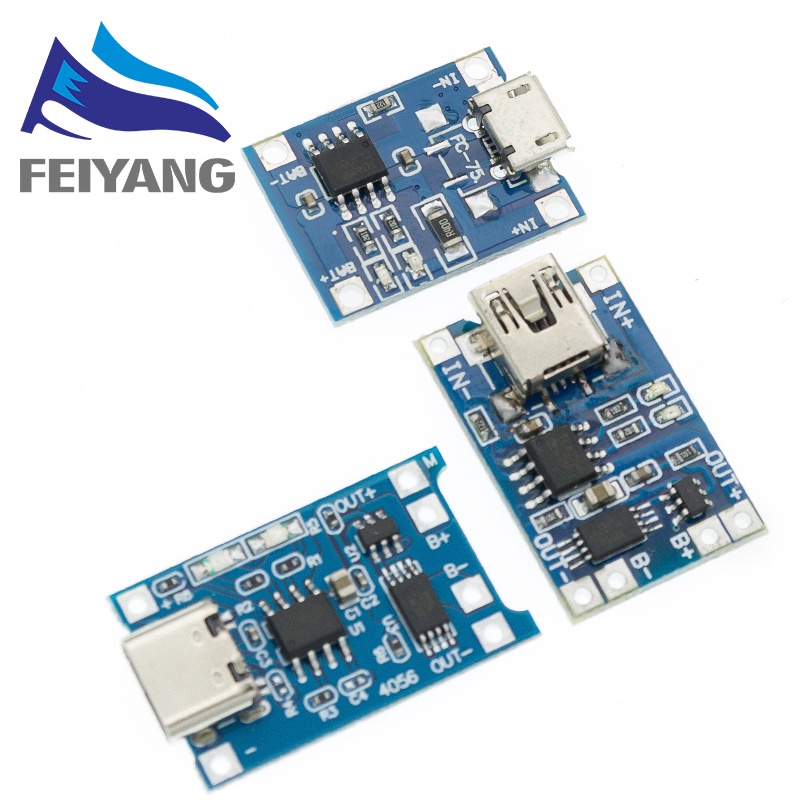

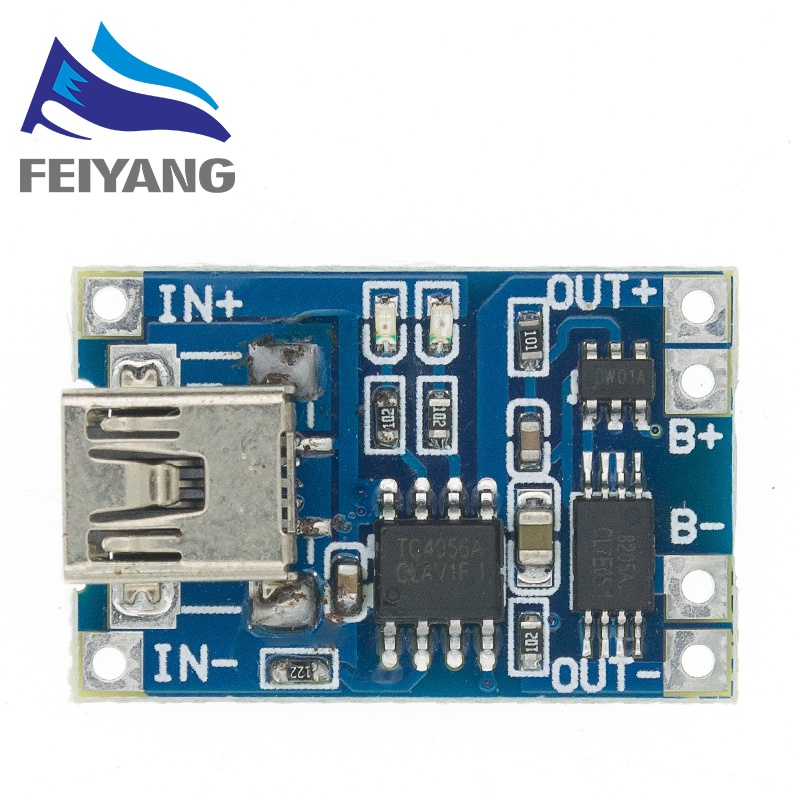

Type-c/Micro/Mini USB 5V 1A 18650 TP4056 Lithium Battery Charger Module Charging Board With Protection Dual Functions 1A Li-ion

Type-c/Micro/Mini USB 5V 1A 18650 TP4056 Lithium Battery Charger Module Charging Board With Protection Dual Functions 1A Li-ionThe TP4056 is a complete single-cell Li-Ion battery with a constant current/constant voltage linear charger. The SOP40 package with heatsink on the bottom of the TP4056 and fewer external components make the TP4056 ideal for portable applications. The TP4056 is suitable for USB power and adapter power supplies.Due to the internal PMOSFET architecture and anti-reverse charging path, no external isolation diodes are required.Thermal feedback automatically adjusts the charge current to limit chip temperature during high power operation or high ambient temperature conditions. The charging voltage is fixed at 4.2V, and the charging current can be externally set by a resistor. When the charging current drops to the set value of 1/10 after reaching the final float voltage, the TP4056 will automatically terminate the charging cycle. When the input voltage (AC adapter or USB power) is removed, the TP4056 automatically enters a low current state, reducing the battery leakage current to less than 2uA. The TP4056 can also be placed in shutdown mode when there is a power supply, reducing the supply current to 55uA.Other features of the TP4056 include battery temperature sensing, undervoltage lockout, automatic recharge, LED status pins for charging and termination.100% brand new and high quality Charge module:Linear charging. Current:1A adjustable. Charge precision:1.5%. Input voltage:4.5V-5.5V. Full charge voltage:4.2V ± 1%Led indicator:red is charging Green is full charged. Input interface:micro USB/mini usb/type-c usbWork temperature:-10° to +85°. Inversed polarity:NO. Protection About Type-c usb module and micro usb Protection module :The battery overcharge protection voltage: 4.28 VBattery overcharge lifting voltage: 4.00 VThe battery discharge protection voltage: 3.0 VBattery discharge termination voltage: 3.2 VBattery: over-current protection current 3 aNOTE:1. Ampere meter can only be connected to 5v input end of the module.2. It is better that the charging current is 37% of the battery capacity. If you charge to the battery of 1000mAH, current of 400 is enough.3. The connection wire should not be too thick.4. Make sure the connect point is good.5. If the input voltage is too high, like 5.2v, the current will be less than 1000mA, it is normal. It is protection function, auto-substract the charging current to avoid burn damage to chip.6. NO Reveral polarity.Before purchase:1. All the goods are in stock and we will dispatch immediately if we receive the order.Shipment：1.1-2 days to ship(except for the pro-order item) After purchase:1.If you are satisfied，please give us 5 stars praise. #Type-c #Micro #Mini #USB #5V #1A #18650 #TP4056 #Lithium #Battery #Charger #Module #Charging #Board #With #Protection #Dual #Functions #1A #Li-ion
