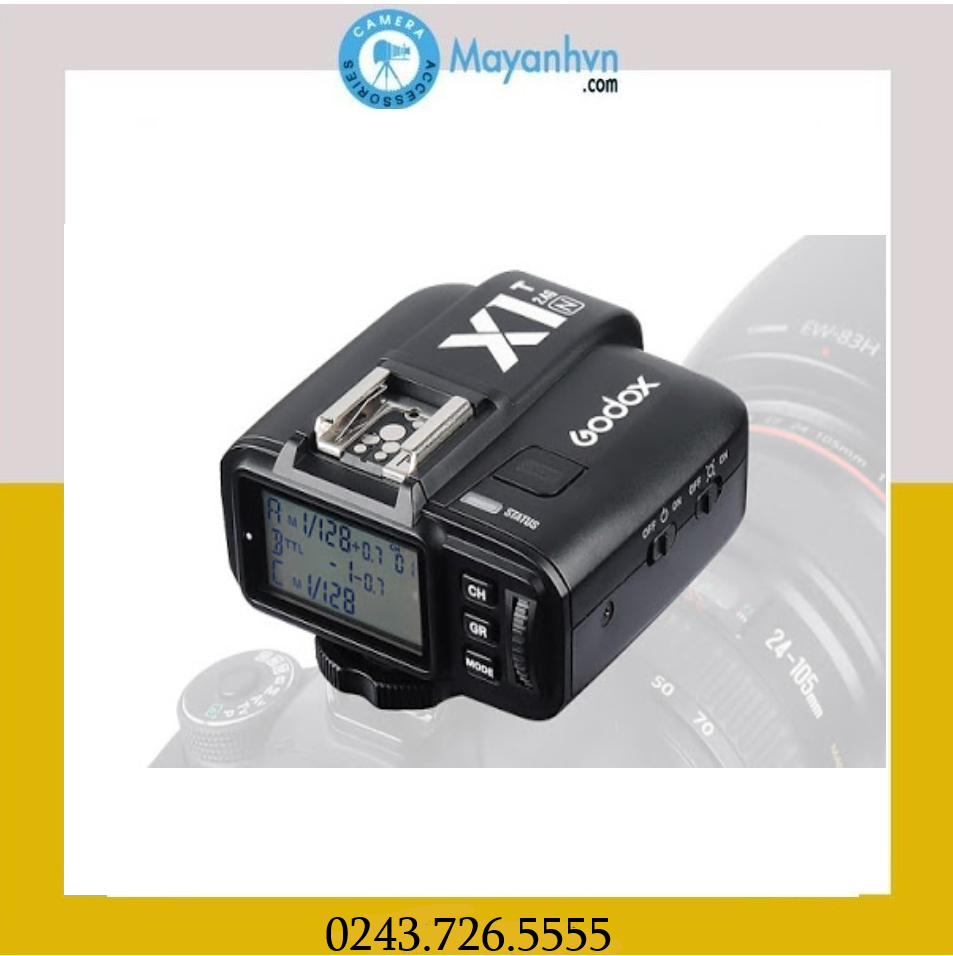

Trigger Godox TTL Wireless Flash X1N-TX for Nikon

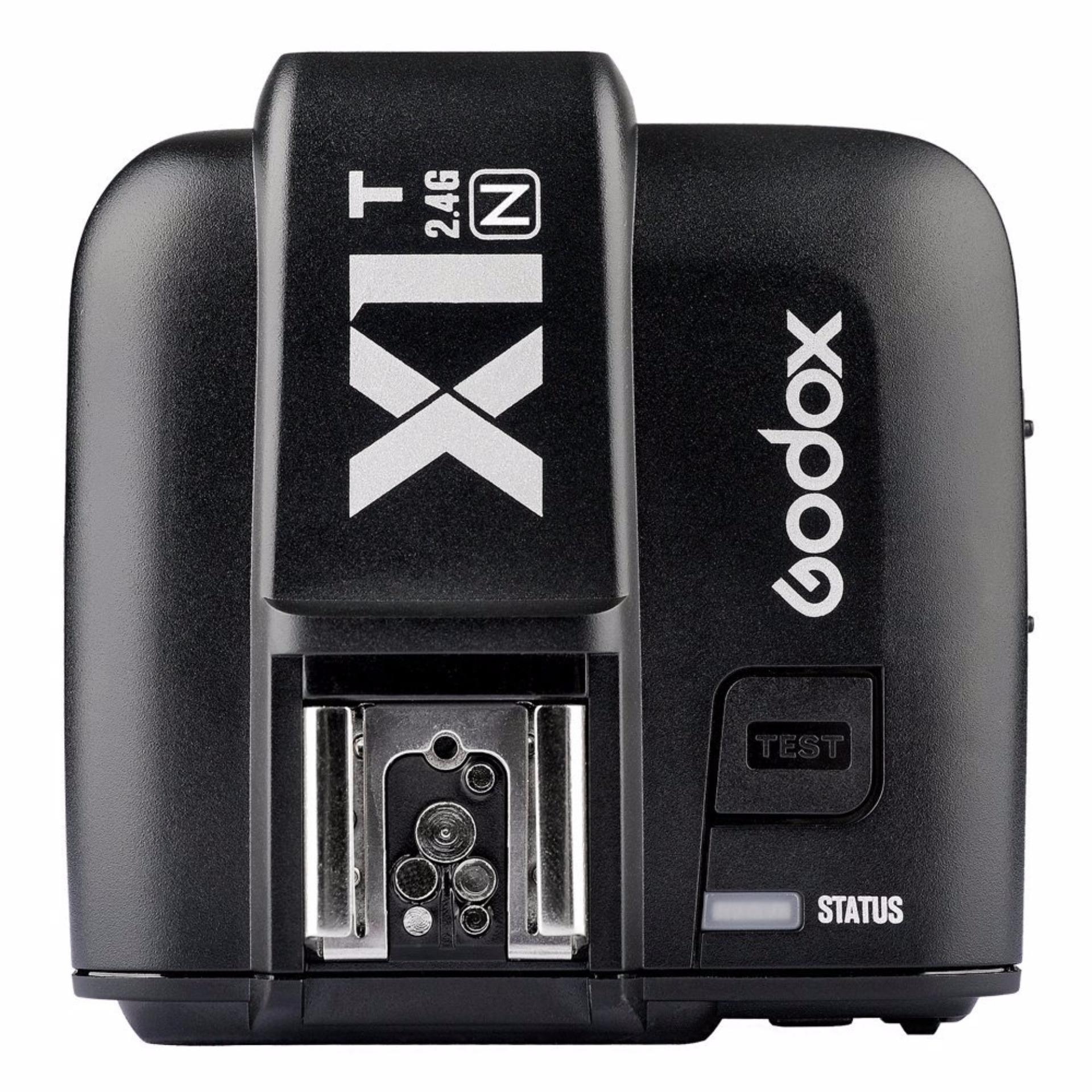

Godox have released the Nikon X1-N, TTL and HSS enabled 2.4GHz radio trigger system for Nikon DSLRs.

The X1-N are Godox’s first TTL enabled radio triggers available for Nikon, and they have been released alongside the new TT685N Speedlite, with compatible radio transceiver built inside.

The X1-N transmitter can also be used to trigger and control Godox’s new AD600 TTL strobes, as well as the AD360 II Bare bulb flashes.

Its even now possible to control legacy remote manual Godox strobes via the X1-N transmitter, when using new XTR-16 receivers.

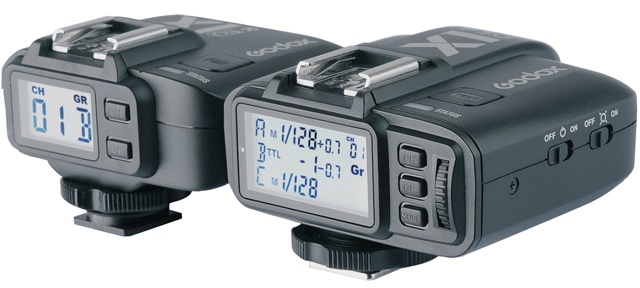

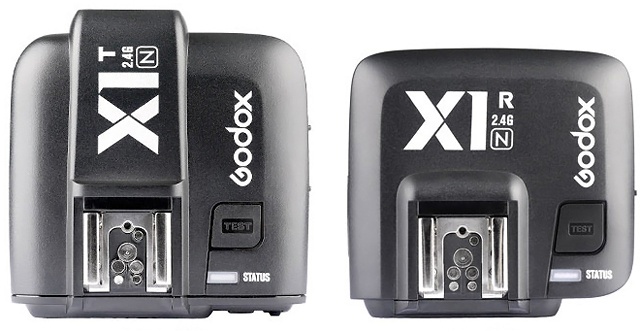

The X1-N triggers are comprised of separate transmitter and receiver units, with X1-N receivers being compatible with Nikon DSLR compatible speedlites like the Nikon SB-910, SB-900, SB700 etc.

As well as Nikon iTTL compatible flashes like Godox’s own V860N.

The X1-N provide a full group style interface allowing up to 5 groups to be individually set to either TTL, Manual, or Off.

And importantly TTL and Manual Groups can be conveniently mixed together as needed.

The X1-N provide TTL, HSS (High Speed Sync) and most of the features comparable popular TTL triggers provide, even a HSS Pre-sync Timing Adjustment.

Godox have even considered small (though important) details like PC Sync Input and Output, something most radio triggers constantly miss.

At the time of writing this the X1-N unfortunately do not provide Second Curtain Sync. Though that may change in time as the Canon version X1-C have now been updated through firmware to provide Second Curtain Sync.

GODOX X1-N FEATURES

• Godox 2.4GHz RF Radio System
• Range – 100m +

• Flash Modes – iTTL / M / OFF
• HSS to 1/8000th
• Second Curtain Sync
• FEC / FEB – 1/3rd Increments (±3 Stops)
• FEL (Flash Exposure Lock)
• Manual Flash – 1/128 – 1/1 Output (1/3rd Increments)
• Remote Flash Zoom (Auto / Manual) (Global for All Groups Only)

• Group Mode – 5 Groups A / B / C / D / E()
• 32 Channels

• Large LCD Display with Back Light

• HSS Delay Setting – 0~19.9ms, (100us Increments)
• Modeling flash
• Auto Memory Function
• AF Assist light (With an On/Off Switch)
• Wireless Shutter Release

• Micro USB Port for Firmware Upgrades
• Transmitter PC Sync Port – Input & Output
• Receiver 2.5mm Sync and Shutter Release Port – Output

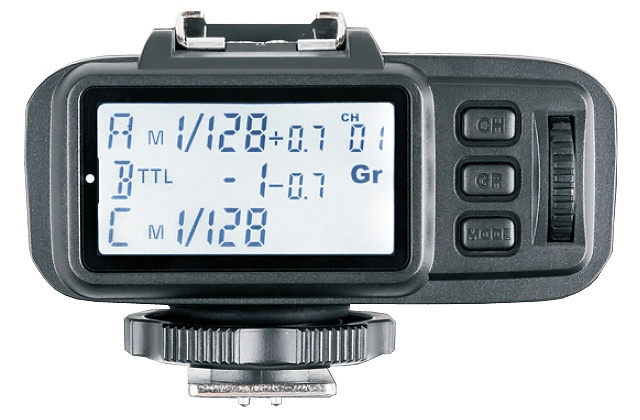

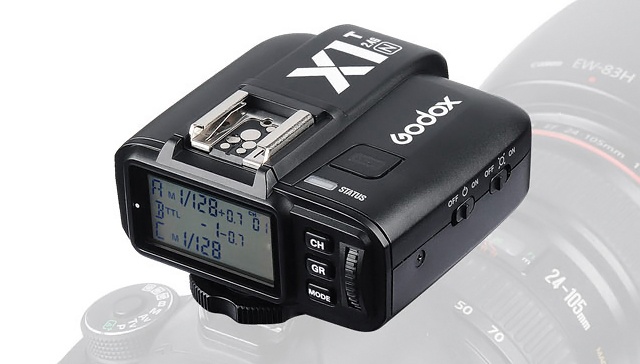

The X1-N transmitter features a large clear LCD panel interface, and fast adjustment control wheel.

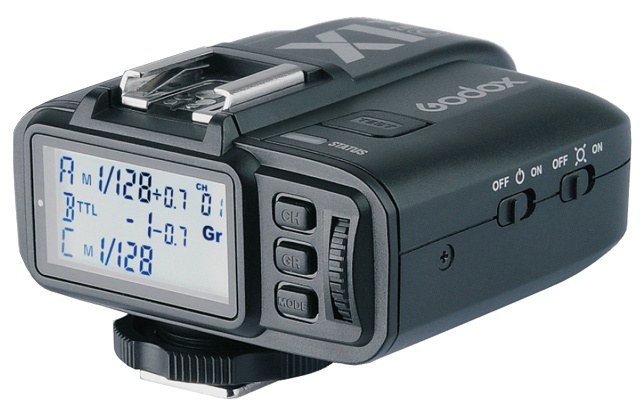

Godox have even provided a simple switch on the side of the transmitter allowing the Focus Assist Light to be switched on and off when needed.

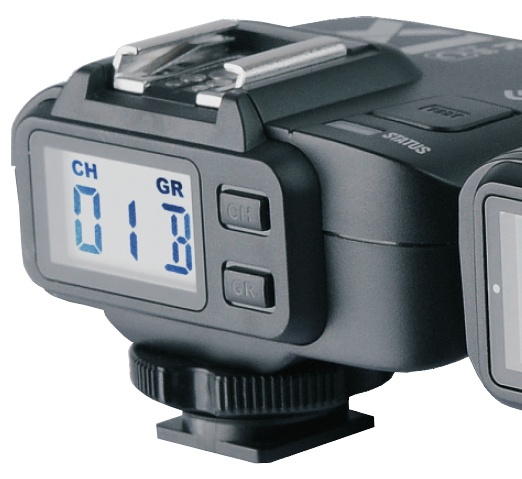

X1-N receivers provide a simple Channel and Group selection interface.

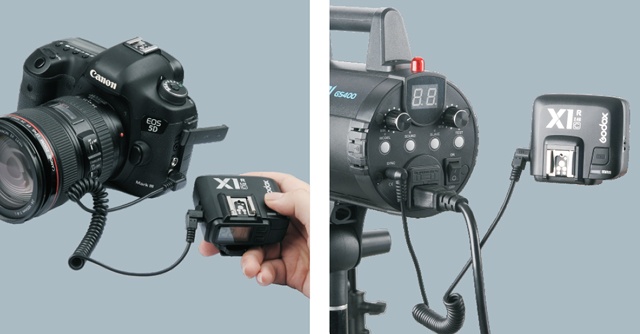

The X1-N receivers 2.5mm Sync Port output can be used for wired and wireless shutter release, as well as firing studio strobes.

(Canon version X1-C shown below).

GODOX X1-N SPECS

Model	X1N
Type	For Nikon
Compatible with	Nikon cameras (i-TTL autoflash)
	Support all cameras that have PC sync socket
Build-in Remote System	2.4 G wireless transmission
Modulation Method	MSK
Power Supply	2*AA batteries
	Exposure Control
Manual Flash	Support
TTL Auto Flash	i-TTL
	TTL Control
High Speed Sync (HSS)	Support
Flash Exposure Compensation (FEC)	Support, ±3 stops 1/3 stop increments
Flash Exposure Lock (FEL)	Support
Focus Assist	Manual open
Rear Curtain Sync	No
Modeling Flash	Support, fired with cameras depth of field preview button
	Wireless Flash
Wireless Function	in TTL mode, Ratio off
	in M mode, Flash Ratio(A B C)
	Support GR (grouping flash)
Controlled Slave Groups	in the GR grouping mode, 5 (A/B/C/D/E)
	in the Ratio grouping mode, 3(A/B/C)
Transmitter Distance	>100 meters
Channel	32 channels
	Others
Synchronization Delay Set	Support (0-10ms, set in unit of 100us )
Wireless Shutter Release	Receiver can control cameras shooting through 2.5mm shutter release interface
Zoom Setting	The focal length can be adjusted through the transmitter
Display Panel	Wide LCD panel, backlight on/off
Output Interface	Transmitter: use a PC port to input and output;
	Receiver: use a 2.5mm sync cable to output
Firmware Upgrade	Use the Micro USB port to upgrade
Memory Function	Settings will be stored 2 seconds after last operation and recover after a restart
	Transmitter Size/ Weight	72x75x52(mm)/100g
