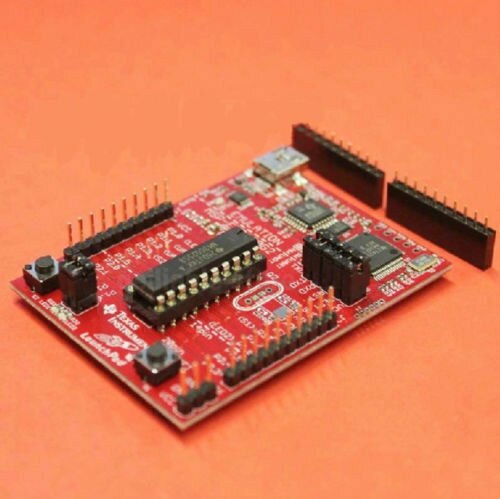

TI MSP430 LaunchPad Value Line Development Board Texas Instruments MSP-EXP430G2T

Features:

14-/20-pin DIP (N) socket
Built-in flash emulation for debugging and programming
2 programmable LEDs
1 power LED
1 programmable button
1 reset button

Supports MSP430G2xx2, MSP430G2xx3, and MSP430F20xx devices in PDIP14 or PDIP20 packages

The LaunchPad's integrated emulator interface connects flash-based MSP430 Value Line devices to a PC for real-time, in-system programming and debugging via USB.

Includes one mini USB cable to interface with a PC.

Included MSP430G2xx device features:

MSP430G2553IN20 – 16kB Flash, 512B RAM, interruptible GPIOs (capacitive sense-capable), 16-bit timers, 8ch 10-bit ADC, Comparator, Serial Communication (USCI – I2C, SPI & UART) & more

MSP430G2452IN20 – 8kB Flash, 256B RAM, interruptible GPIOs (capacitive sense-capable), 16-bit timers, 8ch 10-bit ADC, Comparator, Serial Communication (USI – I2C & SPI) & more

Included MSP430G2xx devices feature preloaded sample programs.



RoHS compliant

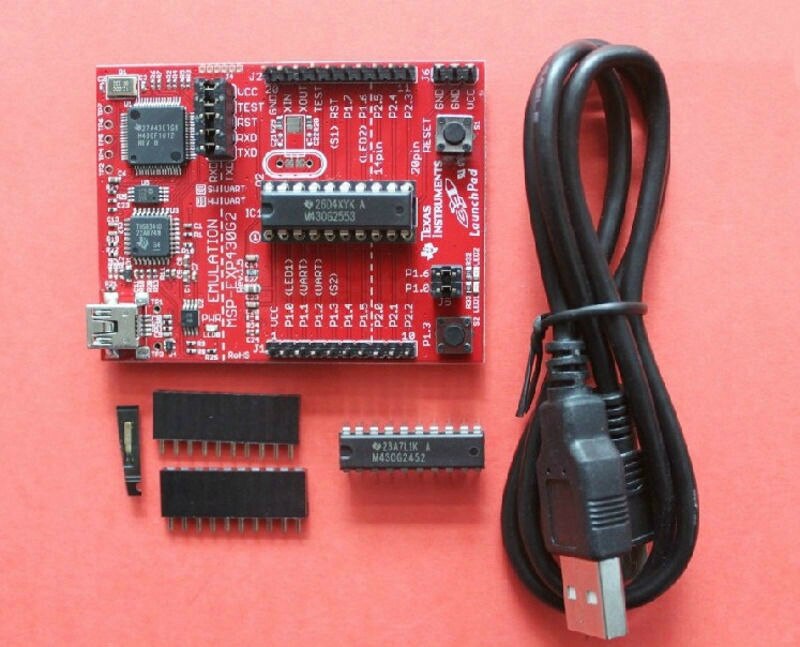

Package includes:

  MSP430G2553IN20 flash device (preloaded with sample program)
  MSP430G2452IN20 flash device (preloaded with sample program)
  10-pin PCB Connector (2 male/2 female)
  32kHz crystal

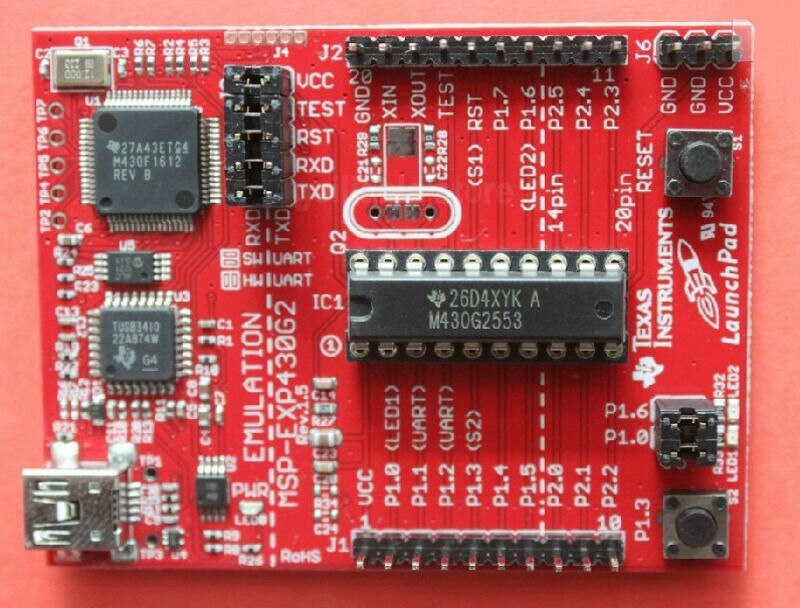

  LaunchPad Development board (MSP-EXP430G2)
  LaunchPad sticker
  Mini USB cable
