Thùng Dây Cáp Mạng LS Vina Cat5e UTP 305m

LS Vina Cat5e UTP 305m Network Cable Crate

LS Vina cat5e UTP network cable is a cable manufactured on a modern technological transmission line of LS Korea (Korea) Corporation, currently this type of LAN cable is manufactured by LS Vina factory located in Hong Bang, Hai Phong, Vietnam.LS vina cable products have confirmed that the production of network cables in Vietnam is not inferior and can compete with other foreign import products. It can be certain that the cat5e LS UTP Vina network cable is a high-quality, affordable product that fully meets all international standards for network cables and is suitable for the needs of buying network cables, especially Cat5e network cables of Vietnamese users.

Descriptions:

– ETL, EC activated; UL listed

– Electrical representation is carried out according to TIA / EIA-568B.2

– Support Fast Ethernet, Gigabit Ethernet, 155 Mb/s ATM, multimedia

– Complies with RoHS standards

– Designs accepted for the installation of the global trade network

– Simplifying the structure of cable solutions for long-term network investment

Applications:

– Horizontal distribution and cable trunk lines

– ISDN, ADSL

– 4/16 Mbps Token Ring (IEEE 802.5)

– 10/100/1000 BASE-T (IEEE 802.3)

100Mbps – TP-PMD

– 155Mbps ATM

Specifications:

Ls cat5 Vina network cable structure.

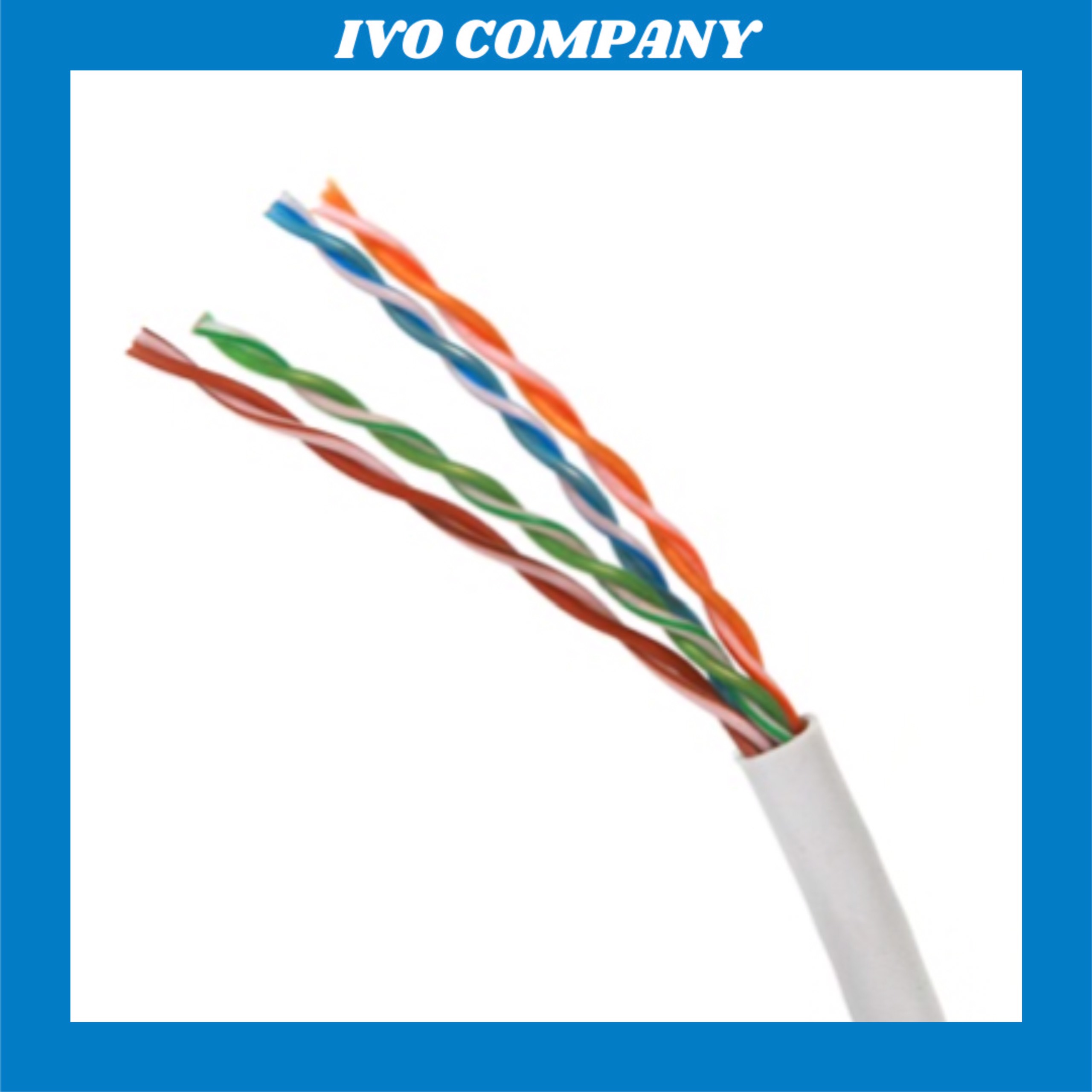

The cable has a structure of 4 pairs of twisted wires, solid copper core 24AWG (0.5mm).

White flame retardant PVC case.

Responsive standards include: TIA/EIA 568-B.2 and ISO/IEC 11801 Class D.

Support bandwidth up to 100 MHz.

Standard core thickness 24 AWG, solid, unshielded.

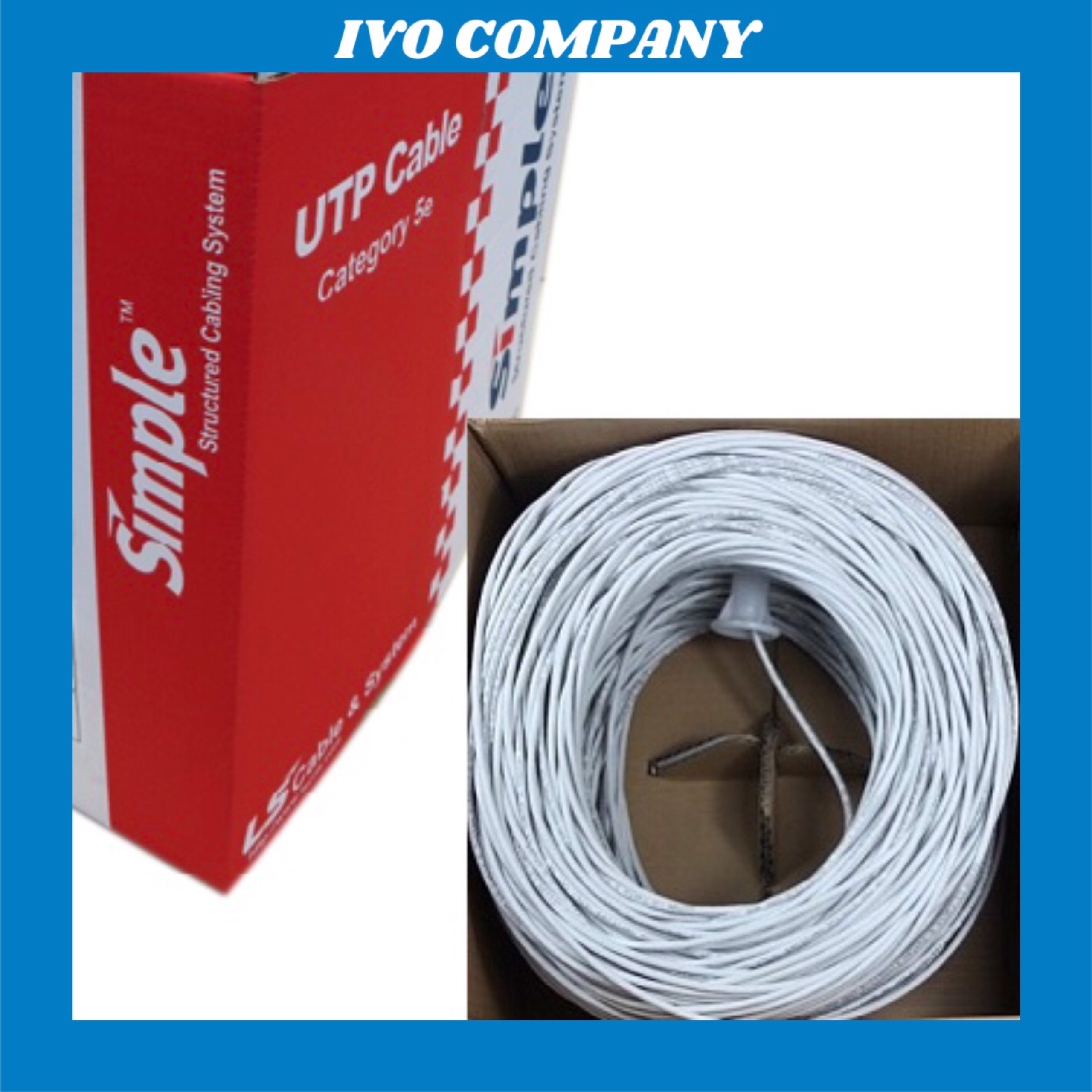

Cable sheath: White LS cat5 UTP network cable, packaged as a pull box, with a length of 1000 feet (305m).

Capacitance: 5.6 nF/100m.

Impedance: 100 ohms +/-15%, 1 MHz to 100 MHz.

Conductor resistance: 9.38 ohms max/100m.

Voltage : 300VAC or VDC.

Transmission delay: 538 ns/100 m max. @ 100 MHz.

Flexural strength: (4 X cable diameter) ≈ 1″.

Packaging : 1000-foot roll equivalent 305m

Conductor: Sturdy – solid copper core wire, 24 AWG copper core diameter.

Insulation sheath: Polyethylene, 0.008in.

Sheath: 0.015in (0.025 Þ.230), PVC.

Operating temperature: -20°C – 60°C.
