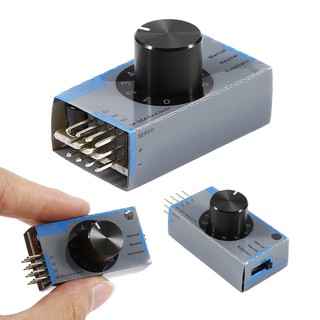

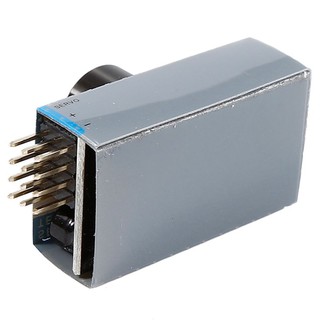

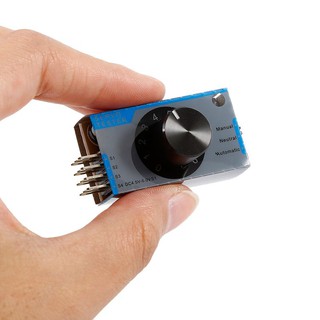

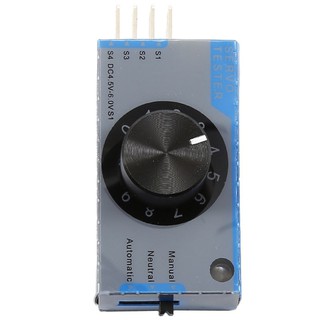

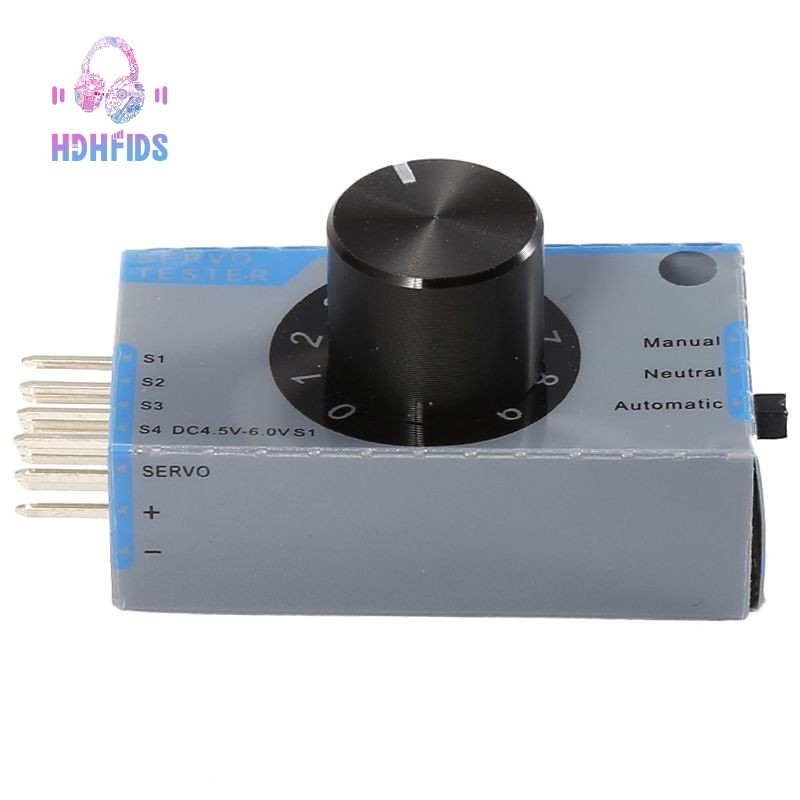

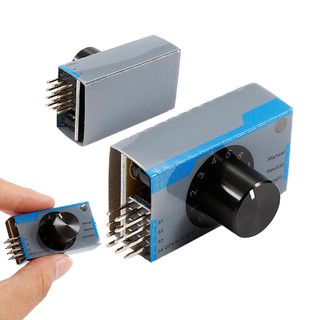

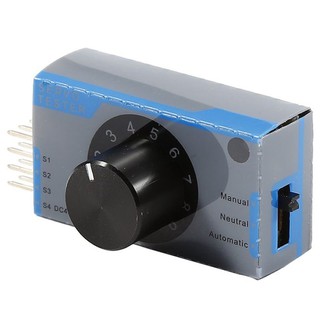

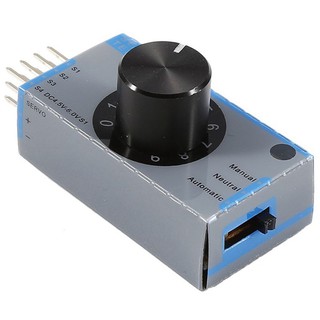

Thiết bị kiểm tra tốc độ điện tử ek2-0907 updated Servo

Weight: about 8g, Dimension: 42.5 * 24 * 23.5mm Consumption: 15mA (Current 5.0V) , Voltage consumption: DC4.5-5.5V Static current: 3mA (5.0V) ta=25 C output , Signal: 1.5ms+/-0.5ms Manual pulse width adjustment Test device can easily detect the clearance, jitter and median of all kinds of Servo (server). It can easily connect the ESC and test the working status of the ESC or Motor. It can connect three sets of servo or ESC at the same time, use SCM to control with Good stability, high accuracy. Usage: Power Supply: 4-5 pcs of #5 battery,ESC built-in BEC or UBEC TO Provides power to the tester.When you use the ESC with built-in BEC,No additional power supply need,connect the servo or ESC that you want to test to begin testing. Test Mode: There are hand conditioning pulse, the neutral point output function and automatically adjust the pulse width ,you can toggle switch to select one of three models to test.when you use manual adjustment , the knob can work,you can adjust the Output pulse width or the ESC or control servo Arbitrarily.The Neutral point is used for finding the middle point of the servo.Automatically adjustsment can make the servo Rotate back and forth. Notice: When you test the ESC,you can only use the manual mode. colour: blue grey Material: alloy Package Contents: 1 * Servo Tester Only the above package content, other products are not included. Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
