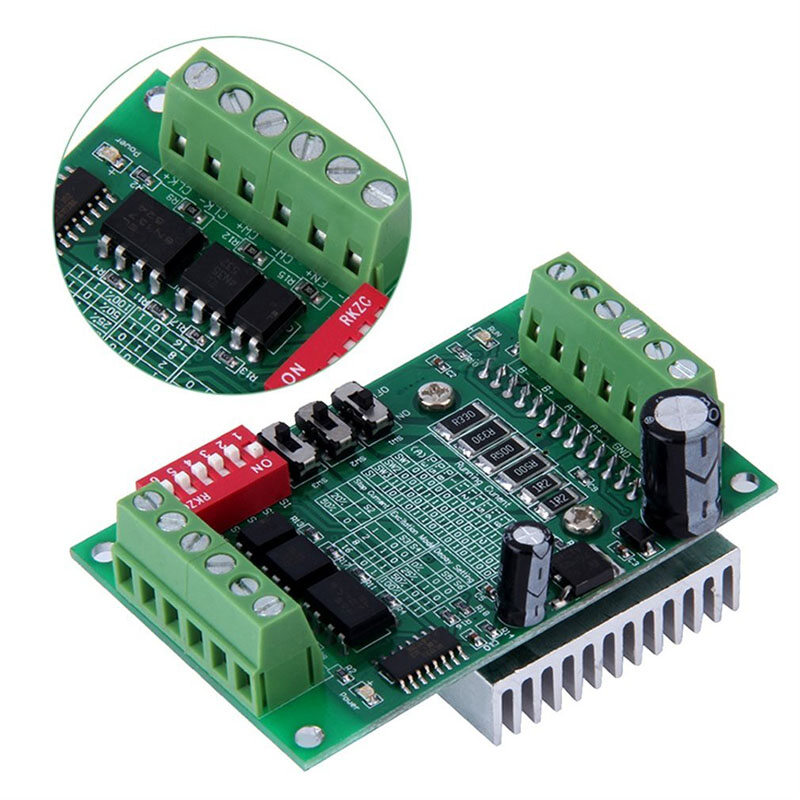

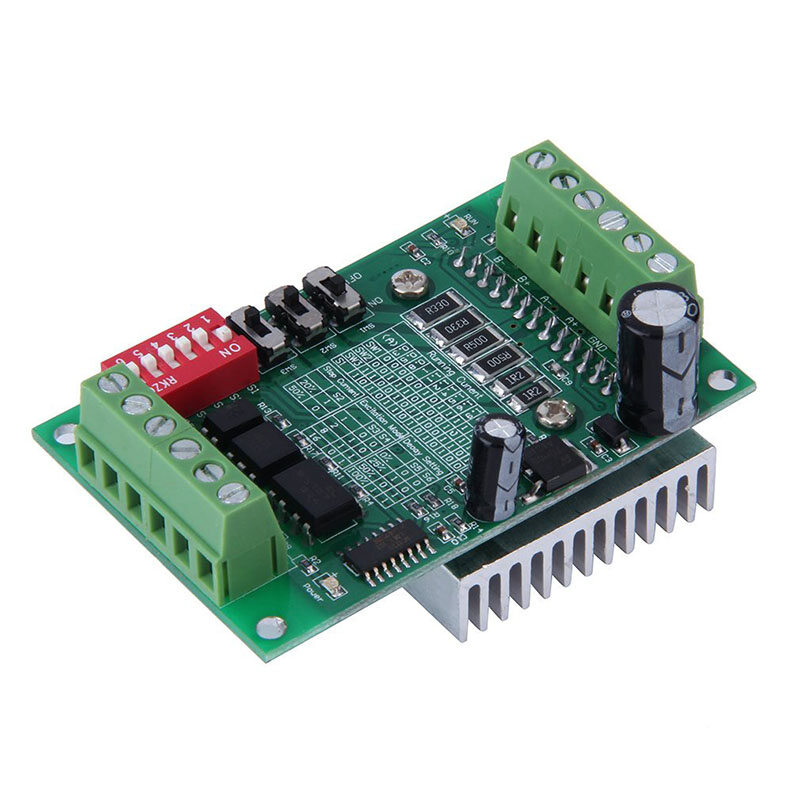

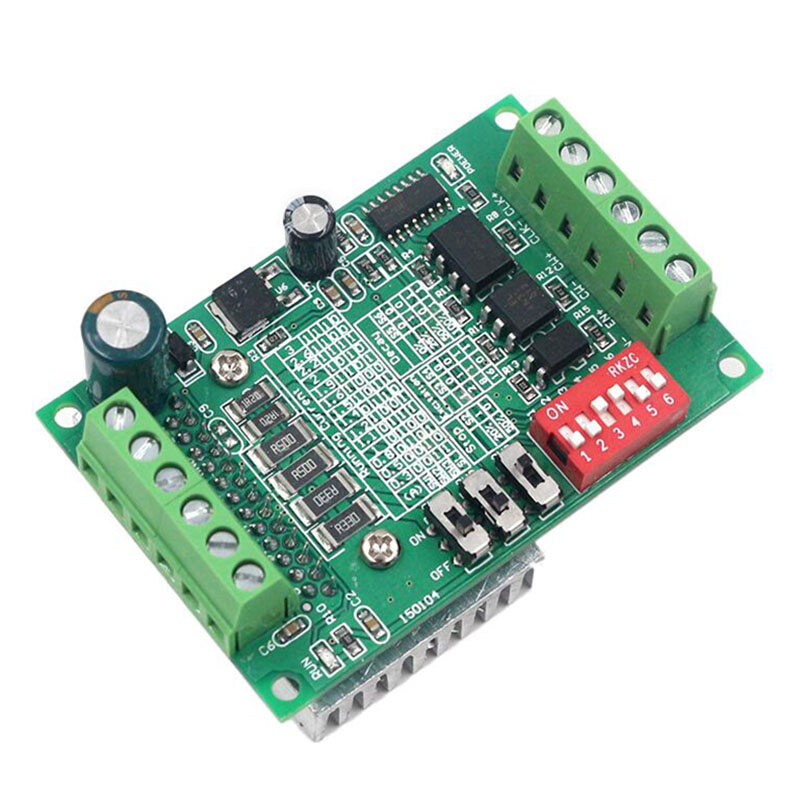

TB6560 3A 10 files Driver Board CNC Router Single 1 axes Controller Stepper Motor Driver Module

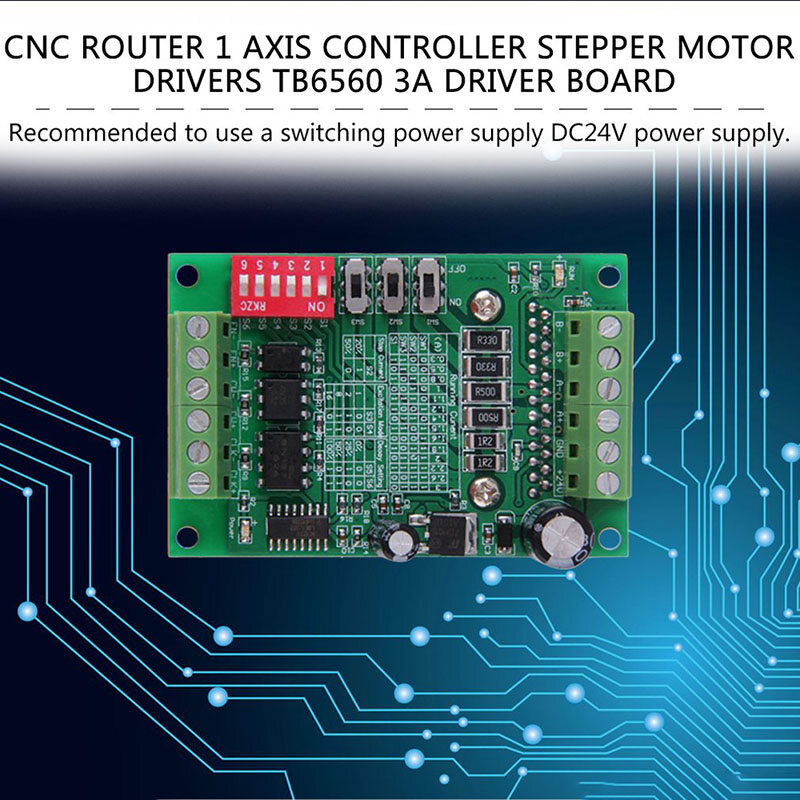

1) The working voltage is DC 10V-35V. It is recommended to use switching power supply DC24V for power supply.
2) Adopt 6N137 high-speed optical coupling to ensure high speed without losing step.
3) Using Toshiba TB6560AHQ brand new original chip, there are low voltage shutdown, overheating shutdown and overcurrent protection circuits to ensure performance.
4) Rated output: ±3A, peak value 3.5A.
5) It is suitable for two-phase/four-phase/four-wire/six-wire stepping motor with 42,57 stepping within 3A, not suitable for stepping motor with more than 3A.
6) Automatic half-flow function.
7) Subdivision: full step, half step, 1/8 step, 1/16 step, 16 subdivision.
8) Volume: width 50 * length 75 * height 35 (MM)

Features in similar products:

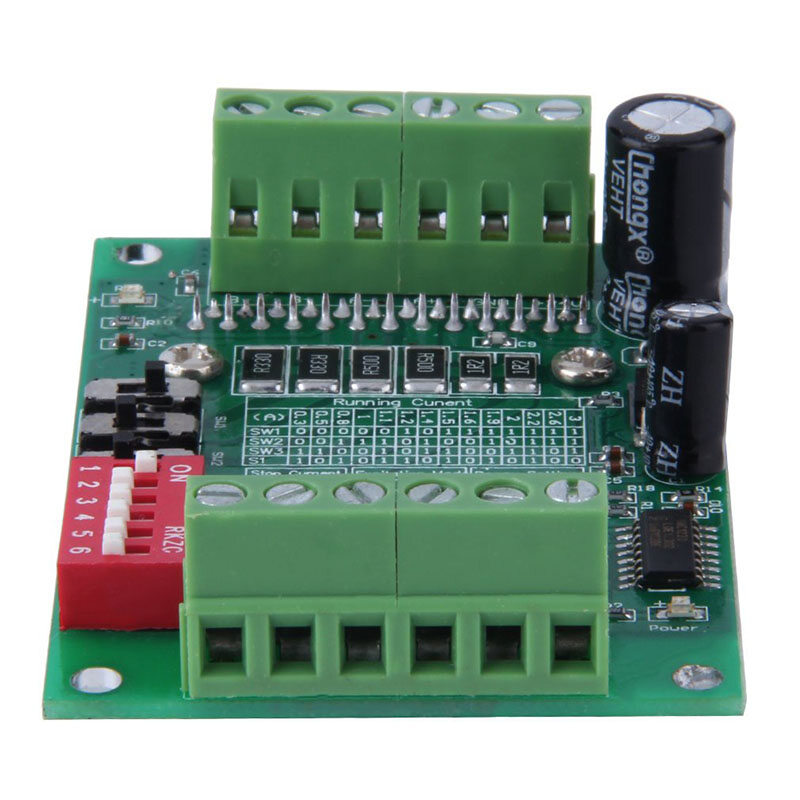

1. The current level can be adjusted step by step to meet your multiple application requirements.
2. Automatic half-flow adjustable.
3. Use 6N137 high-speed optical lotus to ensure high speed without losing step.
4. The board printing instructions can be operated without manual.

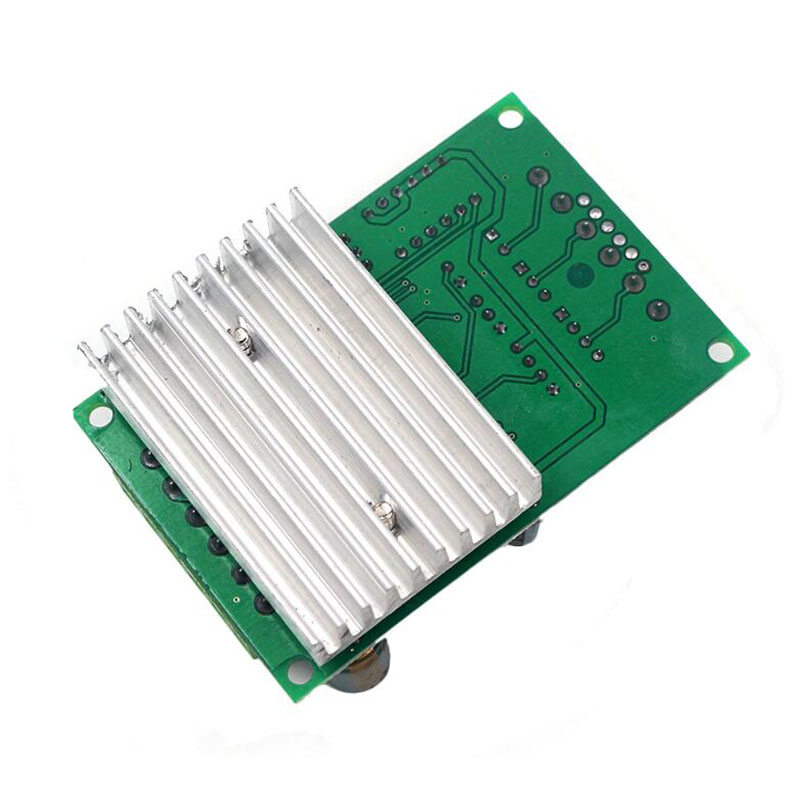

5. Using thick and densely toothed radiator, good heat dissipation.
