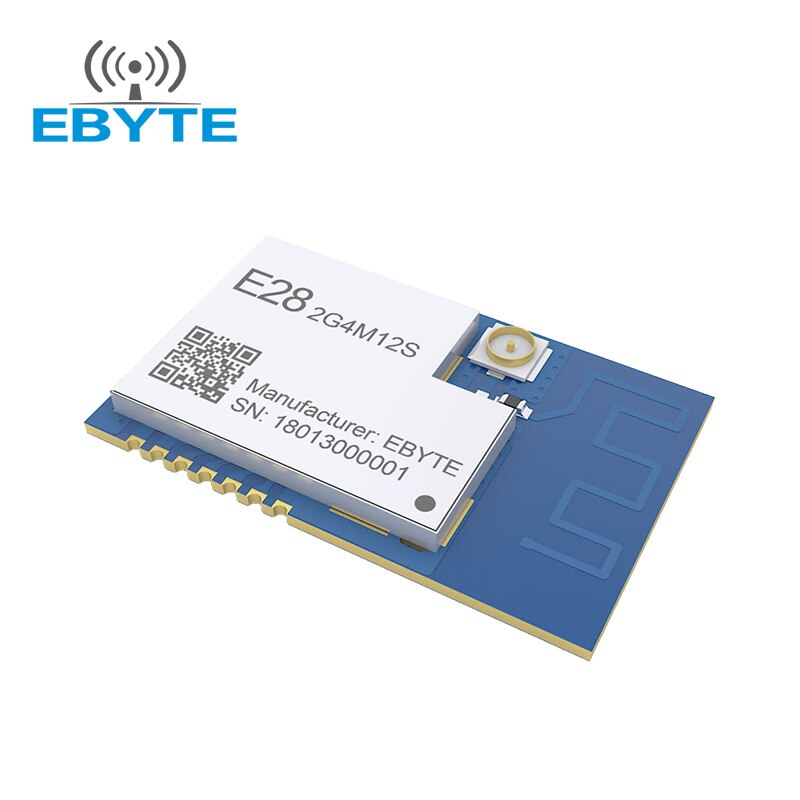

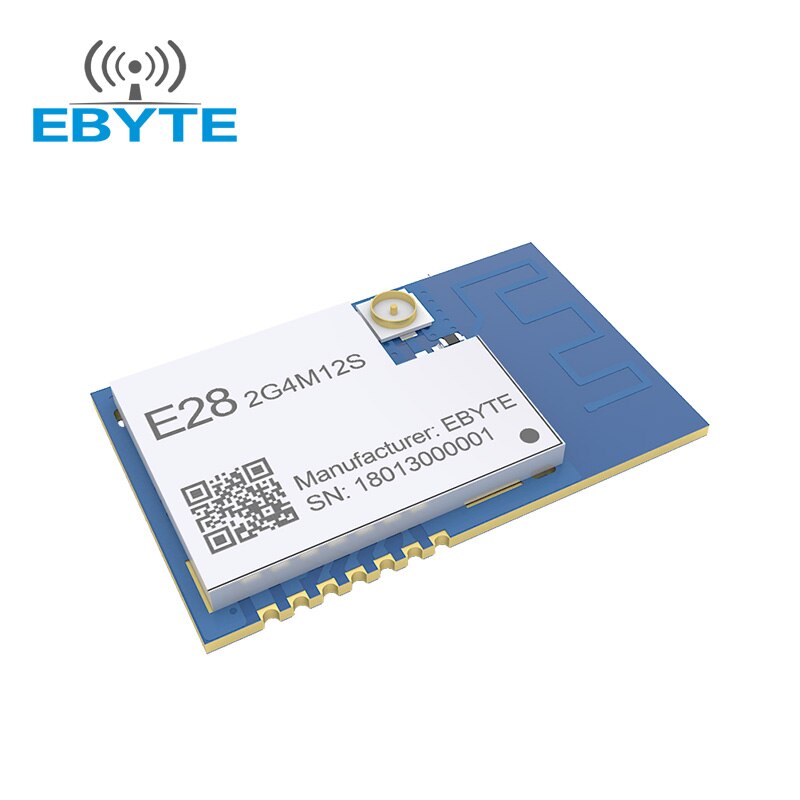

[Introduction]: E28-2G4M12S is a 2.4GHz bluetooth module designed by Chengdu Ebyte. With built-in PCB antenna, it adopts the original RFIC SX1280 of Semtech, it works at 2.400 ~ 2.500GHz with ultra-low power consumption. It is applicable for smart home, security system & etc

RF Parameter	Value	Remark
Working frequency	2400~2500 MHz	Default:2.4GHz(52MHz oscillator)
Transmitting power	12.5 dBm	About 18mW
Receiving sensitivity	-130 dBm	Air data rate: 125kbps
Air data rate	0.125M~2Mbps	Default: 125kbps
Test distance	3000m	In open and clear air, with maximum power, 5dBi antenna gain, height of 2m, air data rate: 125kbps

Hardware Parameter	Value	Remark

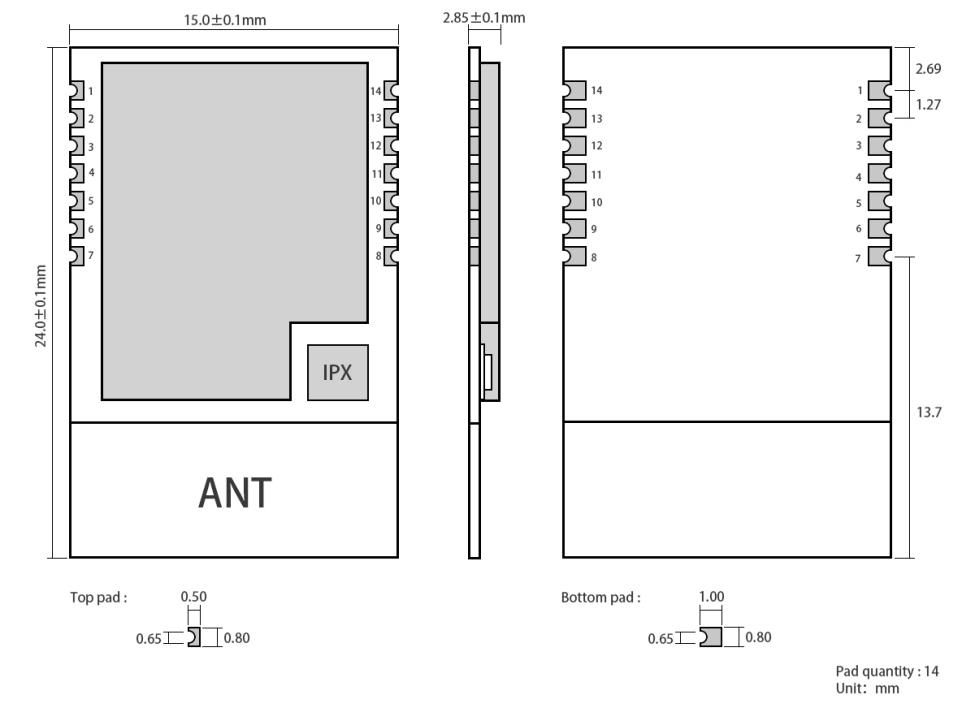

Size	24*15mm
Antenna type	IPEX /PCB
Communication interface	SPI
Package	SMD

Electronic parameter	Min.	Typ.	Max.	Unit	Condition
Power supply	1.8	3.3	3.6	V
Communication level	1.8	3.3	3.6	V
Transmitting current	42	45	50	mA	12.5dBm(18mW)
Receiving current	9	10	11	mA
Sleep current	1	2	3	μA
Operating temperature	-40	20	+85	℃
Operating humidity	10	60	90	%
Storage temperature	-40	20	+125	℃
