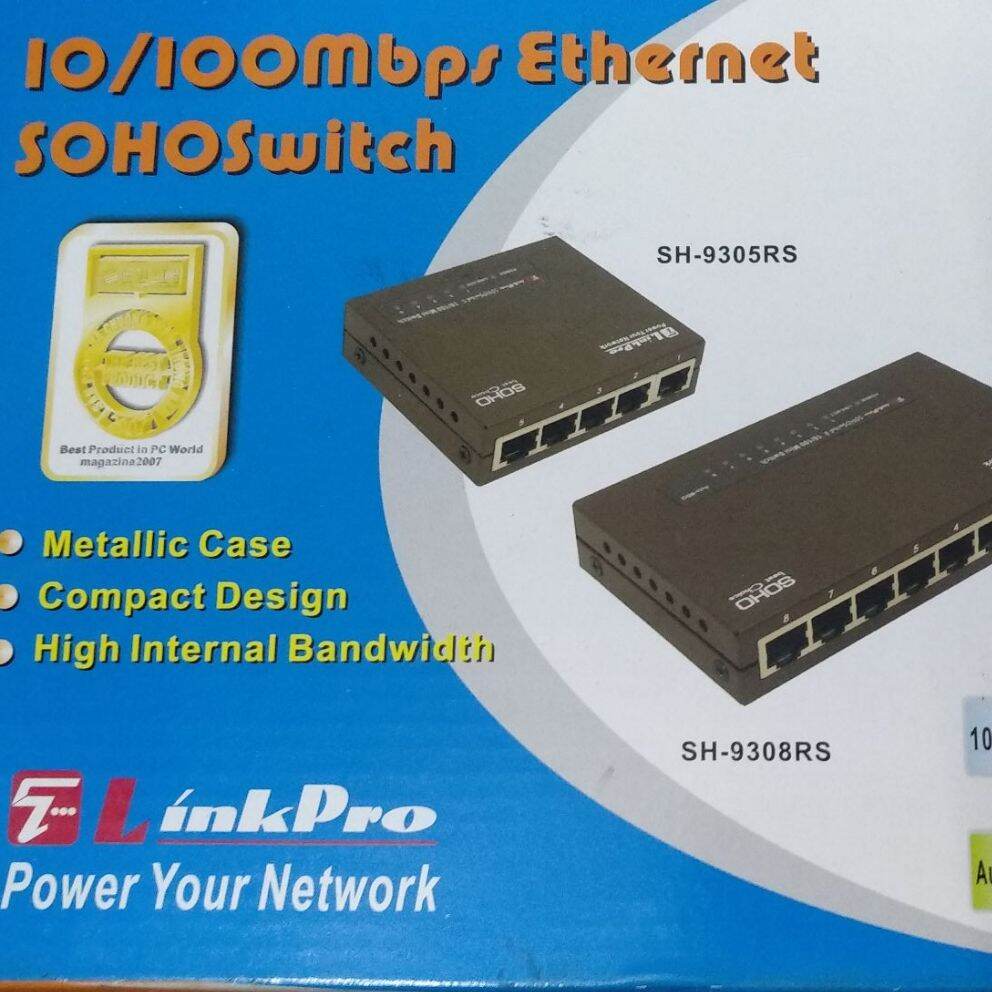

Switch Linkpro SOHO 8 port SH-9308

ETHERNET LINK SH-9308RS_8 PORT 10/100MBPS ETHERNET SWITCH

Brand

Linkpro

Model

SH-9308RS

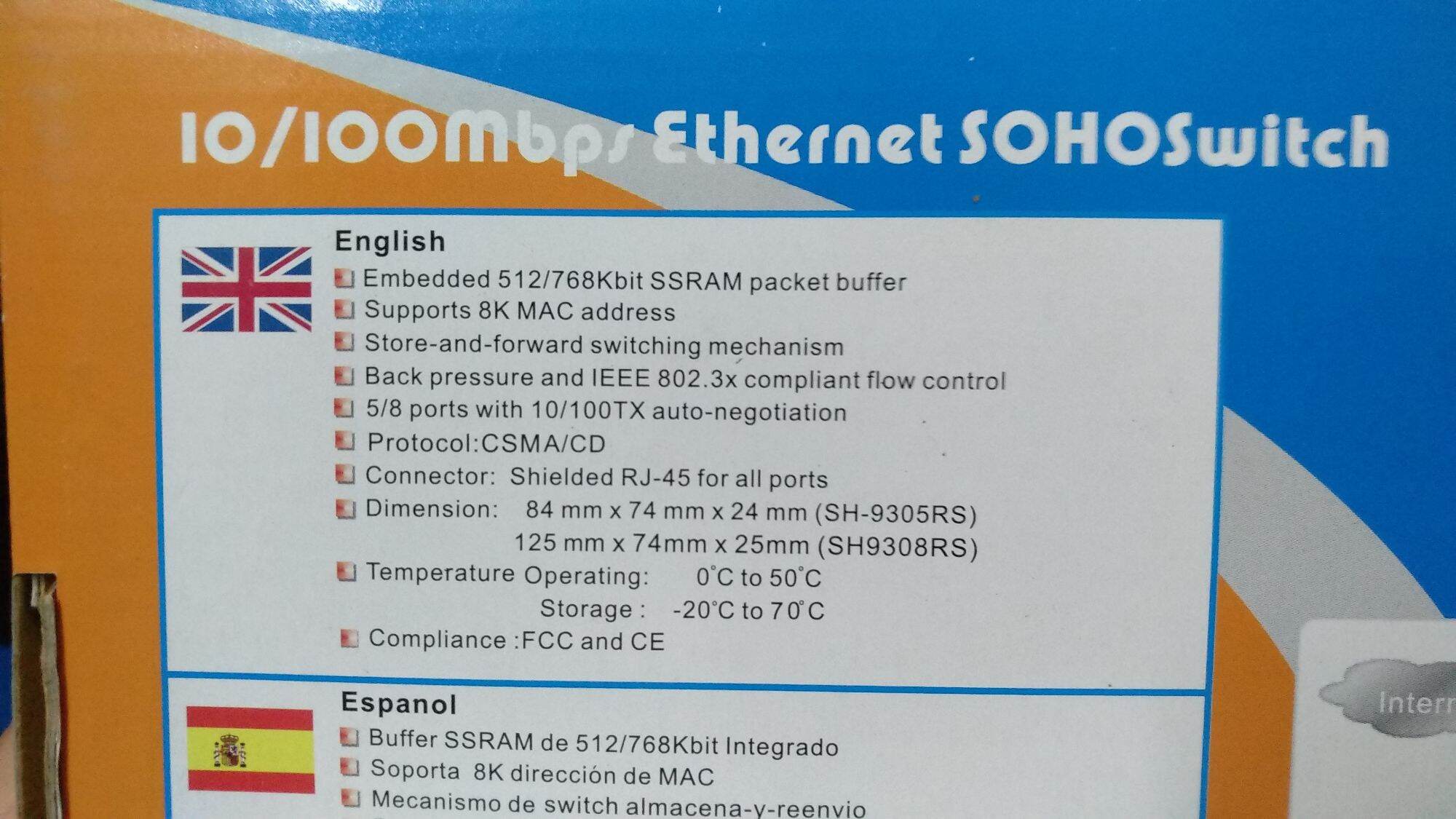

Specifications

Standard

IEEE802.3 10Base-T

IEEE 802.3u 100Base-TX

Protocol CSMA/CD

Network Media

100Base-TX – Category 5 EIA/TIA-568 twisted pair Cable

10Base-T – Category 3,4,5 EIA/TIA-568 twisted pair Cable

Connector Shielded RJ-45 for all ports

Network Data Transfer Rate

Ethernet : 10/20Mbps (half/full duplex)

Fast Ethernet : 100/200Mbps (half/full duplex)

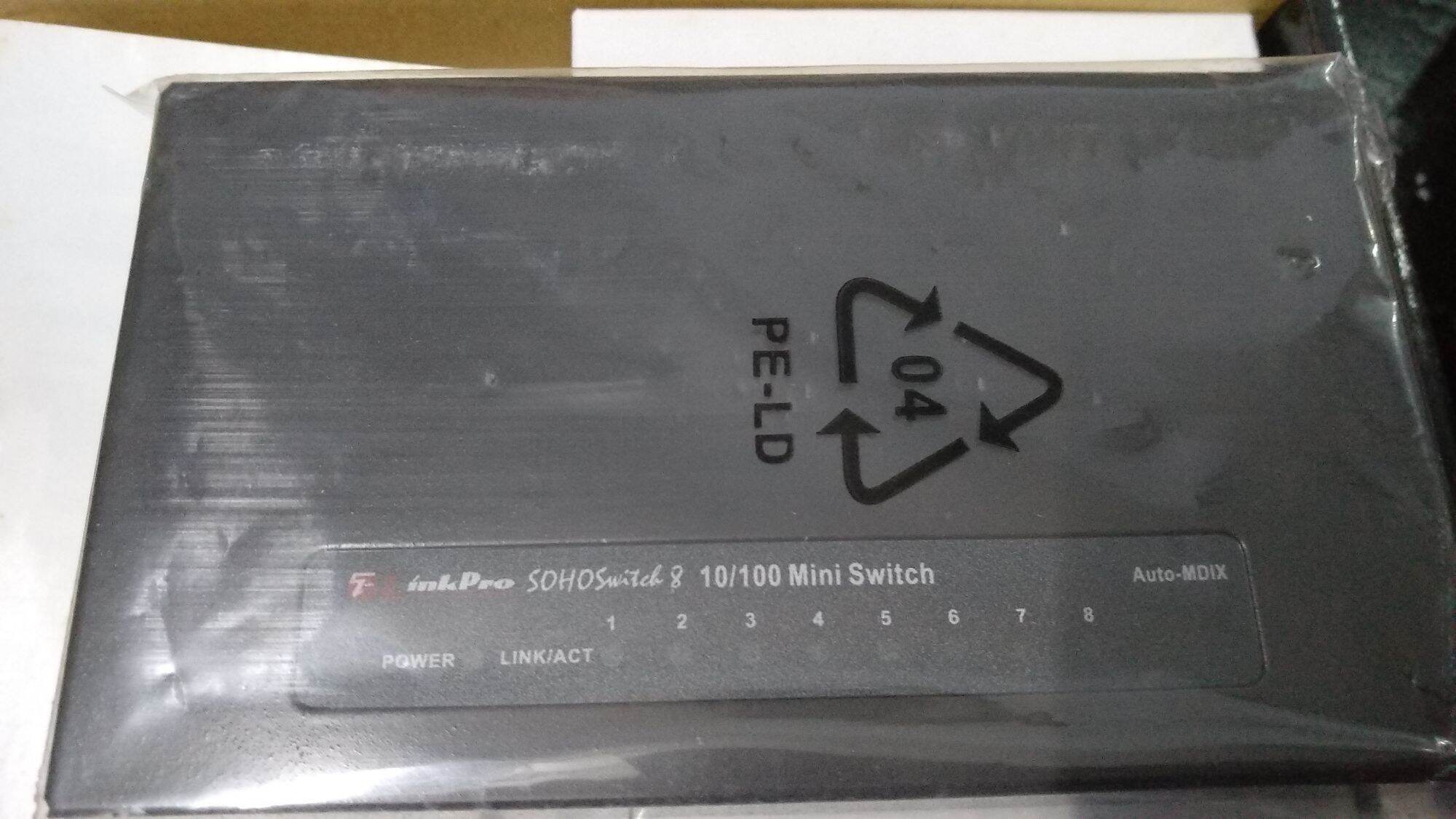

LED Indicators

System: Power LED

Individual port: Link/Act

Dimension 125 mm x 74 mm x 25 mm (L*W*H)

Temperature

Operating: 0℃ to 50℃

Storage: -20℃ to 70℃

Humidity

Operating: 10% to 90% RH

Storage: 5% to 90% RH

Power 7.5VDC external power adapter

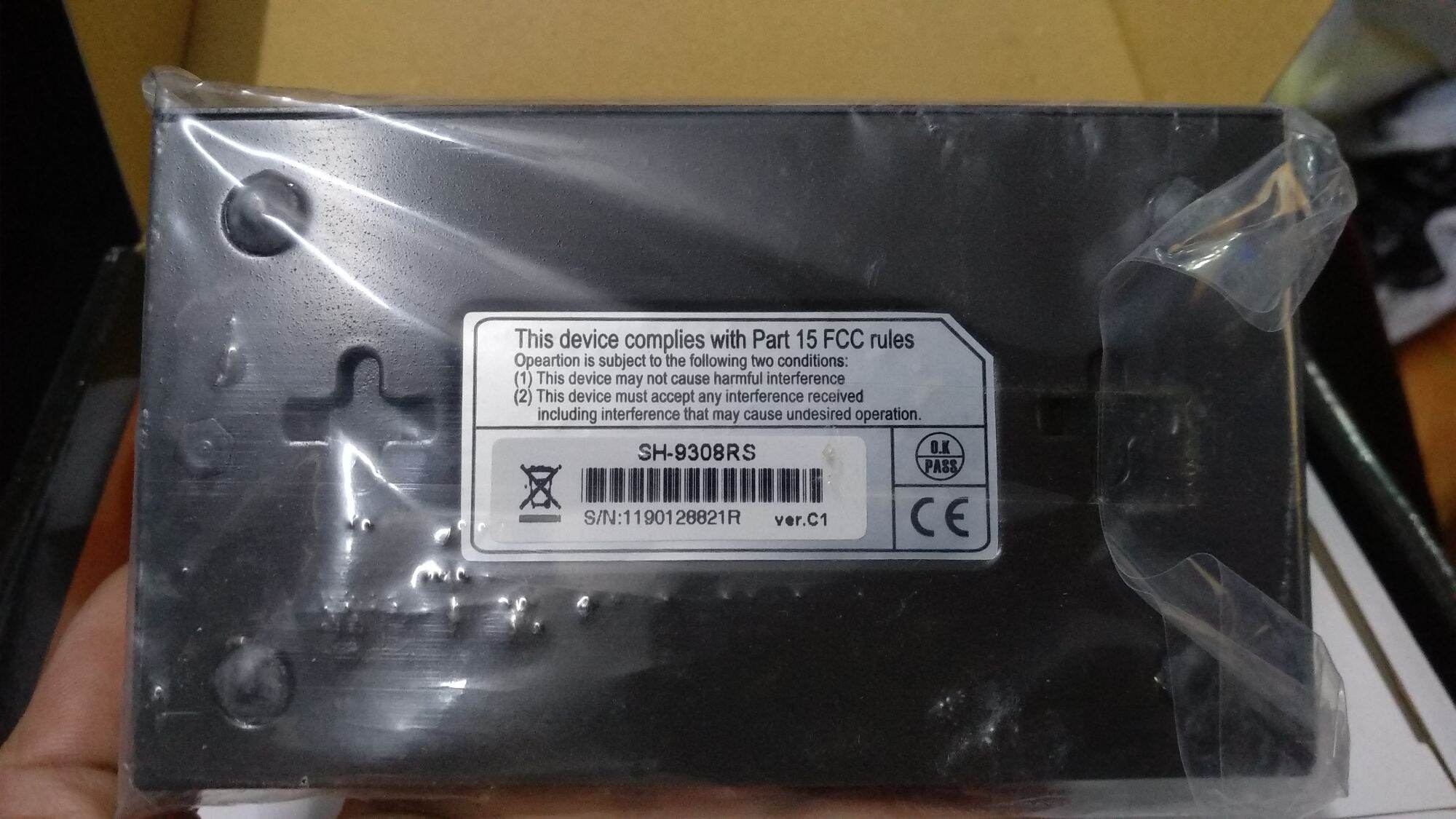

Regulatory Compliance CE
