Description:

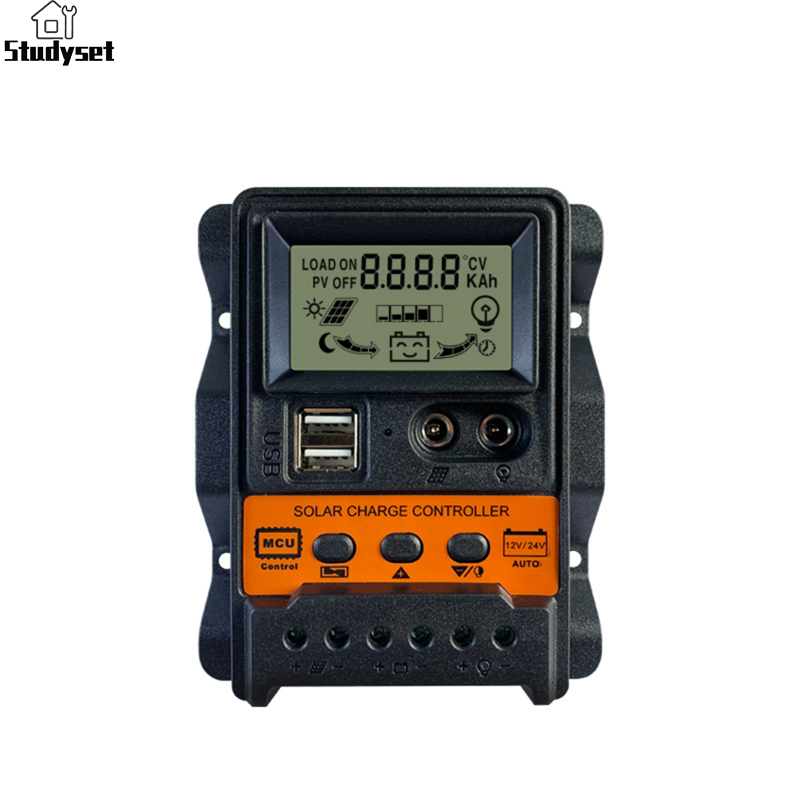

Product Name: Solar Panel Charge Controller
Color: Black
Material: ABS
System voltage: 12V/24V automatic adaptation
Rated charging current: 10A
Rated discharge current: 10A
Maximum photovoltaic voltage: 50V
Maximum photovoltaic input power: 130W (12V) 260W (24V)

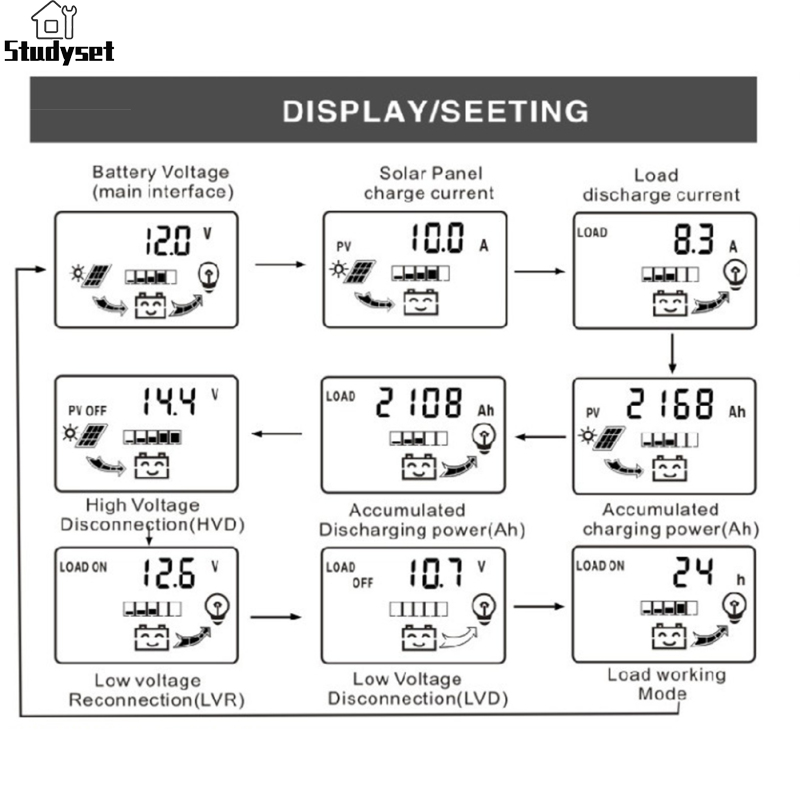

Boost charging voltage: 14.4V
Float voltage: 13.7V (default, adjustable)
Discharge cut-off voltage: 10.7V (default, adjustable)
Discharge recovery voltage: 12.6V (default, adjustable)
Charging recovery voltage: 13V
Light control lamp activation threshold: Photovoltaic panel 8V (there is a delay when the light control lamp is turned on)
Light control extinction threshold: Photovoltaic panel 8V (there is a delay in light control extinction)

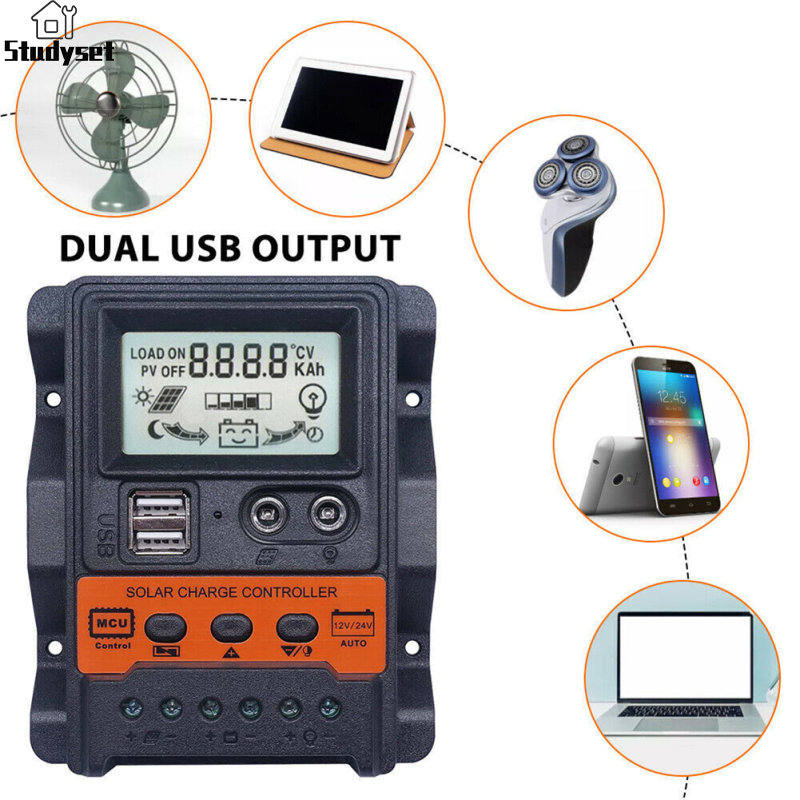

USB output: 2 USB outputs, 5V/2.5A (maximum)
Standby current: < 10mA
Working temperature: -35~+60 ℃

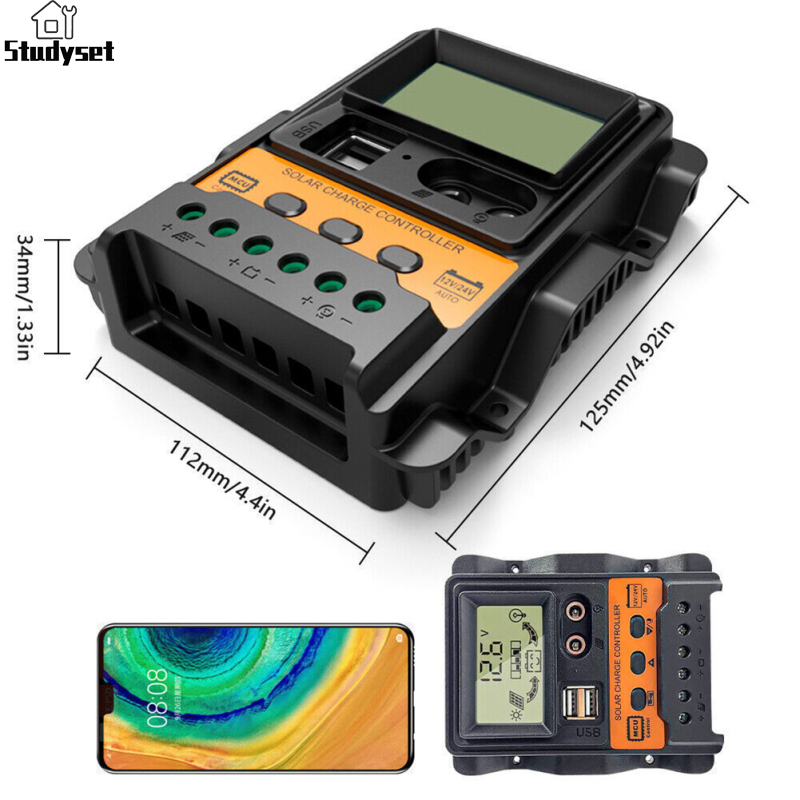

Size: 125 x 112 x 34mm/4.92 x 4.41 x 1.34 inches
Packing list:
1 x Solar Panel Charge Controller
1 x User Manual
1 x Packing Box
Note:
1. Due to manual measurement, please allow 1-3cm error. Make sure you don't mind before bidding.
2. Due to the difference of different monitors, the picture may not reflect the actual color of the product. Thanks.
