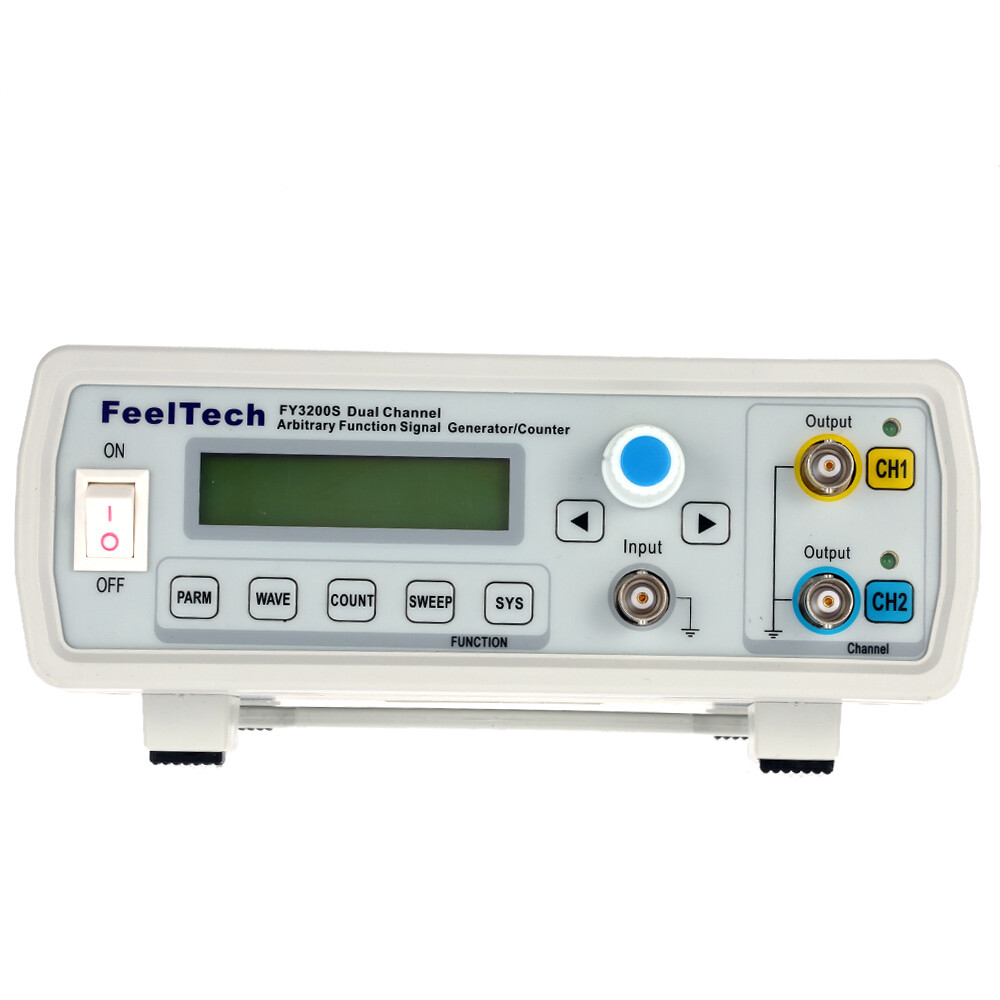

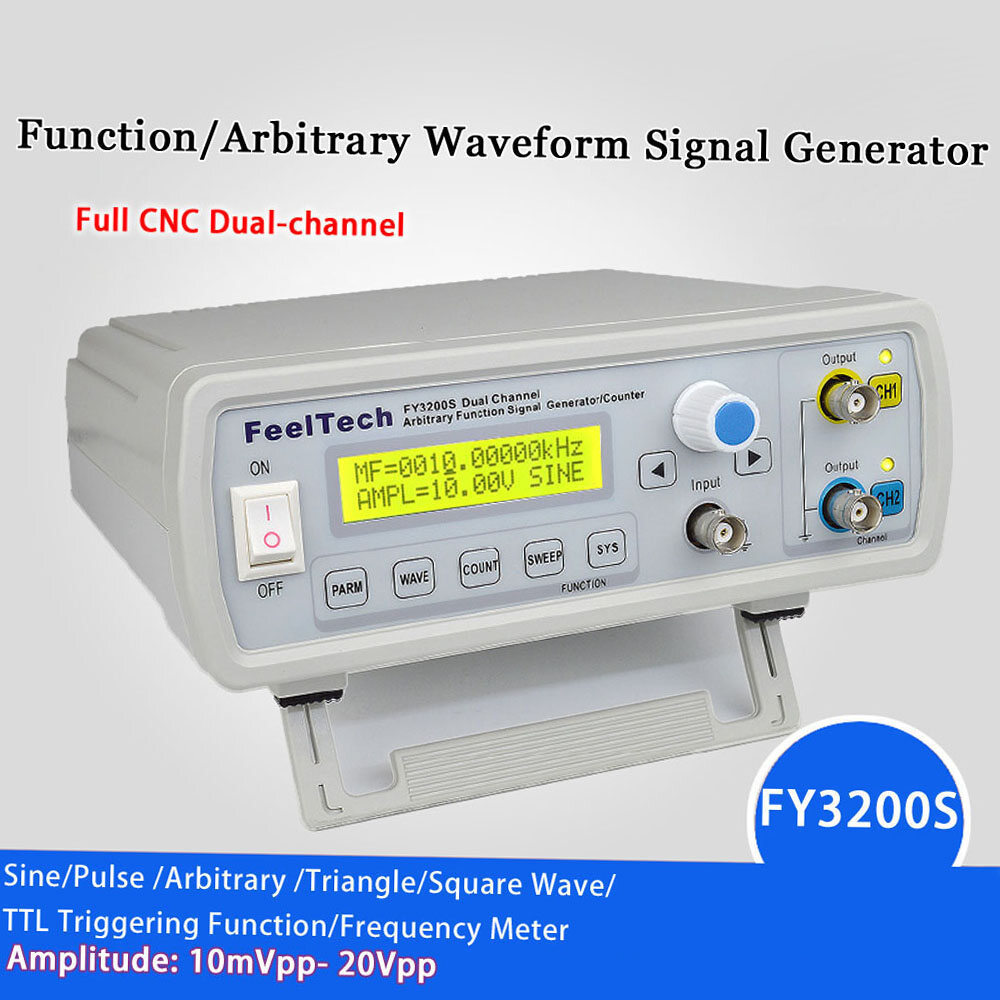

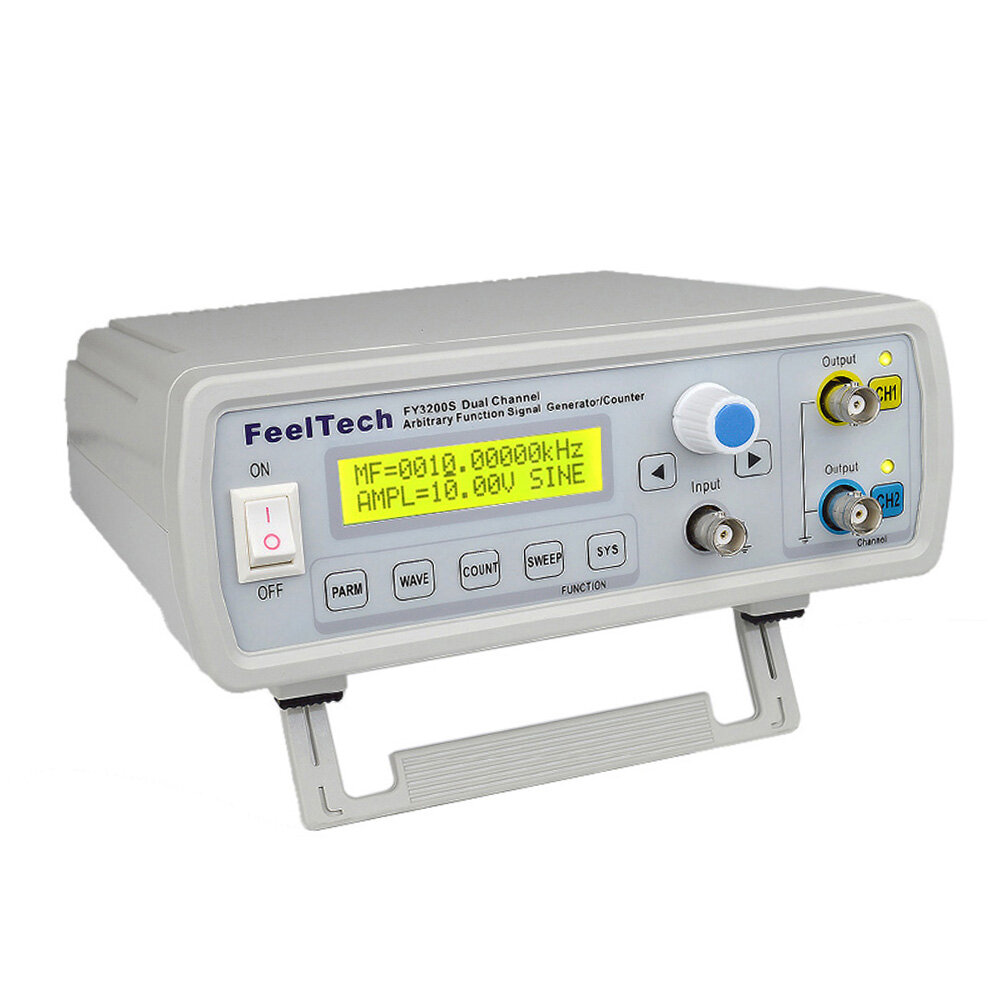

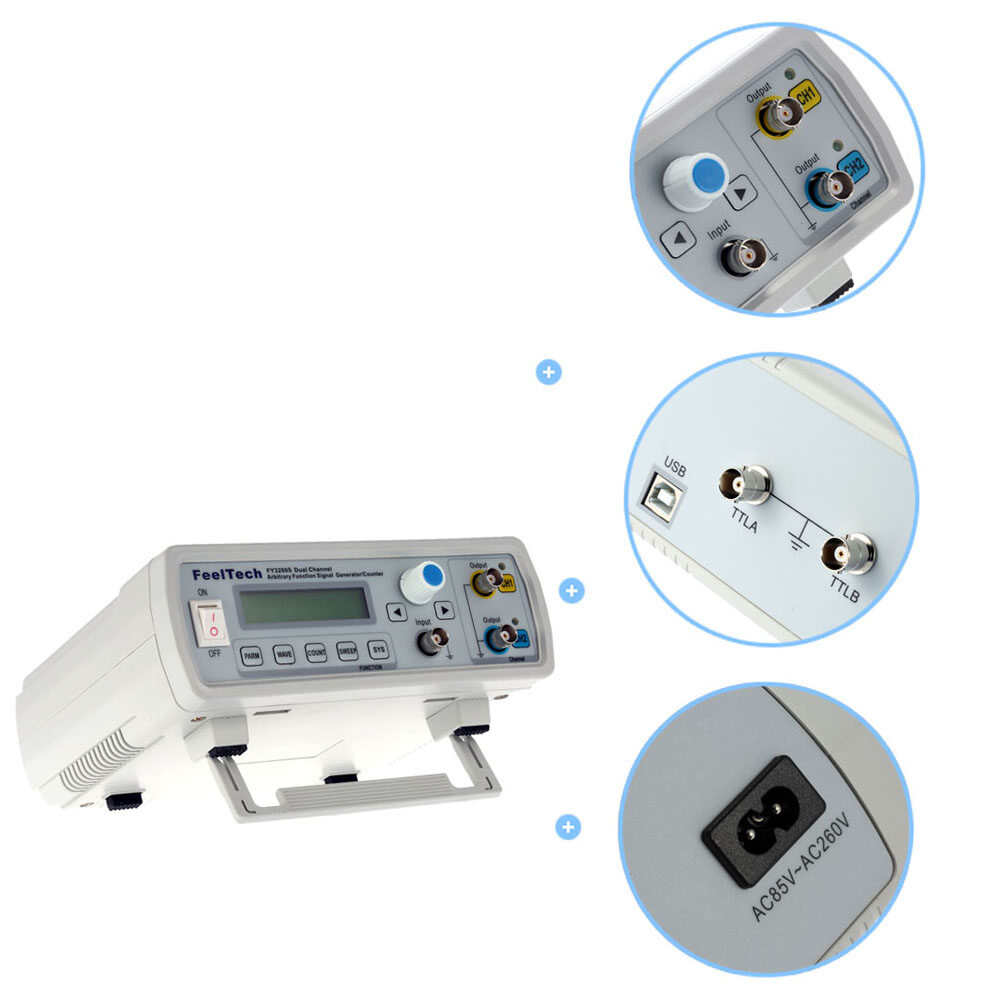

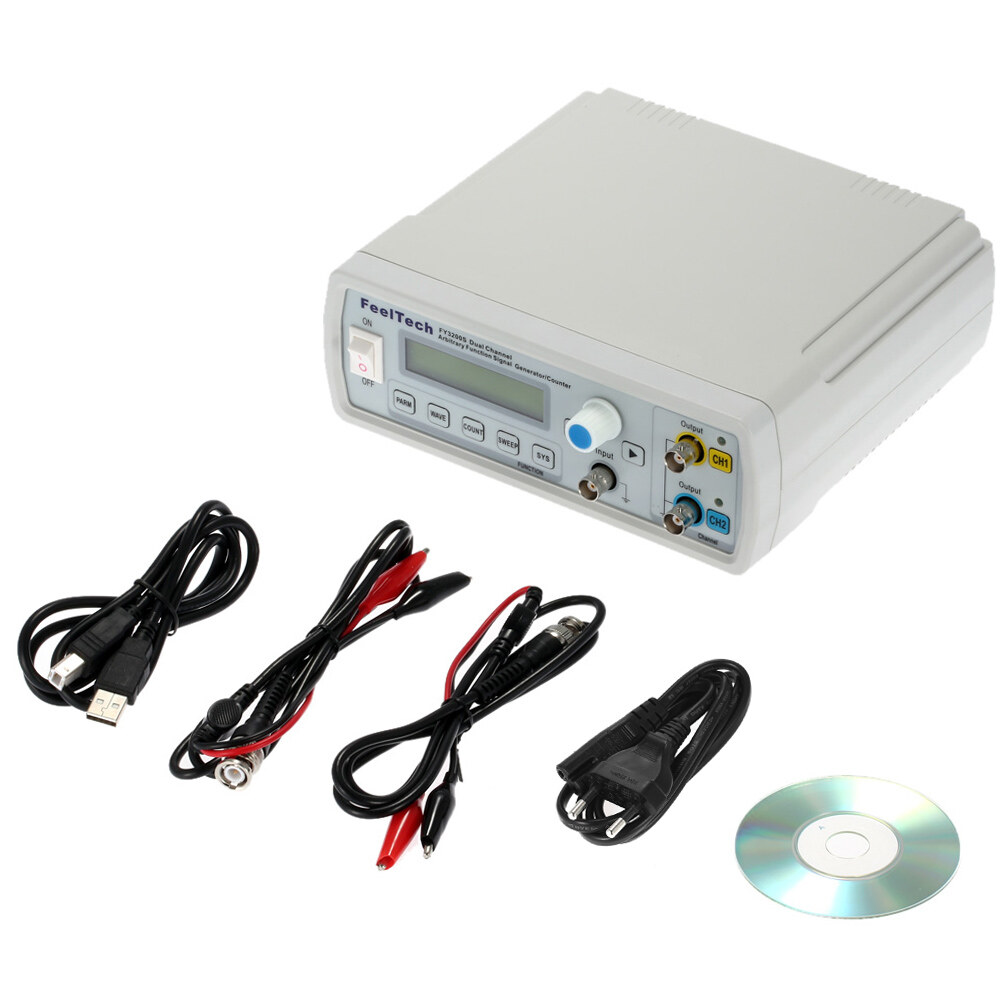

Smart Sensor High Precision Digital DDS Dual-channel Function Signal Source Generator Arbitrary Waveform/Pulse Frequency Meter 12Bits 250MSa/s Sine Wave 24MHz

DDS function signal generator from this series is a multi-functional signal generator with high precision and high performance. It adopts large scale of FPGA integrated circuits, high-speed MCU microprocessor and with high precision oscillator as base in the inner circuit, which make the signals more stable. SMT process can greatly improve the anti-interference and lifetime of the instrument. It has entirely independent dual-channel DDS signal and TTL level output, can generate signals of sine/triangle/square/sawtooth/pulse wave, white noise, etc. This instrument is of great advantage in generating signal, scanning waveform, measuring parameters, etc. It's an ideal testing or measuring instrument for electronics engineer, electronic laboratory, teaching and researching.

Features:
Using DDS direct digital synthesis technology to generate precise, stable, low distortion output signal.
CH1 and CH2 completely symmetrical two channels, each channel can be independently set the parameters.
Supports user-defined waveform, each arbitrary waveform memory depth 2048*12bits, 250MSa/s sampling rate.
With pulse trains burst output function, manual trigger, internal CH2 trigger and external trigger three trigger modes that allow the unit to any output 1~1048575 arbitrary pulse trains.
Measurement functions: 100MHz frequency meter and counter function.
Signal output amplitude range is 10mVpp- 20Vpp, DC offset adjustment range is -10V to 10V, the resolution is 0.1V.
Digital signal output function, CMOS output range 0~10V.
Waveform generator up to 12 bits wide, the output waveform is more delicate, waveform distortion is low.
With full CNC functions, display and adjust of current output signal parameters, such as the amplitude, offset, frequency, duty cycle, and the phase difference of two signals.
After connected with computer, user can control signal generator functions and parameters, and can edit and download arbitrary waveform.
High frequency accuracy and resolution: frequency accuracy up to 10^(-6) magnitude, total range frequency resolution is 10mHz.
Tracking function: built-in frequency, amplitude, offset, duty cycle, waveform and other parameters follow function, easy to use.
Scanning features: frequency linear sweep and logarithmic sweep function, start and end points of scanning can be set freely.
Storage features: can store 20 groups parameters set by the user.
Operation: key operation, LCD1602 display in English, directly digital setting parameters or continuous adjustment knob.
Input over-voltage protection: extended power input range is AC85V to AC260V wide voltage.
Output short-circuit protection: all signal output can work above 60s in load short-circuit situation.

Specifications:

Frequency Parameters
Frequency Range	Sine Wave	Normal Modes(Optional): 0Hz~6MHz / 0Hz~12MHz / 0Hz~20MHz / 0Hz~24MHz
	Square Wave	0Hz~6MHz
	Triangle Wave	0Hz~6MHz
	Other Waveform	0Hz~6MHz
The Min. Frequency Resolution	10mHz (0.01Hz)
Frequency Accuracy	(+/-)5*10^(-6)
Frequency Stability	(+/-)2*10^(-6)/3 Hours
Phase Adjustment Range	0~359°
Phase Resolution	1°
Waveform Parameters
Output Waveform Types	Sine/Triangle/Square/Sawtooth/Pulse Wave, Lorentz Pulse, Multi-tone, Random Noise, Electrocardiogram, Trapezoidal Pulse, Symplectic Pulse, Narrow Pulse, Gaussian White Noise, Amplitude Modulated Waveform, Frequency Modulated Waveform and User Defined Waveform
Sine Wave	Harmonic Distortion ≤0.8%(Referent Frequency 1KHz)
Square Wave	Rise/Fall Time	≤20ns(Referent Frequency 100KHz, 10Vpp)
	Overshoot	≤7.5%
	Duty Cycle	0.1%~99.9%
Sawtooth Wave	Linearity	≥98% (0.01Hz~10KHz)
Pulse Wave	Pulse Width Adjusting Range	10nS~1S
	Rise/Fall Time	≤20ns
TTL Output	Level Amplitude	>3Vpp
	Fan-out	>20 TTL Load
	Rise/Fall Time	≤20ns
CMOS Output	Low Level	<0.3V
	High Level	1V~10V
	Level Rise/Down Time	≤20ns
Waveform Output
Output Impedance	50Ω(+/-10%) (Typical)
Output Amplitude	&ge;20Vpp(No Load)
Protection	All signals output can work above 60s under the condition of load short circuit
DC Offset
Offset Adjustment Range	(+/-)10V
Offset Resolution	0.1V
External Measurements
Frequency Measuring Range	GATE-TIME=1S 1Hz - 100MHz
Input Voltage Range	1Vpp~20Vpp
Counting Range	0~4294967295
Periodic Measurement	20ns Resolution, the Max. Measurable 20s
Scanning Function
Scan Mode	Linear Sweep, Logarithm Sweep
Scan Object	Frequency
Scan Time	1s-999s/Step
Frequency Setting Range	Start Point and End Point can be set arbitrarily
Frequency Scan Range	It is determined by the sweep parameter settings
General Parameters
Memory	Quantity	20
	Location	M0 to M19 (01 for default value)

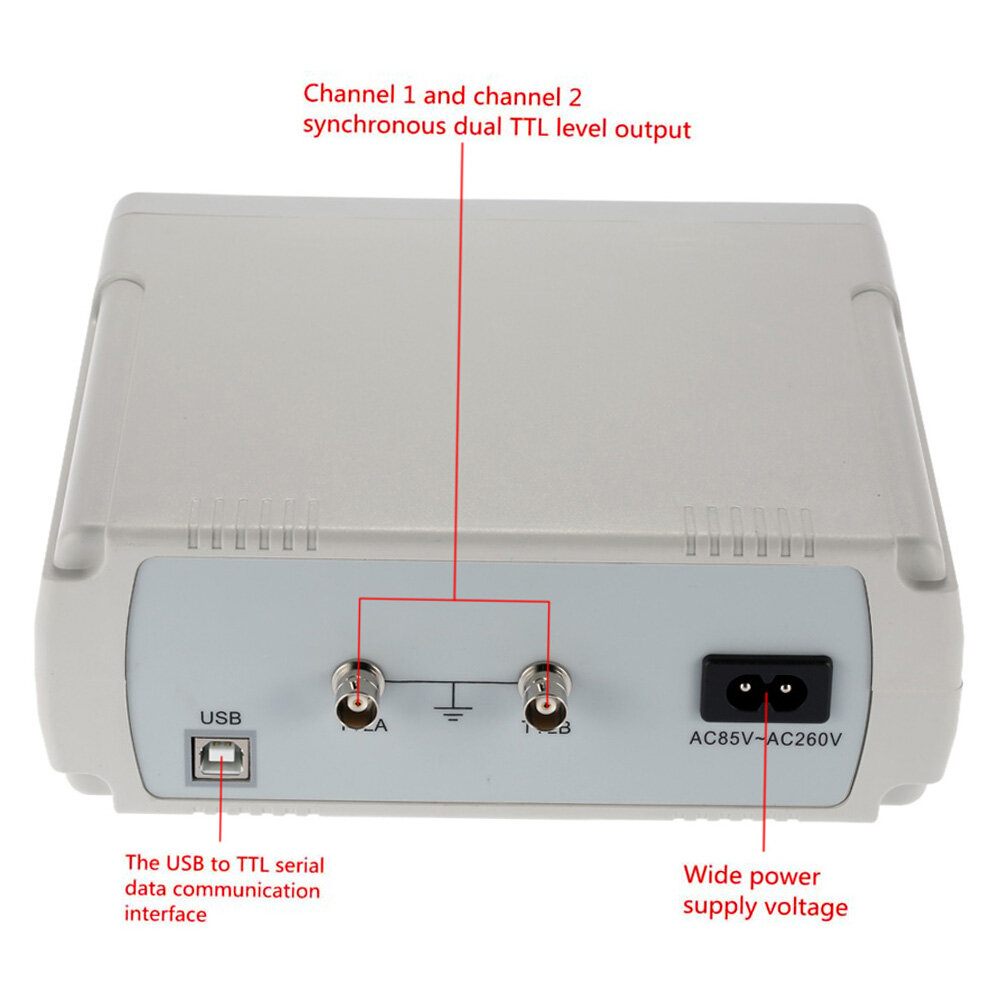

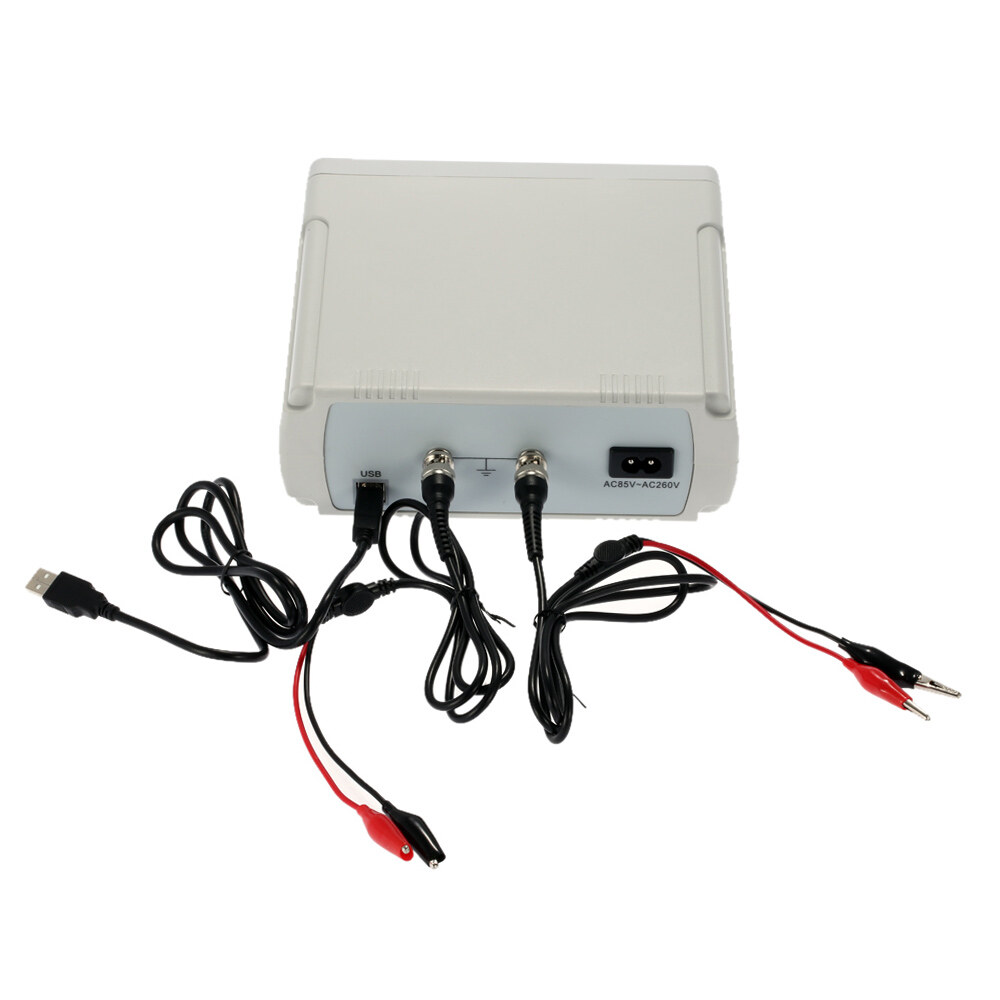

Interface	Interface Mode	Using USB to Serial Interface
	Communication Speed	9600bps
	Protocol	Command Line Mode, Protocol Complete Open
Power Supply	Plug Type(Optional)	US Plug / EU Plug
	Voltage Range	AC 85V to AC 260V
Display	Display Type	LCD 1602 Display
Environment	Temperature: 0~40°C	Humidity: <80%
Size	19 * 18 * 7cm / 7.5 * 7 * 2.75in (L * W * H)
Weight	577g / 20.36oz
Package Size	25 * 21 * 9.5cm / 9.84 * 8.27 * 3.74in (L * W * H)
Package Weight	913g / 32.23oz
