Smart Sensor 80W/40W Alloy Laser Module Laser Engraving Module Laser Head Module Built-in Air Pump with Air Auxiliary Function

This model is a double-light combination model, which increases power. The laser head of the machine has its own fan and built-in air pump. Heat dissipation of turbine blower, low noise, more beautiful and good effect. Control the start and stop of the fan and pump according to the laser intensity, increase the life of the fan and pump, or control it manually. Suitable for customers and friends who are interested in cutting or carving. Carving wood, plastic, bamboo, etc. can reach a depth of 3 mm.

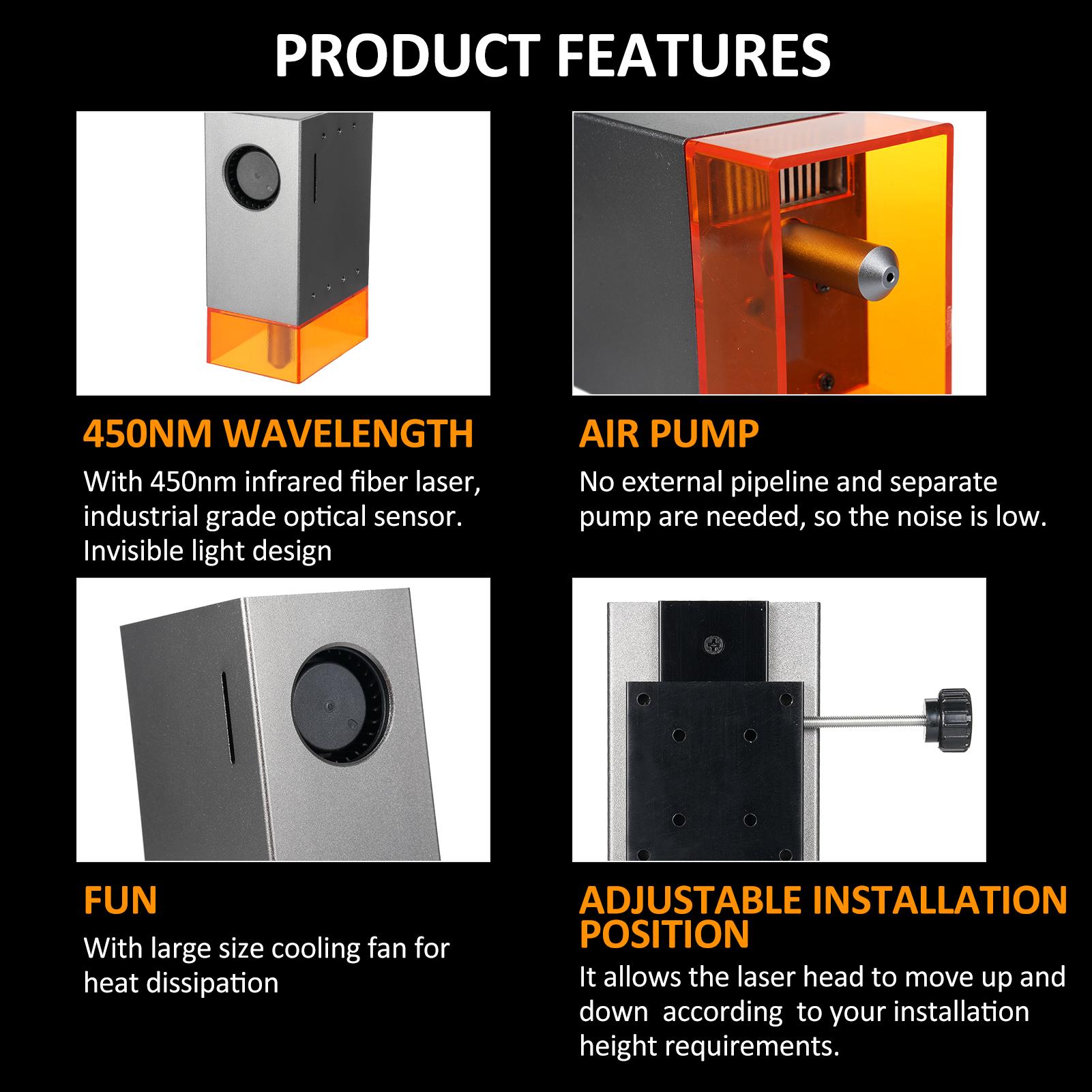

Features:
Deeper and Cleaner Cuts:Equipped with blower, the large and stable air blows away the smoke and debris generated during laser work, which helps to cut faster and deeper and improve laser efficiency, thus saving your time.
Clean and Smooth Cuts: Using air to blow away dirt and quickly reduce the temperature of the cutting material surface to prevent deformation and discoloration due to high temperature, ensuring smooth lines, complete patterns and clean material surfaces.
Built-in Air Pump: No external pipeline and separate pump are needed, so the noise is low. Turn on the air pump, and the cutting and carving effect will be better.
Multi-control: Control the start and stop of the fan and pump according to the laser intensity, increase the life of the fan and pump, or control it manually

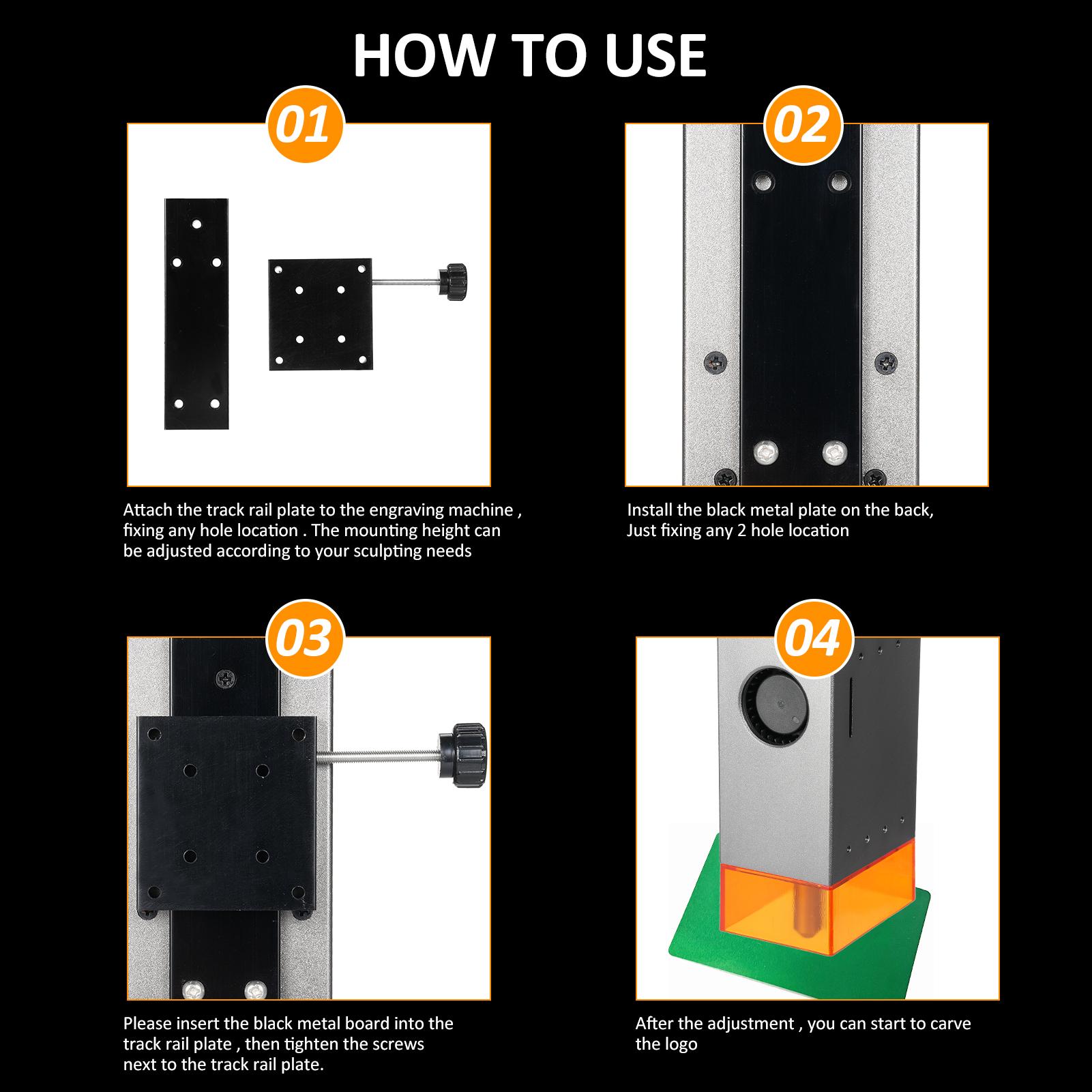

Adjustable Installation Position: Metal Plate for adjusting the mounting height is included in the package. It allows the laser head to move up and downaccordingto your installation height requirements.
Application: Suitable for customers and friends who are interested in cutting or carving. Carving wood, plastic, bamboo, etc. can reach a depth of 3 mm.

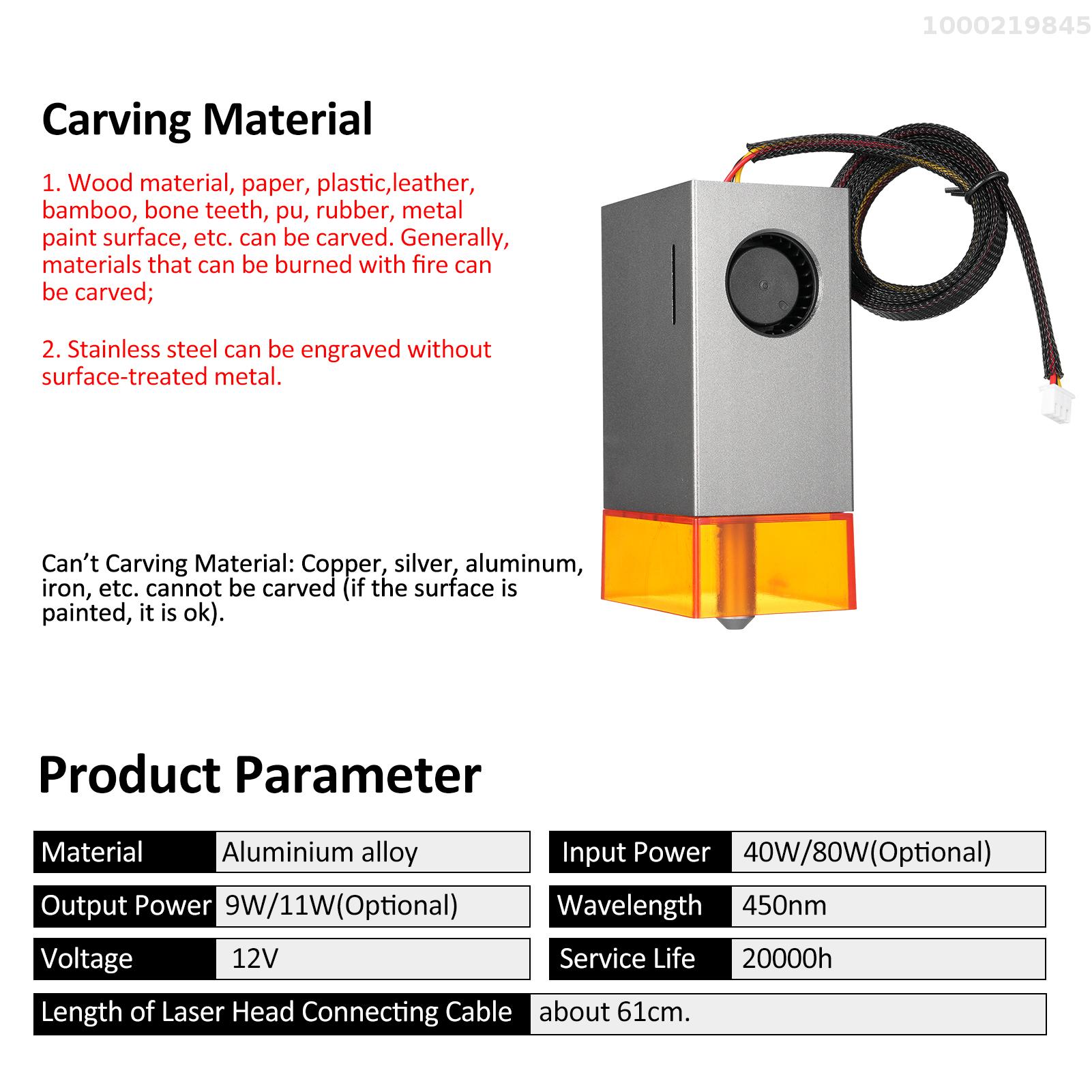

Description of carving material:
1. Wood material, paper, plastic, leather, bamboo, bone teeth, pu, rubber, metal paint surface, etc. can be carved. Generally, materials that can be burned with fire can be carved;
2. Stainless steel can be engraved without surface-treated metal.
3. Copper, silver, aluminum, iron, etc. cannot be carved (if the surface is painted, it is ok).

Cutting Range(80W):
Within 15mm: paper/bookmark/leather/cloth sponge non-woven fabric.
Wood chips within 15mm
Black acrylic within 10mm
Color thin plastic within 5mm
(*Note: This is the best cutting thickness, not only this thickness).

Cutting Range(40W):
Within 10mm: paper/bookmark/leather/cloth sponge non-woven fabric.
Wood chips within 10mm
Black acrylic within 7mm
Color thin plastic within 3mm
(*Note: This is the best cutting thickness, not only this thickness).

Specifications:

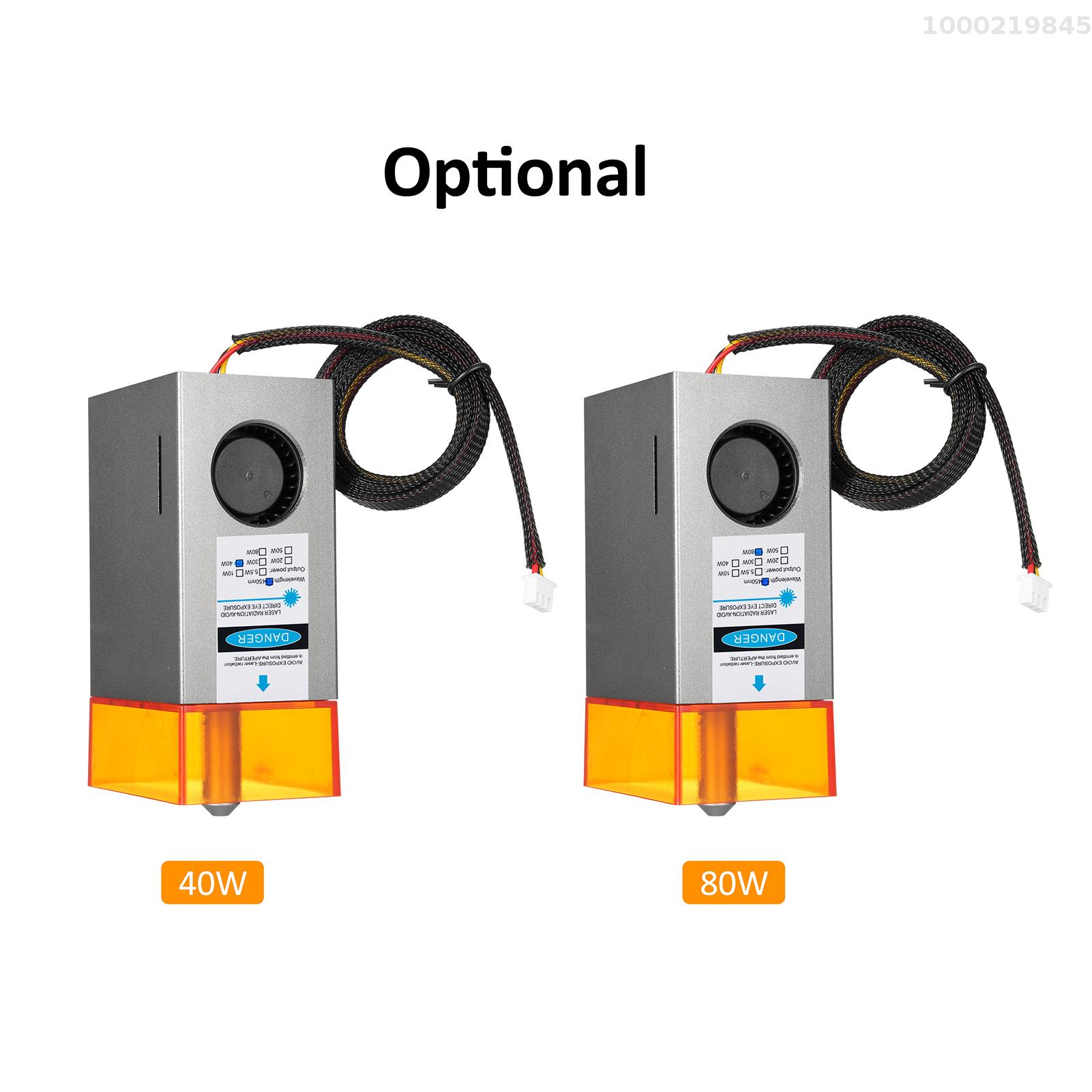

Product Type: 80W combined light + built-in air pump / 40W combined light + built-in air pump (Optional)
Length of Laser Head Connecting Cable: about 61cm.
Input Power: 80W / 40W
Output Power: 11W / 9W
Wavelength: 450nm
Voltage: 12V
Service life: 20000h.
Material: Aluminium alloy

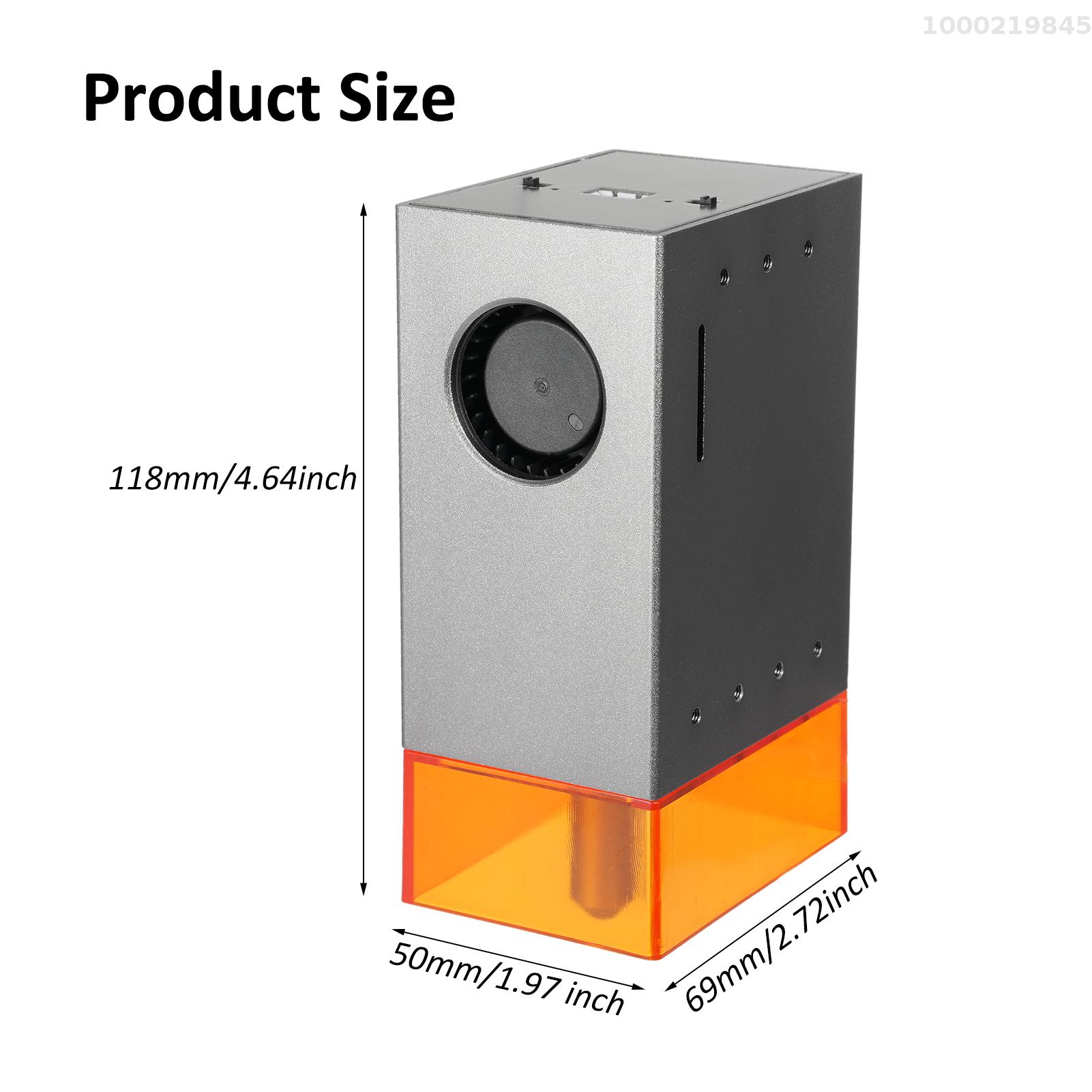

Item Size: 118 * 69 * 50 mm / 4.64 * 2.72 * 1.97 inch
Item Weight: 360g / 12.7oz
Package Size: 17.2 * 11.8 * 6 cm / 6.77 * 4.64 * 2.36 inch
Package Weight: 516g / 18.2oz
