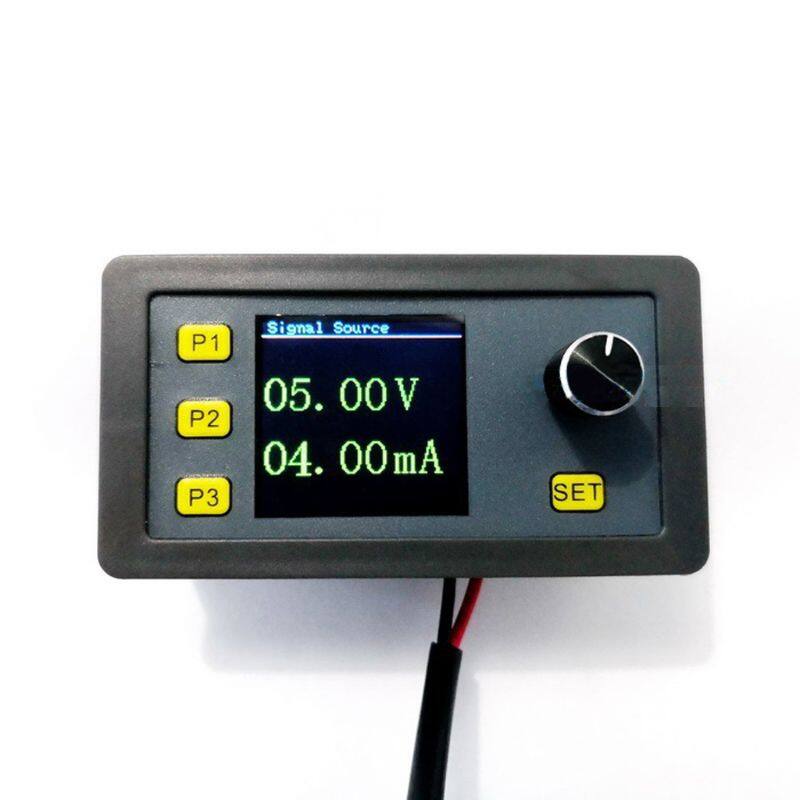

Signal Generator PWM Pulse Adjustable Module Sine Wave Generating 1-1000Hz 4-20mA 2-10V Multiple Modes

100% brand new and high quality
Features:
Made of high quality ABS and electronic components, it is solid, durable, and good performance, long service life.
Knob operation, immediately after adjusting the response output, no delay.
This module can be used with computer, PLC, DCS and some other equipment.
Large LCD display shows the testing results clearly, easy to read and operate.
It features multiple functions, including PWM mode, pulse mode, signal source mode and sine wave mode.
Strong signal load capacity that the max. output current is 30mA.
Signal generator only, other accessories demo in the picture is not included!

Specification:
Material: ABS, Electronic Components
Power supply voltage: 7-12V
Product function: PWM mode, pulse mode, signal source mode, sine wave mode

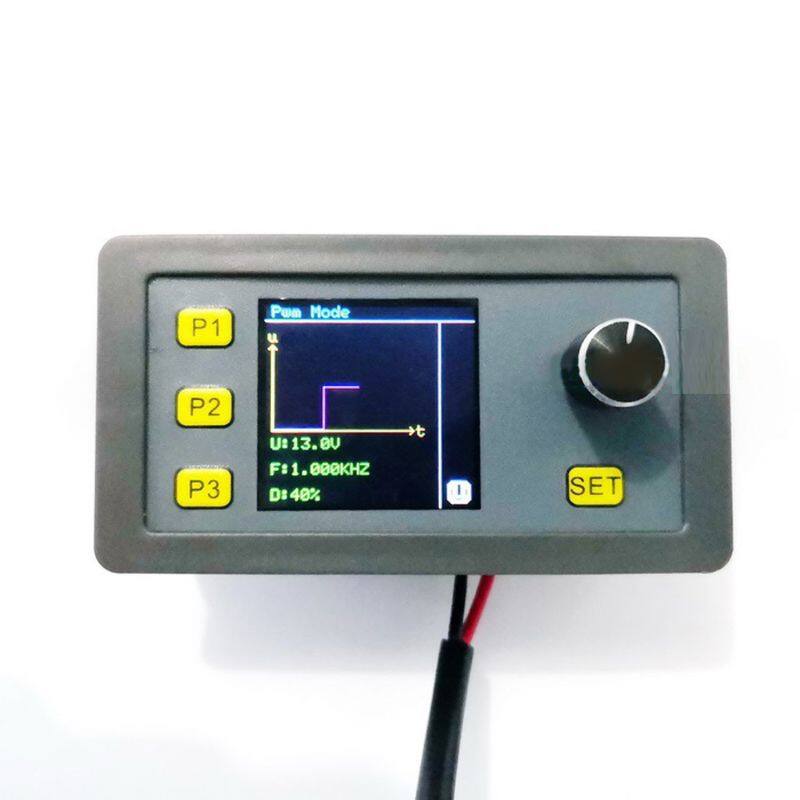

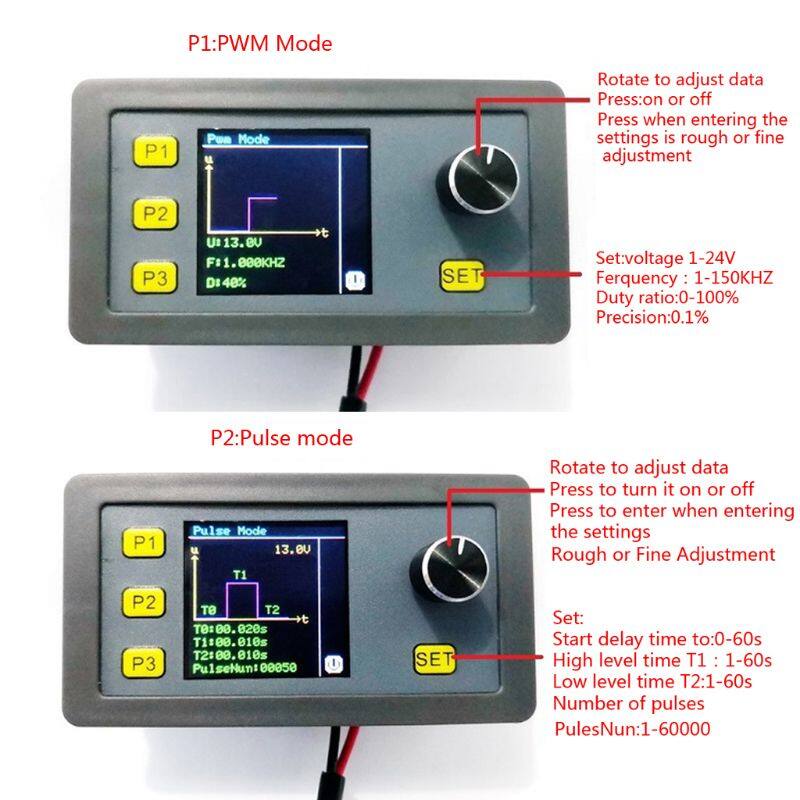

PWM mode: voltage, frequency, duty cycle are adjustable; accuracy is up to 0.1%; voltage range: 1-24V, frequency range: 1-150KHZ, duty cycle range: 0-100%

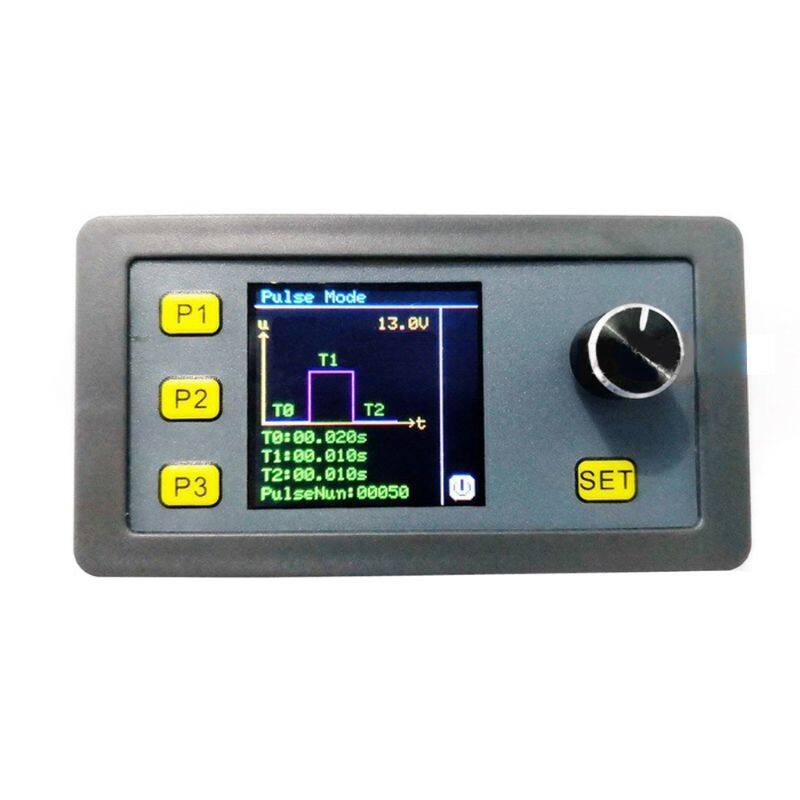

Pulse mode: start delay time T0: 0-60S, high time T1: 0-60S, low time T2: 0-60S, pulse number PulseNun: 1-60000, accuracy 0.001S

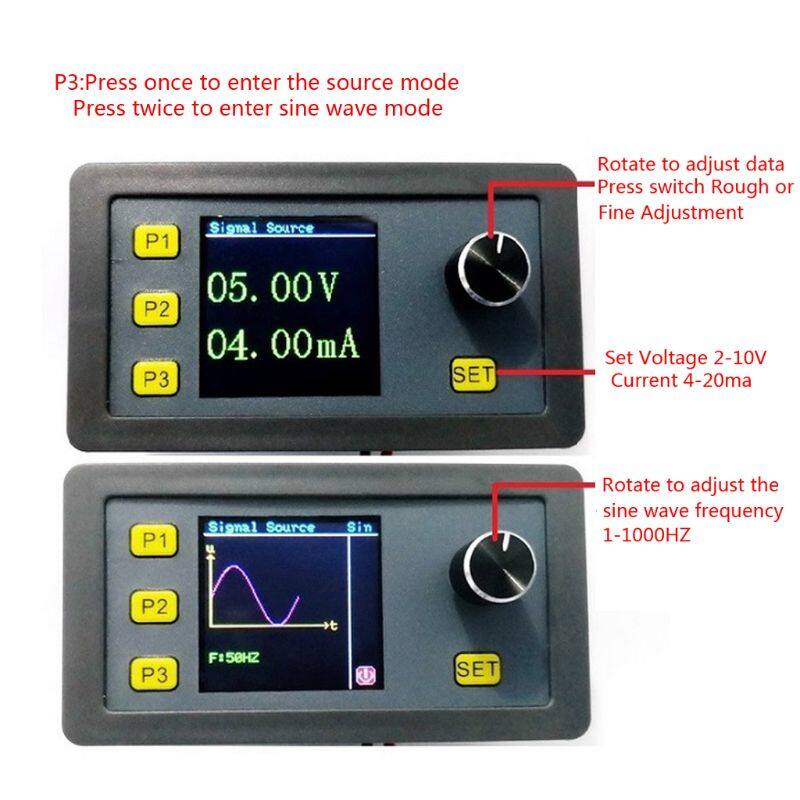

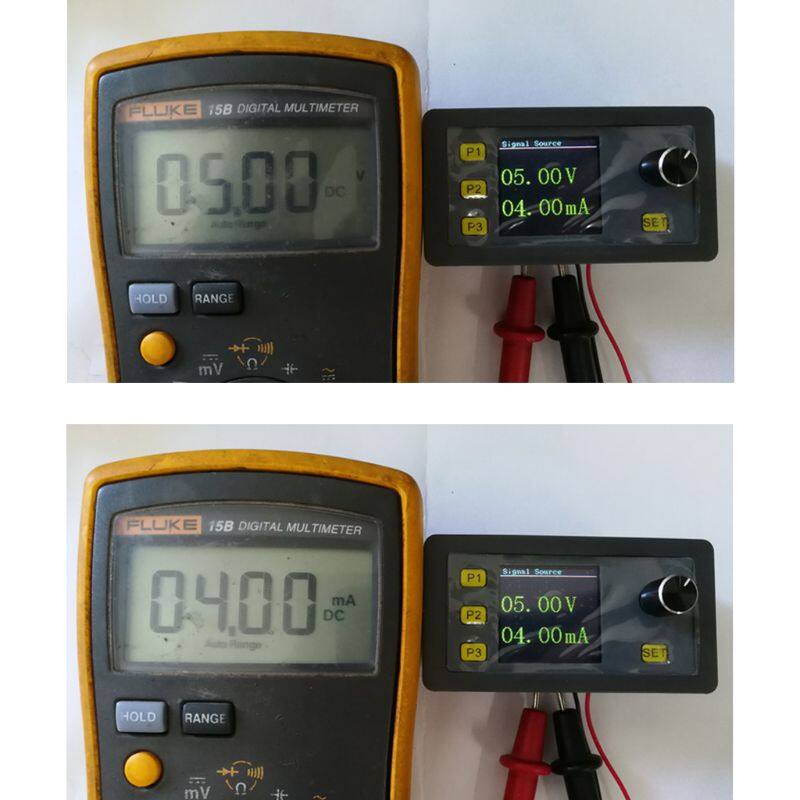

Signal source mode: adjustable voltage source 2-10V, adjustable current source 4-20mA

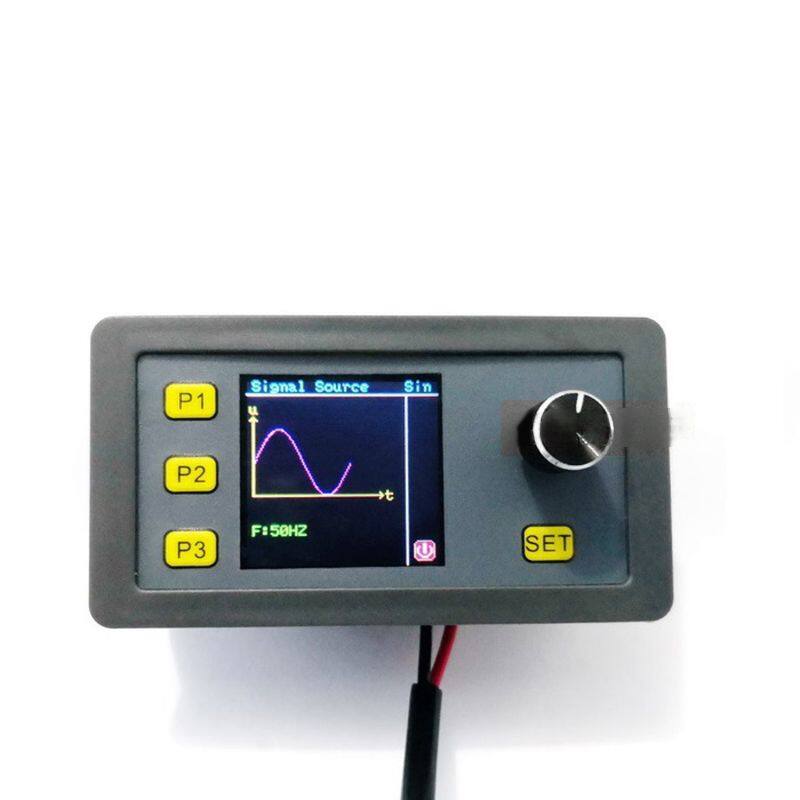

Sine wave mode: 1-1000HZ adjustable
Signal load capacity: The maximum output current is 30mA (Note: This product is a signal source which cannot drive high power loads directly.)
Size: app.7.9 x 4.3 x 41cm/3.11 x 1.69 x 16.14in
Hole size: app.7.6 x 3.9cm/2.99 x 1.54in
Color: Grey
Quantity: 1 Pc

Tips:

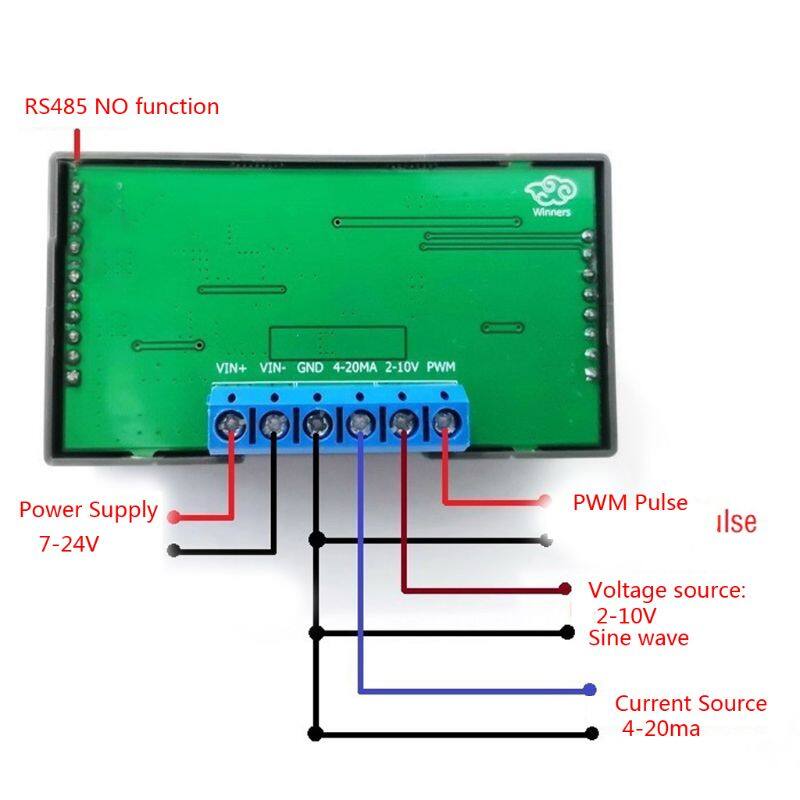

This module have no RS485 communication interface.

Note:
No retail package.
Please allow 0-1cm error due to manual measurement. pls make sure you do not mind before you bid.
Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!

Package includes:
1 x Signal Generator
