Shunt‑Release, Shunt Trip MX OF Replacement for Electronic Use

Feature:

1. Adapt to for Chint/Kunlun NXB series circuit breakers, can satisfy your multiple needs.
2. With excellent shell, high protection level, have heat resistance and impact resistance.
3. Remote control of circuit breaker opening, safe and efficient, easy and convenient to use.
4. With stable and excellent performance can be used to replace old or damaged relay module.
5. Small in size and light in weight, convenient to carry and use at any time, very convenient and practical.

Specification:

Item Type: Shunt‑Release
Product Model: MX+OF
Working Voltage: AC/DC110-400V, AC/DC24-48V
Action Time: 0.01ms
Installation Method: DIN rail installation
Function: Assemble with circuit breaker to realize remote shunt trip and feedback signal

Package List:

1 x Shunt‑Release

Note:

For electrical maintenance and installation, be sure to ensure that the operator has electrical work qualifications and take necessary power‑off and insulation protection measures.

How to Use

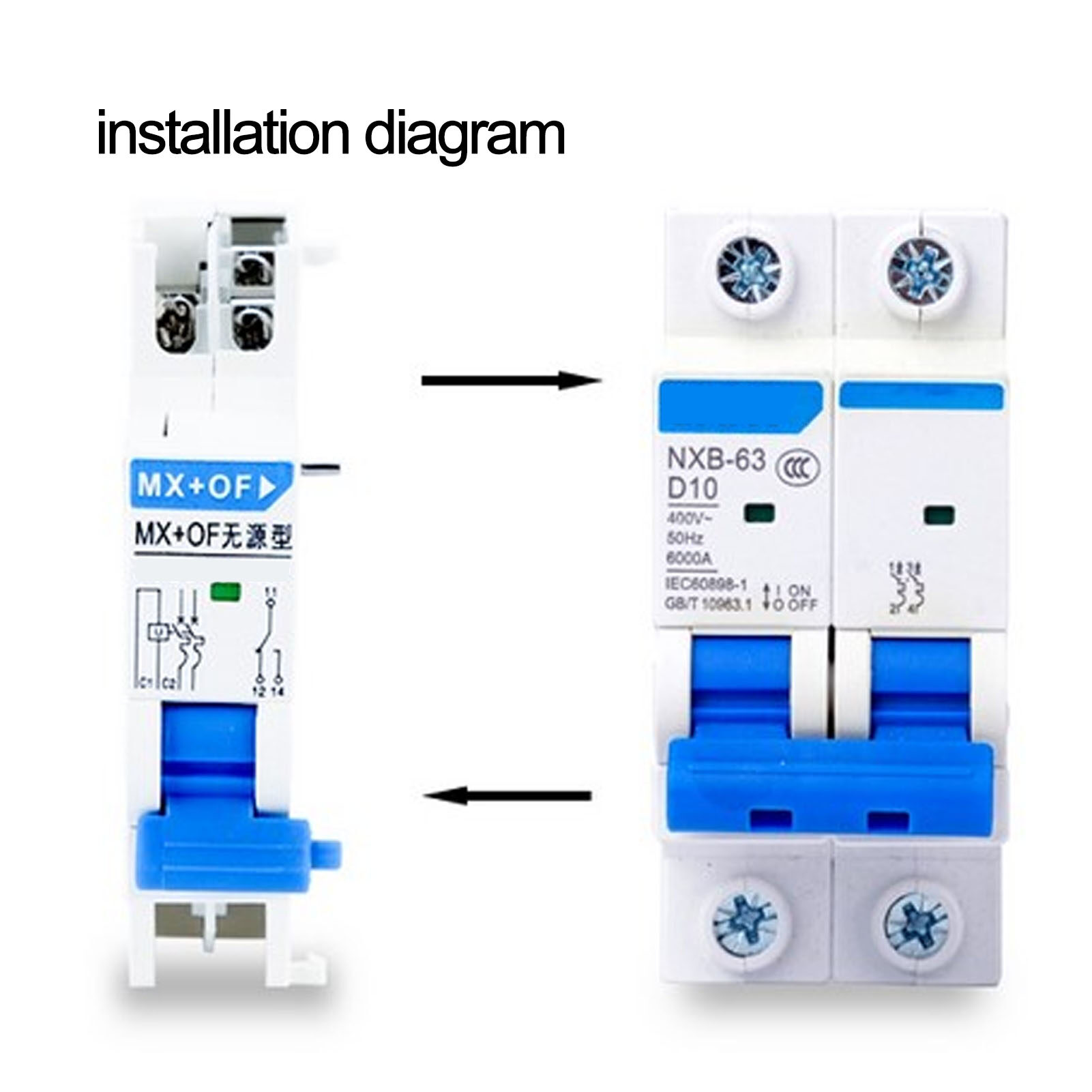

1. Assembled with NXB‑63 or NXB‑40 series circuit breakers

2. When wiring, connect the working voltage to the terminals C1 and C2, "C2" connects to the phase line of the AC power supply (or the positive pole of the DC power supply), and "C1" connects to the N line of the AC power supply (or the DC power supply through the external control contact). negative electrode)
