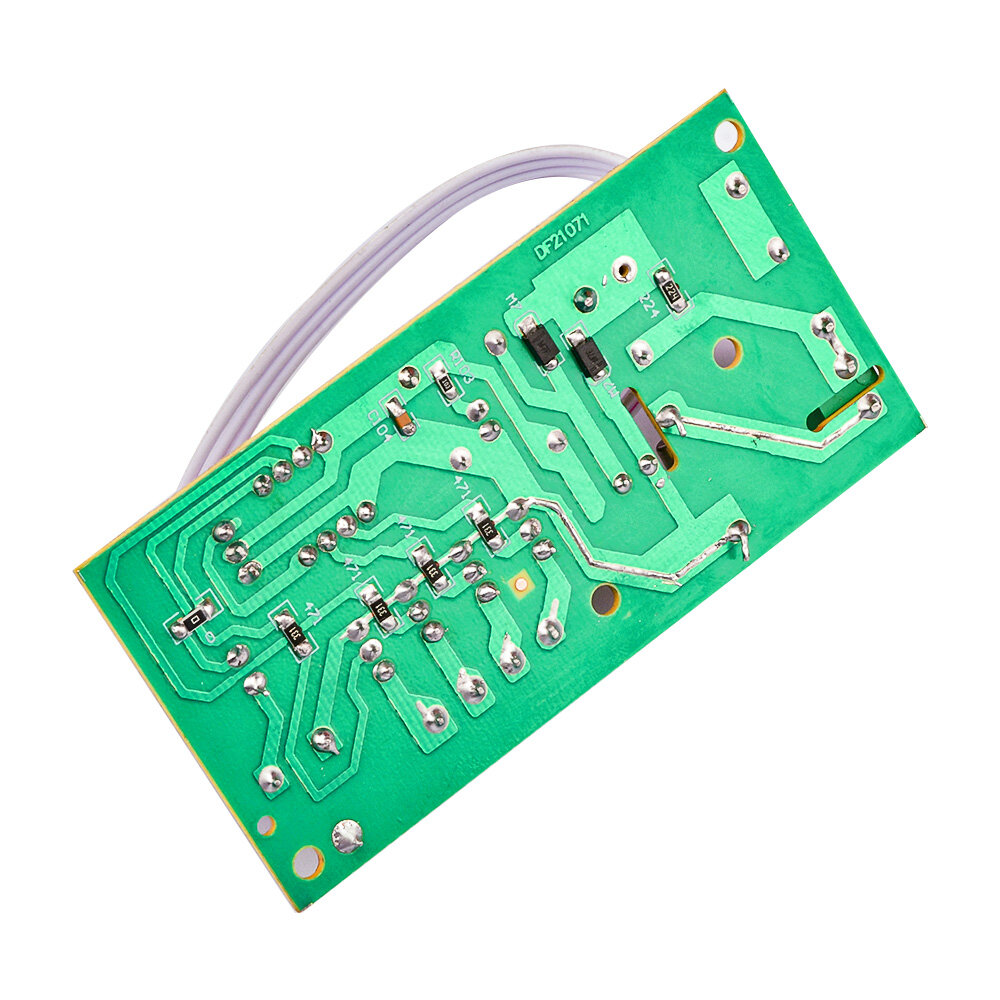

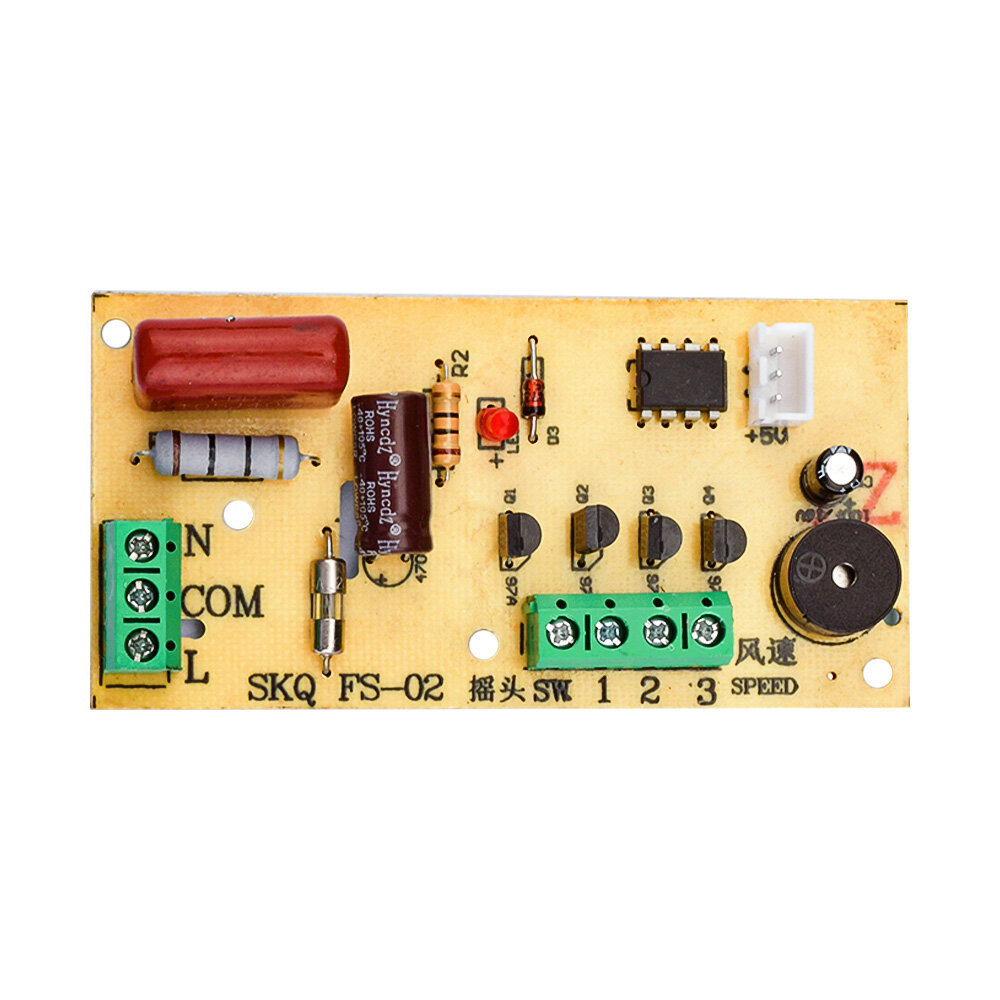

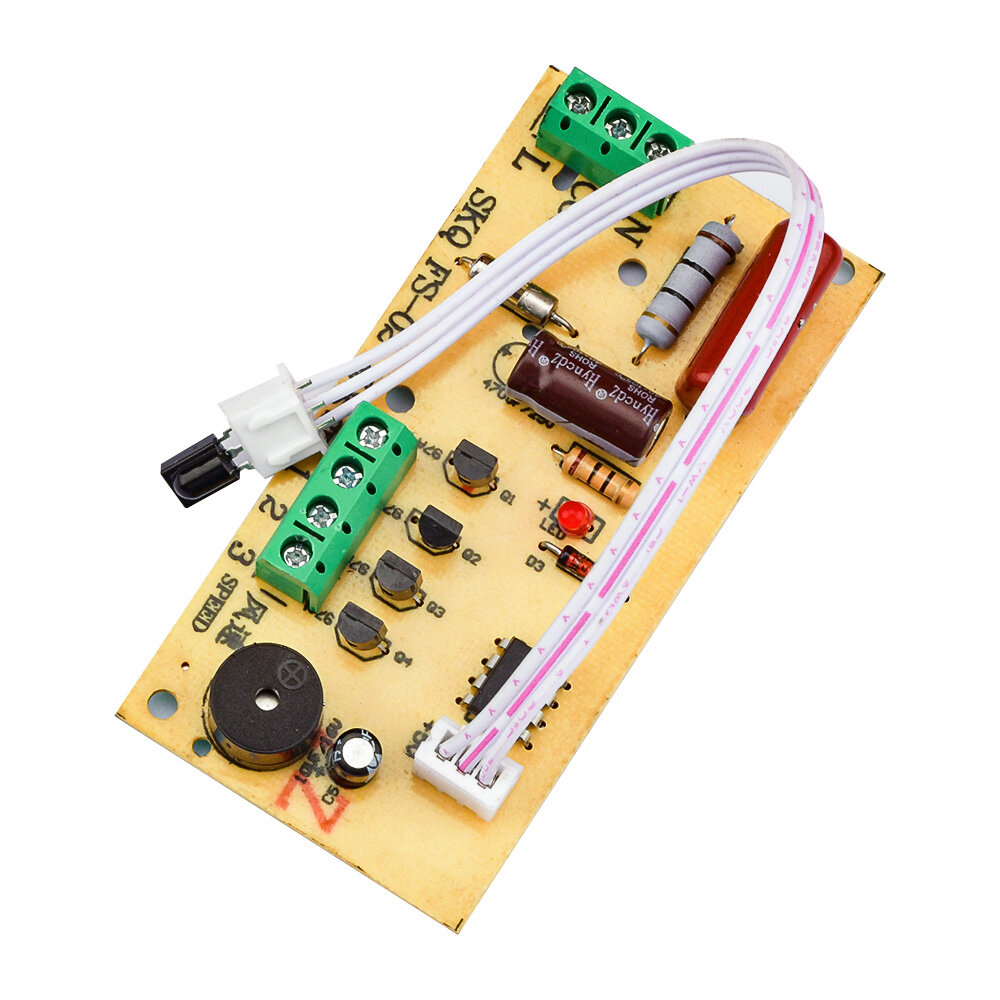

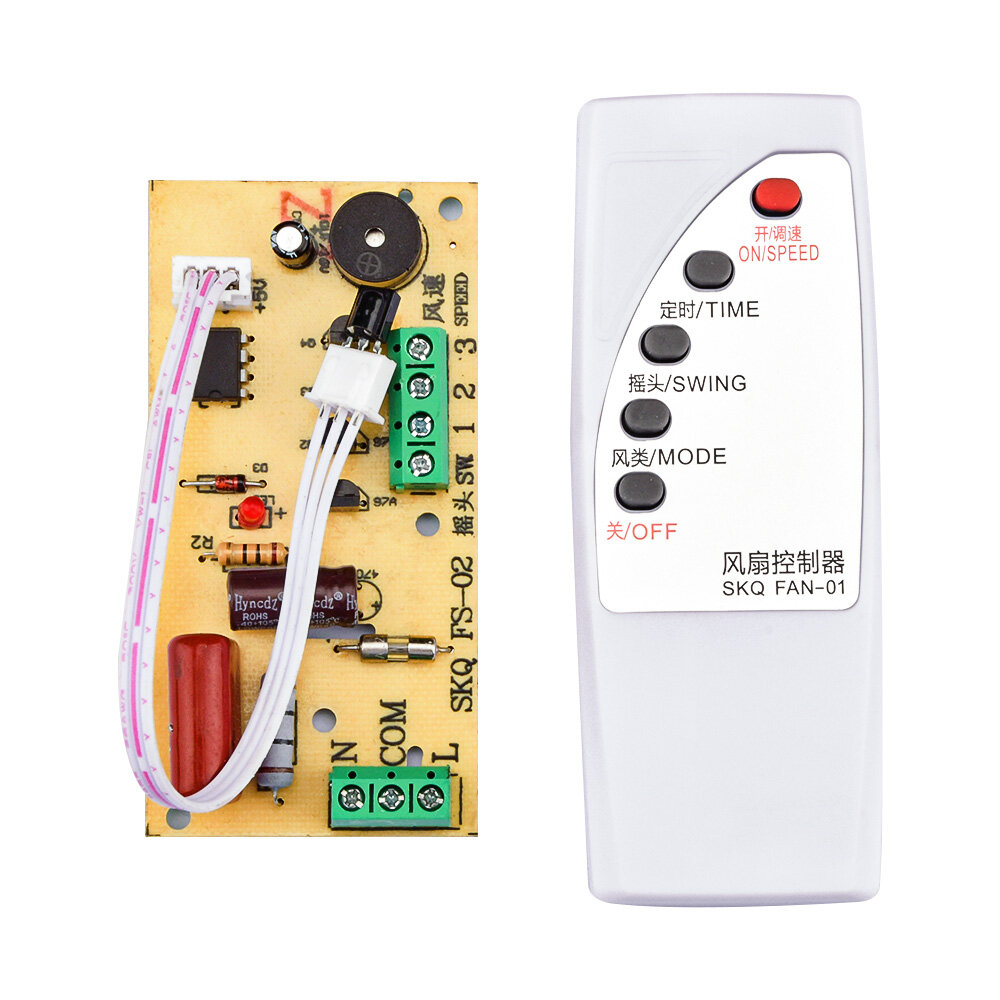

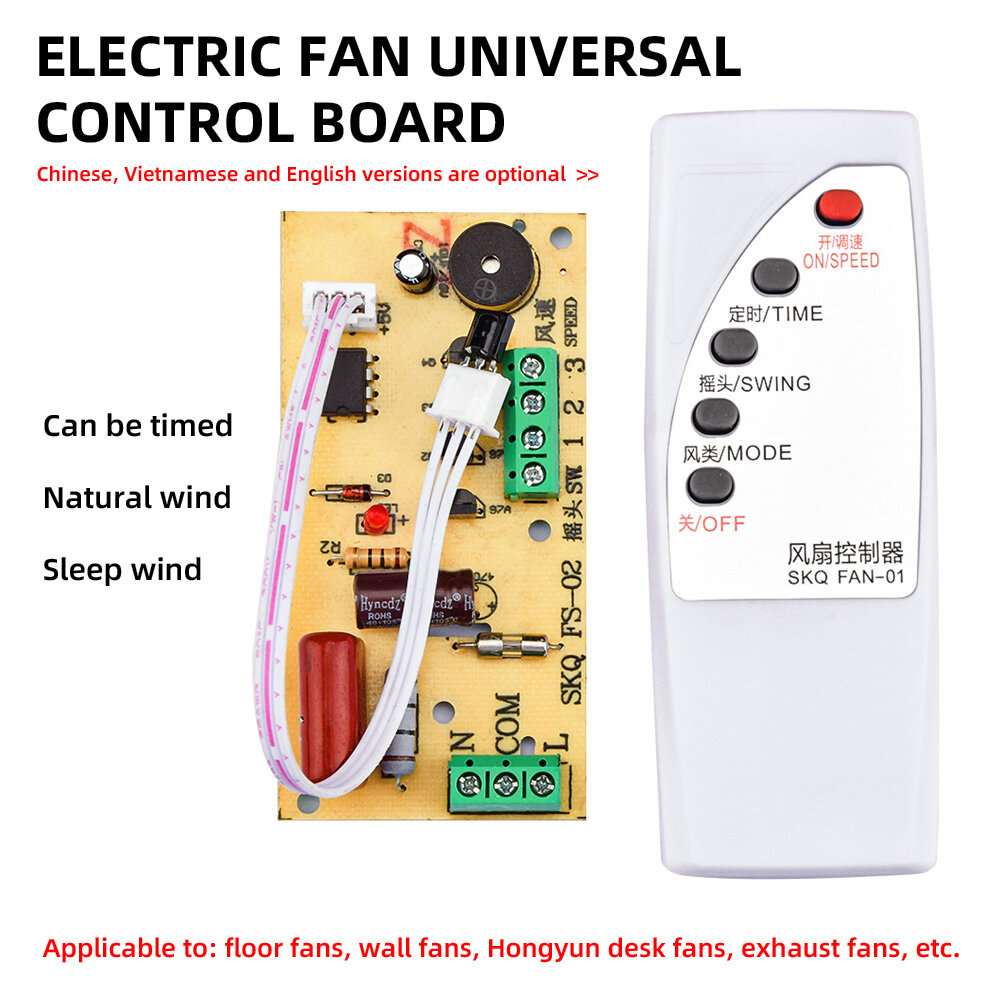

Shockley Fan Remote Control Modified Board Circuit Board Control Motherboard Floor-to-ceiling Electric Fan Computer Board with Remote Control

Features:

1: Wide range of applications

2: Small size

3: Durable

4: Simple to use

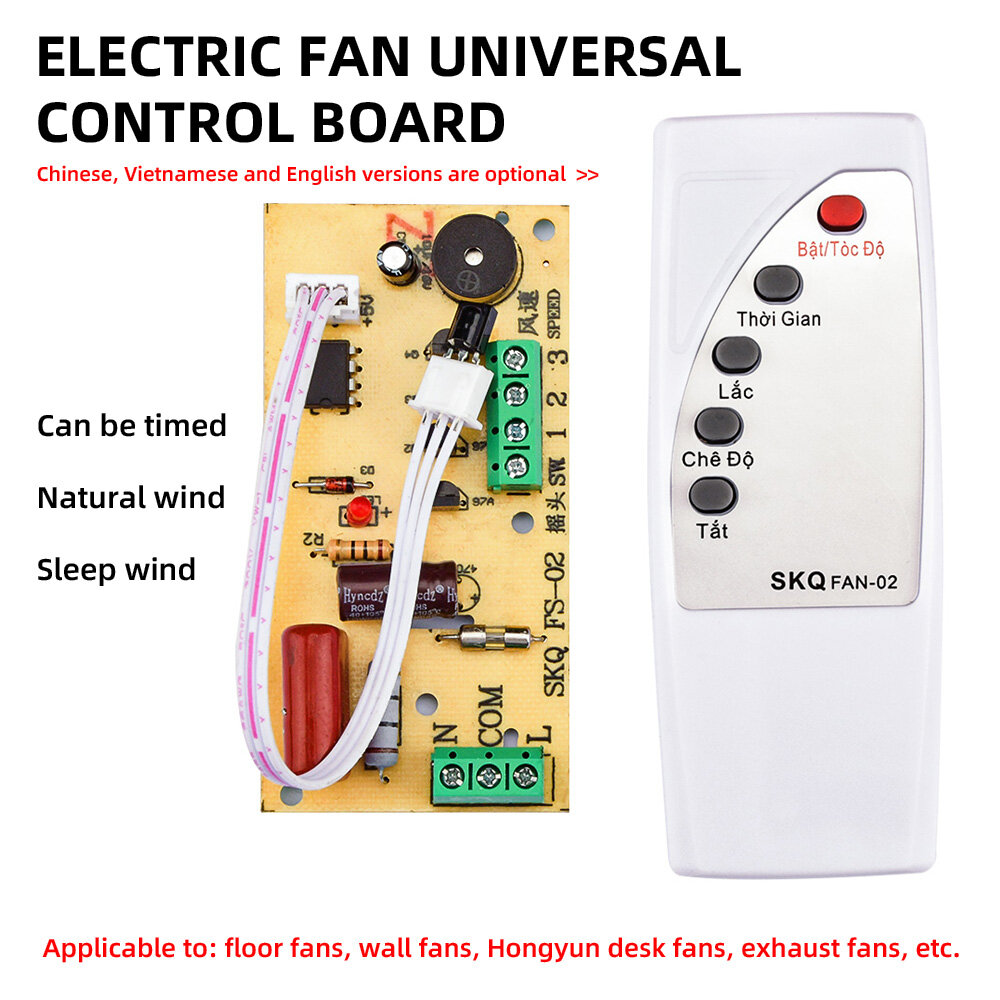

5: Three versions, optional

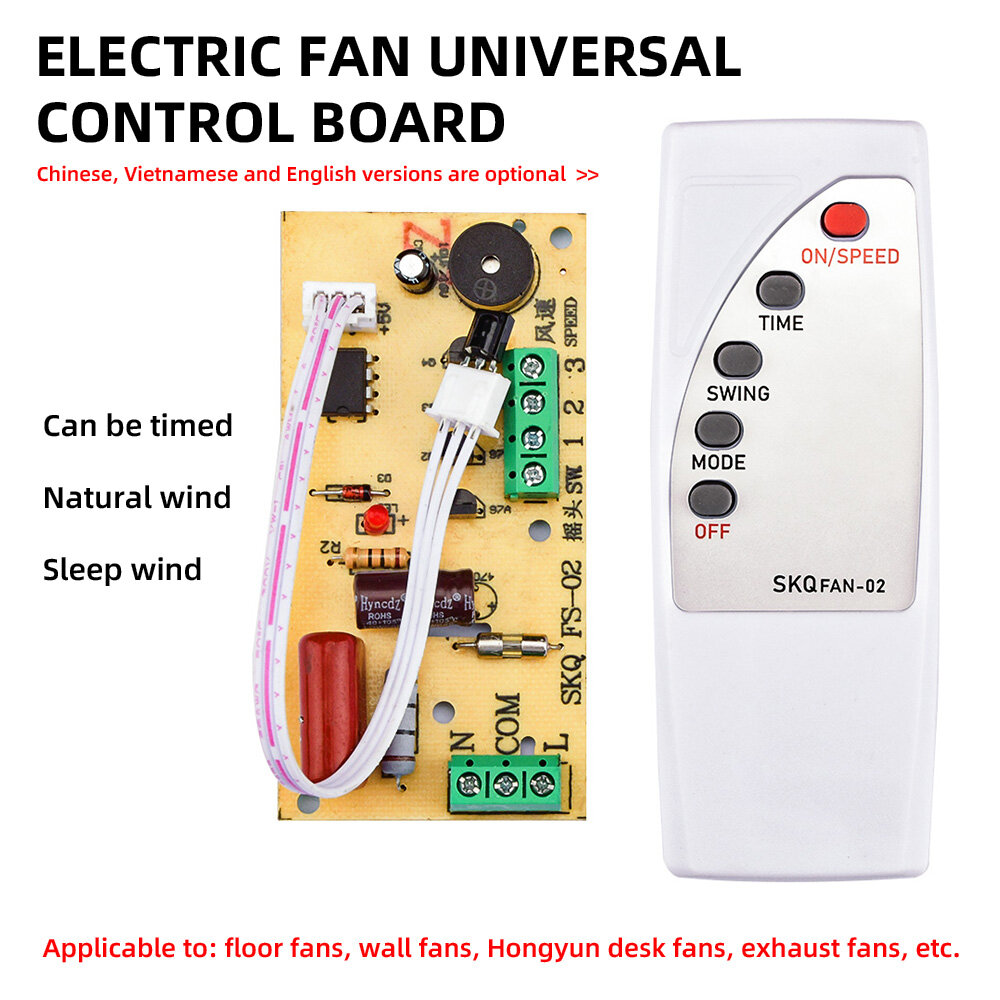

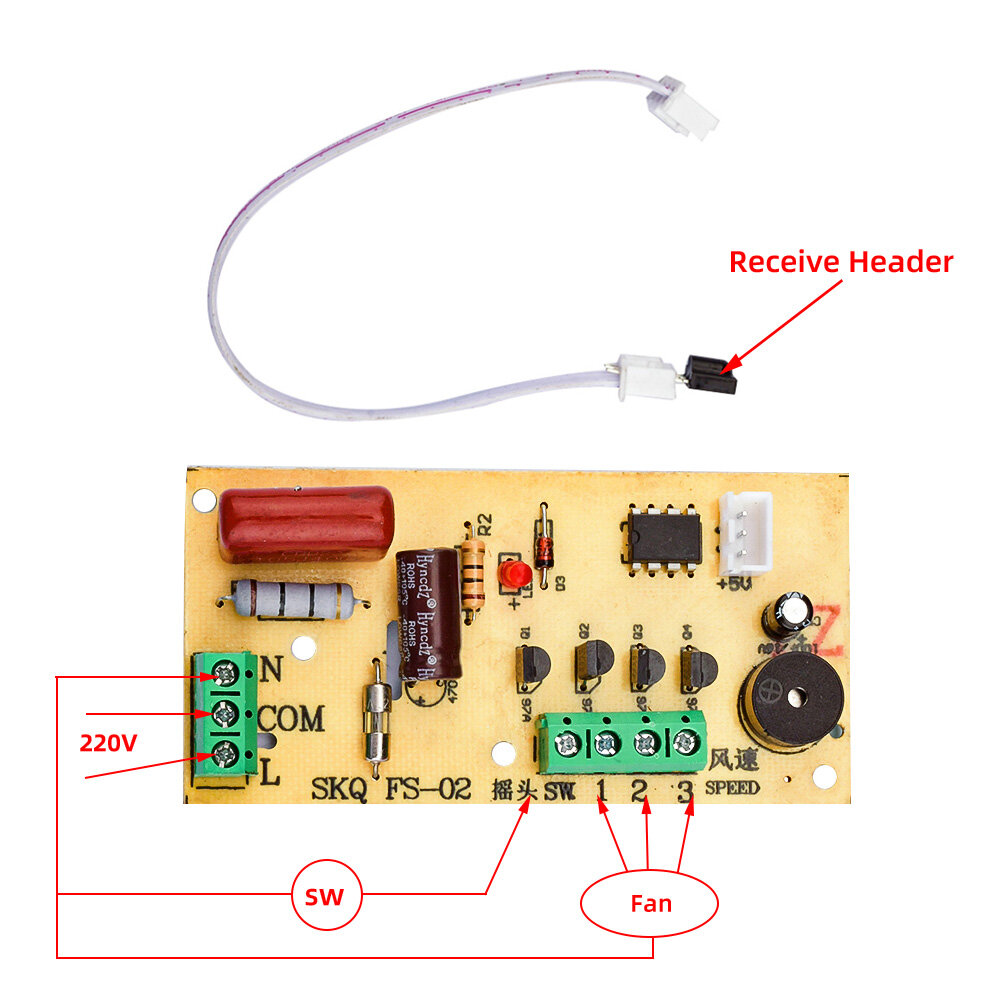

This board is universal. Floor fans, shaking heads, desk fans, etc. can be converted into remote control fans even if they used to be fans without remote control. The modification is simple. The 3 wires can be controlled by connecting the high, middle and low grades respectively, and the modification is simple!

Specification:

Input voltage: 110V-240V 50HZ-60HZ

Output voltage: 110V-240V 50HZ-60HZ

Output power: four-way output, single-way 100W, total power 400W

Receiving method: infrared

Receiving distance: 6-10 meters

Instructions:

1. On/Fan speed: In standby state, press the "On/Fan Speed" button, the fan will work in strong wind, and then press this button again, the fan can work in a cycle of "large-medium-small"

2. Shaking his head: In the working state, press the "Shake Shaking" key to enter the shaking head state, and press this key again to turn off the shaking head.

This function cannot be used without a shaking motor!

3. Timing: in working state, press the "timing" key, follow the sequence of "0.5-1-1.5-2-2.5-3-3.5-4- 4.5-5-5.5-6-6.5-7-7.5-0" Cycle timing.

4. Wind type: In the working state, press the "wind type" button to switch the working mode of "natural wind -- sleep wind -- normal wind"

5. Shutdown: In working state, press this key to turn off all working states of the fan.

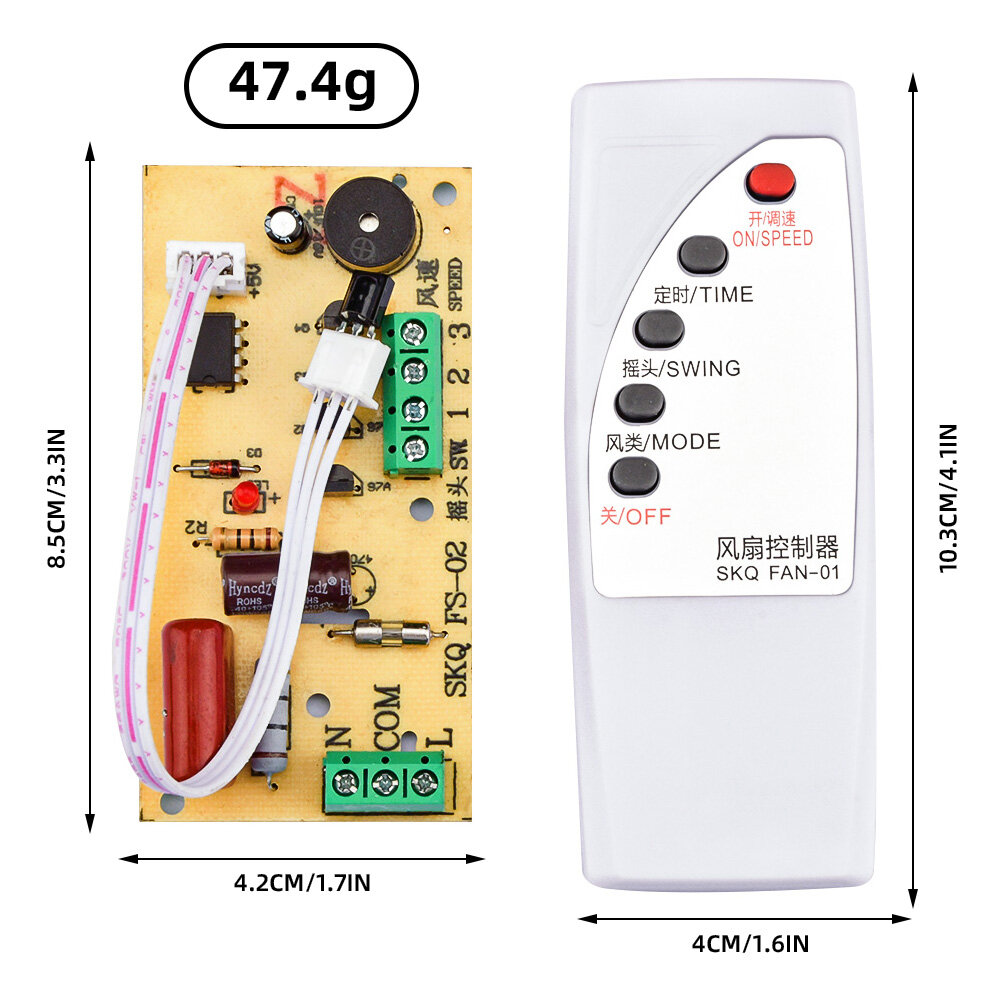

Package includes:

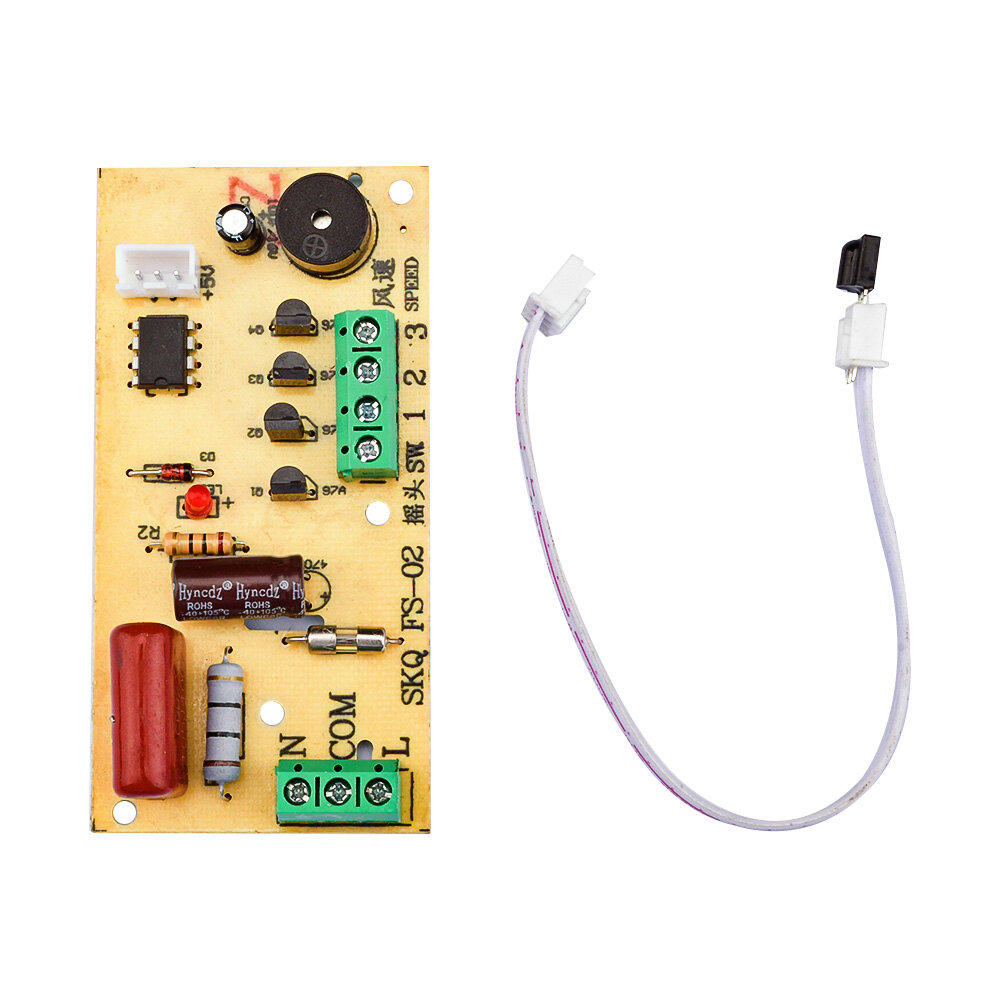

1*control board

1*remote control
