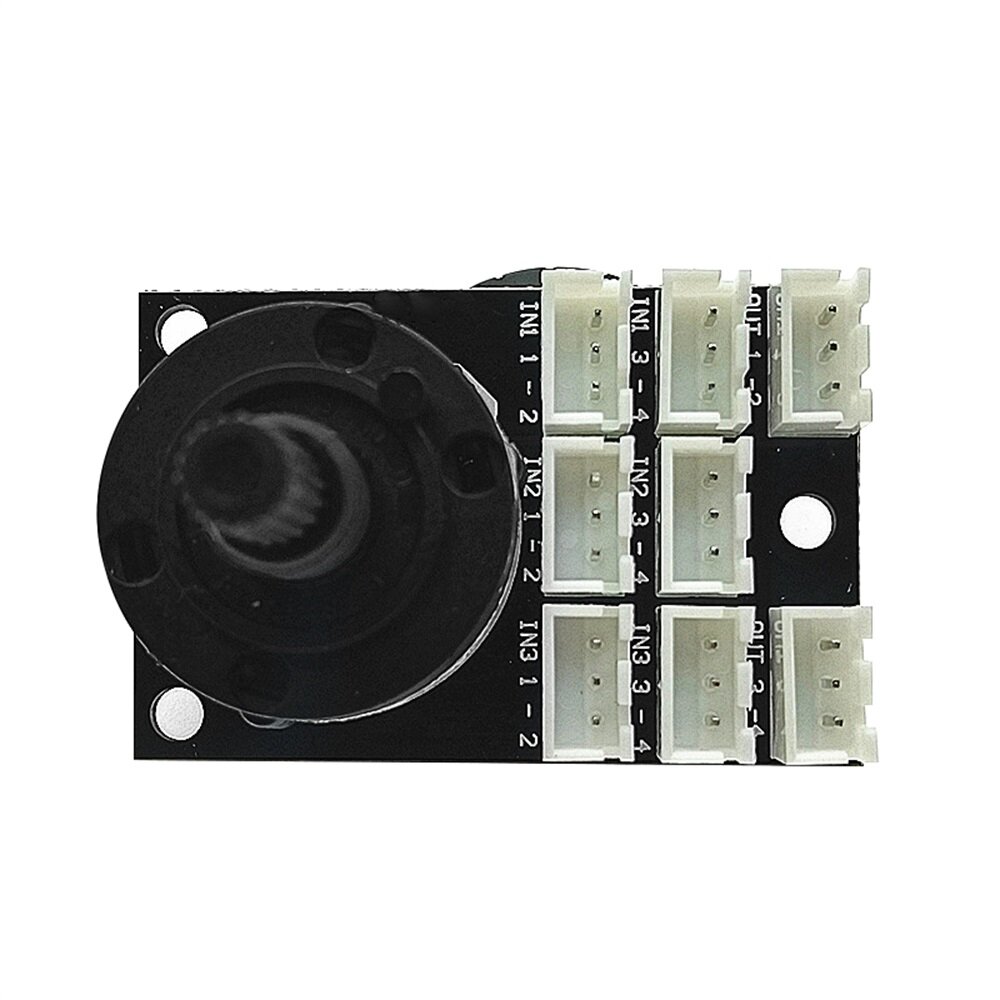

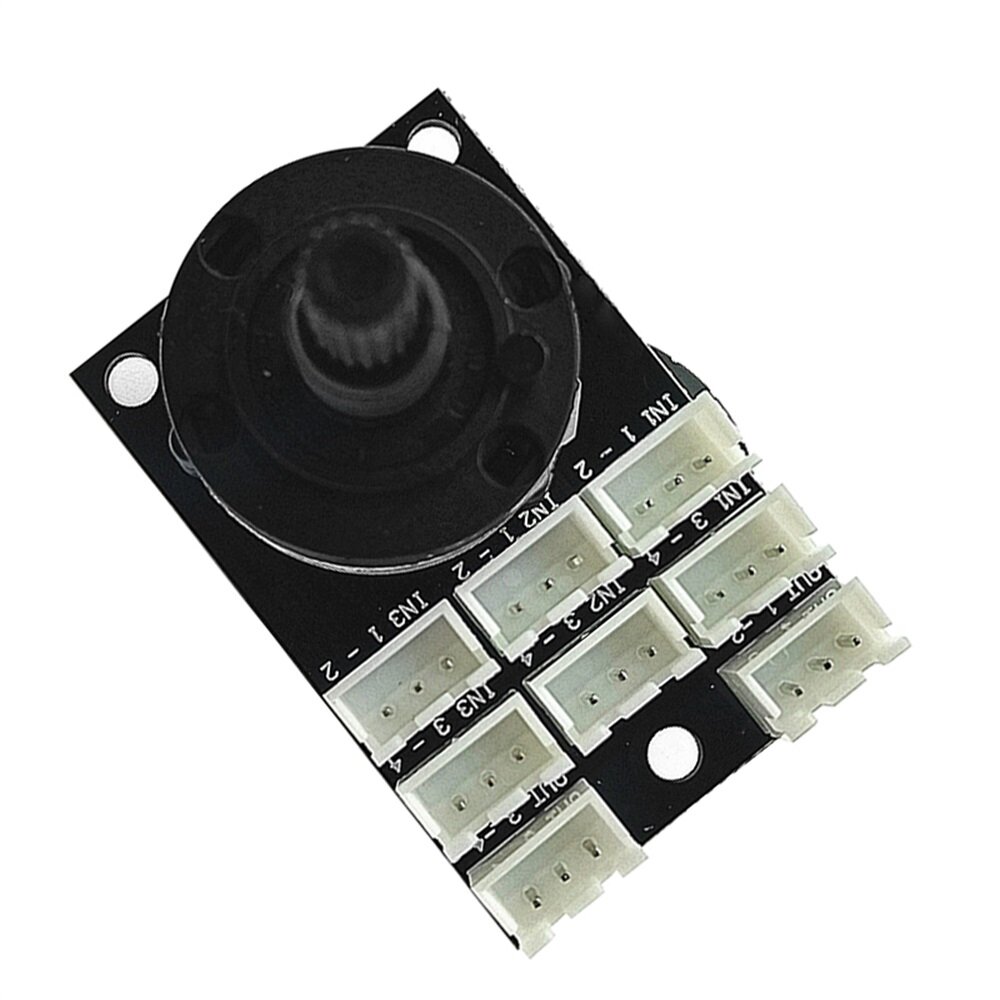

Shockley DIY Switching Board 3 Way Signal Selector Amplifier Relay Audio Input Switch Module with RAC Input

Features:

1.Adopt rotary switch and pcb welding design, occupying small installation panel space；

2.The switch is equipped with fixing screws for easy installation and fixation, without power supply and electromagnetic interference.

3.It is equipped with four 4-hole lotus seats for input and output.

4.Support for switching between two methods (see the operating instructions).

5.The sound source input and output adopts a 4-hole fully sealed RCA lotus socket.

6.The length of the supporting signal shield wire is optional, and there is a shipping rotary switch knob cap.

Parameters:

Lotus seat: 4 holes

Switch board size: 50mm * 33mm

Diameter of switch screw fixing opening: 9.5mm

Usage of 4-channel 3-channel audio source switchboard:

1:1 divided into 3 modes (4-channel signals are input from OUT1-4 terminal and output from IN1-IN3 terminal through a toggle switch).

Option 1 from 2:3 (input from IN1-IN3 terminal, signal output from OUT1-4 terminal through switching switch).

Package include:

Package 1:

1X switching board

1X knob cap

Package 2:

1X switching board

1X0.3m shielded wire

1X knob cap

Package 3:

1X switching board

1X0.5m shielded wire

1X knob cap

Be careful: If you choose to purchase a separate switch board, the shipment is only a finished switch board with a knob cap, and there are no other accessories.
