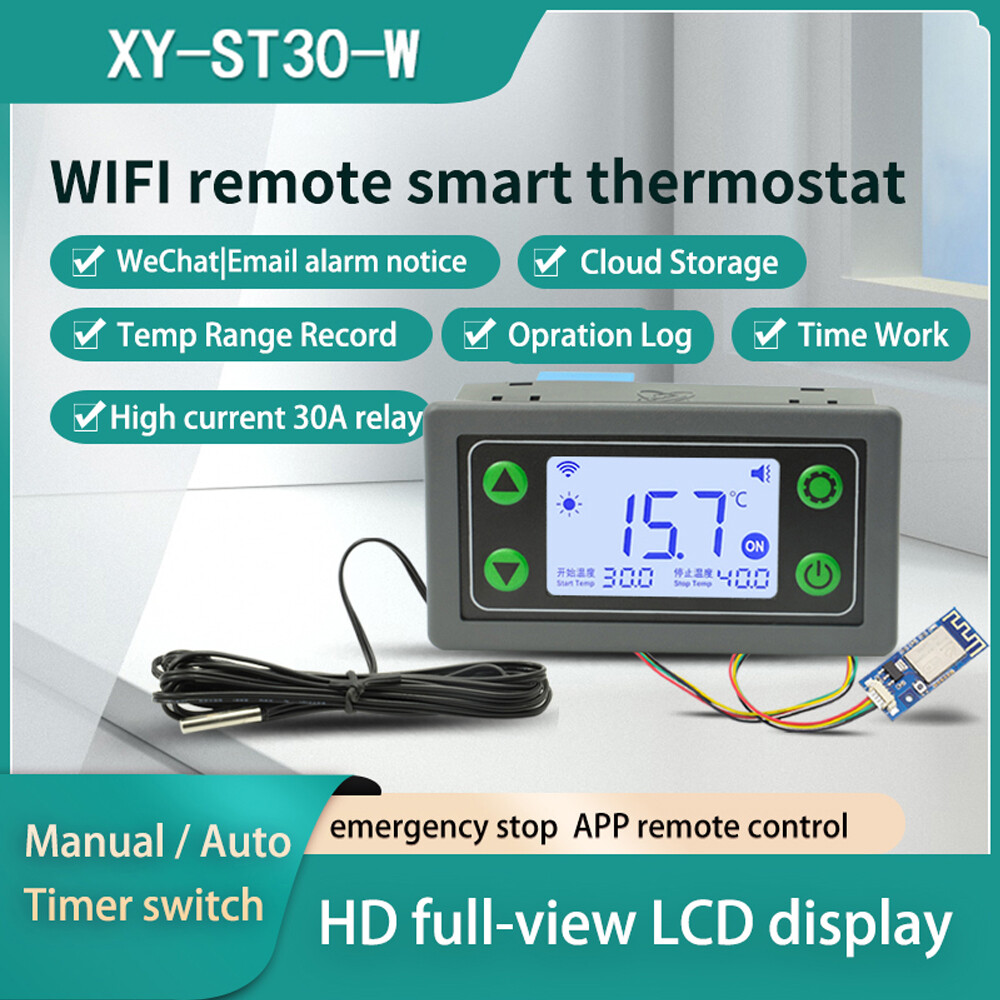

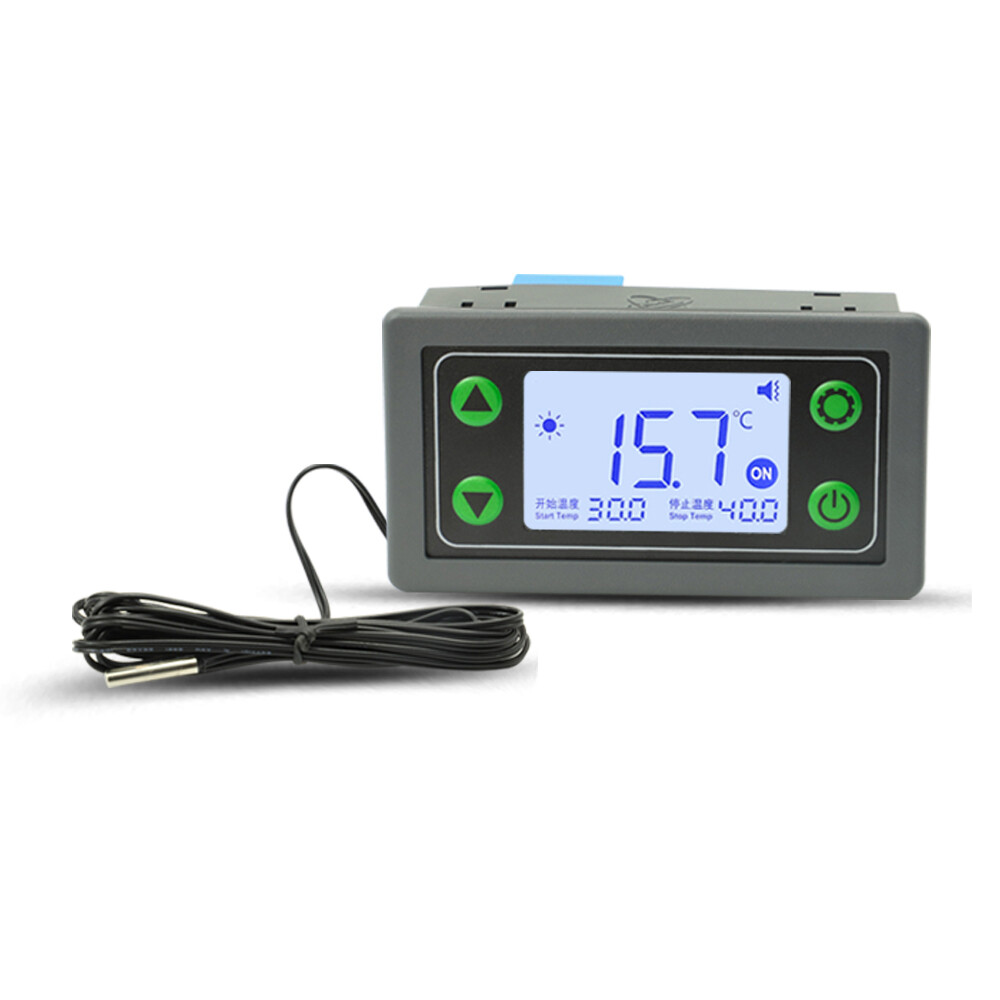

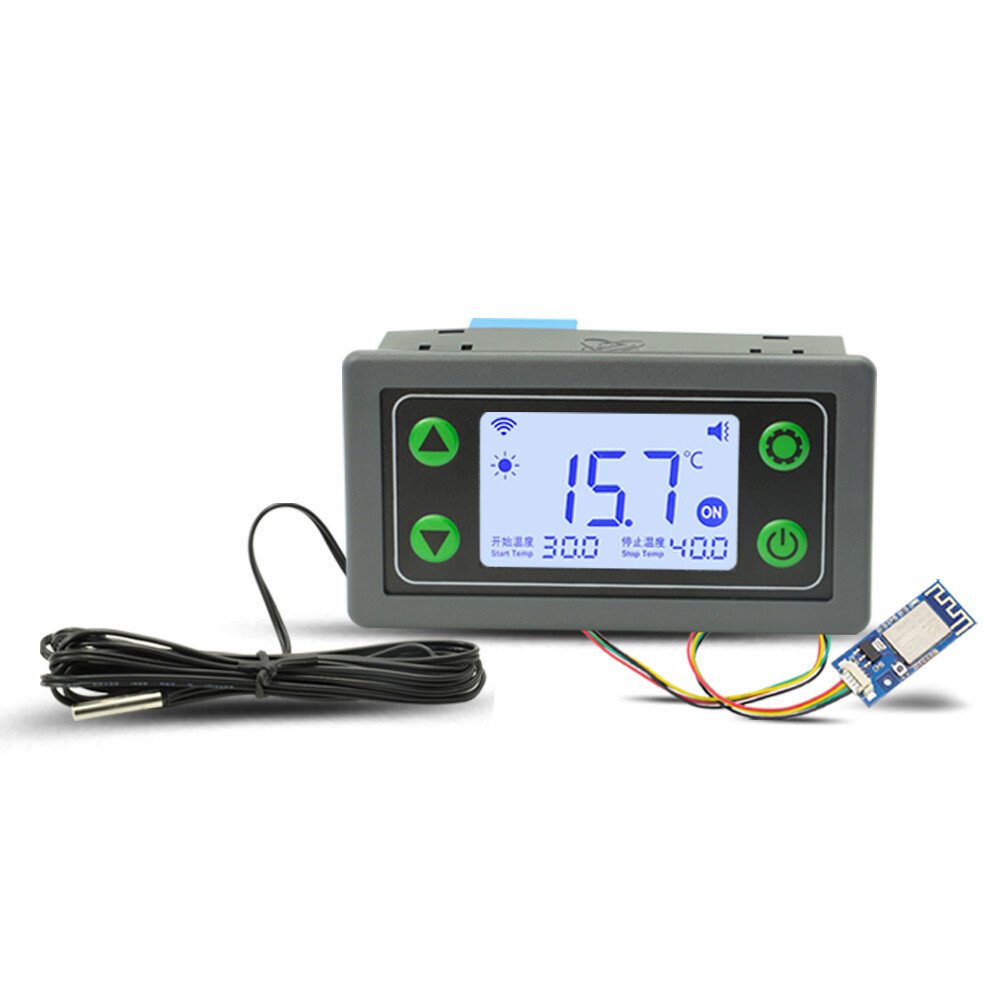

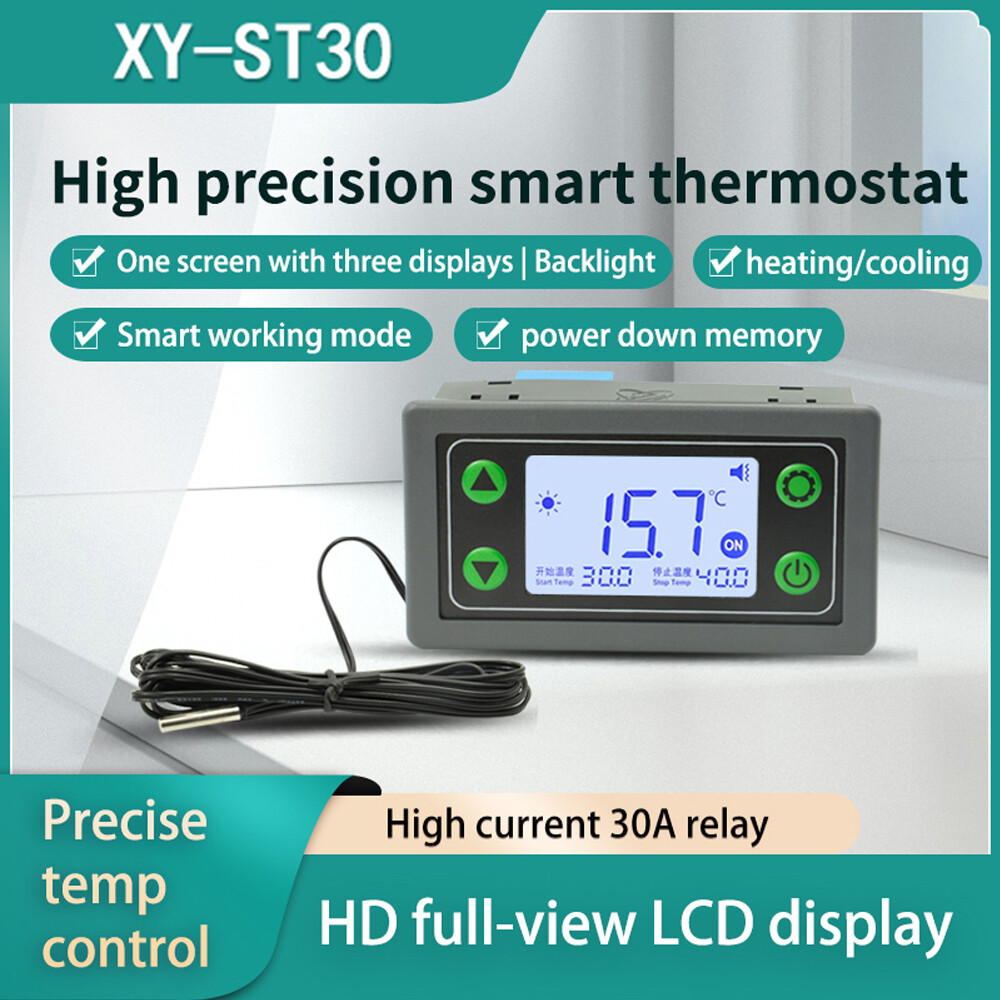

Shockley DC6-30V Temperature Controller ST30 Wifi Remote Digital Thermostat Temperature Control with Waterproof NTC Sensors

Features:

1. Use high-quality materials with guaranteed quality

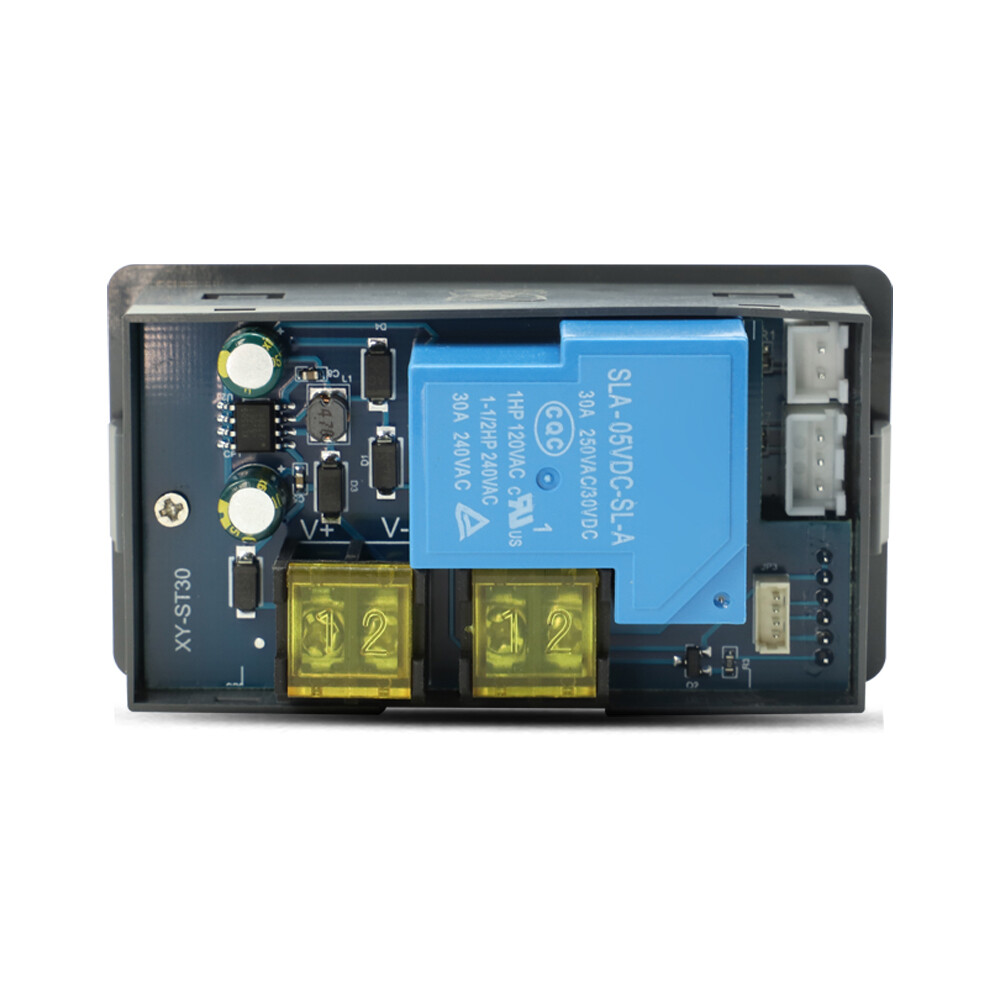

2. High current 30A relay

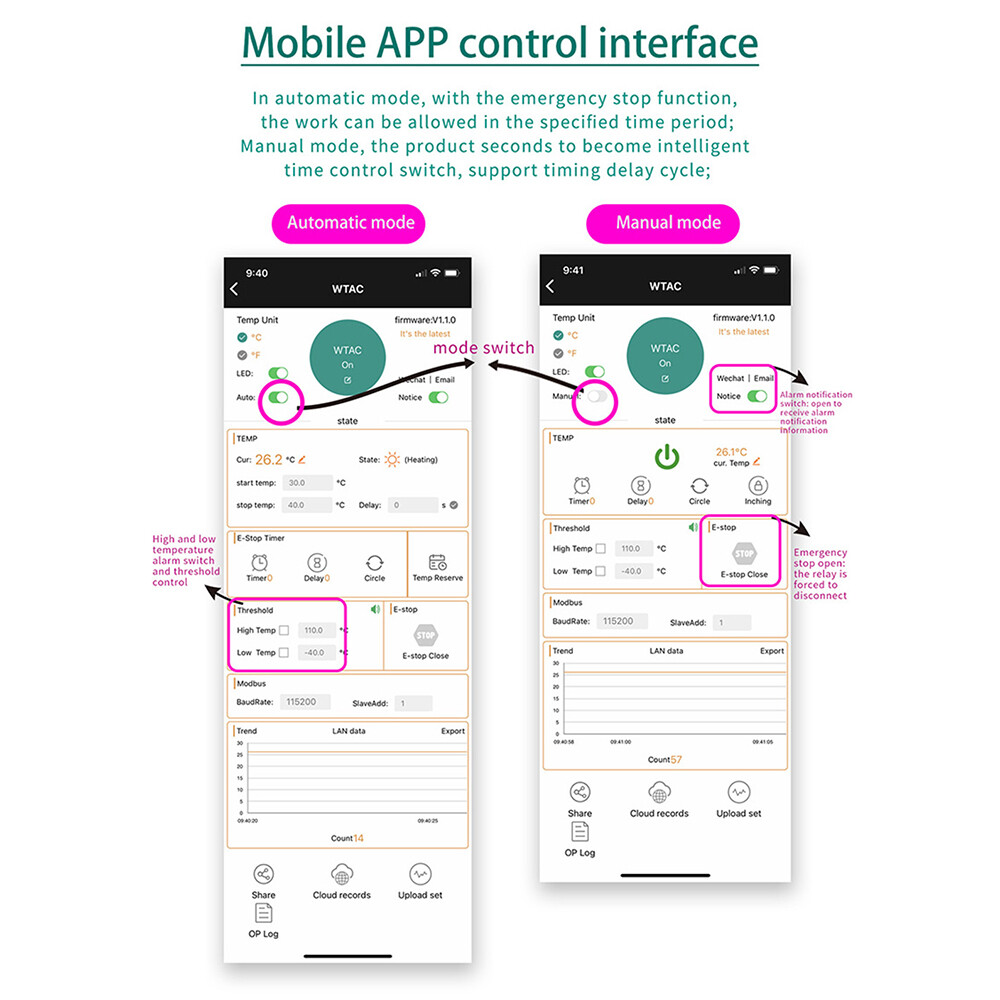

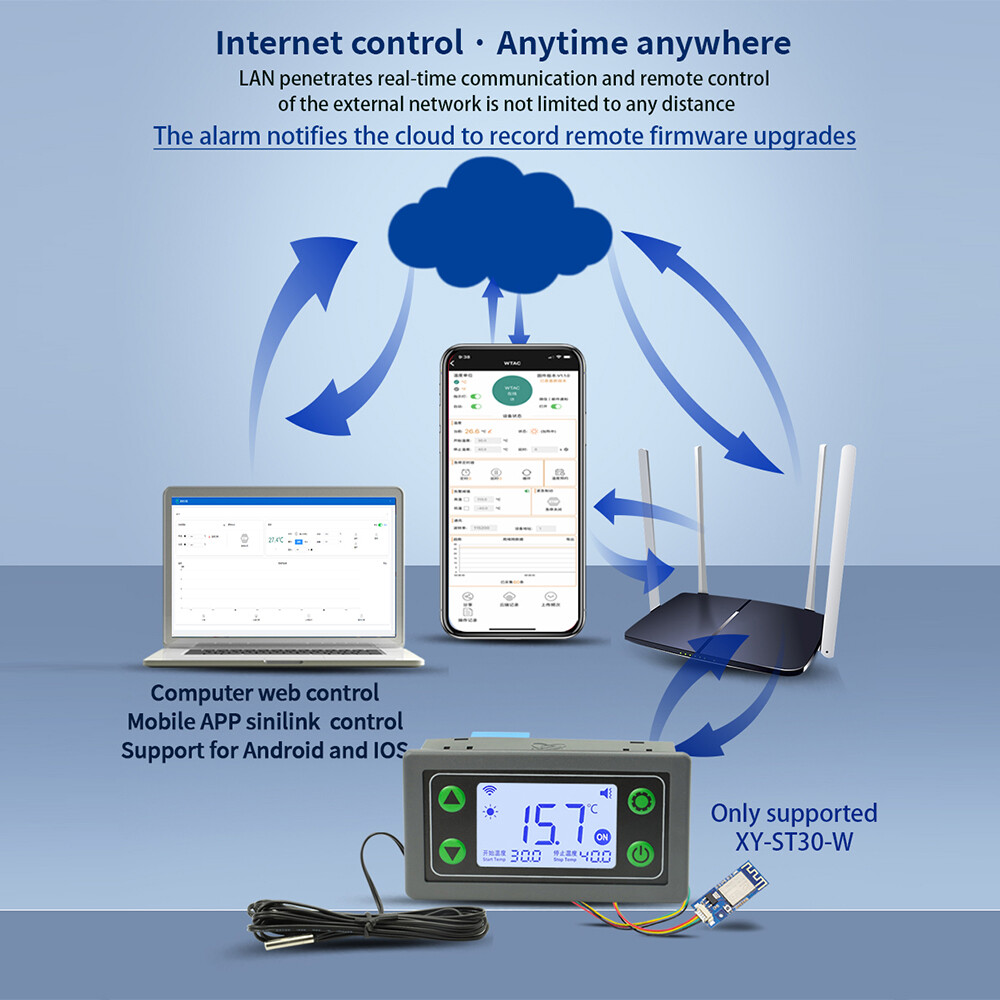

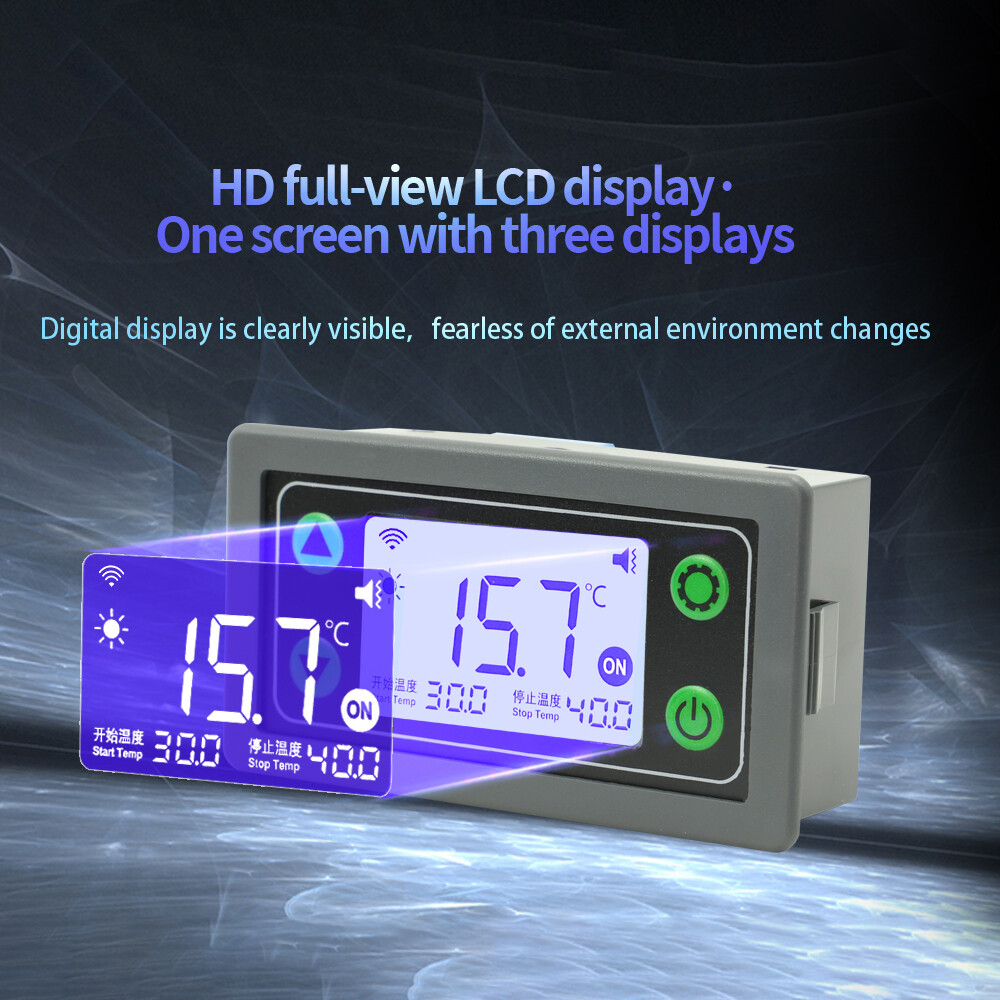

3. APP remote control,high-definition full-view display

4. Alarm notification,cloud recording,remote firmware upgrade

5. Wide application range

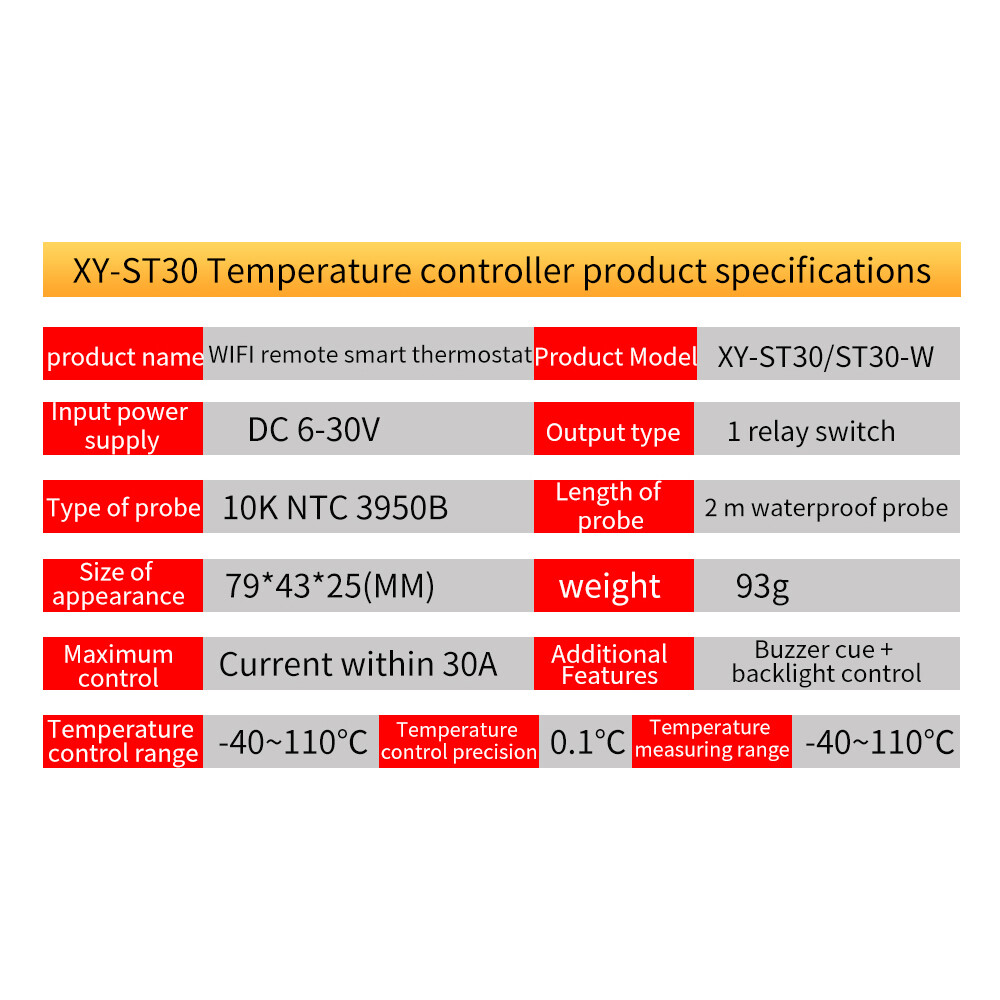

Parameters:

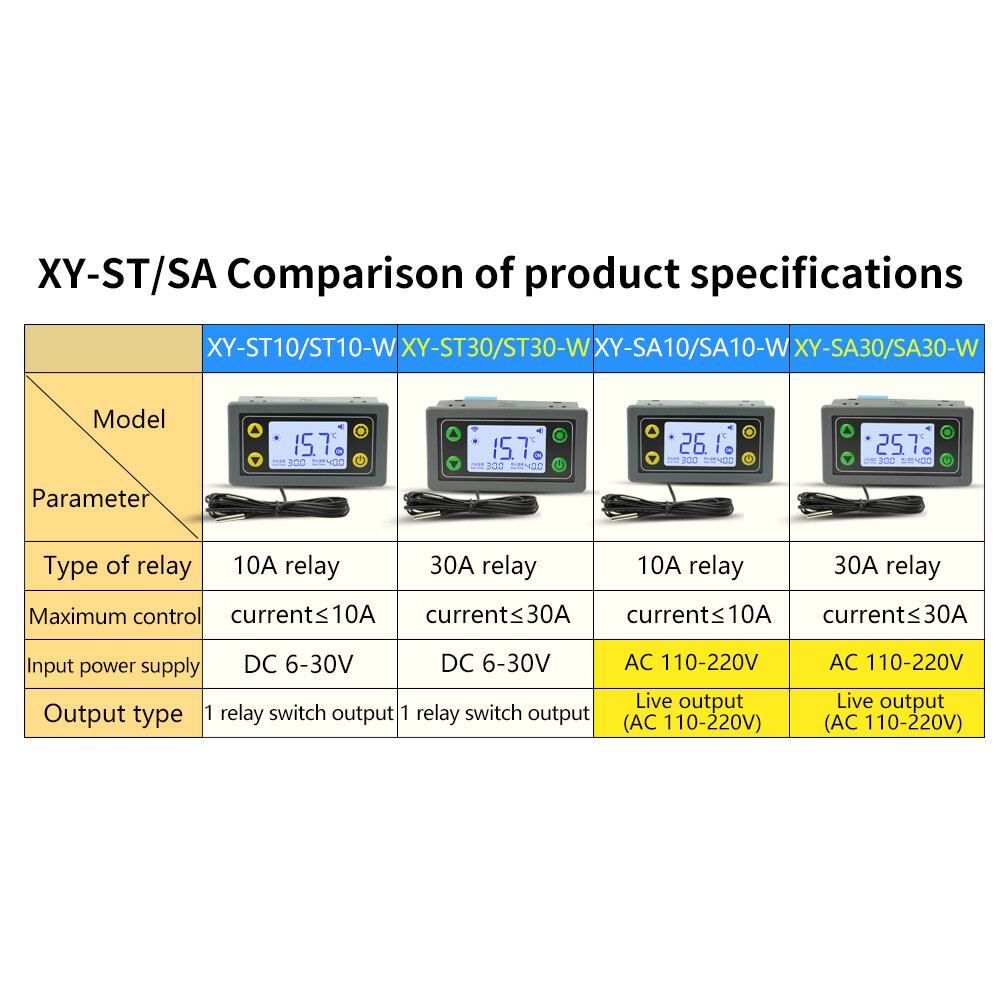

Product model: ST30/ST30-W

Input power supply: DC6-30V

Output type: 1-way relay switch

Probe model: 10K NTC 3950B

Probe length: 2m waterproof probe

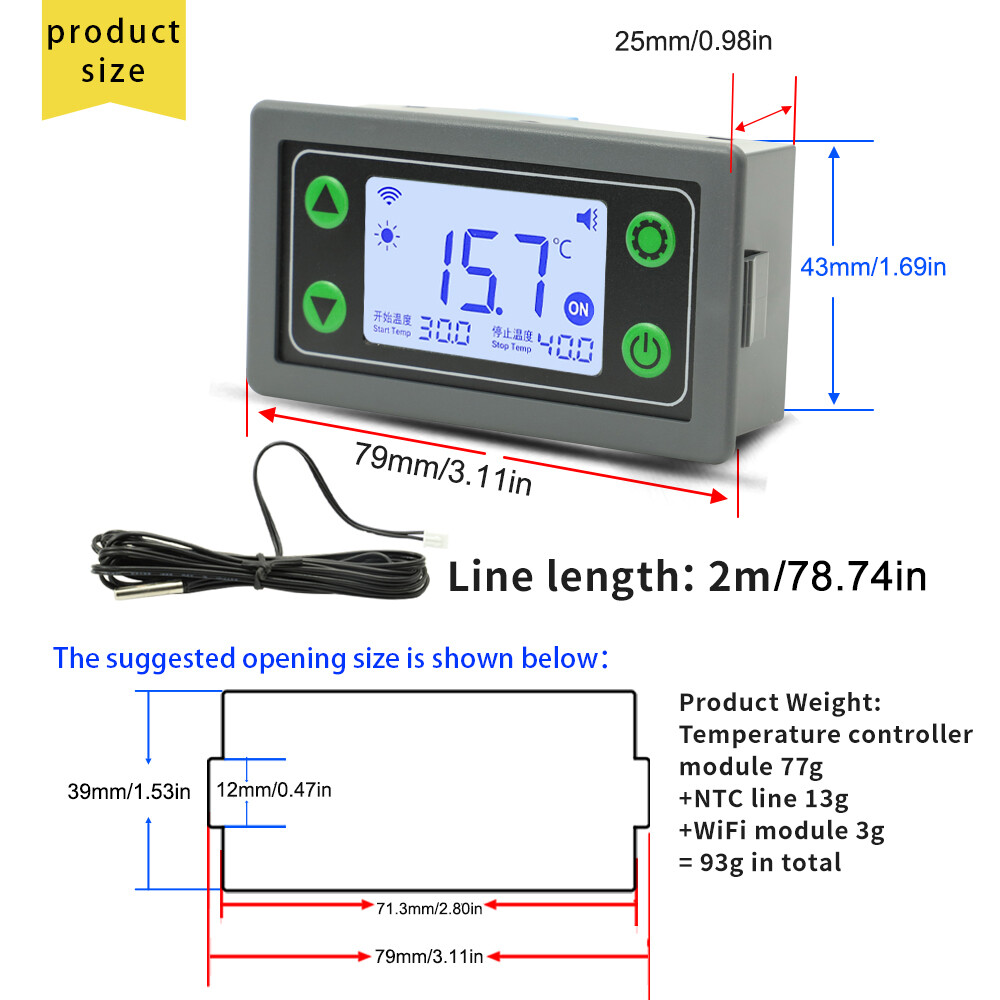

External dimension: 79 * 43 '25 (MM)

Net weight of product: 93g

Maximum control: current within 30A

Additional functions: buzzer prompt+backlight control

Temperature control range: - 40~110 ° C

Temperature control accuracy: 0.1 ° C

Temperature measurement range: - 40~110 ° C

Package include：

Intelligent temperature control * 1

be careful:

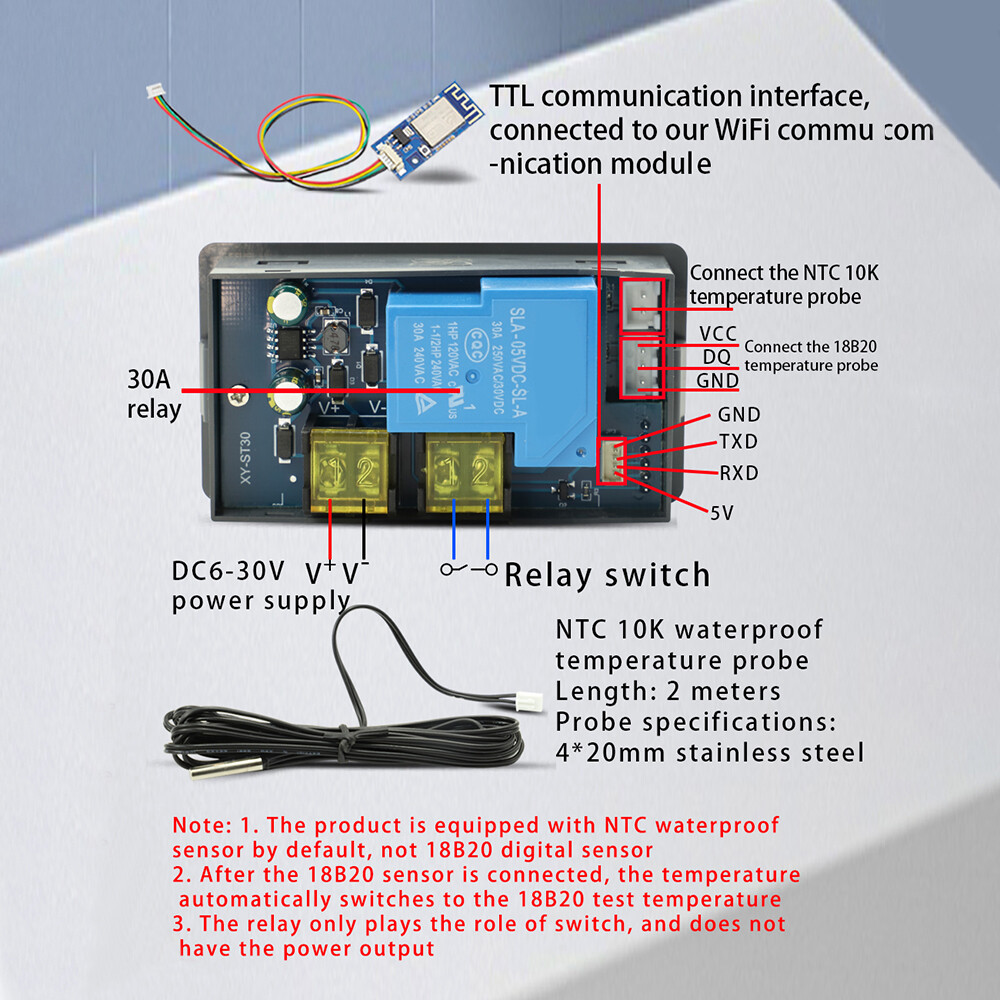

1. The product is equipped with NTC waterproof sensor by default,without 18B20 digital sensor

2. When the 18B20 sensor is connected,the temperature will automatically switch to the test temperature of 18B20

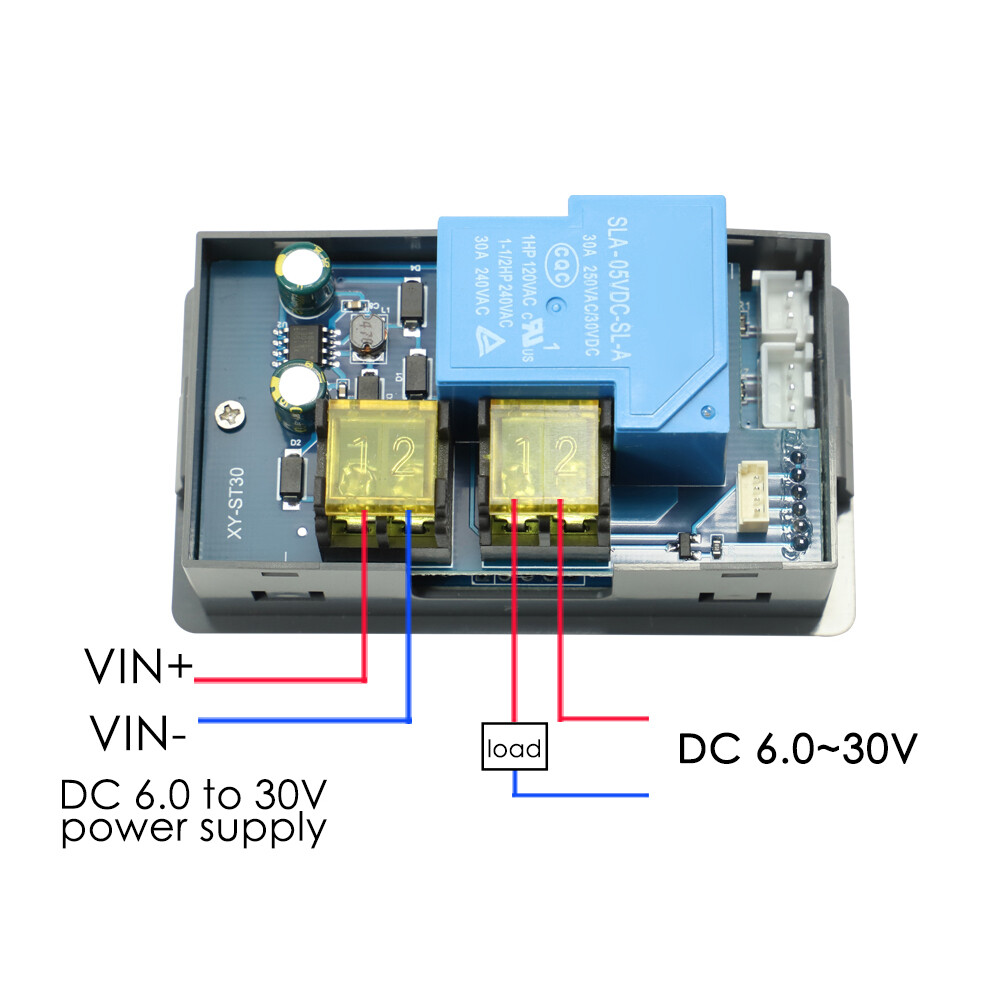

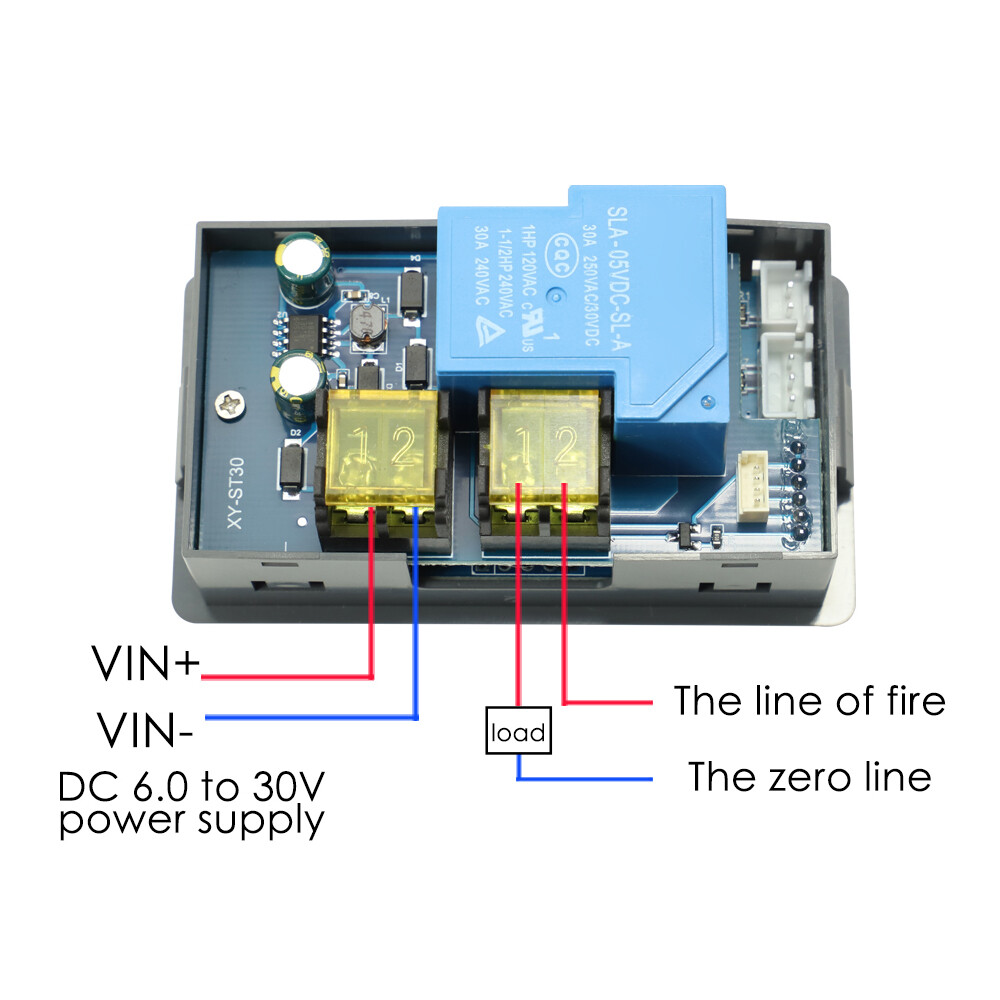

3. The relay only acts as a switch and is not energized for output

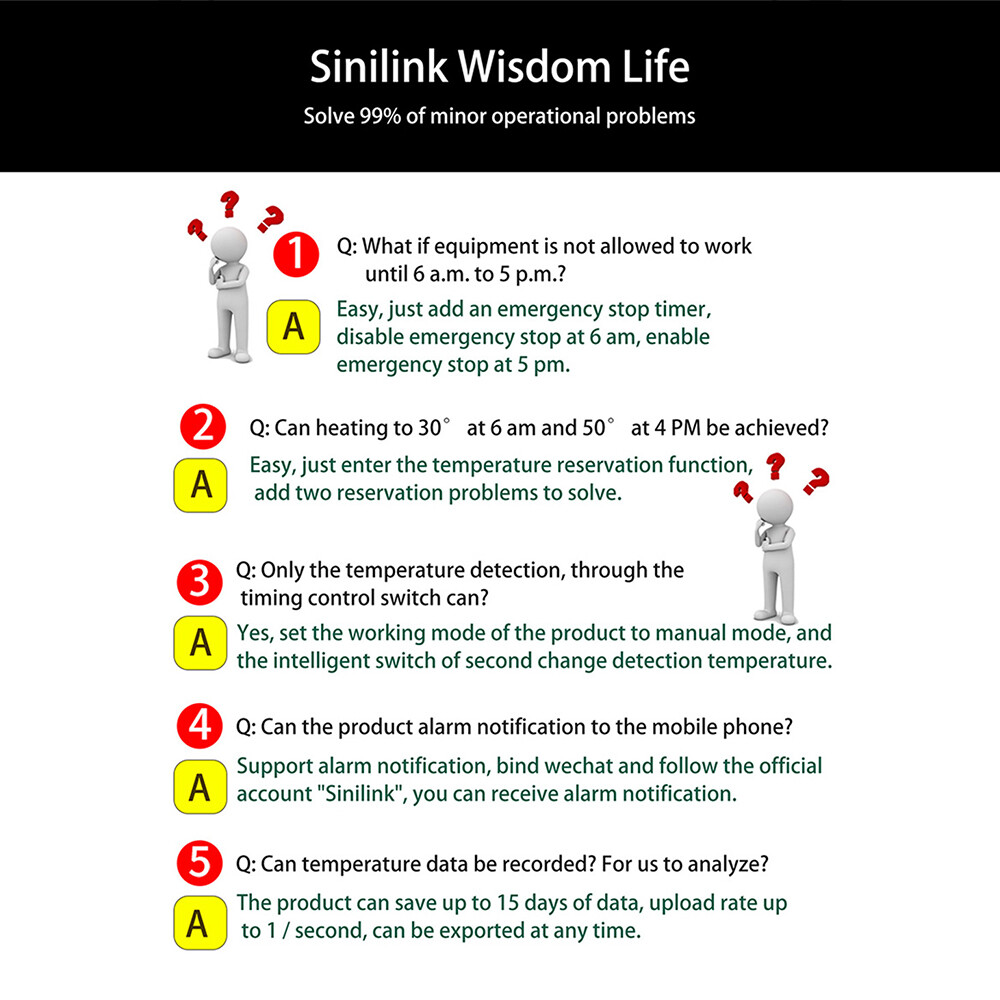

Tips:

Q: What about allowing the equipment to work from 6 a.m. to 5 p.m?

Answer: Simple,just add the emergency stop timer,turn off the emergency stop at 6 a.m. and turn on the emergency stop at 5 p.m.

Q: Is it possible to heat up to 30 ° at 6 a.m. and 50 ° at 4 p.m

A: It's very easy. Just enter the temperature reservation function and add two reservations to solve the problem.

Q: Only temperature detection is needed,can it be controlled by timing switch?

Answer: Yes,set the product working mode to manual mode,and use the intelligent switch to detect the temperature in seconds.

Q: Can the product send an alarm to the mobile phone?

A: It supports alarm notification. You can receive alarm notification by binding WeChat and following the “Xinyi Cloud Link“ official account.

Q: Can temperature data be recorded? Is it convenient for us to analyze?

A: The product can store data for up to 15 days,and the upload rate can be up to 1 piece/second,which can be exported at any time.
