1. High quality and fine workmanship, rust-proof, durable and practical.
2. Easy to install, used to model aircraft / Cars / Robots.
3. Smooth edge design, good performance, stable and sturdy.
4. Compact & Save Space: Reasonable size and lightweight, portable for carrying and using.
5. The steering gear with a median adjustment potentiometer (open shell to pry the circuit board to see), debugging can be high pulse is set at 1.5 ms to observe the steering gear stall, if you stop and turn on the regulation potentiometer until the stall s
Specification:
Description:
The signal terminal needs to be input with one 50 HZ square wave, then the duration of high level pulse, which is used to control signal cycle, can control speed and forward/backward rotation as well as stalling. The duration of high level corresponds to a speed. When high level is 1ms - 1.5ms, servo rotates forward(the rotate speed is the fastest when it is 1ms, the higher the lower, servo will stop rotating when reaching 1.5ms). When high level is 1.5 - 2ms, the servo rotates backward(The servo stops rotating when reaching 1.5ms, when the duration is closer to 2ms, the closer, the faster. The backward rotation speed, the fastest when reaching 2ms)
This servo carries meso-position adjustment potentiometer(it can only be seen by peeling off the outer cover and circuit board). We can set high level pulse at 1.5ms to observe that whether servo stops rotating. If it doesn't stop rotating, we keep adjusting the potentiometer until it does.
Features:
1. High quality and fine workmanship, rust-proof, durable and practical.

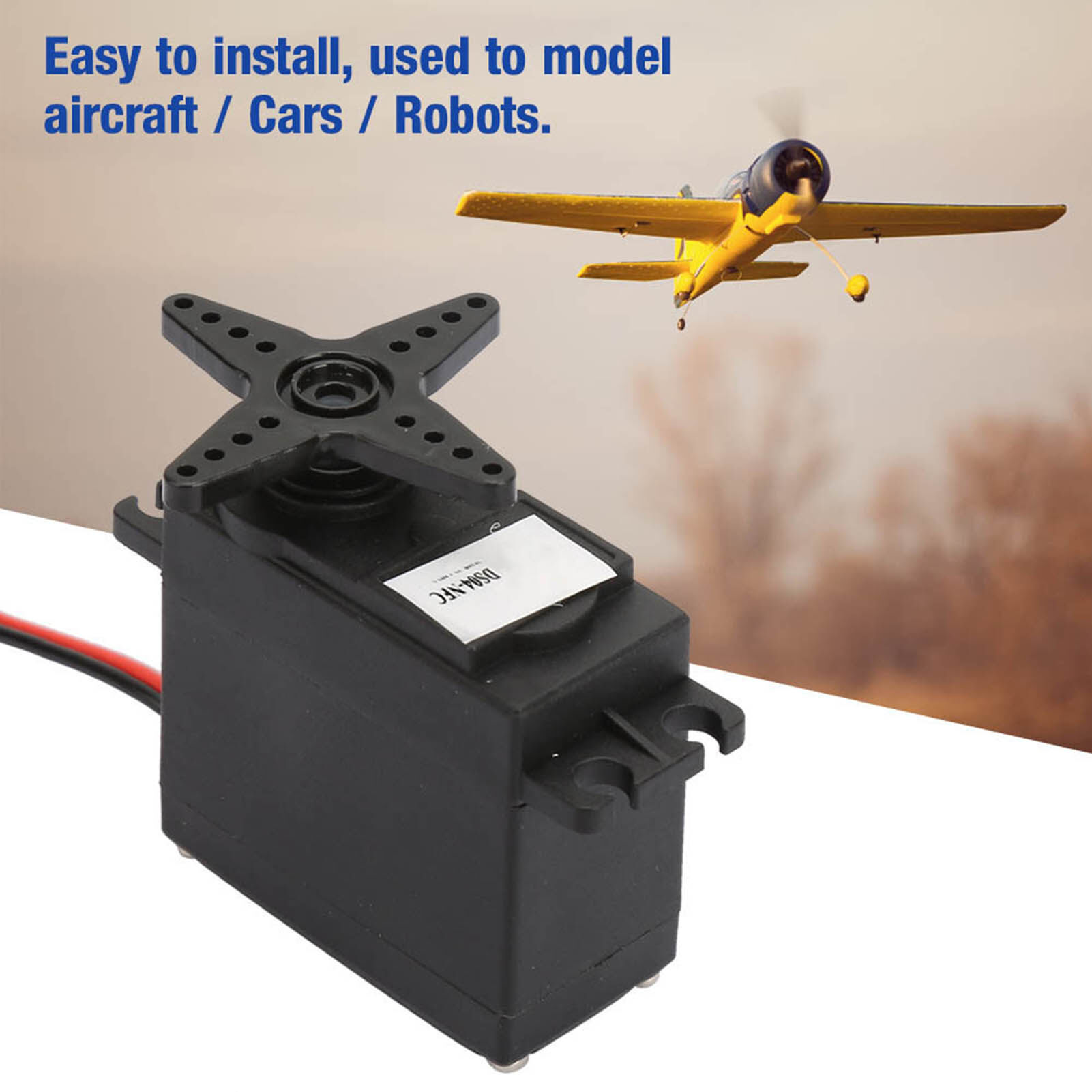

2. Easy to install, used to model aircraft / Cars / Robots.
3. Smooth edge design, good performance, stable and sturdy.
4. Compact & Save Space: Reasonable size and lightweight, portable for carrying and using.
5. The steering gear with a median adjustment potentiometer (open shell to pry the circuit board to see), debugging can be high pulse is set at 1.5 ms to observe the steering gear stall, if you stop and turn on the regulation potentiometer until the stall so far, so the zero.
Specification:
Condition: 100% Brand New

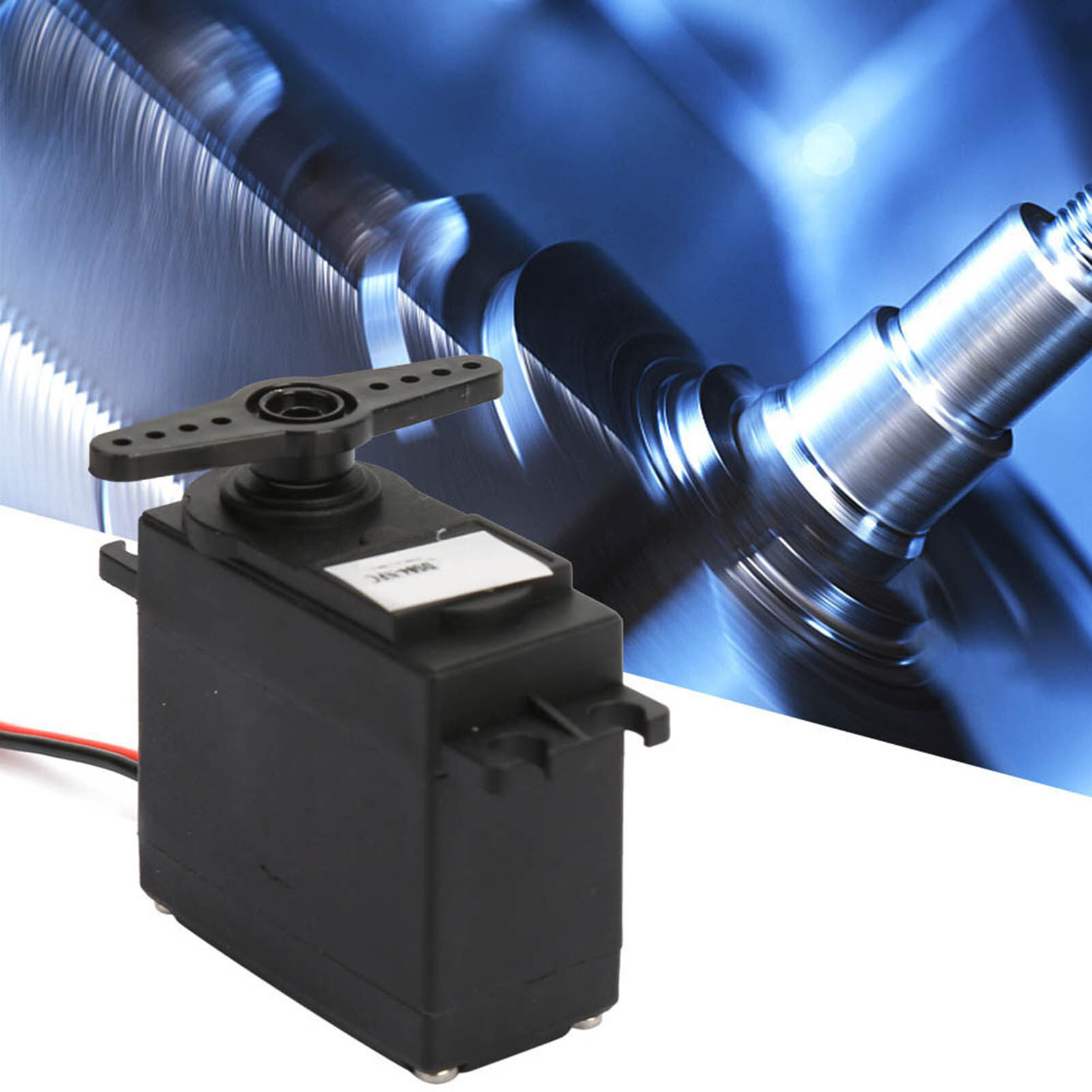

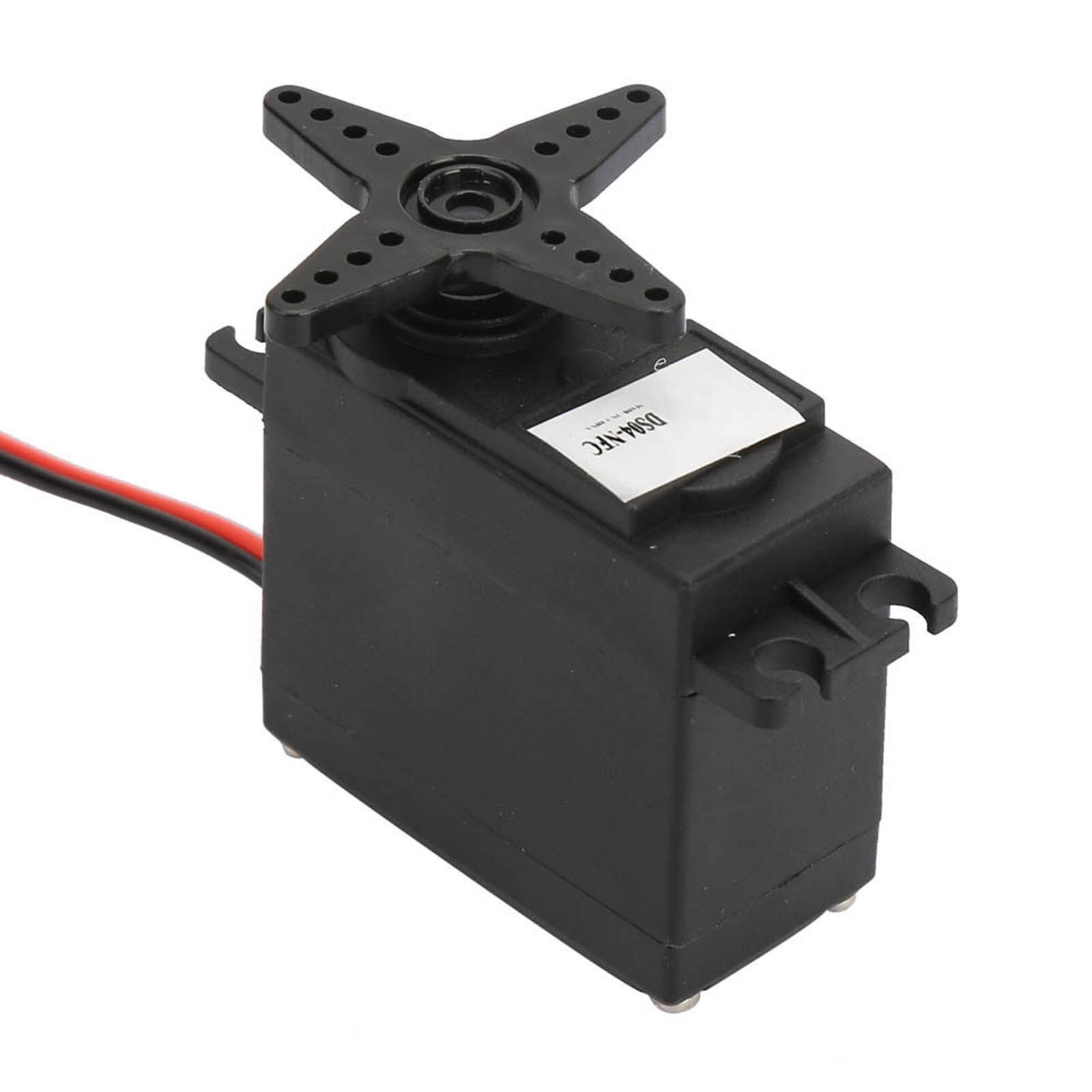

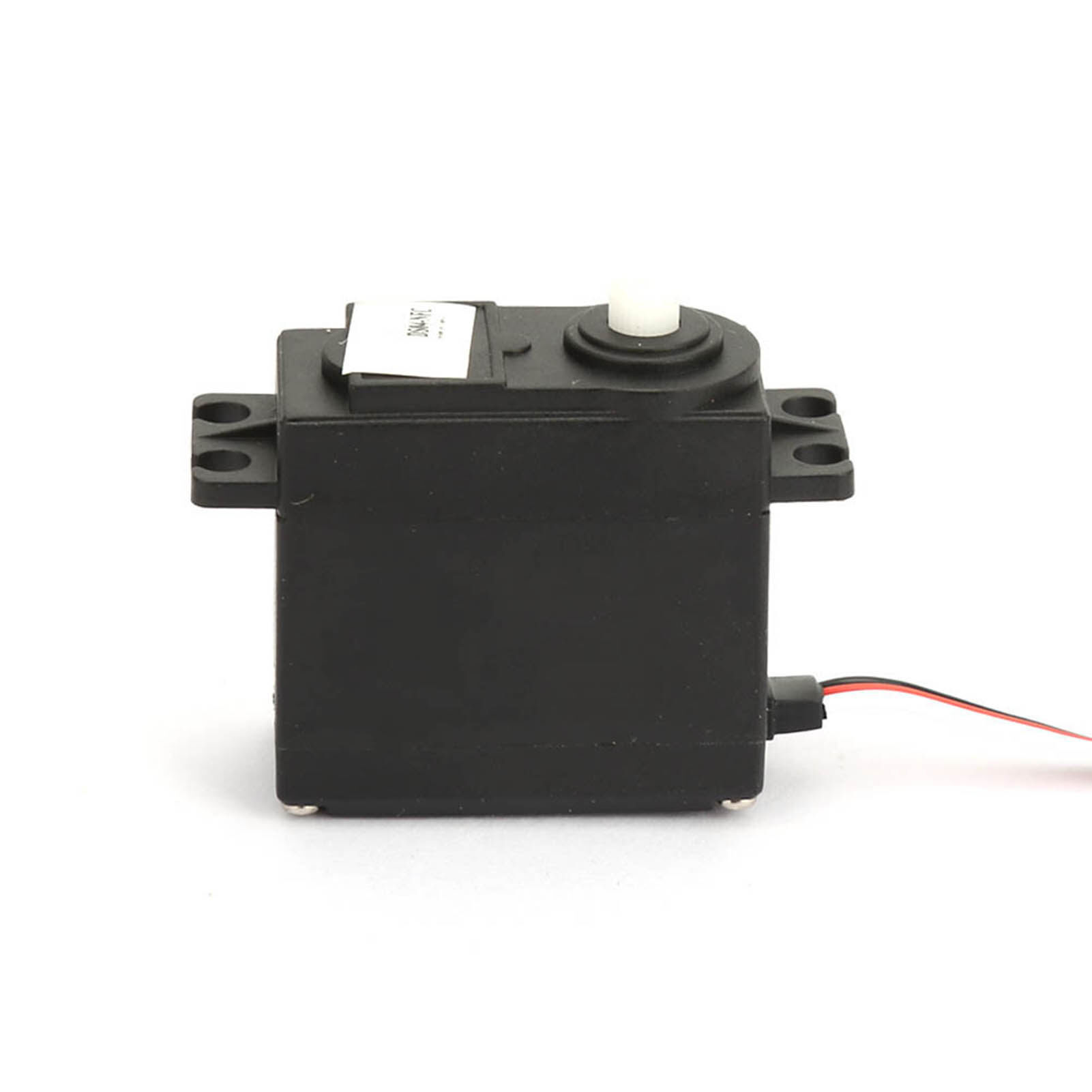

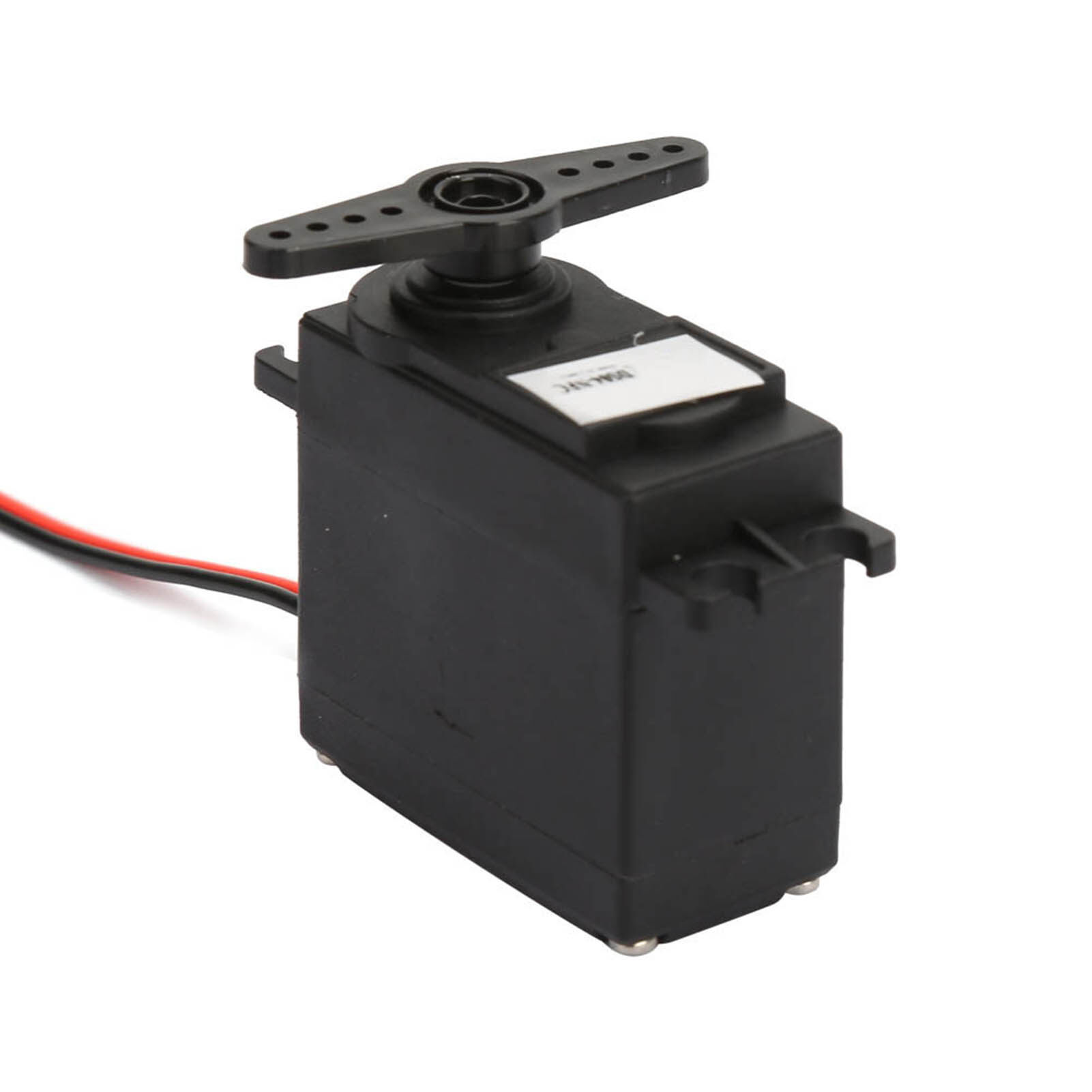

Item Type: 360 Degree Continuous Rotation Servo Motor
Material: Metal + Plastic
Color: Black
Product Size: Approx. 40.8*20*39.5mm / 1.6*0.8*1.6inch
Weight: Approx. 52g / 1.8oz
Torque: 5.5kg/cm (at 4.8V)
Uses: Aircraft models, Car models, Robots, etc.
Working Voltage: 4.8V-6V
Operating Temperature: 0°C - 60°C
Current Usage:
Wiring Method:
As can be seen from the figure, the steering gear has three lines: red line, black line, and white line.
1. The red line is the positive pole of the power supply, connected to the positive pole of the 5V-6V DC power supply.
2. Black wire is connected to the negative pole of the power supply.
3. White line signal input, which is the 50HZ signal input line mentioned above.
Package list:

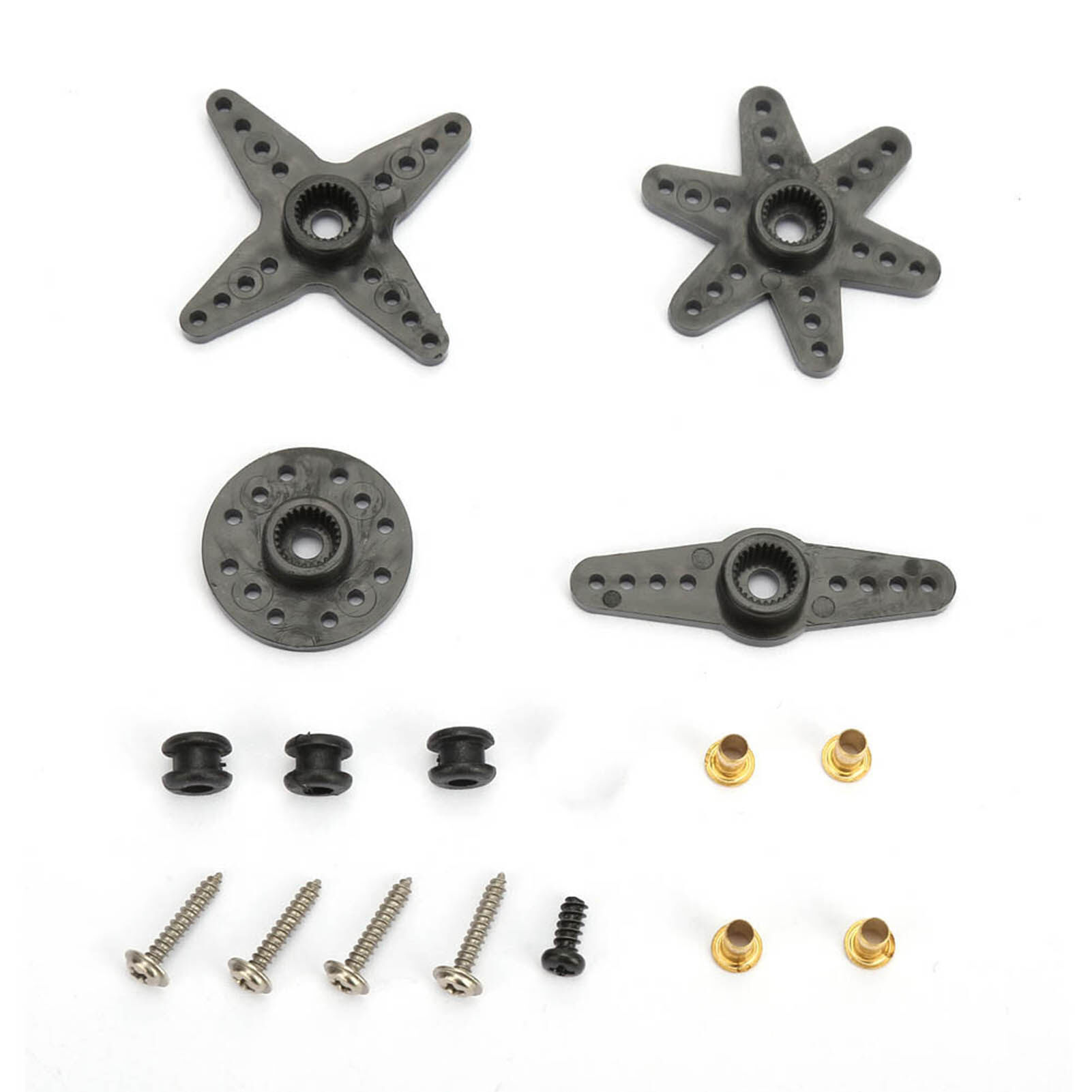

1 x 360 Degree Continuous Rotation Servo Motor

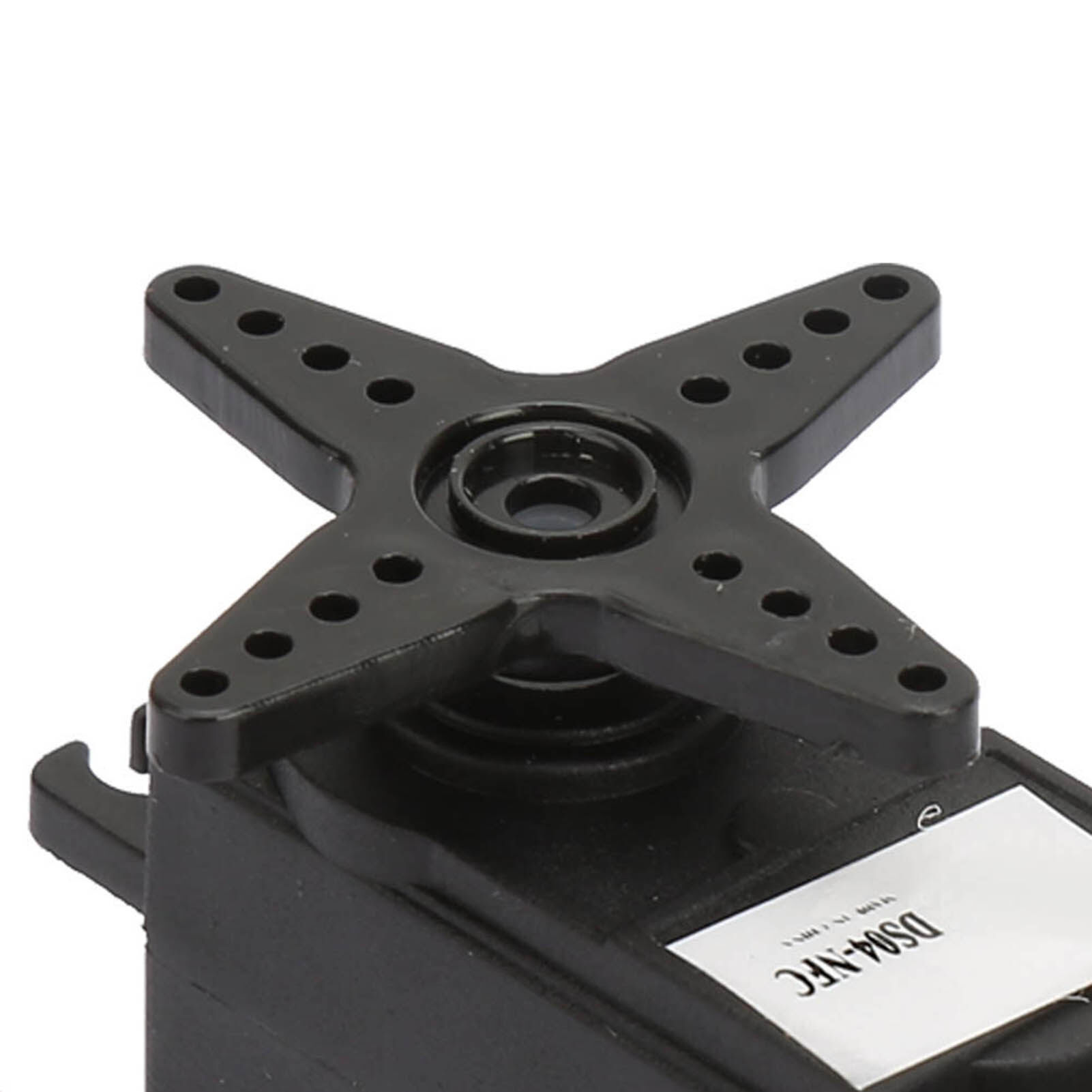

4 x Rocker Arm
4 x Rocker Arm Cap
4 x Rat-tail Screw
4 x Flat Tail Screw
1 x Black Flush Tail Screw
Notes:
1. The actual product color may deviate from the photo due to light.
2. There may be a slight deviation in the measurement of product.
