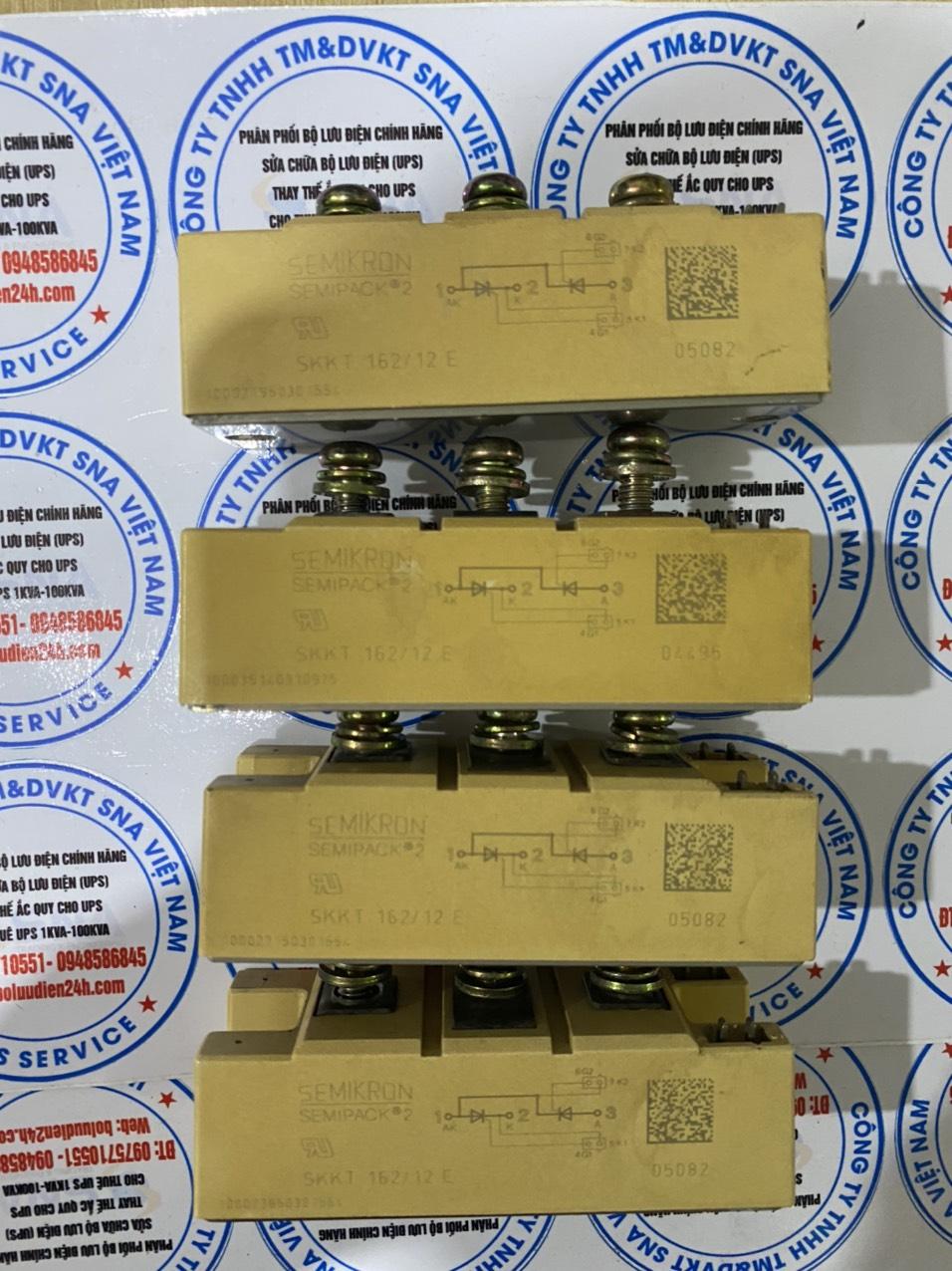

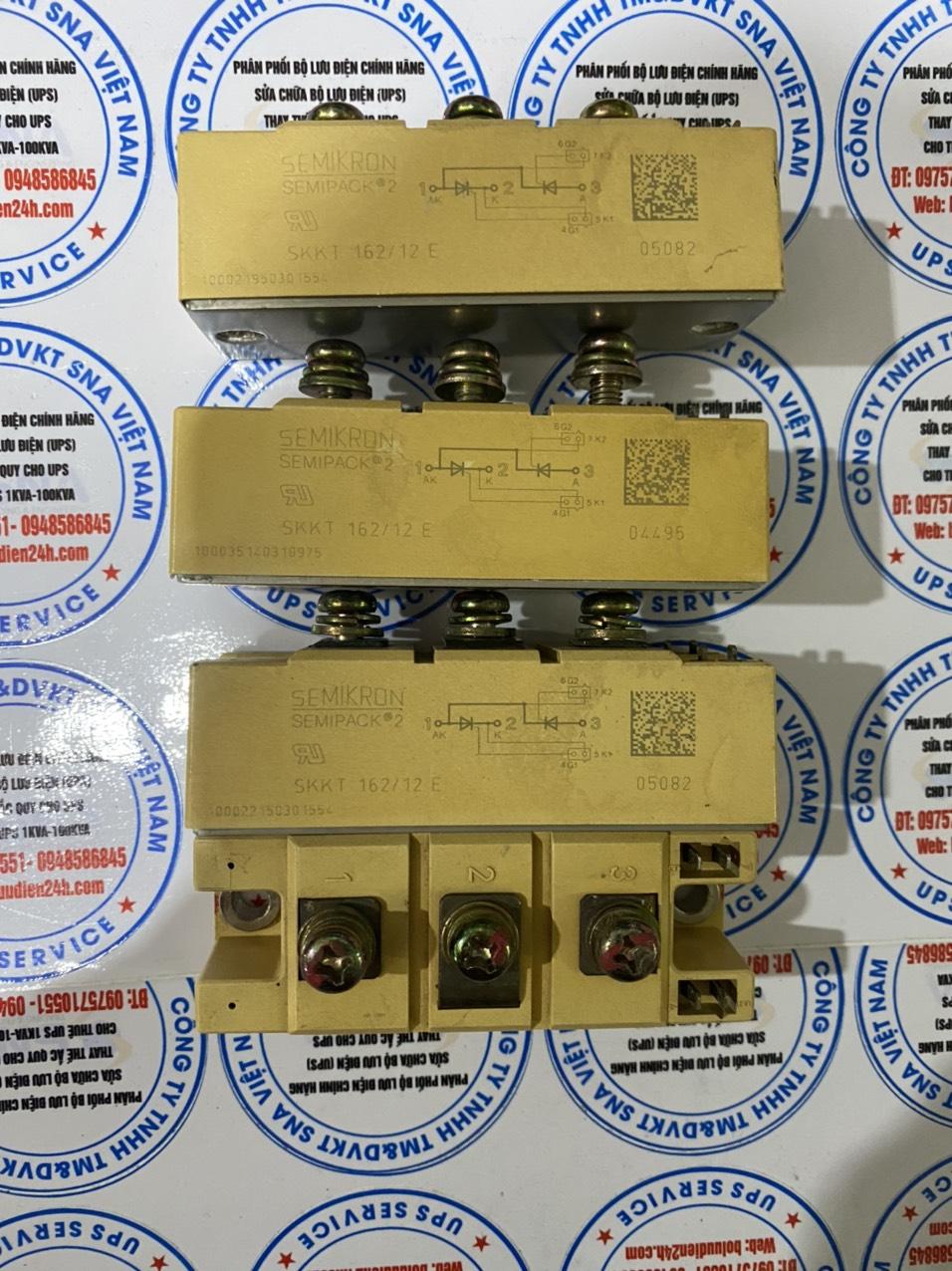

Thyristor SKKT 162/12 E Semikron

• Mã hàng: SKKT 162/12 E
• Hãng sản xuất: Semikron
• Tình trạng: Tháo máy từ UPS, còn hàng

1. THÔNG SỐ KỸ THUẬT CỦA SKKT 162/12 E

Product codeSKKT 162/12 E

Maximum Holding Current:400mA

Maximum Operating Temperature:+125 °C

Repetitive Peak Off-State Current :40mA

Repetitive Peak Forward Blocking Voltage :1200V

Repetitive Peak Reverse Voltage:1200V

Length :94mm

Brand :Semikron

Package Type :SEMIPACK2

Mounting Type :Panel Mount

Minimum Operating Temperature :-40 °C

Width:34mm

Height:30mm

Rated Average On-State Current156A

Pin Count7

Dimensions94 x 34 x 30mm

Peak On-State Voltage1.6V

Maximum Gate Trigger Voltage2V

Maximum Gate Trigger Current150mA

Surge Current Rating5.4kA

Thyristor TypeSCR Module
