RGB LED matrix light panel, household tools, FocusAi P3/P4LED display matrix module advertising screen for advertising, banner display, demonstration, video display, educational purposes, etc.

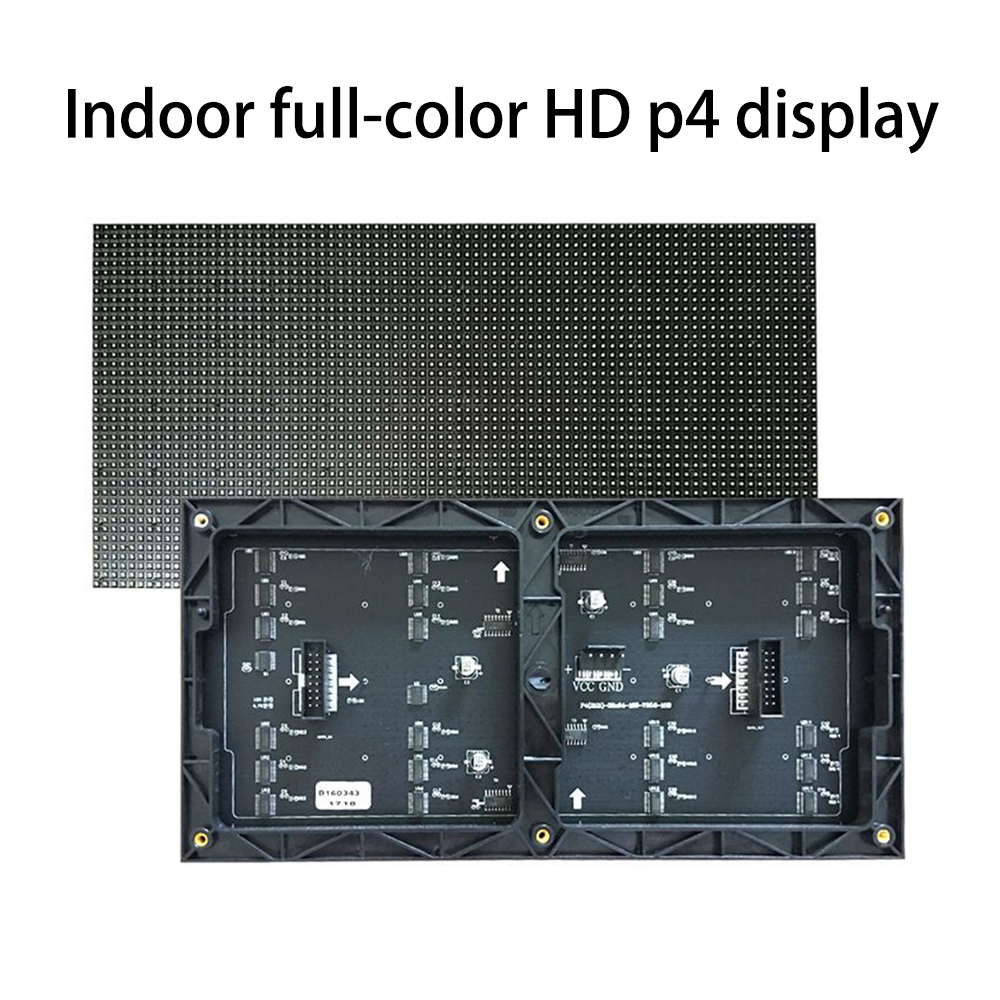

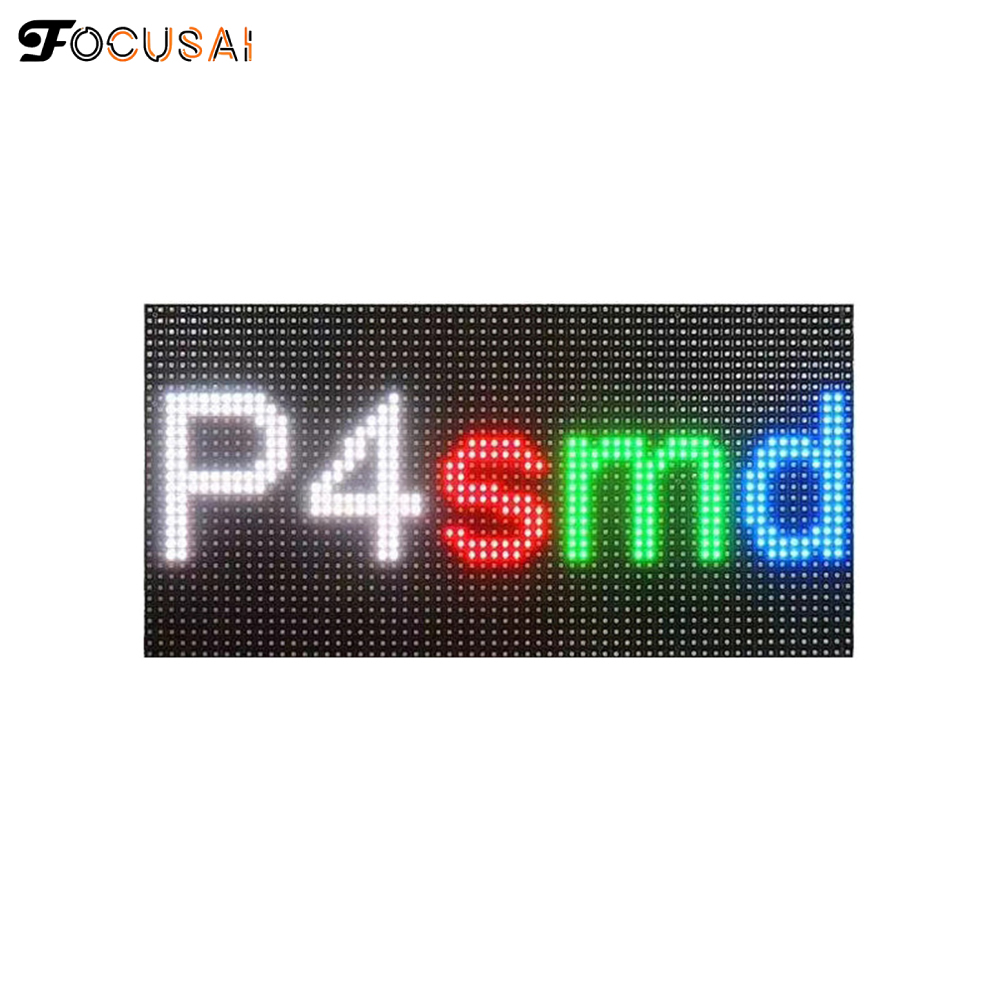

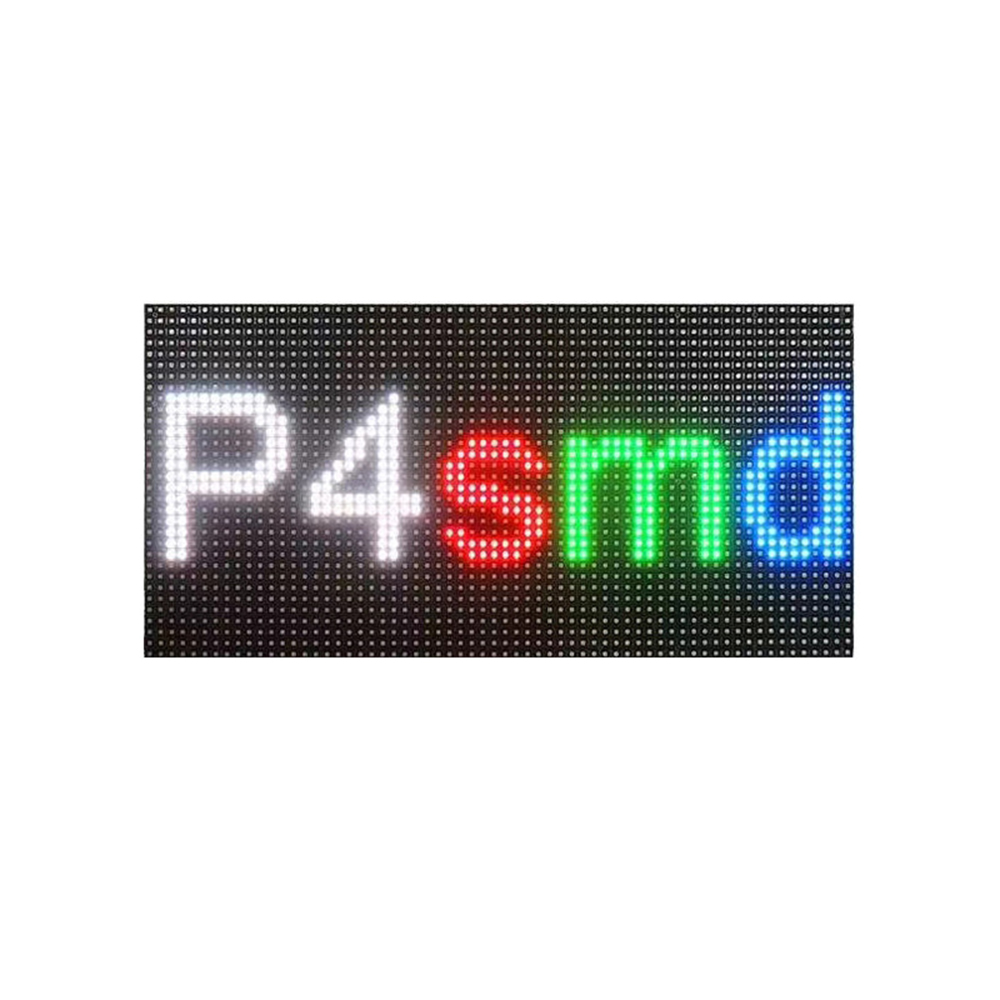

DC4.8-5.5V 64x32 P4 advertising screen display LED module unit board special for small spacing color screen 2048 lamp beads

Features

1. Economical, practical and cost-effective, very suitable for small projects and beginners.

2. Constant current mode drives the light evenly and has low power consumption.

3. The LED screen adopts a unique sturdy design and is easy to carry and install.

4. The display screen uses LED tube cores and lamp beads; it has high brightness, large viewing angle, and good color consistency; it uses driver IC and has small parameter fluctuation coefficient; the PCB board adopts large-scale integrated circuit design and has good stability.

5.LED displays can be used for a variety of purposes and in a variety of places. It can be used for advertising, banner displays, presentations, video presentations, educational purposes and more.

Product parameters

Application environment: indoor

Physical point spacing: 4mm

Unit board size: 256X128 (mm)

Resolution: 64*32=2048Dots

Viewing angle level: ≥160 (+10/-10) degrees

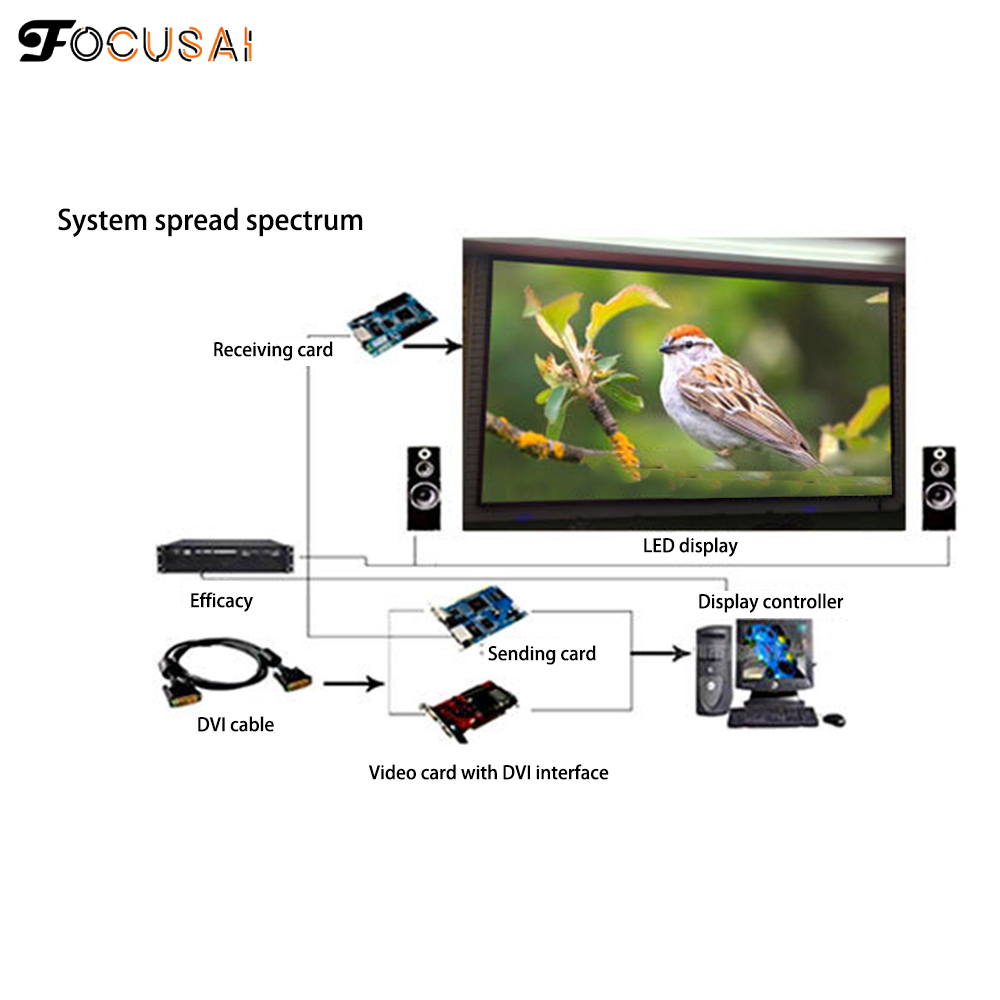

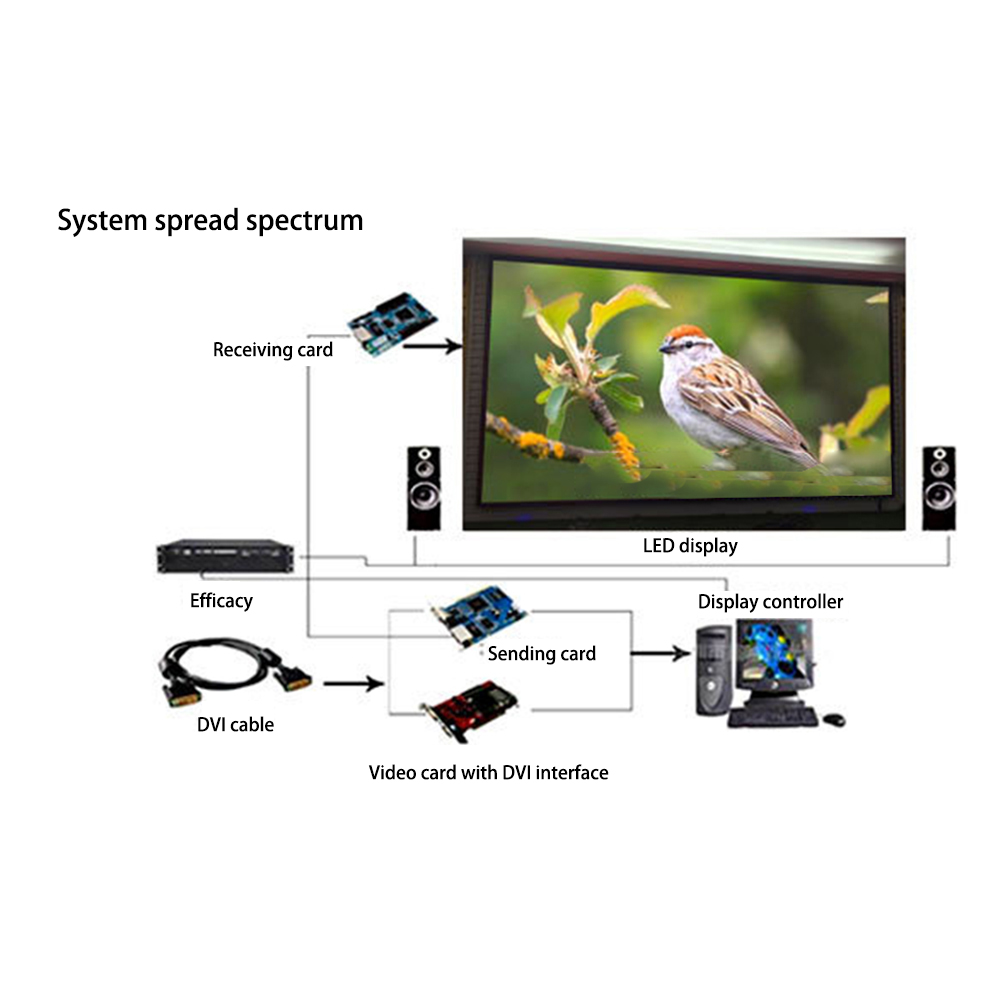

Control mode: synchronous control

Mean time between failures: ≥5000 hours

Driving mode: Sixteen sweeps (constant current)

Lifespan: 75,000~100,000 hours

LED packaging method: SMD 2121 LED only (RGB arranged in a straight line)

Red LED wavelength: 618-623nm (band error: ±2.5n)

Red LED brightness: 200-230mcd

Green LED wavelength: 525-527.5nm (band error: ±2.5n)

Green LED brightness: 460-530mcd

Blue LED wavelength: 470-472.5nm (band error: ±2.5n)

Blue LED brightness: 125-145mcd

Brightness: ≥1500CD/㎡

Pixel spacing: 4mm

Pixel density: 62500Dots/㎡

Pixel composition: 1R1PG1PB

Unit board size (length*width*thickness): 256.0mm*128.0mm*13.26mm

Structural features: integrated lamp driver

Input voltage (DC): 4.8-5.5V

Maximum current: 4.7A

Maximum power of unit board: 23.5W

Usage environment: indoor

Operating temperature range: -20 to 50℃

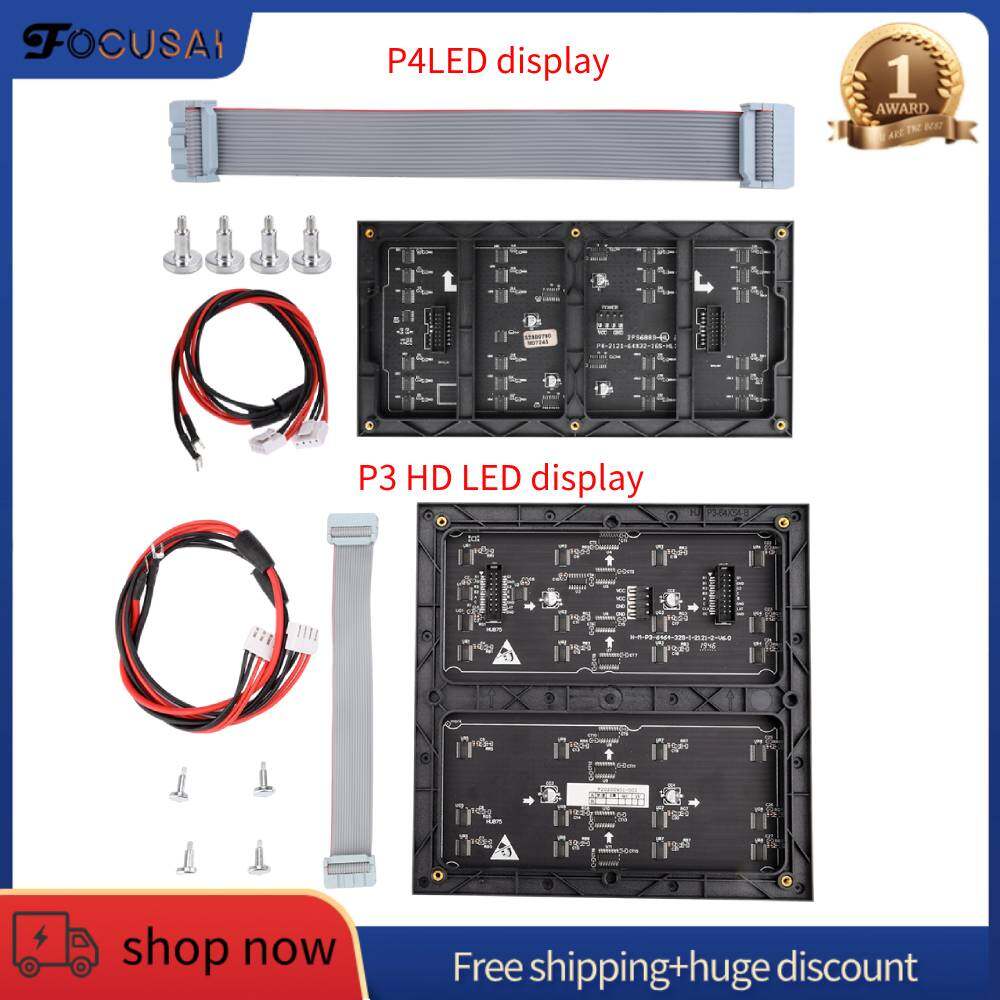

Shipping list

Module*1

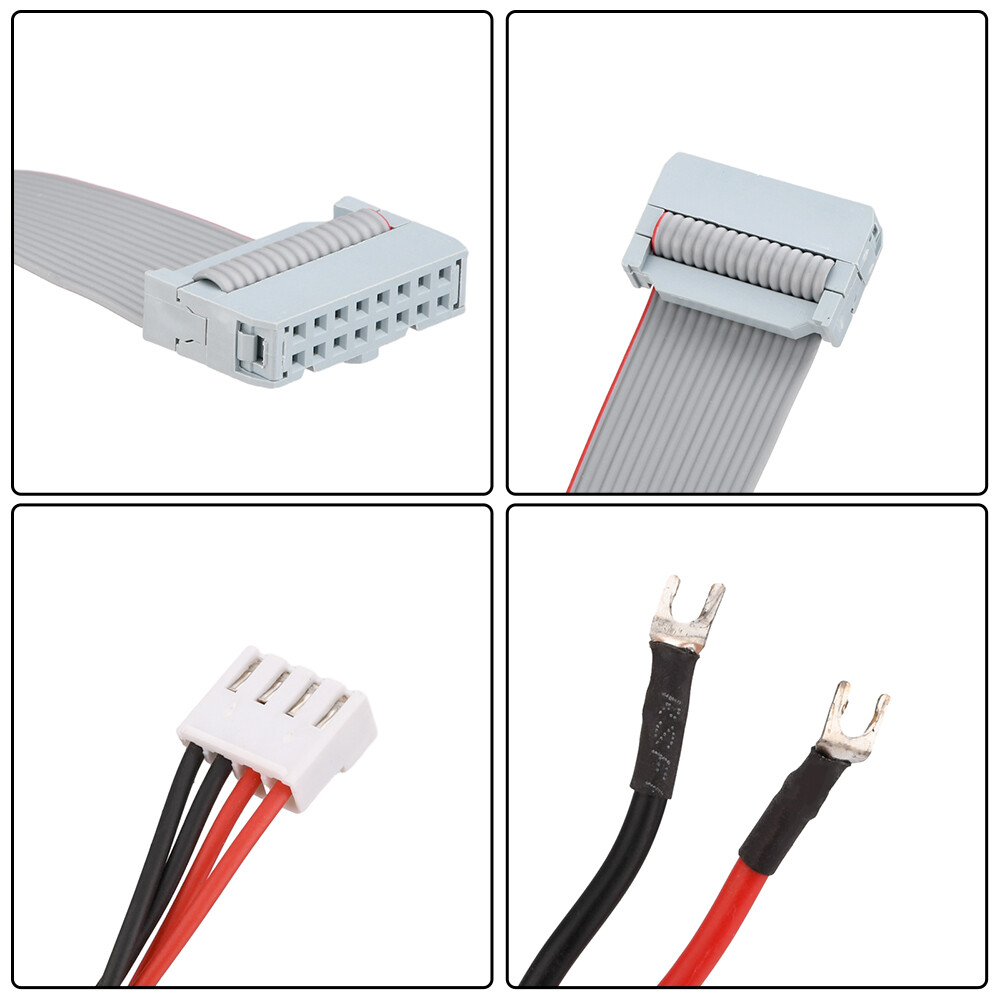

Power cord*1

Cable*1

Screw*4

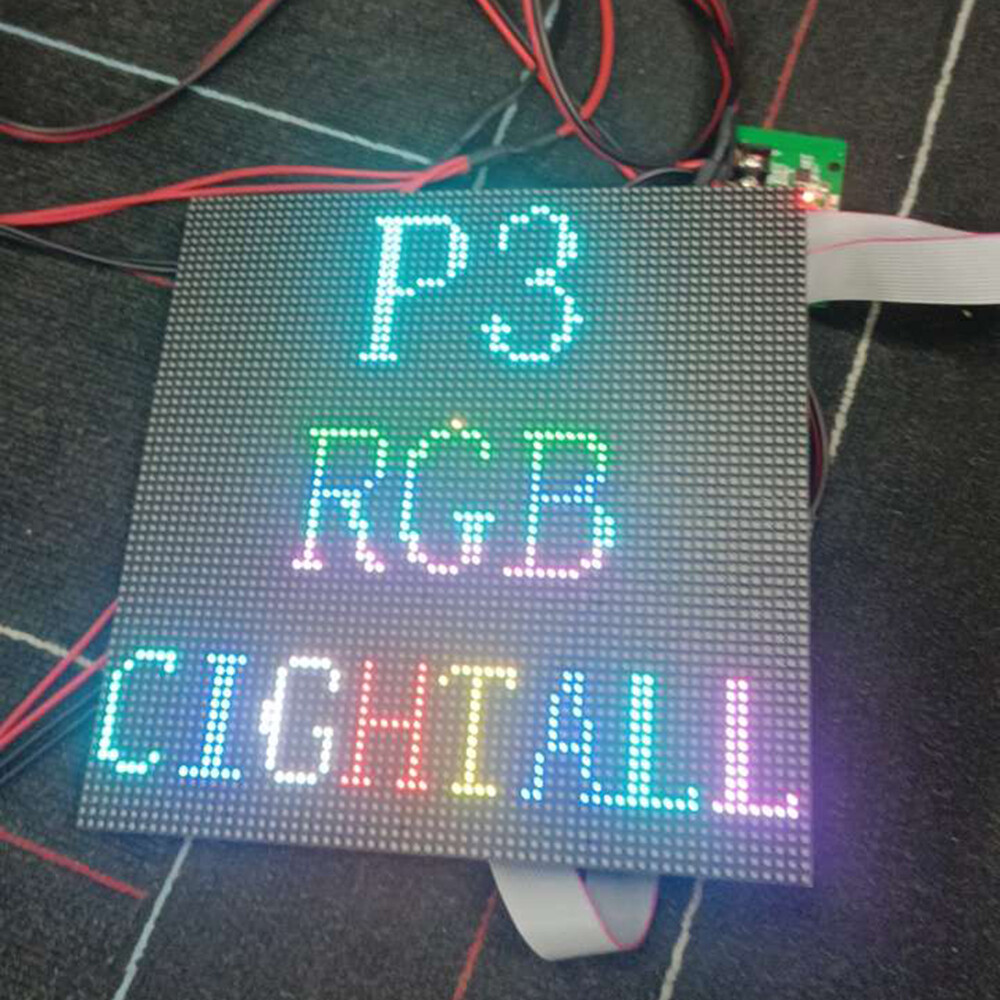

P3 high definition LED display 64x64 pixel high resolution 1/32 scan 192x192mm matrix LED display module

Features

1. Economical, practical and cost-effective, very suitable for small projects and beginners

2.64x64 pixels, mm spacing, can display text, color images or animations

3. The LED screen adopts a unique sturdy design and is easy to carry and install.

4. The display screen uses LED tube cores and lamp beads; it has high brightness, large viewing angle, and the PCB board adopts large-scale integrated circuit design and has good stability.

5.LED displays can be used in a variety of places, suitable for advertising, banner displays, demonstrations, video displays, educational purposes, etc.

Product parameters

Product name: indoor p3 module

Usage environment: indoor

Power supply: 220v to 5V

Pixel pitch: 3mm

Module pixels: 64*64

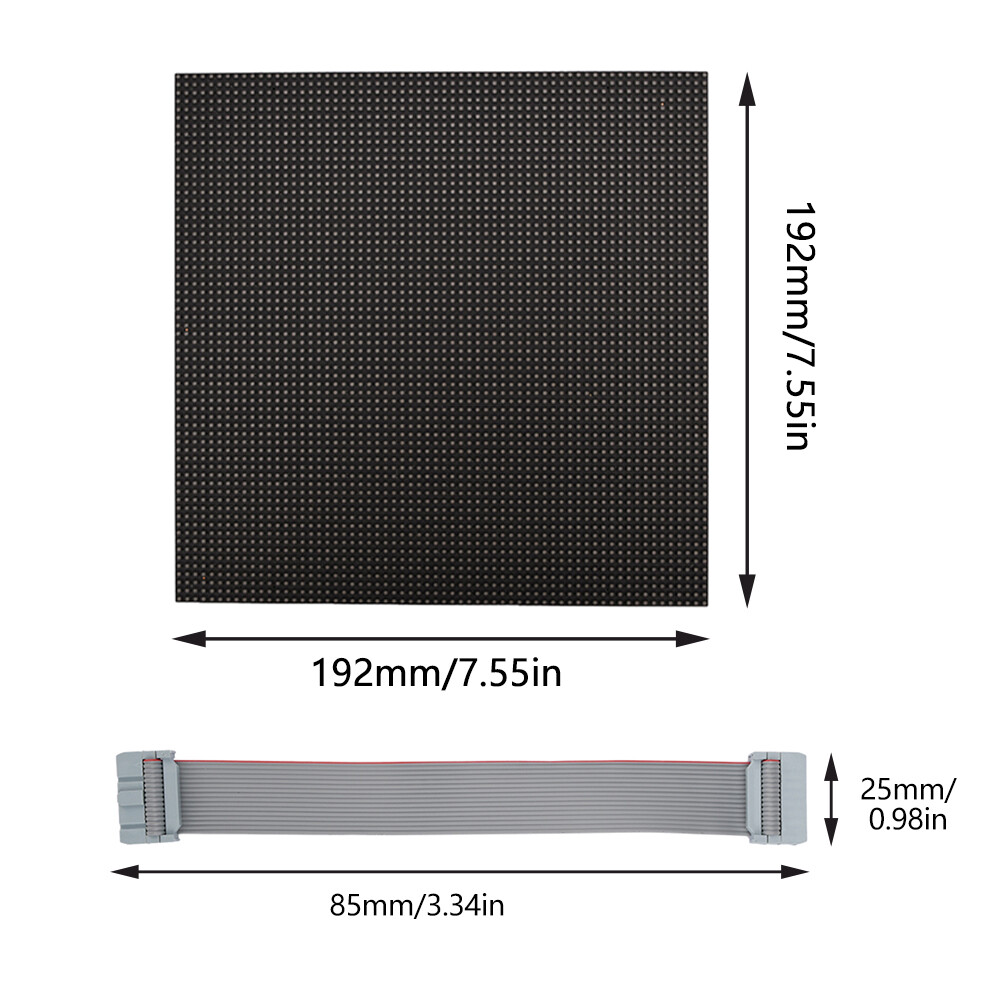

Module size: 192*192mm

LED configuration: SMD2121

Structural features: lamp driver

Scanning method: 1/32 scan

Service life: 7.5~100,000 times

Viewing angle: 140°

Maximum power consumption: 800w/m2

Screen refresh rate: 1920Hz

Pixel composition: 1R1G1B

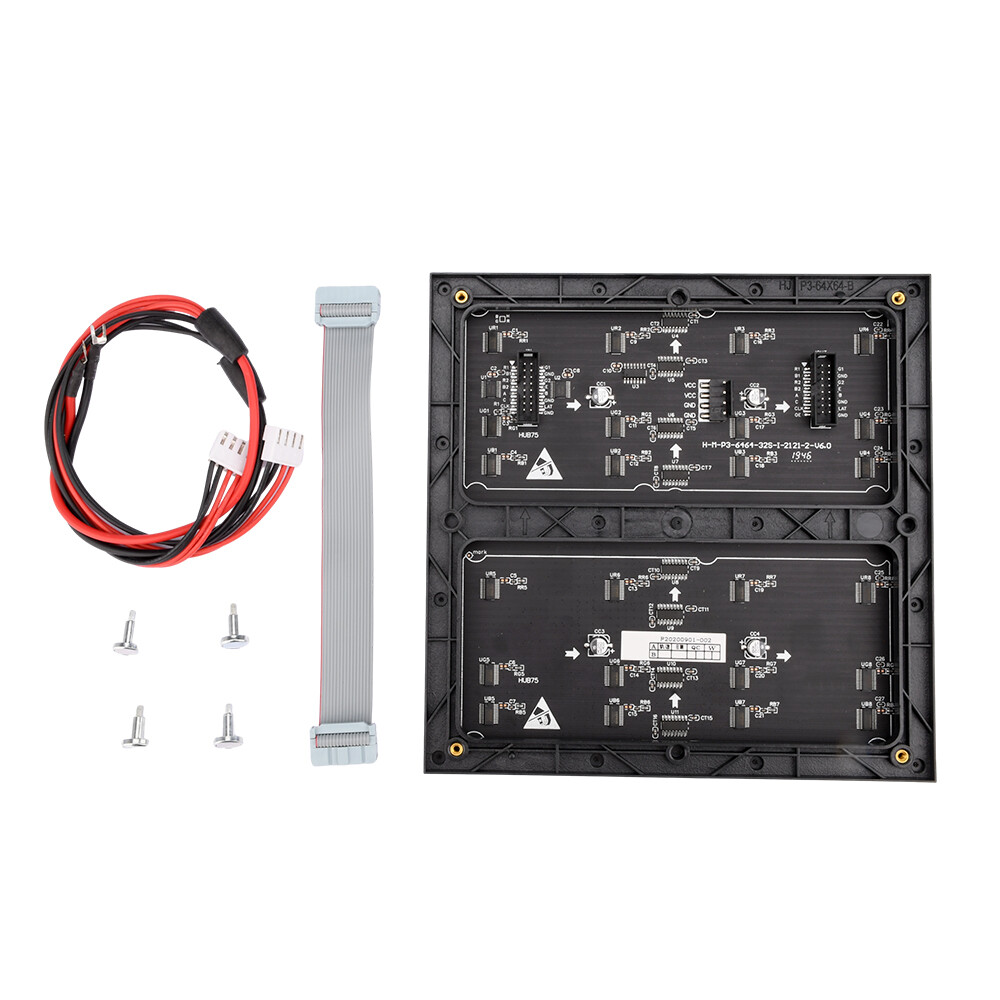

Shipping list

Module*1

Power cord*1

Cable*1

Screw*4
