1. The frequency multiplier makes the output signal frequency equal to the input signal frequency integer times circuit
2. The input frequency is f1, and the output frequency is f0= nf1, and the item coefficient n is 2
3. The frequency multiplier is widely used, for example, if frequency multiplier used to the transmitter, it make the main oscillator oscillating in lower frequency ,so improving the frequency stability
4. Frequency multiplier can used in Frequency modulation devices to increase frequency offset
5. In the phase key communication machine, the frequency multiplier is an important component of the carrier recovery circuit

Specification:
Descriptions:

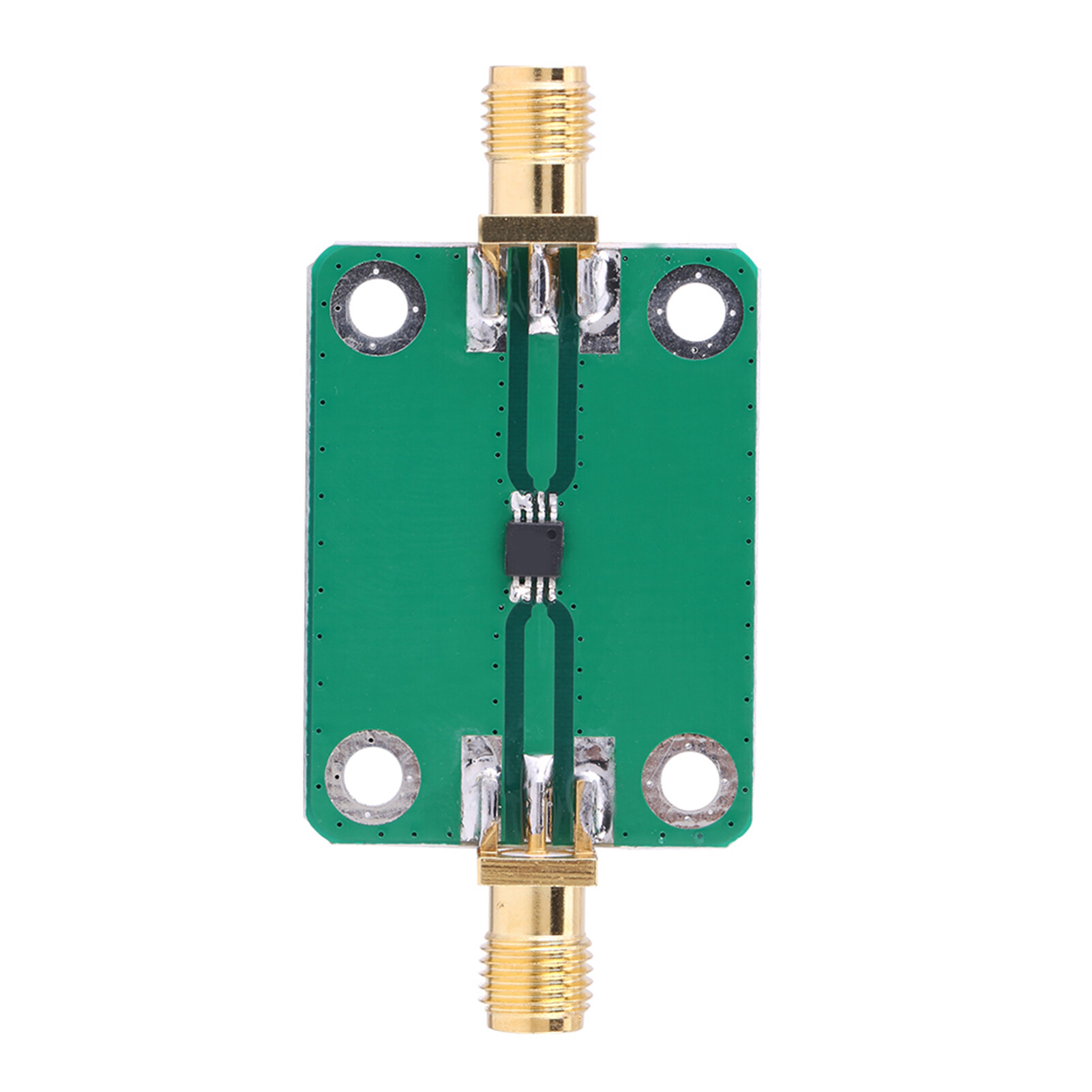

Frequency multiplier is a circuit that allows the output signal frequency to be equal to an integer multiple of the input signal frequency. Input frequency is f1, then the output frequency is f0 = nf1, this coefficient n is 2. Frequency multiplier has a wide range of applications, such as the transmitter frequency multiplier can make the main oscillator oscillation at a lower frequency to improve the frequency stability; frequency equipment uses frequency multiplier to increase the frequency offset; in the phase keying communication machine , The frequency multiplier is an important component of the carrier recovery circuit.
Features:
The frequency multiplier makes the output signal frequency equal to the input signal frequency integer times circuit.
The input frequency is f1, and the output frequency is f0= nf1, and the item coefficient n is 2.
The frequency multiplier is widely used, for example, if frequency multiplier used to the transmitter, it make the main oscillator oscillating in lower frequency ,so improving the frequency stability.
Frequency multiplier can used in Frequency modulation devices to increase frequency offset.
In the phase key communication machine, the frequency multiplier is an important component of the carrier recovery circuit.
Specifications:
Power supply voltage: no power supply, the use of passive frequency devices.
Input frequency: 4.0-8GHz input, frequency range 8.0--16.0 GHz.
Input power: +10dBm~+15dBm, typical +13dBm input.
Frequency loss: 17dB
Separation degree: 42dB (1F0, 3F0, 4F0)

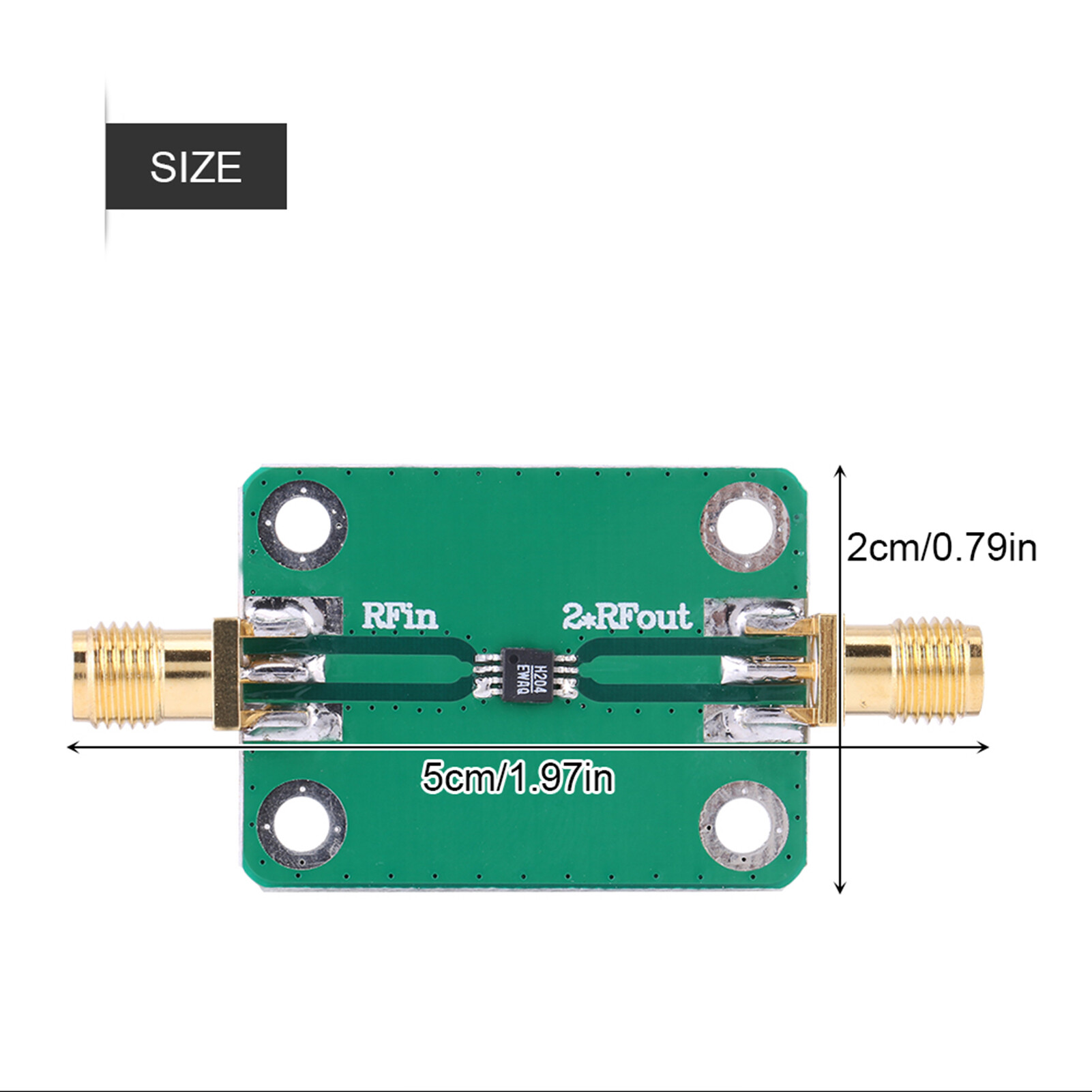

Size: 5 x 2cm/1.97 x 0.79inch
Weight:6g
Package included:
1 x Frequency Multiplier
