Professional pH-006 Pen-Type pH Meter with Automatic Temperature Compensation Portable Water Quality Analysis Tool

Specifications:

• Model:pH-006

• Test item :PH

• Type: Portable Water Analyzer

• Range: 0.00 to 14.00 pH

• Resolution: 0.01pH

• Accuracy: ±0.03pH

• Operating Temperature: 0°C to 50°C (32°F to 122°F)

• Temperature Compensation: 0°C to 50°C (32°F to 122°F)

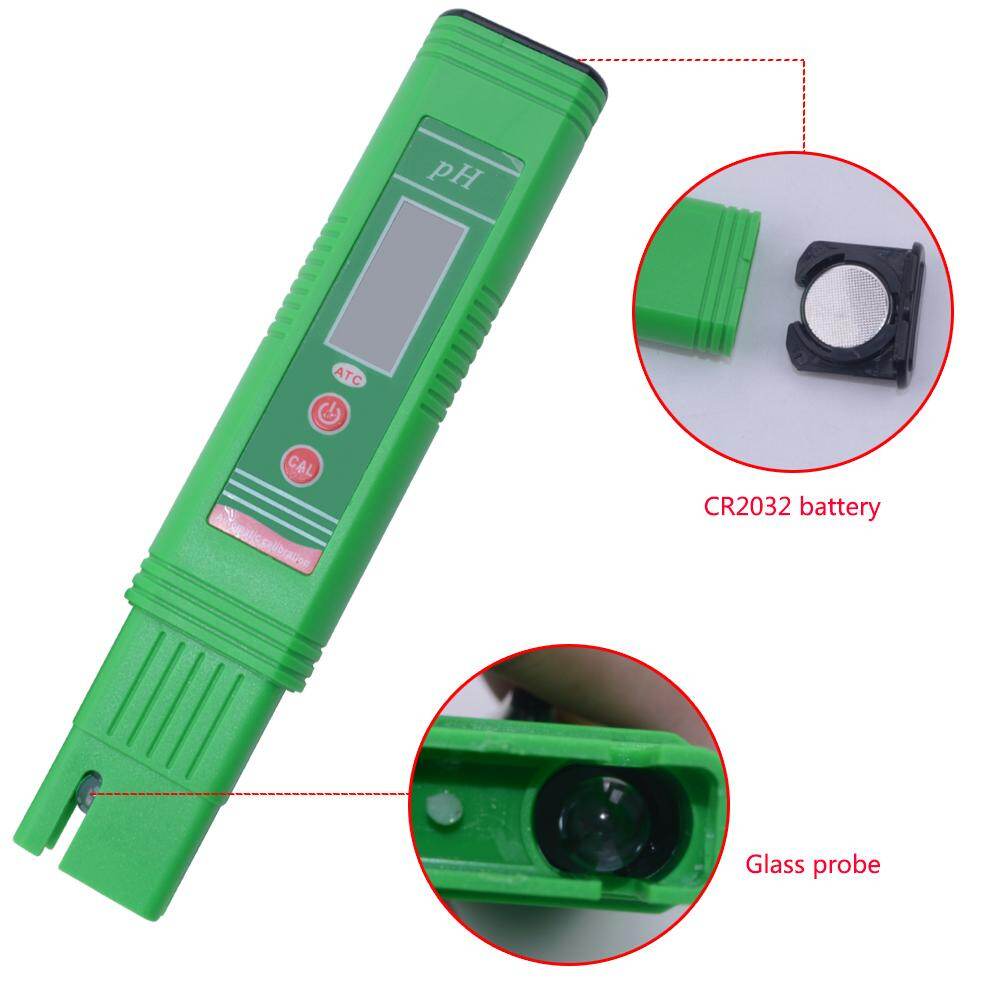

• Battery: 1×3V (CR2032) Button Cell Battery (NOT Included)

• Material: ABS

Note:

• Long press 2 seconds the button to switch power.

• pH-006I can automatically identify standard buffer solution of pH4.00、pH9.18 and pH6.86.



Operation

• Remove the protective cap;
• Clean the electrode with distilled water, and dry up the water attached to the electrode with filter paper.
• Press the Φ to switch power;
• insert the instrument into the test solution, with the measuring electrode immersed in;
• stir gently to get stable numerical result. Clean the electrode after using, then turnoff the switch , and put on the protective case

Calibration:

1. Prepare the stadard PH solution ( PH6.86, PH4.00, PH9.18) of 25°C in three different beakers

2. press Φ key to turn on the power.

3.Dip the merer into standard 6.86 PH solution, then stir gently until the value is stable, and ling press the CAL key for about 5 seconds.

4.When the screen display the"6.86" to enter the PH6.86 calibration  mode. ( the meter can automatically identify the PH 4.00, PH9.18, PH6.86). While the display value become the same as 6.86, then the PH 6.86 Calibration is completed.

5. Clean the electrode . then dip the meter into the standard 4.00 PH solution, aand when the value is stable, press the CAL for 5 seconds, when the scree disply "4.00" r, then it will enter to the 4.00 calibration mode. when the display value is 4.00, then the 4.00 calibration is completed.

6.Clean the electrode . then dip the meter into the standard 9.18 PH solution, aand when the value is stable, press the CAL for 5 seconds, when the scree display "9.18" , then it will enter to the 9.18 calibration mode. when the display value is 9.18, then the 9.18 calibration is completed.

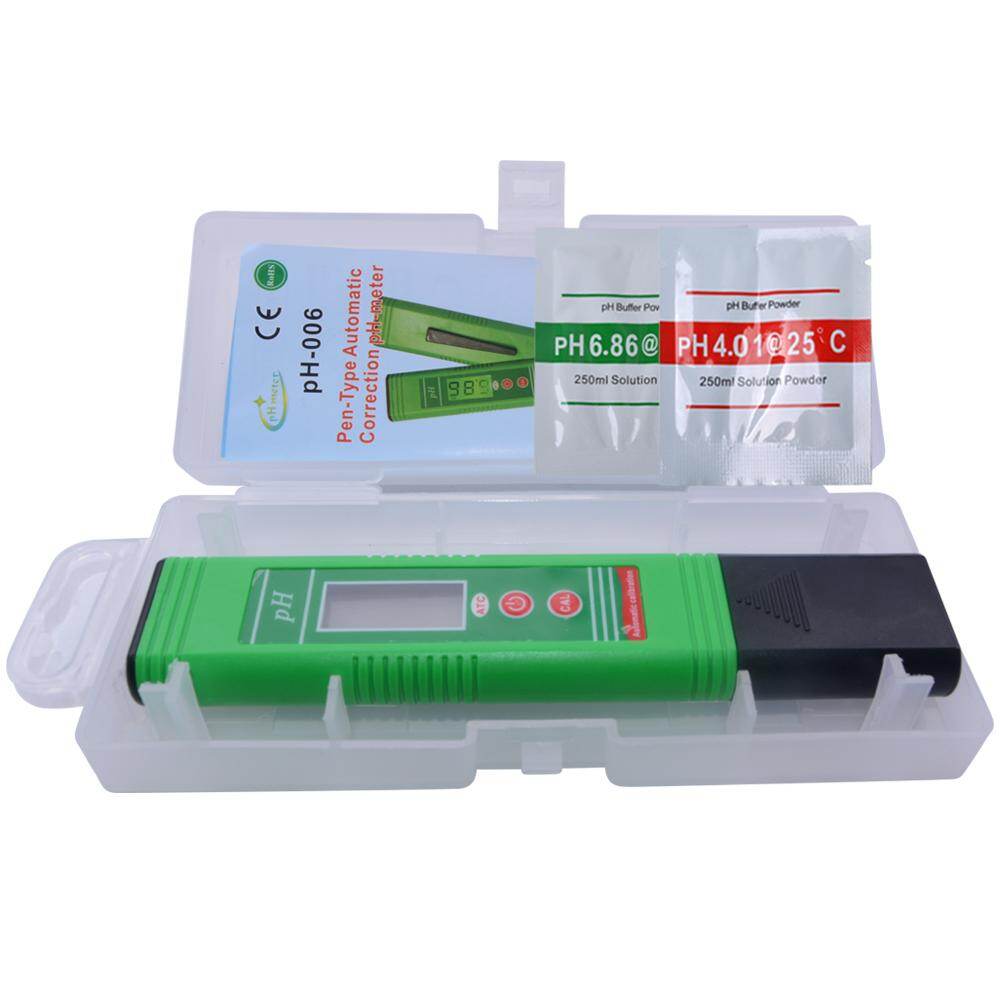

Package list:

• 1 x PH Meter

• 1 x English Instruction Manual
